The Storz coupling is the symmetrical quick connect the fire service uses to join hose and equipment fast and securely.
Product Overview
What This Hose Is Built To Do
The Storz coupling is the symmetrical quick connect the fire service uses to join hose and equipment fast and securely. Because both halves are identical there is no male or female to sort out under pressure. Ours are made to DIN14301 and DIN14303 in aluminium, brass or stainless steel, cast or forged, in 1 to 8 inch (DN25 to DN200).
Key Benefits
- Symmetrical design means any two couplings connect, with no male and female to match
- Made to DIN14301 and DIN14303 for interoperability with standard fire equipment
- Three material options covering general fire service through to corrosive environments
- Anodised surface on the aluminium version for outdoor storage life
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Material | Aluminum, brass, stainless steel |
|---|---|
| Standard | DIN14301 and DIN14303 |
| Size | 1-8 inch (DN25-DN200) |
| Manufacturing Process | Casting or forging |
Problems It Solves
Why Buyers Move To This Product
- Time lost sorting male and female ends during an incident
- Non-standard couplings that will not connect to mutual aid equipment
- Corrosion on couplings stored on an appliance for years between uses
Who It Is For
- Municipal and volunteer fire brigades
- Industrial fire services
- Fire equipment distributors and resellers
- Agricultural and industrial users on Storz systems

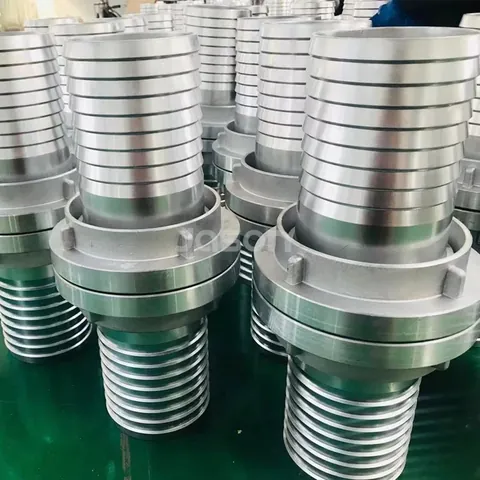

Photographs
The Product as It Ships
Technical Features
- High pressure resistance
- Anticorrosion
- Surface anodization
Application Scenarios
- Fire fighting
- Agriculture
- Industrial
Manufacturing and Quality
How It Is Made and Checked
Casting or forging. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Align the lugs and turn to engage until the coupling seats fully
- Check the gasket before every deployment, since it is the only seal
- Keep the sealing face clear of grit
- Rinse after salt water or contaminated water use
- Store with blank caps fitted
Comparison
How It Compares With Our Other Products
| Storz Self Locking Coupling | The self-locking version adds a built-in locking mechanism and goes up to 14 inch, where this standard range covers 1 to 8 inch |
|---|---|
| Camlock Coupling | Camlock is the general industrial male and female standard, where Storz is the symmetrical fire service standard |
Related Case Studies
Related Products
Other Products in the Hose Coupling Range
Multilug Coupling
The multilug coupling is a large bore aluminium coupling made in 6 to 12 inch (DN150 to DN300), used across firefighting, oil and gas, agriculture and industry.
View specifications
Storz Self-loking Coupling
The Storz self-locking coupling is a fire hose connection with a built-in locking mechanism, so no separate locking device or tool is needed to make a secure joint.
View specifications
Quick VIC Coupling
Quick VIC couplings and clamps connect hose across fire protection, industrial and commercial systems.
View specificationsFAQ
Questions About the Storz Coupling
Which standards do you follow
DIN14301 and DIN14303.
What materials do you offer
Aluminium, brass and stainless steel.
What sizes do you make
1 to 8 inch (DN25 to DN200).
Why is the Storz design symmetrical
Both halves are identical, so any two couplings connect without matching a male end to a female end.
Do you make a self-locking version
Yes. The Storz self-locking coupling covers 4 to 14 inch with a built-in locking mechanism.
Can you supply fire hose already fitted with Storz couplings
Yes. Hose and couplings are both made in our plant and supplied as complete assemblies.
Request a Quote on the Storz Coupling
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
