Multilug Coupling
The multilug coupling is a large bore aluminium coupling made in 6 to 12 inch (DN150 to DN300), used across firefighting, oil and gas, agriculture and industry.
Product Overview
What This Hose Is Built To Do
The multilug coupling is a large bore aluminium coupling made in 6 to 12 inch (DN150 to DN300), used across firefighting, oil and gas, agriculture and industry. Multiple lugs spread the clamping load around the hose instead of concentrating it, which is what keeps a large diameter joint sealed under pressure. It is cast or forged and anodised.
Key Benefits
- Multiple lugs distribute clamp load around a large bore so the seal stays even
- Anodised aluminium for corrosion resistance across water, fuel and agricultural duty
- 6 to 12 inch range matches our large bore layflat and discharge hose
- Straightforward to operate without special tools
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Material | Aluminum |
|---|---|
| Size | 6-12 inch (DN150-DN300) |
| Manufacturing Process | Casting or forging |
Problems It Solves
Why Buyers Move To This Product
- Large diameter joints leaking because clamping load is uneven
- Corrosion on couplings used in mixed water, fuel and fertiliser service
- Field connections that need tools nobody has on site
Who It Is For
- Fire services running large diameter supply lines
- Oil and gas water transfer contractors
- Agricultural irrigation operators
- Industrial plants with large bore transfer lines

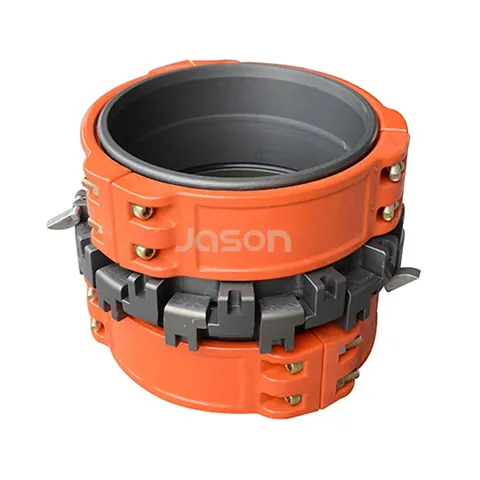

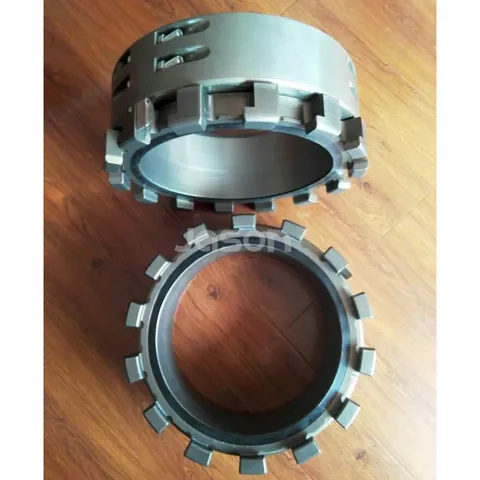

Photographs
The Product as It Ships
Technical Features
- High pressure resistance
- Corrosion resistance
- Surface anodization
- Safety
- Easy to operate
Application Scenarios
- Fire fighting
- Oil and gas
- Agriculture
- Industrial
Manufacturing and Quality
How It Is Made and Checked
Casting or forging. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Tighten lugs evenly in sequence rather than one at a time
- Check the hose is fully seated before final tightening
- Inspect the anodising where lugs bear on the body
- Keep sealing faces clean
- Re-check lug tightness after the first pressurisation
Comparison
How It Compares With Our Other Products
| Quick VIC Coupling | Quick VIC runs 4 to 16 inch and is our usual recommendation for TPU layflat hose in oil and gas |
|---|---|
| Storz Coupling | Storz is the symmetrical fire service standard to DIN14301 and DIN14303, where multilug is the general purpose large bore clamp |
Related Products
Other Products in the Hose Coupling Range
Storz Self-loking Coupling
The Storz self-locking coupling is a fire hose connection with a built-in locking mechanism, so no separate locking device or tool is needed to make a secure joint.
View specifications
Quick VIC Coupling
Quick VIC couplings and clamps connect hose across fire protection, industrial and commercial systems.
View specifications
Bauer Coupling
The Bauer coupling is a quick release coupling for agriculture and industry, cast in galvanised or stainless steel and made in 2 inch to 12 inch.
View specificationsFAQ
Questions About the Multilug Coupling
What sizes do you make
6 to 12 inch (DN150 to DN300).
What material is used
Aluminium, cast or forged, with surface anodisation.
Which industries use it
Fire fighting, oil and gas, agriculture and industrial applications.
Can it be fitted to your layflat hose
Yes. The size range matches our large bore layflat and discharge hose.
Is it suitable for high pressure lines
Yes. High pressure resistance is one of its specified features.
Do you supply complete hose assemblies
Yes. We manufacture both hose and couplings, so assemblies ship complete.
Request a Quote on the Multilug Coupling
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
