Hose Coupling
Storz Self-loking Coupling
The Storz self-locking coupling is a fire hose connection with a built-in locking mechanism, so no separate locking device or tool is needed to make a secure joint.
Product Overview
What This Hose Is Built To Do
The Storz self-locking coupling is a fire hose connection with a built-in locking mechanism, so no separate locking device or tool is needed to make a secure joint. It is made to DIN14301 and DIN14303 in aluminium, cast or forged and anodised, from 4 to 14 inch (DN100 to DN350). For large diameter fire and industrial lines, the self-locking action is a safety feature as much as a convenience.
Key Benefits
- Self-locking mechanism removes the need for a separate locking device or tool
- Made to DIN14301 and DIN14303, so it interoperates with standard Storz equipment
- 4 to 14 inch range covers large diameter supply lines other Storz ranges do not reach
- Anodised aluminium for corrosion resistance in outdoor service
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Material | Aluminum |
|---|---|
| Standard | DIN14301 and DIN14303 |
| Size | 4-14 inch (DN100-DN350) |
| Manufacturing Process | Casting or forging |
Problems It Solves
Why Buyers Move To This Product
- Large diameter Storz joints working loose under pressure surge
- Crews needing tools to lock a connection during a time-critical set-up
- Corrosion on couplings stored outdoors between incidents
Who It Is For
- Fire services running large diameter Storz systems
- Industrial fire brigades
- Agricultural operators using Storz fittings
- Fire equipment distributors

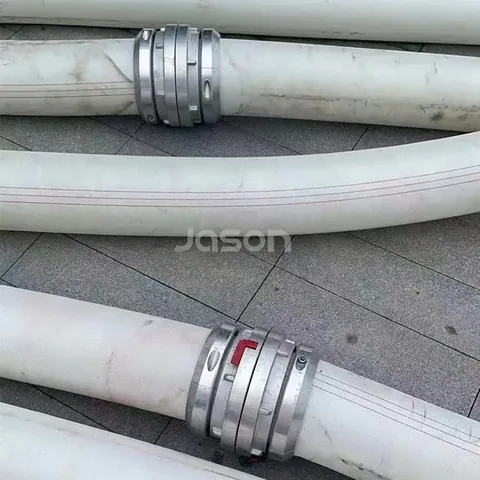

Photographs
The Product as It Ships
Technical Features
- High pressure resistance
- Anticorrosion
- Surface anodization
- Safety
- Easy to use
Application Scenarios
- Fire fighting
- Agriculture
- Industrial
Manufacturing and Quality
How It Is Made and Checked
Casting or forging. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Confirm the locking mechanism has engaged before charging the line
- Keep the sealing gasket clean and check it for cuts
- Align both halves squarely before turning to engage
- Rinse after use on dirty or salt water
- Store with caps fitted so the sealing face stays clean
Comparison
How It Compares With Our Other Products
| Storz Coupling | The standard Storz range covers 1 to 8 inch in aluminium, brass or stainless, where this adds the self-locking mechanism and goes to 14 inch |
|---|---|
| Multilug Coupling | Multilug is a general purpose large bore clamp, where this follows the DIN Storz standard for fire service interoperability |
Related Case Studies
Related Products
Other Products in the Hose Coupling Range
Multilug Coupling
The multilug coupling is a large bore aluminium coupling made in 6 to 12 inch (DN150 to DN300), used across firefighting, oil and gas, agriculture and industry.
View specifications
Quick VIC Coupling
Quick VIC couplings and clamps connect hose across fire protection, industrial and commercial systems.
View specifications
Bauer Coupling
The Bauer coupling is a quick release coupling for agriculture and industry, cast in galvanised or stainless steel and made in 2 inch to 12 inch.
View specificationsFAQ
Questions About the Storz Self-loking Coupling
Which standards does it follow
DIN14301 and DIN14303.
What sizes do you make
4 to 14 inch (DN100 to DN350).
What does self-locking mean in practice
The locking mechanism is built into the coupling, so no separate locking device or tool is needed to assemble or disassemble it.
What material is it
Aluminium, cast or forged, with surface anodisation.
Will it connect to standard Storz fittings
It is made to the DIN Storz standards, so it is designed to interoperate with equipment built to the same standards.
Which industries use it
Fire fighting, agriculture and industrial applications.
Request a Quote on the Storz Self-loking Coupling
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
