8 Inch Discharge hose
The 8 inch discharge hose is a DN200 PVC layflat hose used to transfer large volumes of water and other liquids on industrial sites, construction sites and farms.
Product Overview
What This Hose Is Built To Do
The 8 inch discharge hose is a DN200 PVC layflat hose used to transfer large volumes of water and other liquids on industrial sites, construction sites and farms. At DN200 a 50 m roll is still a two-person lift, which is why this is the size most contractors standardise on for general water transfer. Colours are blue, red, black or orange, rated -20°C to 70°C.
Key Benefits
- The most portable size in the large bore range, so it gets used rather than left on the truck
- 50 m lengths reduce joints and the leaks that come with them
- Light weight and easy to store or transport between sites
- Abrasion resistant cover for routine ground contact
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality PVC |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Blue, red, black, orange or as required |
| Size | 8 inch(DN200) |
| Length | 20m (66ft), 50m (164ft) or as required |
| Temperature | -20°C(-4°F)-70°C(158 °F) |
Problems It Solves
Why Buyers Move To This Product
- Crews avoiding large bore hose because the rolls are too heavy to handle
- Leaks at frequent couplings on a run built from short lengths
- Yard space taken up by pipe that could be stored as flat rolls
Who It Is For
- General construction and groundworks contractors
- Irrigation and farm water transfer
- Municipal and civil engineering crews
- Equipment hire depots
Photographs

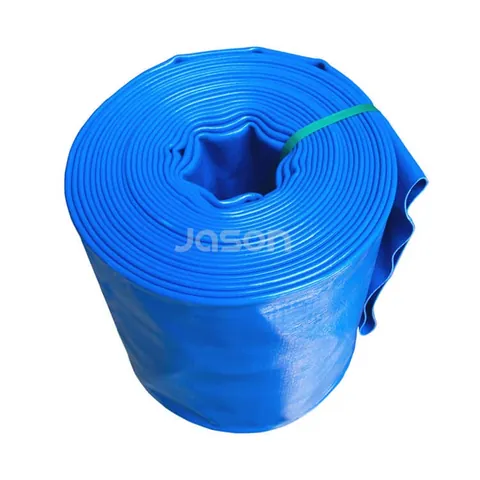

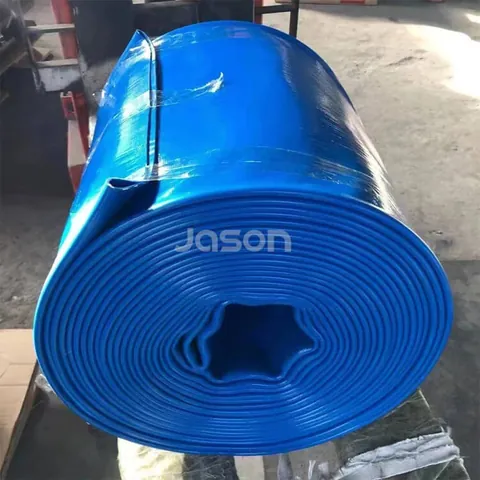

The Product as It Ships
Technical Features
- Light weight
- Cost-saving
- Easy to storage or transport
- Abrasion resistance
- Excellent flow rates
Application Scenarios
- Water discharge and supply in agricultural
- Construction
- Civil engineering and emergency
Manufacturing and Quality
How It Is Made and Checked
Production Process of PVC Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Keep the run straight where possible, since bends cost pressure
- Do not use on the suction side of a pump
- Check the cover for cuts each time the hose is recovered
- Dry before rolling to stop mildew in long storage
- Label rolls with length so a run can be built without measuring
Comparison
How It Compares With Our Other Products
| 8 Inch Layflat Hose | The TPU version handles higher pressure and comes in 200 m lengths, where this PVC hose is the lower cost water transfer option |
|---|---|
| Layflat Discharge Hose | The general layflat discharge hose covers 6 to 20 inch, where this is that hose fixed at DN200 |
Related Products
Other Products in the PVC Layflat Hose Range
12 Inch Discharge Hose
The 12 inch discharge hose is a DN300 PVC coated layflat hose for transferring high volumes of water quickly.
View specifications
10 Inch Discharge Hose
The 10 inch discharge hose is a heavy duty DN250 PVC layflat hose for transferring large volumes of water on industrial, construction and agricultural sites.
View specifications
Layflat Discharge Hose
Layflat discharge hose is our general purpose PVC delivery hose, made from 6 inch to 20 inch for water discharge and supply in agriculture, construction and civil engineering.
View specificationsFAQ
Questions About the 8 Inch Discharge hose
What is the bore size
DN200.
What lengths do you make
20 m (66 ft) and 50 m (164 ft), or as required.
Can this hose carry liquids other than water
It is specified for water discharge and supply. Send the fluid details and we will confirm whether PVC or TPU is right.
What is the reinforcement

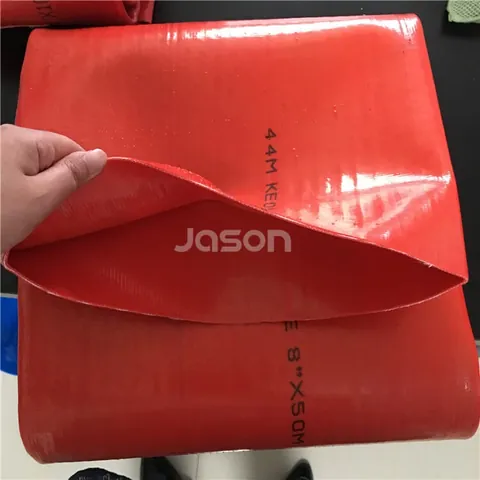

High tenacity synthetic yarn between the PVC cover and liner.
How is it packed for export
Rolled and packed to the ordered length, with packing confirmed with your forwarder.
What is the minimum order
It depends on size and colour. Send your requirement on WhatsApp and we will confirm.
Request a Quote on the 8 Inch Discharge hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
