12 Inch Discharge Hose
The 12 inch discharge hose is a DN300 PVC coated layflat hose for transferring high volumes of water quickly.
Product Overview
What This Hose Is Built To Do
The 12 inch discharge hose is a DN300 PVC coated layflat hose for transferring high volumes of water quickly. The wide bore gives the flow rate irrigation, dewatering and emergency response need, and the layflat form means the same run can be recovered and moved to the next job in minutes. Lengths are 20 m and 50 m in blue, red, black or orange.
Key Benefits
- DN300 bore gives high flow at a cost per metre well below rigid pipe
- Recovers and redeploys fast, which suits contractors moving between jobs
- Abrasion resistant PVC cover for repeated ground contact
- 50 m lengths cut the number of couplings on a long run
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality PVC |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Blue, red, black, orange or as required |
| Size | 12 inch(DN300) |
| Length | 20m (66ft), 50m (164ft) or as required |
| Temperature | -20°C(-4°F)-70°C(158 °F) |
Problems It Solves
Why Buyers Move To This Product
- Irrigation and dewatering jobs where flow rate is the constraint
- Time lost recovering and re-laying rigid pipe between site positions
- Cover wear on hose that is dragged rather than carried
Who It Is For
- Agricultural irrigation contractors
- Construction dewatering crews
- Civil engineering projects moving bulk water
- Emergency response and flood teams

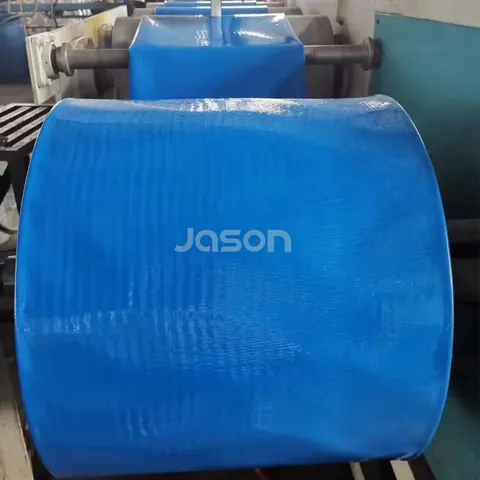

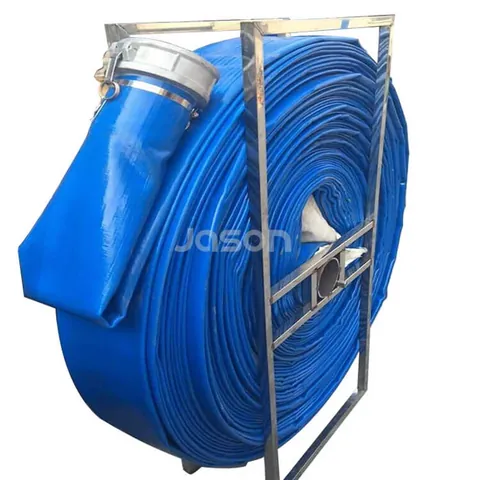

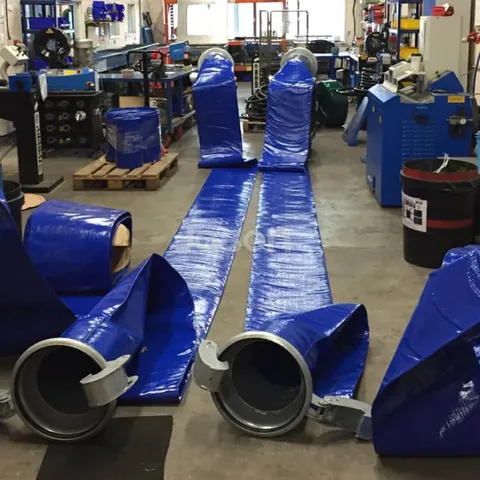

Photographs
The Product as It Ships
Technical Features
- Light weight
- Cost-saving
- Easy to storage or transport
- Abrasion resistance
- Excellent flow rates
Application Scenarios
- High volume of water discharge and supply in agricultural
- Construction
- Civil engineering and emergency
Manufacturing and Quality
How It Is Made and Checked
Production Process of PVC Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Use only on the discharge side of the pump
- Lay the hose along the straightest route available to hold flow
- Keep couplings clear of standing water so gaskets stay clean
- Flush before storage if the water carried silt
- Roll from the far end back toward the pump for a tidy recovery
Comparison
How It Compares With Our Other Products
| 12 Inch Layflat Hose | The TPU version handles higher pressure, oil and chemicals and comes in 200 m lengths, where this PVC hose is the economical choice for water |
|---|---|
| 12 Inch Suction Hose | This hose is discharge only, since a layflat wall collapses under vacuum. Pair it with the 12 inch suction hose on the inlet side |
Related Products
Other Products in the PVC Layflat Hose Range
10 Inch Discharge Hose
The 10 inch discharge hose is a heavy duty DN250 PVC layflat hose for transferring large volumes of water on industrial, construction and agricultural sites.
View specifications
8 Inch Discharge hose
The 8 inch discharge hose is a DN200 PVC layflat hose used to transfer large volumes of water and other liquids on industrial sites, construction sites and farms.
View specifications
Layflat Discharge Hose
Layflat discharge hose is our general purpose PVC delivery hose, made from 6 inch to 20 inch for water discharge and supply in agriculture, construction and civil engineering.
View specificationsFAQ
Questions About the 12 Inch Discharge Hose
What is the metric bore
DN300.
What lengths are available
20 m (66 ft) and 50 m (164 ft), or as required.
Can this hose be used on a pump inlet
No. Layflat hose collapses under vacuum, so use a suction hose on the inlet side.
What temperature range does it cover
-20°C (-4°F) to 70°C (158°F).
What is the reinforcement
High tenacity synthetic yarn encapsulated between the PVC cover and liner.
Do you offer OEM printing
Yes. OEM and ODM printing and colour are part of our standard service.
Request a Quote on the 12 Inch Discharge Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
