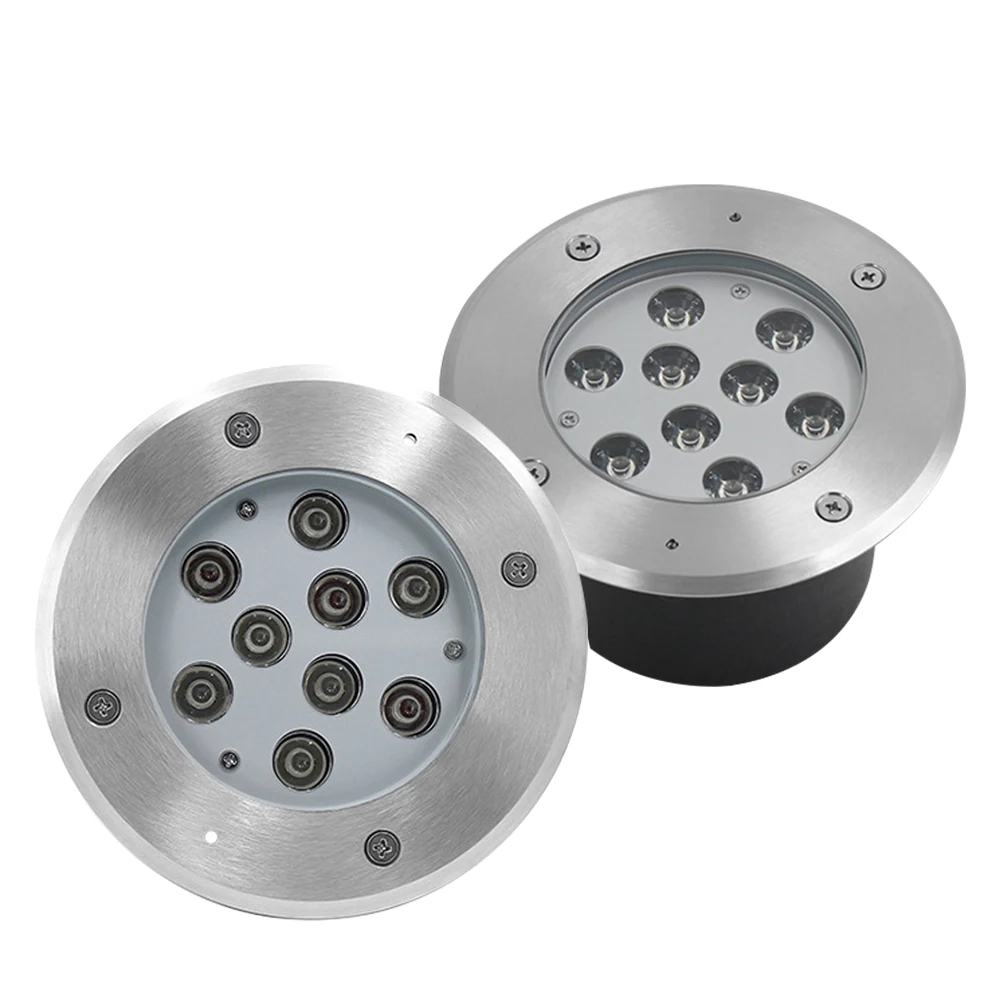

Stainless Steel 304 LED Underground Light
The FD-UG010R09 is a 9W recessed in-ground LED luminaire designed for architectural and landscape lighting where a durable, corrosion-resistant trim is needed in paved areas. The fixture features a stainless steel 304 cover over a compact body, rated IP67 for installation in locations that may flood during rain. It operates on DC24V or AC85-265V, allowing it to integrate with both low-voltage and mains-fed systems. The unit includes a black underground box for burial and is available with or without a driver to match site wiring strategies.
| Model | FD-UG010R09 |
|---|---|
| Power | 9W |
| Input Voltage | DC24V/AC85-265V |
| IP Rating | IP67 |
| Dimension | D160 x H90 mm |
| Material | Stainless steel 304 |
| LED Chip | CREE |
| Driver | Included or without |

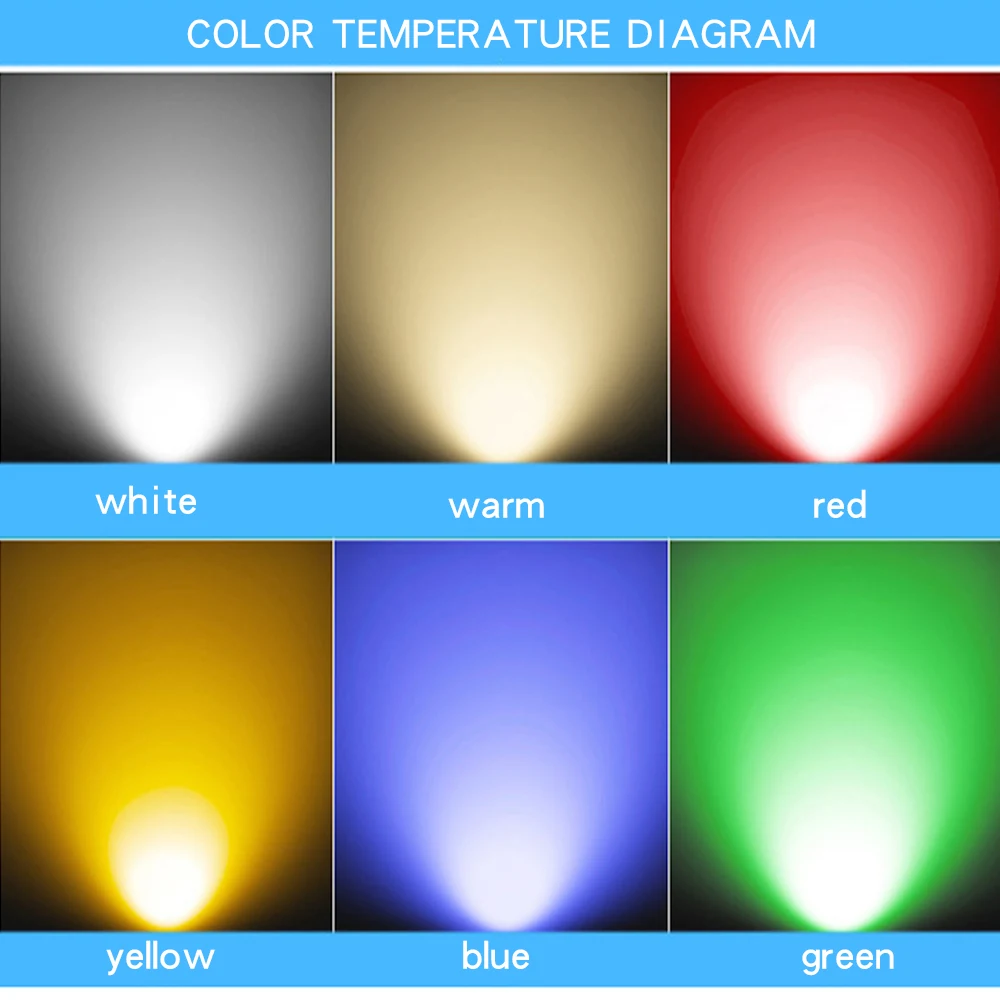

| Colour Temperature | 2800-6500K/RGB |
| Control System | ON/OFF |
| Warranty | 3 Years |
Key Benefits
- Stainless steel 304 cover resists corrosion in wet, salted or frequently washed paving
- IP67 rating ensures performance in recessed positions subject to standing water
- DC24V or AC85-265V input supports integration with both low-voltage and mains systems
- Available with or without driver to match centralised or distributed control systems
- Compact D160 x H90 mm size fits in tight spaces and small cut-out holes
- CREE LED chip ensures consistent output and long life in outdoor conditions
Application Scenarios
- Marking pedestrian pathways and courtyard edges in urban and residential developments
- Highlighting architectural details on building facades from paved ground level
- Lighting garden beds, tree trunks, and landscape features in public parks
- Installing in high-traffic paved areas where trim durability is critical
- Using in coastal or urban environments with frequent washing and salt exposure
Who It Is For
- Facade and landscape lighting contractors installing recessed fixtures in hardscape
- Lighting designers specifying durable trims for paved installations
- Electrical wholesalers supplying architectural lighting projects in Europe and the Middle East
- Brand owners sourcing OEM in-ground luminaires under their own label
Problems It Solves
- Painted or plated trims corrode in wet or salted paving environments
- Non-IP67 fixtures fail when installed in recessed positions that flood after rain
- Projects requiring both 24V and mains systems need two different fixture types
- Driver mismatch causes delays when centralised drivers are used on site
- Small cut-out holes are not supported by bulky or oversized fixtures
Technical Features
- Stainless steel 304 cover for the walked-on surface
- IP67 sealing for recessed positions subject to temporary immersion
- DC24V or AC85-265V input to suit both low-voltage and mains systems
- CREE LED chip for consistent light output and long life
- Available with or without driver to match site control strategy

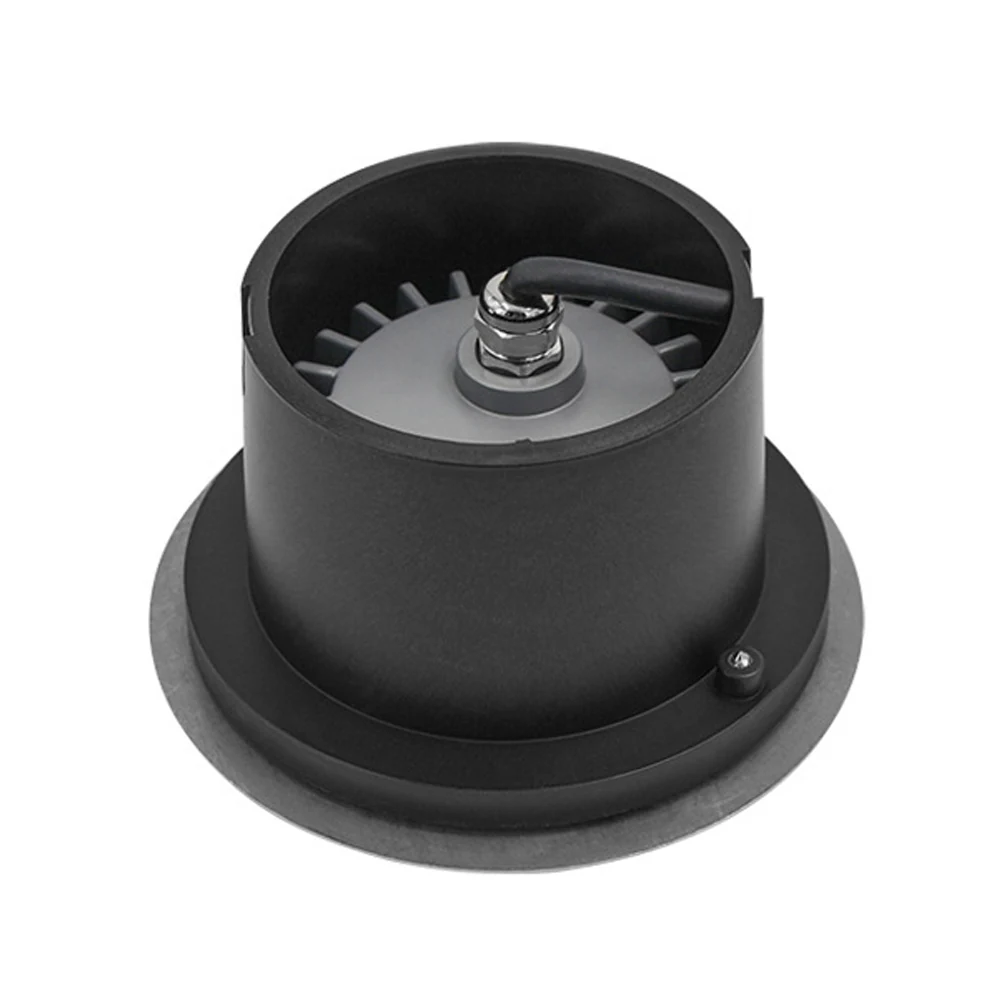

- Black underground box included for burial and cable management
Materials
- Stainless steel 304 cover for the walked-on surface
- Aluminium body for heat dissipation
- Black underground box for burial and cable routing
- Tempered glass lens over the LED array
Manufacturing Process
- Stainless steel 304 cover forming and finishing
- Aluminium body machining and surface treatment
- LED board assembly with CREE packages
- Sealing and gasket fitting to achieve IP67
- Driver integration or omission based on order
- Ageing and lighting test before packing
Quality Control
- Incoming inspection of CREE LED packages and drivers
- IP67 sealing check before fixture closure
- Powered ageing run before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied with or without driver to match the site's control strategy
- AC85-265V or DC24V input version
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Aluminium-trim in-ground light
Stainless steel 304 cover resists corrosion better in wet or salted paving
Surface-mounted spike light
Flush installation avoids trip hazards and damage from foot traffic
Fixed-optic in-ground light
No need to pre-set beam angle; aiming can be adjusted after installation
Use Guide

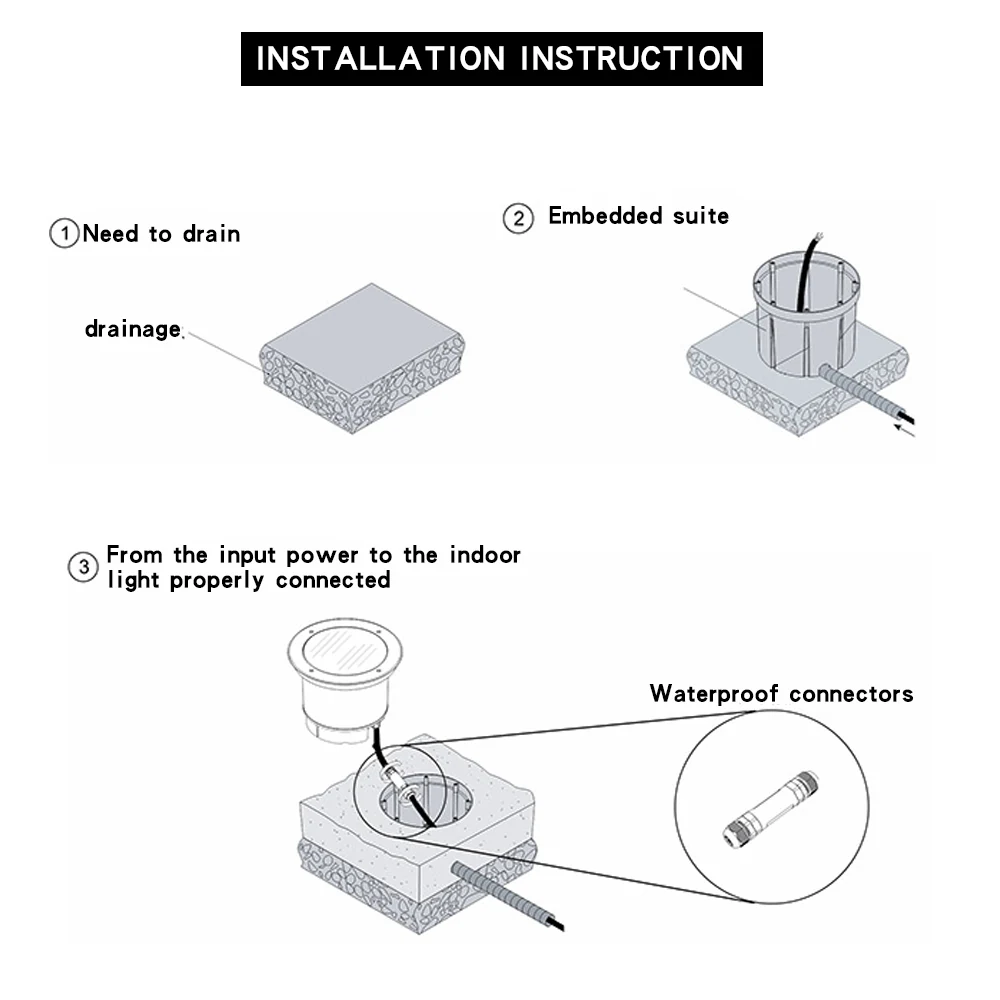

- Cast or core a D150 mm hole and provide drainage below the fixture before backfilling

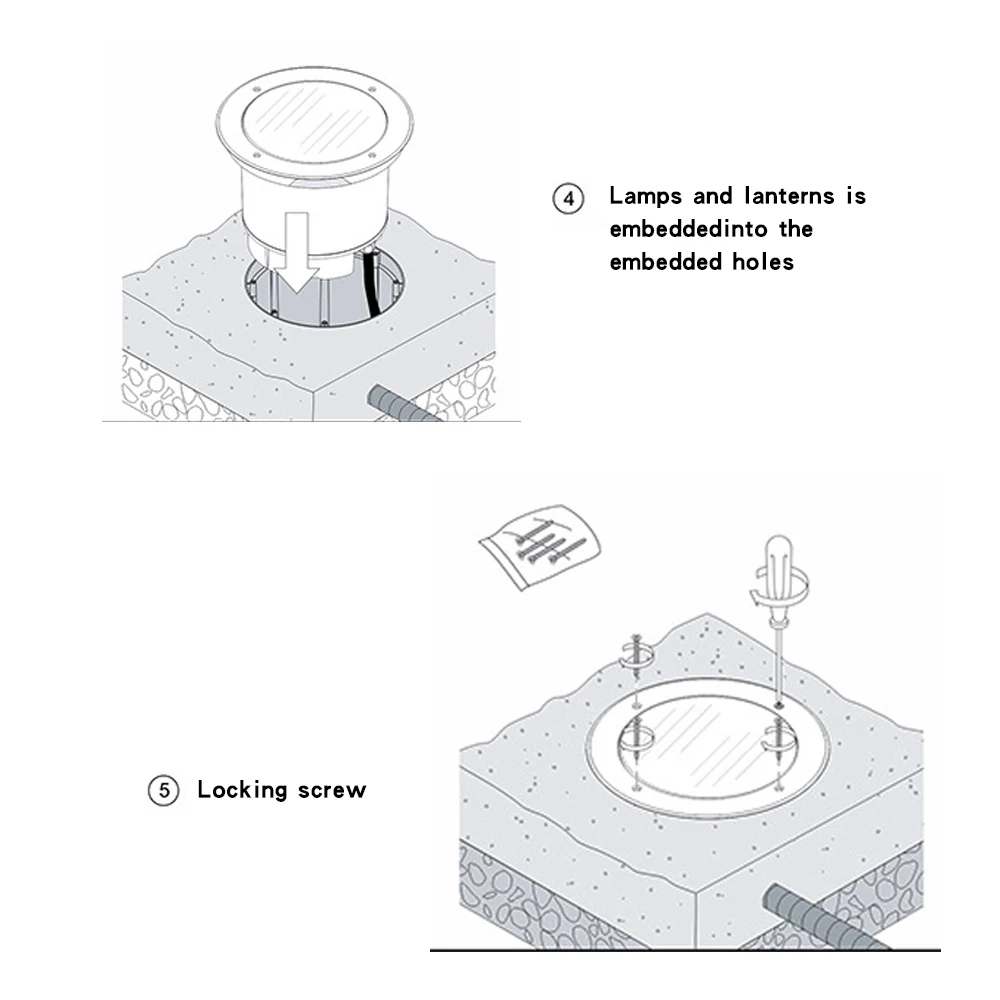

- Set the fixture in the underground box and ensure the cover is flush with the finished paving level
- For DC24V runs, size the cable for voltage drop over the full circuit length
- Use the ON/OFF system as specified; no dimming or control functions are included
- Clean the glass during routine paving maintenance to maintain output consistency
Stainless Steel 304 LED Underground Light Questions
What is the cut-out size for this underground light?
The fixture requires a D150 mm hole, with the D160 x H90 mm body fitting into the pot.
Can it run on 24V or mains voltage?
Yes. The model supports both DC24V and AC85-265V input, so it can follow either system.
Is the driver included?
It can be supplied with or without a driver. Fixtures are available with the driver fitted or without when centralised drivers are used.
Is IP67 sufficient for flooded paving?
Yes. IP67 covers temporary immersion, which applies to recessed fixtures in paving after rain. For permanent submersion, use an underwater luminaire.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can we order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
