12W Wall Lighting Outdoor LED Point Light
The FD-PL080X16 is a 16W outdoor LED point light designed for architectural facade and landscape lighting projects. It features a compact aluminium body with an IP65 rating, suitable for wall-mounted installation in exposed outdoor environments. The fixture operates on AC85-265V and uses CREE LED chips for consistent light output. It is available with a built-in driver and carries a 3-year warranty. The ON/OFF system allows simple integration into standard lighting circuits.
| Model | FD-PL080X16 |
|---|---|
| Power | 16W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |

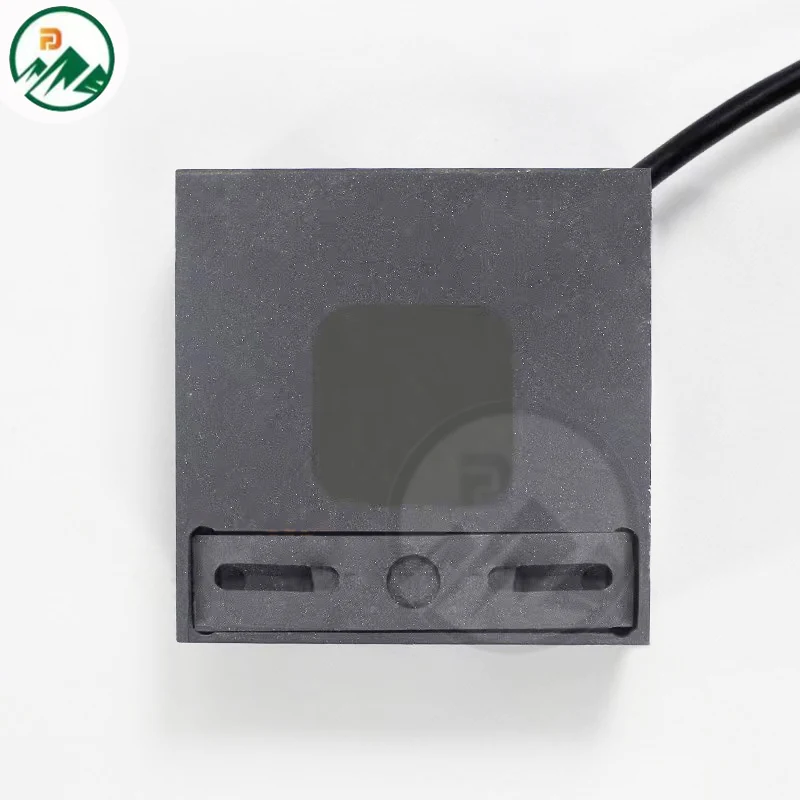

| Dimension | L100 x W100 x H60 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | Included |
| Control System | ON/OFF |
| Warranty | 3 Years |
Key Benefits
- Compact size fits tight spaces on facades and walls without bulk
- IP65 rating protects against dust and water jets, suitable for outdoor wall mounting
- AC85-265V input supports standard mains voltage across regions
- CREE LED chips deliver reliable lumen output with consistent colour
- Built-in driver simplifies installation, no need for separate driver enclosure
- 3-year warranty provides long-term reliability for project specifications

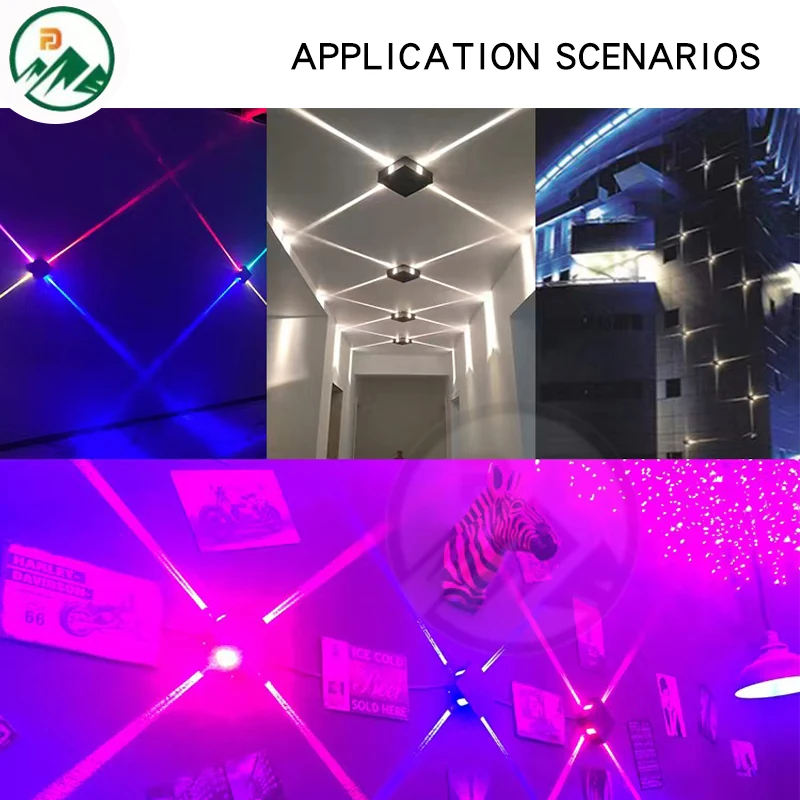

Application Scenarios
- Highlighting architectural details such as cornices, recessed panels, and wall textures on building facades
- Accent lighting on columns, archways, and structural elements in urban and commercial landscapes
- Low-level wall-mounted lighting in pedestrian zones and courtyard edges
- Outdoor lighting in residential and mixed-use developments with exposed wall fixtures
Who It Is For
- Facade and landscape lighting contractors installing point lights on exterior walls
- Lighting designers specifying compact, durable fixtures for architectural accenting
- Electrical wholesalers supplying outdoor LED lighting for European and Middle Eastern projects
- Brand owners sourcing OEM point lights under their own label with custom logo printing
Problems It Solves
- Small fixtures with poor protection fail in outdoor wall positions due to dust and rain ingress
- Separate driver boxes increase installation complexity and space requirements
- Inconsistent LED performance leads to uneven lighting in long-term facade schemes
- Lack of warranty support increases risk for project contractors and designers
Technical Features
- Compact aluminium body for heat dissipation and structural rigidity
- IP65 rating for protection against dust and water jets from any direction
- AC85-265V input voltage range for compatibility with standard mains supply
- CREE LED chip for stable light output and long operational life
- Built-in driver (DRIVE: DONE) simplifies wiring and reduces site components
- ON/OFF system for straightforward integration into standard lighting circuits
Materials
- Aluminium body for heat dissipation and durable outdoor performance
- Sealed housing with gaskets to maintain IP65 protection
- Internal driver components with heat-resistant insulation
Manufacturing Process
- Aluminium body die-casting and surface finishing
- LED board assembly with CREE chips and driver integration
- Sealing and gasket fitting to achieve IP65 rating
- Final power testing and ageing run before packing
- Inspection for cosmetic and functional defects prior to shipment
Quality Control
- Incoming inspection of CREE LED chips and driver components
- IP65 sealing verification using water spray test
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Built-in driver supplied as standard, but can be omitted if site uses central drivers
- OEM and ODM production available for buyers selling under their own brand
- Available in standard configuration with ON/OFF system
Compared With the Alternatives
Point light with external driver
Reduces site wiring complexity and enclosure space, but requires built-in driver integration
Plastic-bodied point light
Less durable in high-temperature or UV-exposed environments, but lower cost
IP67-rated point light
Higher protection level, but not required for standard wall-mounted outdoor use where water jets are the main exposure
Use Guide
- Mount the fixture on a clean, dry wall surface with appropriate fixings
- Ensure the mounting surface is flat and free from debris to maintain IP65 seal
- Connect to AC85-265V mains supply using correct wiring and circuit protection
- Do not operate the fixture in enclosed spaces without ventilation to prevent overheating
- Clean the lens periodically with a soft cloth to maintain light output
12W Wall Lighting Outdoor LED Point Light Questions
What is the power consumption of this point light?
The fixture consumes 16W of power, as specified in the product details.
Is the driver included in the fixture?
Yes. The driver is built-in (DRIVE: DONE), so no separate driver is needed for standard installations.
What is the IP rating and what does it mean?
The fixture has an IP65 rating, which means it is protected against dust and water jets from any direction.
Can I use this light on a 24V system?
No. This model is designed for AC85-265V input only. A DC24V version is not available in the provided facts.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty varies between 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, with shipping via DHL, UPS, FedEx, or TNT taking 3-5 days in transit.
