12W LED Glass Wall Light Guide Plate 12W Acrylic LED Linear Light
The FD-GP070L12 is a 12W linear wall-mounted luminaire designed for architectural facade applications using a light guide plate to distribute light evenly along a 1000mm length. The fixture uses 5050 SMD LEDs with RGB or RGBW colour control and is managed via DMX system, allowing dynamic colour changes in lighting schemes. It is built for indoor and protected outdoor use with an IP65 rating, and the housing is made from die-cast aluminium with a light guide plate to create a uniform, glare-free glow. The driver is not included, so it can be integrated into a central control system or supplied separately.
| Model | FD-GP070L12 |
|---|---|
| Power | 12W |
| Input Voltage | DC24V |
| IP Rating | IP65 |
| Dimension | W30 x H325 x L1000 mm |
| Material | Die-casting Aluminium+ Light Guide Plate |
| LED Chip | 5050 SMD |
| Driver | Not included |
| Colour Temperature | RGB/RGBW |
| Control System | DMX |
| Warranty | 3 Years |
Key Benefits

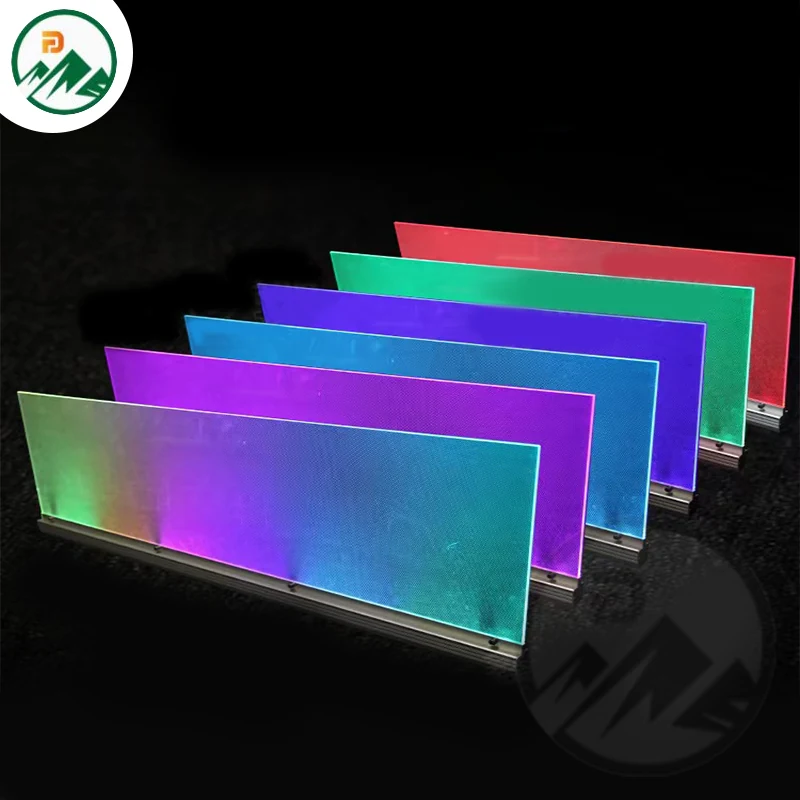

- Light guide plate creates even, uniform illumination without visible LED points
- DMX control enables dynamic colour and animation in facade lighting sequences
- RGB or RGBW colour options support colour-changing schemes for architectural features
- IP65 rating allows installation in protected outdoor areas exposed to rain and dust
- No driver included, so the fixture integrates with centralised control systems
- Die-cast aluminium body provides structural rigidity and heat dissipation
Application Scenarios
- Highlighting textured or patterned building facades with continuous linear light

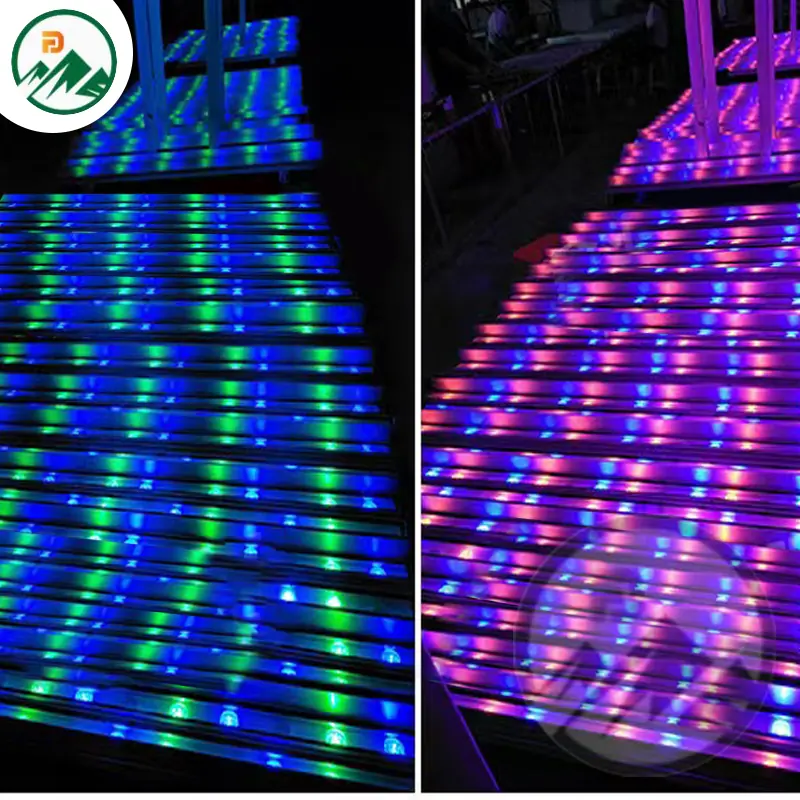

- Creating animated colour effects on commercial building fronts during events or holidays
- Lighting vertical surfaces in lobbies, corridors, or retail spaces with even, shadow-free illumination
- Integrating into DMX-controlled lighting systems for large-scale architectural projects
Who It Is For
- Facade and landscape lighting contractors installing linear lights on building exteriors
- Lighting designers specifying dynamic, colour-changing elements in architectural schemes
- Electrical wholesalers supplying linear LED fixtures for commercial and residential projects
- Brand owners sourcing OEM linear lights under their own label with custom control
Problems It Solves
- Fixed-point LED strips create visible hotspots and uneven brightness across a facade
- Non-uniform lighting from direct LED sources causes glare and visual discomfort
- Lack of DMX control limits the ability to change colour or animation in post-installation
- Inconsistent colour output when using multiple fixtures without a central control system
- Driver included in every fixture increases cost and complexity when centralised control is used
Technical Features
- 12W power with 5050 SMD LEDs for consistent light output
- RGB or RGBW colour temperature options for dynamic lighting
- DMX control system for remote, programmable colour and animation
- IP65 rating suitable for protected outdoor and indoor wet locations

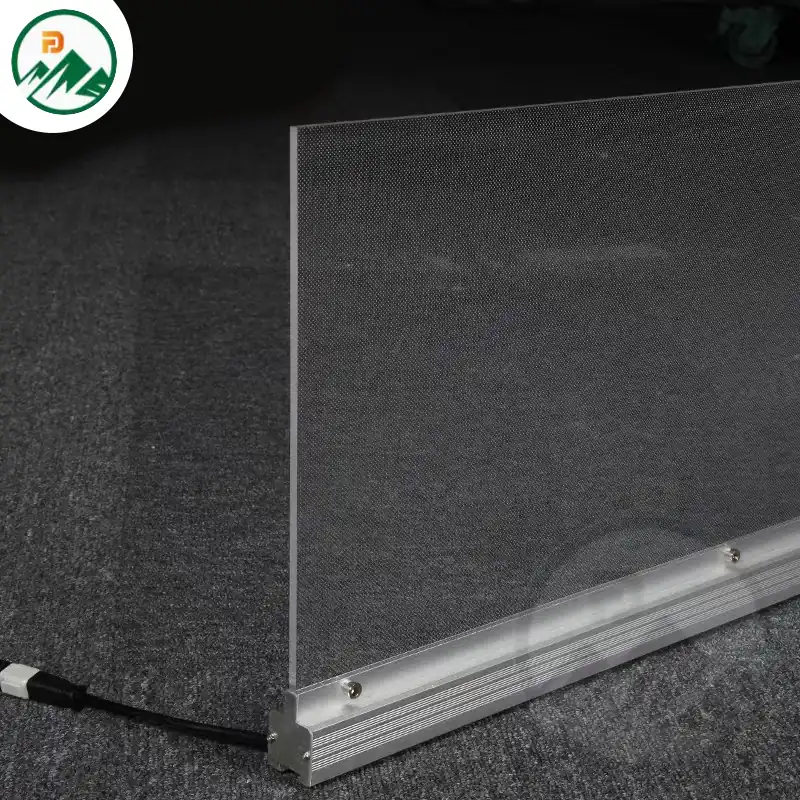

- Light guide plate for even, glare-free illumination across the full length
- Die-cast aluminium housing for durability and heat dissipation
- Driver not included, so the fixture can be used with centralised or site-supplied drivers
Materials

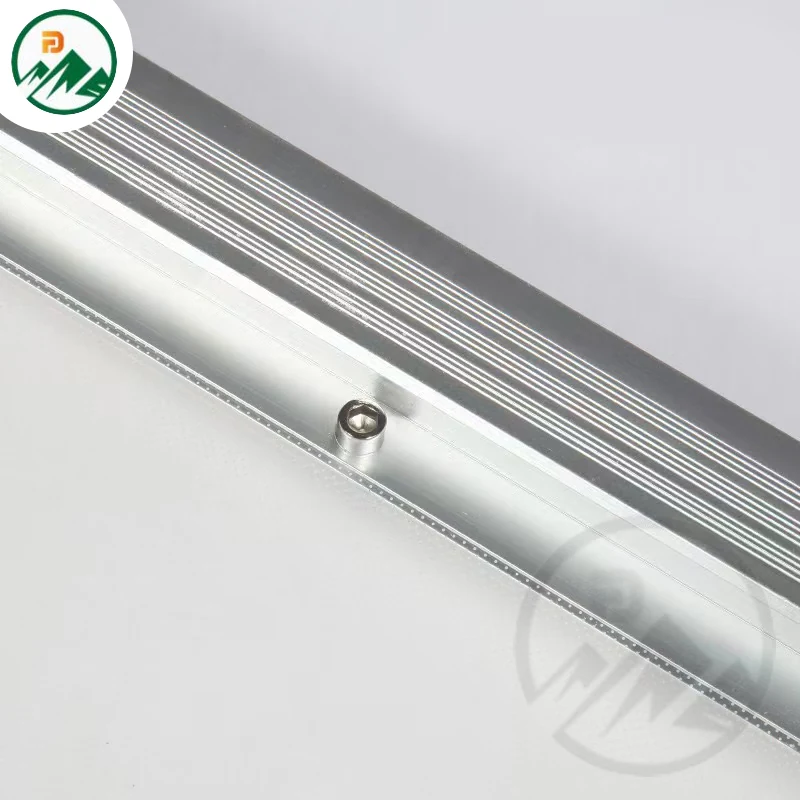

- Die-cast aluminium housing for structural strength and heat dissipation
- Light guide plate to spread light evenly across the 1000mm length
- 5050 SMD LEDs for consistent colour and output
Manufacturing Process
- Die-casting of aluminium housing and surface finishing
- Assembly of light guide plate and LED strips
- Integration of DMX control circuitry
- Sealing and IP65 testing of the housing
- Final inspection and powered testing before packing
Quality Control
- Incoming inspection of 5050 SMD LEDs and DMX components
- IP65 sealing test under pressure before final assembly
- Powered run and colour consistency check before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied or omitted based on project control strategy
- RGB or RGBW colour options available for dynamic lighting schemes
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Direct LED strip with no light guide
Creates visible hotspots and uneven brightness, while the guide plate offers uniform illumination
Fixture with built-in driver
Increases cost and complexity when centralised control is used; this model allows driver-free integration
Non-DMX controlled linear light
Limits colour and animation options; DMX enables dynamic, programmable lighting sequences
Use Guide
- Mount the fixture on a flat, stable surface with appropriate fasteners for the wall type
- Ensure the DMX control system is properly configured before powering the fixture
- Use DC24V power supply with sufficient current capacity for the total number of fixtures
- Keep the light guide plate clean to maintain even illumination and prevent dark spots
- Avoid direct exposure to high-pressure water jets, as IP65 is for protected outdoor use only
12W LED Glass Wall Light Guide Plate 12W Acrylic LED Linear Light Questions
What is the input voltage for this light?
The input voltage is DC24V, so it requires a 24V DC power supply.
Is the driver included?
No. The driver is not included, so it can be supplied separately or integrated into a central control system.
Can it be controlled with DMX?
Yes. The fixture is designed for DMX control, allowing remote programming of colour and animation.
What does IP65 mean for this fixture?
IP65 means the fixture is protected against dust and low-pressure water jets, suitable for protected outdoor or indoor wet locations.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
