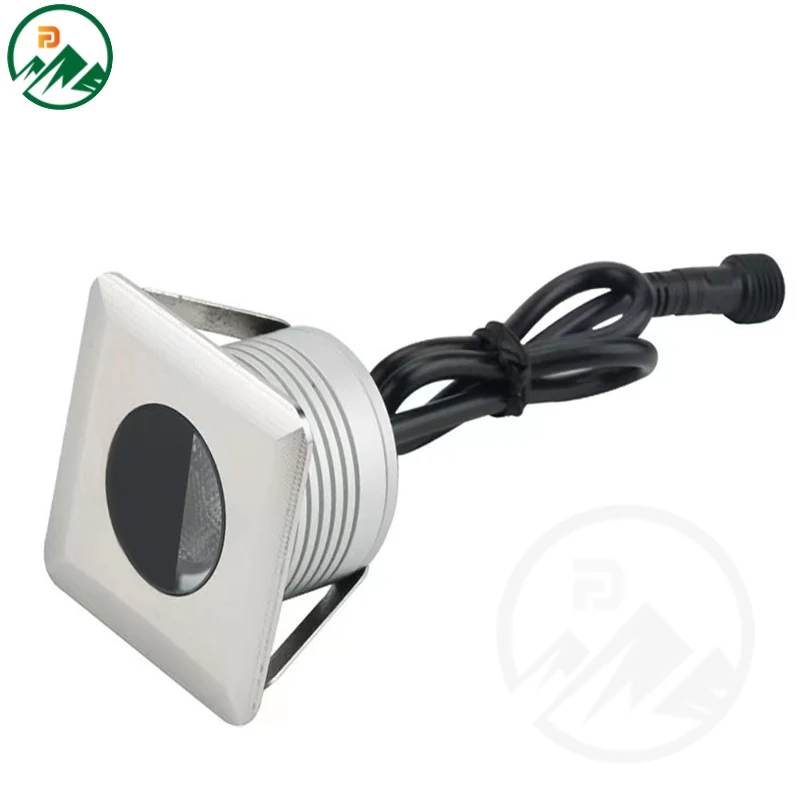

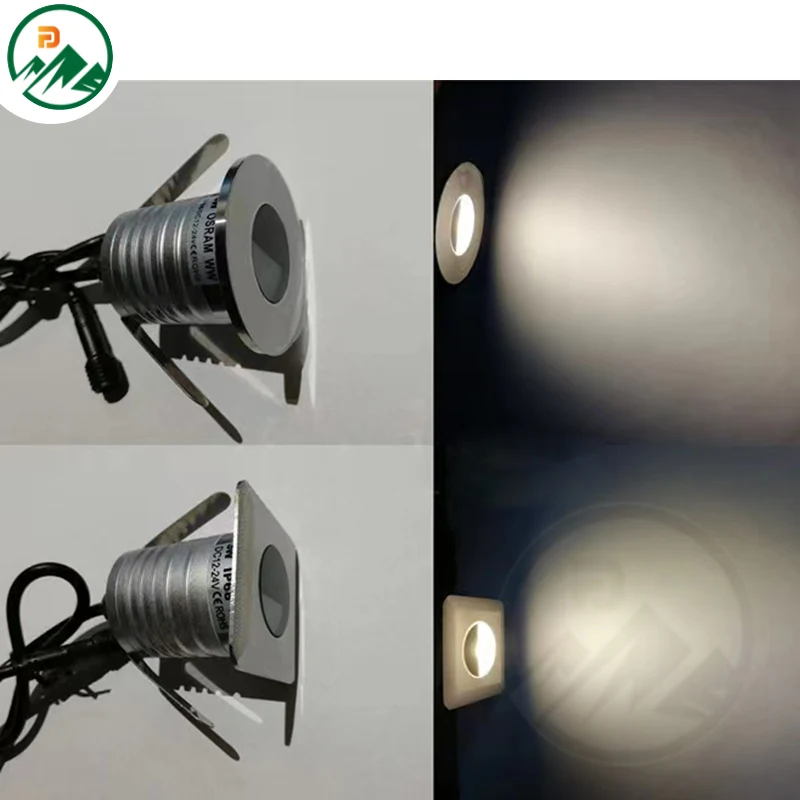

Side view of the square in-ground light showing W45 x H42 mm dimensions

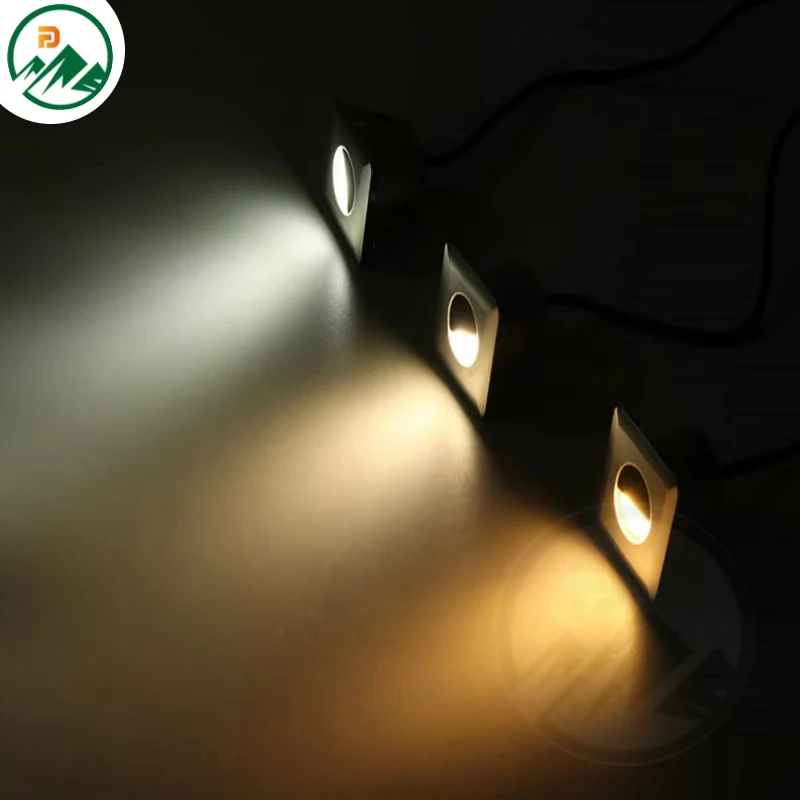

Fixture installed in a paved courtyard marking a pathway edge at night

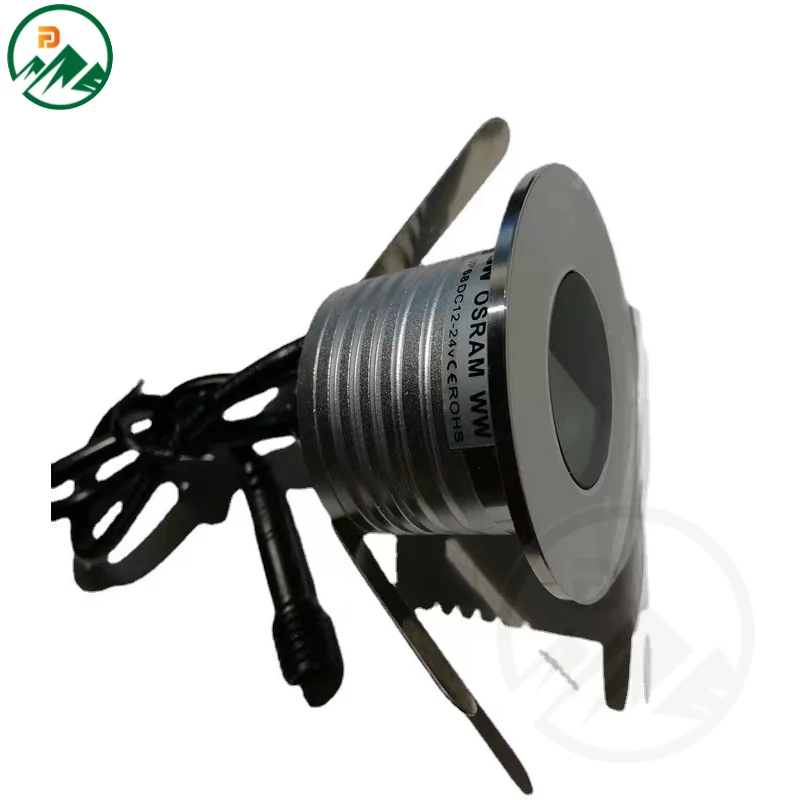

Close-up of the aluminium body and sealed joint on the half-mask in-ground light

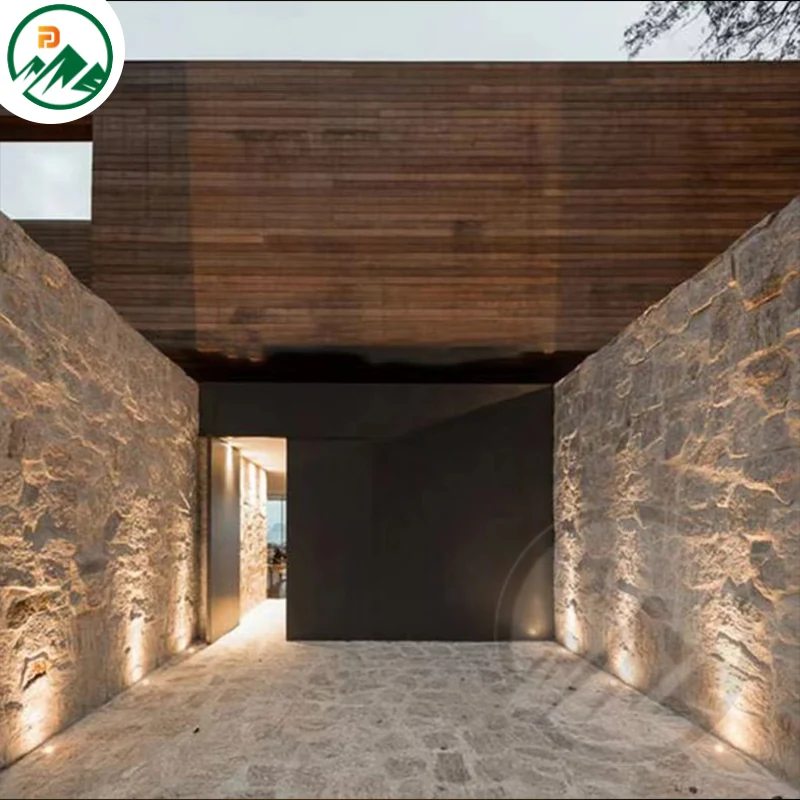

Facade Lighting Project

Square Shape Half Mask LED Underground Light

The FD-U140R03 is a 3W square-shaped half-mask in-ground LED luminaire designed for architectural and landscape lighting projects requiring a compact, recessed fixture with a clean, minimal profile. The fixture features a square aluminium body with a half-mask cover that allows light to project in a controlled direction while maintaining a low visual profile above ground. It operates on DC12V or DC24V, making it suitable for low-voltage systems common in landscape and facade applications. The IP67 rating ensures reliable performance in paved areas exposed to rain and temporary water immersion.

Model	FD-U140R03
Power	3W
Input Voltage	DC12/24V
IP Rating	IP67
Dimension	W45 x H42 mm, Hole D34 mm
Material	Aluminium
LED Chip	OSRAM
Driver	Not included
Warranty	3 Years

Benefits

Key Benefits

Compact size fits into tight spaces where larger fixtures cannot be installed
Half-mask design provides directional light output while reducing visual bulk
IP67 rating supports installation in paved areas subject to standing water after rain
DC12V or DC24V input matches low-voltage site wiring commonly used in landscape projects
No driver supplied allows integration with centralised or distributed driver systems
Aluminium body provides efficient heat dissipation in confined recessed positions

Where It Is Used

Application Scenarios

Marking edges of pedestrian pathways and garden beds in residential and public landscapes
Highlighting architectural details such as stone joints or wall transitions in facade lighting
Lighting steps and access points in low-voltage landscape schemes with limited space
Installing in paved courtyards and plazas where a flush, low-profile fixture is required

Buyers

Who It Is For

Facade and landscape lighting contractors installing in-ground lights in hardscape with space constraints
Lighting designers specifying compact, low-profile fixtures for aesthetic integration
Electrical wholesalers supplying architectural lighting components for European and Middle Eastern projects
Brand owners sourcing OEM in-ground luminaires under their own label with custom branding

Why It Matters

Problems It Solves

Large in-ground fixtures require deep or wide pits, increasing civil works and cost
Full-mask fixtures create a higher visual profile above ground, disrupting clean lines
Fixtures with built-in drivers increase complexity when centralised driver systems are used
Non-IP67 rated units fail in areas with frequent rain or temporary flooding

Engineering

Technical Features

Square-shaped aluminium body with half-mask cover for directional light output
IP67 sealing for protection against dust and temporary immersion in water
DC12V or DC24V input voltage for compatibility with low-voltage landscape systems
OSRAM LED chip for consistent light output and reliability
No driver supplied, allowing integration with site-specific driver configurations
Compact dimensions suitable for tight installation spaces

Materials

Aluminium body for heat dissipation and structural rigidity
Half-mask cover design to control light direction and reduce visual profile
Sealing gasket for IP67 protection against dust and water ingress

Production

Manufacturing Process

Aluminium body machining and surface finishing
Half-mask cover forming and alignment
LED board assembly with OSRAM packages
Sealing and gasket fitting to achieve IP67
Powered ageing test before packing

Quality Control

Incoming inspection of OSRAM LED packages and driver components
IP67 sealing check before final closure of the fixture
Powered ageing run under normal operating conditions
Stated defective rate below 0.2%

Compliance

Certification

Only the certification the factory publishes is listed here.

CE certificate and report
Stated conformity with CE, RoHS and FCC

OEM and ODM

Customisation Options

Customer logo printing available, confirmed against an approved sample before production
Supplied without driver to match site-specific driver configurations
DC12V or DC24V input version available based on project needs
OEM and ODM production for buyers selling under their own brand

Comparison

Compared With the Alternatives

Full-mask in-ground light

Lower visual profile, better for clean architectural lines, but may require higher power to achieve same light output

Larger in-ground fixture

Requires deeper or wider cut-out, increases civil works, but may offer higher lumen output

Mains-voltage in-ground light

Simpler wiring but requires higher safety measures; DC12/24V version avoids high-voltage risks in wet areas

Installation

Use Guide

Cut a D34 mm hole in the paving with proper drainage below the fixture
Install the fixture flush with the finished paving surface to avoid trip hazards
Connect to a DC12V or DC24V power supply, ensuring cable size accounts for voltage drop
Use a centralised driver or on-site driver as required by the system design
Clean the lens during routine maintenance to maintain light output

FAQ

Square Shape Half Mask LED Underground Light Questions

What is the cut-out size for this underground light?

The fixture requires a D34 mm hole for installation, with drainage provided below the pot.

Can it run on 12V or 24V?

Yes. The model is available for DC12V or DC24V input, so it can be used in low-voltage landscape systems.

Is the driver included?

No. The fixture is supplied without a driver, allowing integration with centralised or site-specific driver systems.

Is IP67 sufficient for areas that flood?

Yes. IP67 covers temporary immersion, which is typical for in-ground fixtures in paved areas after rain. For permanent submersion, use an underwater luminaire.

What is the warranty?

This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.

Can I order a sample before placing a full order?

Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.

How long does mass production take?

Mass production is typically 1-2 weeks, and goods normally ship via DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
