Outdoor LED Tile Lamp For Building Top

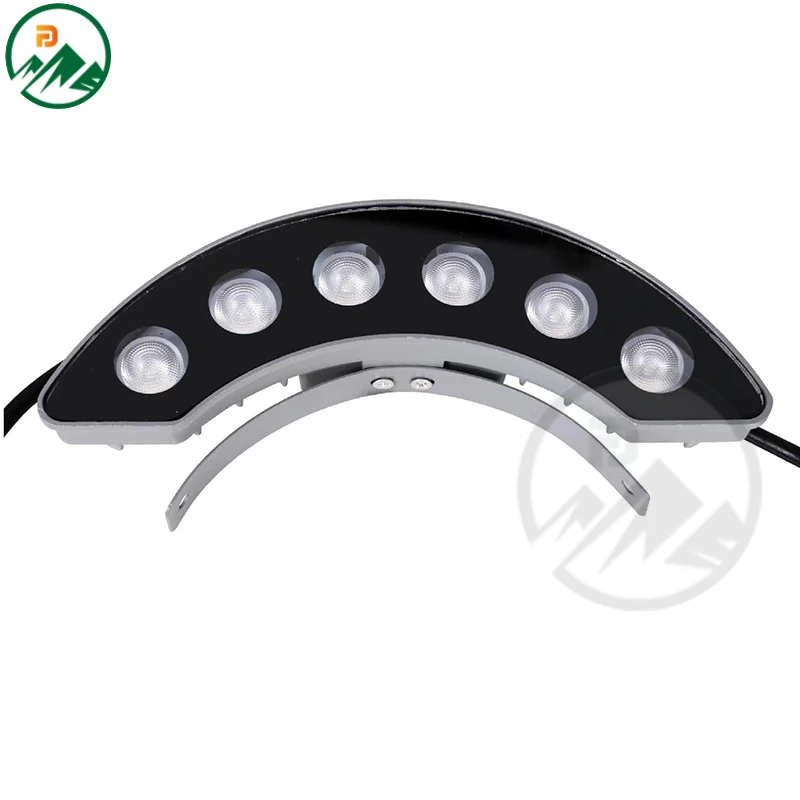

The FD-TL010L06 is a 6W outdoor LED tile lamp designed for building top applications where a compact, weather-resistant fixture is needed. It is mounted on a flat surface using a built-in bracket and delivers consistent light output in architectural and landscape schemes. The die-casting aluminium body provides structural rigidity and heat dissipation, while the IP65 rating ensures protection against dust and water jets. It operates on AC85-265V, making it compatible with standard building power supplies without the need for a driver on site.
| Model | FD-TL010L06 |
|---|---|
| Power | 6W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |
| Dimension | L196 x H120 mm |
| Material | Die-casting Aluminium |
| LED Chip | OSRAM |
| Driver | FENGDIAN |
| Warranty | 3 Years |
Key Benefits
- Compact size fits into tight spaces on building tops without obstructing structural details
- IP65 rating resists dust and water jets, suitable for exposed rooftop installations
- Die-casting aluminium body provides durable support and effective heat transfer
- OSRAM LED chip ensures stable light output and long life in outdoor conditions
- AC85-265V input allows direct connection to standard building wiring
- FENGDIAN driver is integrated, reducing on-site wiring complexity
Application Scenarios

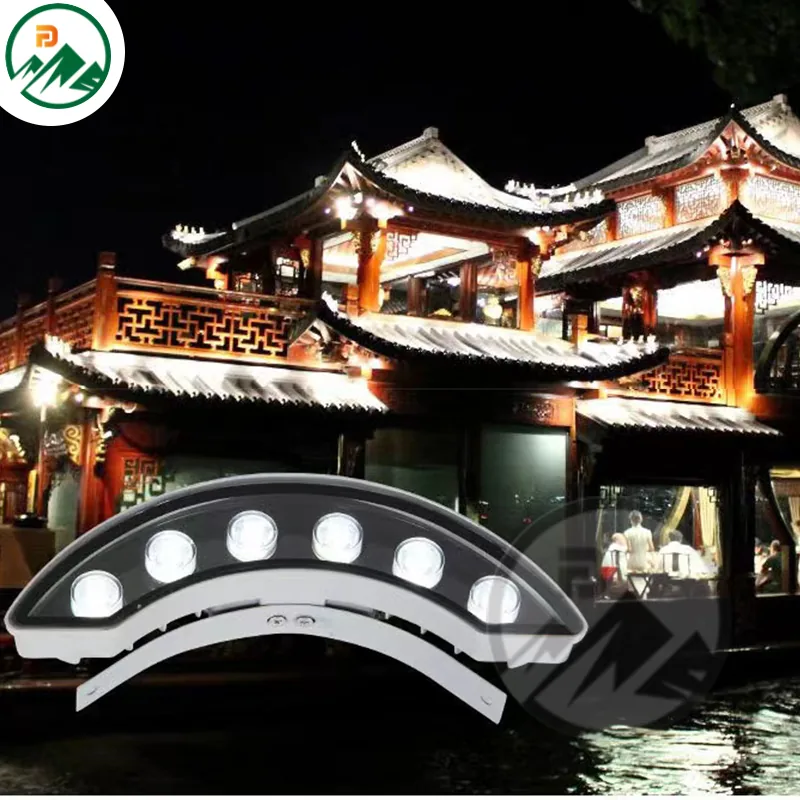

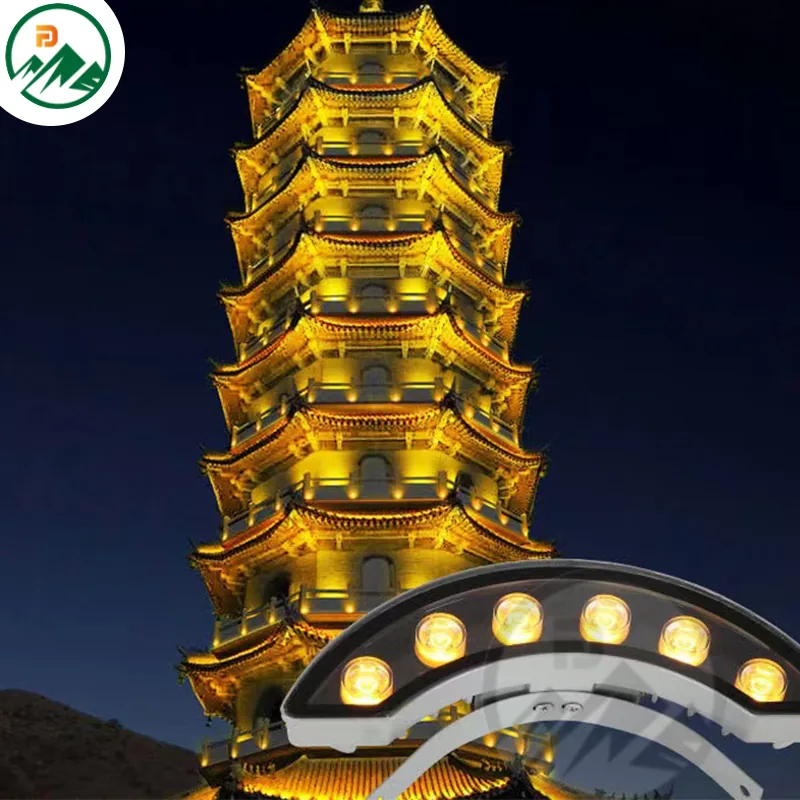

- Lighting the edge of a building roof to highlight architectural contours at night
- Accentuating rooftop signage or structural elements in commercial building facades
- Illuminating flat roof edges in high-rise buildings for safety and visual continuity
- Installing on rooftop parapets or coping stones in urban landscape lighting projects
Who It Is For
- Facade and landscape lighting contractors installing rooftop fixtures on commercial buildings
- Lighting designers specifying compact, low-power lights for building top applications
- Electrical wholesalers supplying architectural lighting components to European and Middle Eastern projects
- Brand owners sourcing OEM tile lamps under their own label with custom logo printing
Problems It Solves
- Large flood lights are difficult to install on tight rooftop edges without obstructing structural elements
- Non-IP65 rated fixtures fail quickly in exposed rooftop environments with wind-driven rain
- Frequent driver failures in site-installed systems increase maintenance and downtime
- Lack of compact fixtures forces the use of multiple components to achieve a clean rooftop look
Technical Features
- 6W power output suitable for accent and edge lighting on building tops

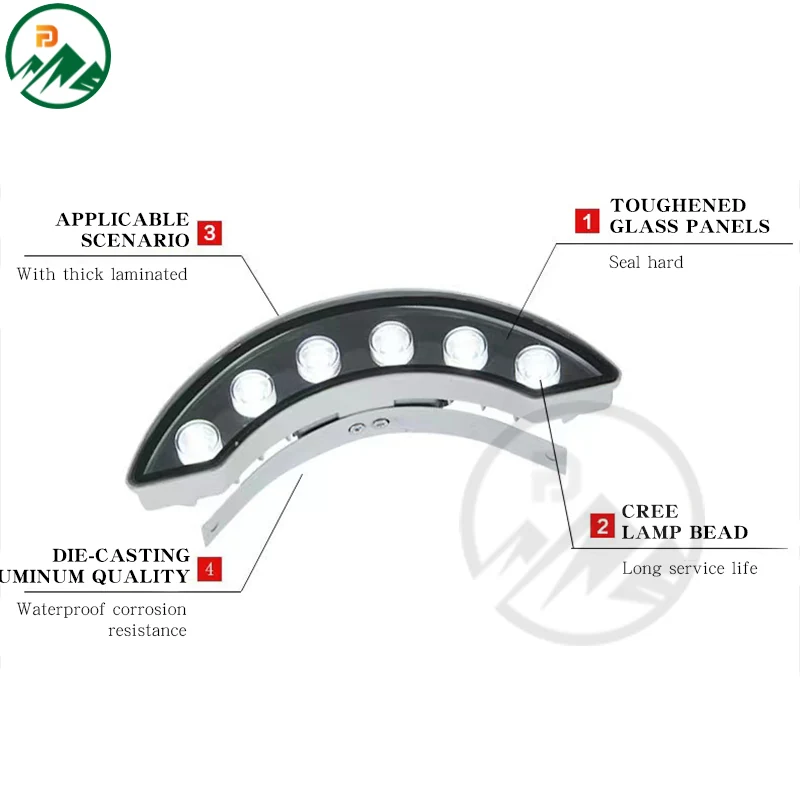

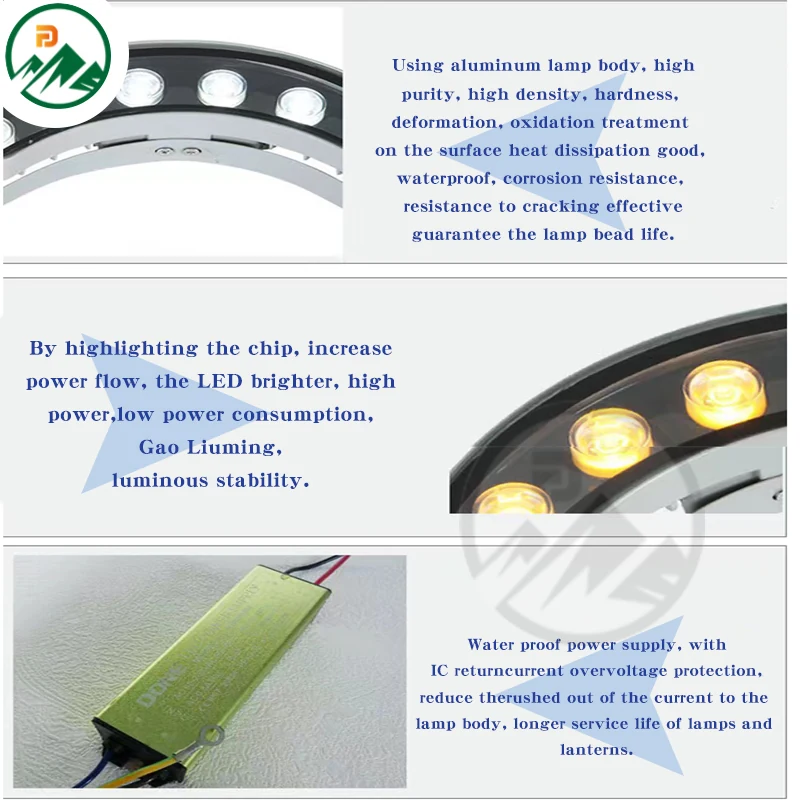

- Die-casting aluminium body for structural strength and heat dissipation
- IP65 rating for protection against dust and water jets from any direction
- OSRAM LED chip for consistent performance and long life
- Integrated FENGDIAN driver for reliable operation without on-site driver installation
- AC85-265V input compatible with standard building power supplies
Materials
- Die-casting aluminium body for structural strength and heat dissipation
- Integrated FENGDIAN driver for reliable power conversion
- OSRAM LED chip for consistent light output and longevity
- Weather-resistant housing sealant to maintain IP65 performance
Manufacturing Process
- Die-casting of aluminium housing with precision machining
- Assembly of OSRAM LED chip on driver board
- Integration of FENGDIAN driver with the LED module
- Sealing and gasket fitting to achieve IP65 rating
- Final inspection and powered ageing test before packing
Quality Control
- Incoming inspection of OSRAM LED chips and FENGDIAN drivers
- IP65 sealing verification using spray test before final closure
- Powered ageing test under full load for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Integrated FENGDIAN driver can be omitted if centralised drivers are used on site
- AC85-265V input version standard, no other voltage options listed
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Larger flood light with separate driver
Higher installation cost and complexity, but may offer higher lumen output for large areas
Plastic-bodied tile lamp
Less durable in high-temperature or UV-exposed rooftop environments, but lower cost
Surface-mounted wall washer
Better for wall washing, but not designed for flat rooftop mounting or edge lighting
Use Guide
- Mount the fixture on a flat surface using the built-in bracket, ensuring the base is level
- Ensure the mounting surface is clean and dry before fixing to maintain sealing integrity
- Do not expose the internal driver compartment to moisture during installation
- Verify the AC85-265V supply matches the site’s electrical system before connection
- Clean the lens periodically to maintain light output, especially in dusty or coastal areas
Outdoor LED Tile Lamp For Building Top Questions
What is the power and voltage of this tile lamp?
The model is 6W with an AC85-265V input, compatible with standard building power supplies.
Is the driver included?
Yes. The FENGDIAN driver is integrated into the fixture and does not need to be added on site.
What is the IP rating and is it suitable for rooftop use?
The fixture has an IP65 rating, which protects against dust and water jets, making it suitable for exposed rooftop installations.
Can the driver be omitted for centralised control?
The driver is integrated and cannot be removed. If centralised drivers are used, a different model without an integrated driver must be selected.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a project order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
