One Beam Of Lighting LED Spot Light

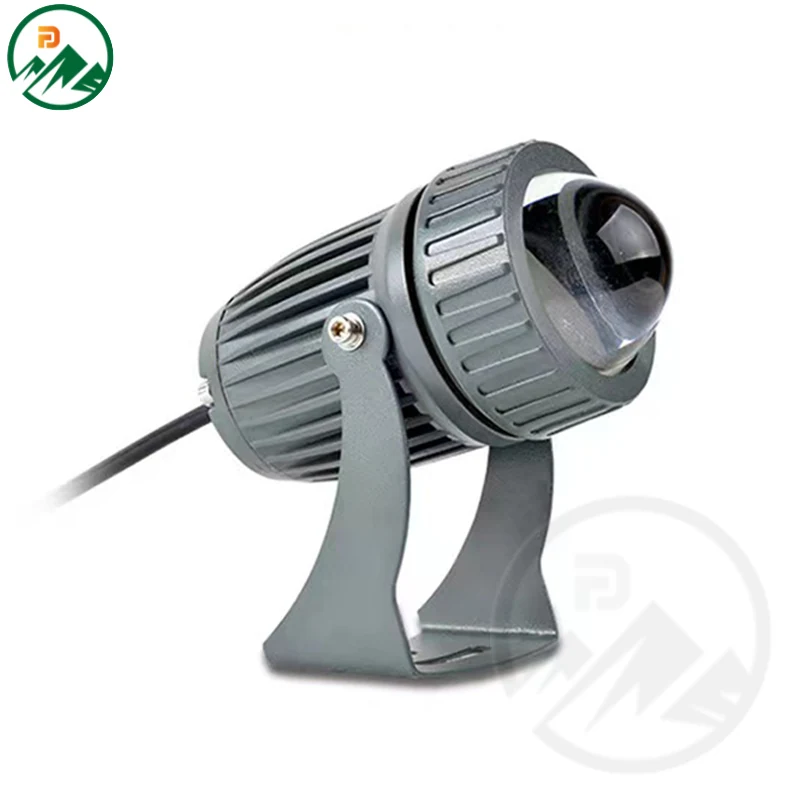

The FD-BL090X10 is a 10W LED spot light designed for facade and flood lighting applications where precise beam control and durable outdoor performance are required. The fixture uses a die-casting aluminium body with tempered glass lens, rated IP65 for protection against dust and water jets. It operates on AC85-265V, making it suitable for standard building electrical systems. The CREE LED chip ensures consistent light output, and the driver is integrated into the unit. The compact size allows for discreet installation on architectural surfaces.
| Model | FD-BL090X10 |
|---|---|
| Power | 10W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |

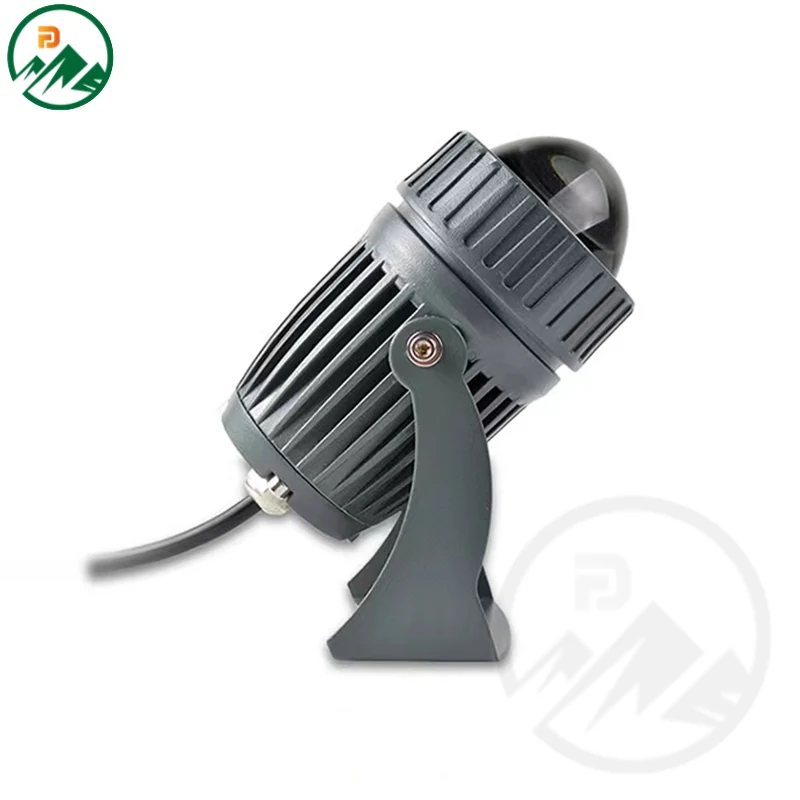

| Dimension | D75 x H105 mm |
| Material | Die-casting Aluminium+Tempered glass |
| LED Chip | CREE |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- IP65 rating protects against water jets and dust ingress in exposed outdoor locations
- AC85-265V input supports standard building electrical systems without voltage conversion

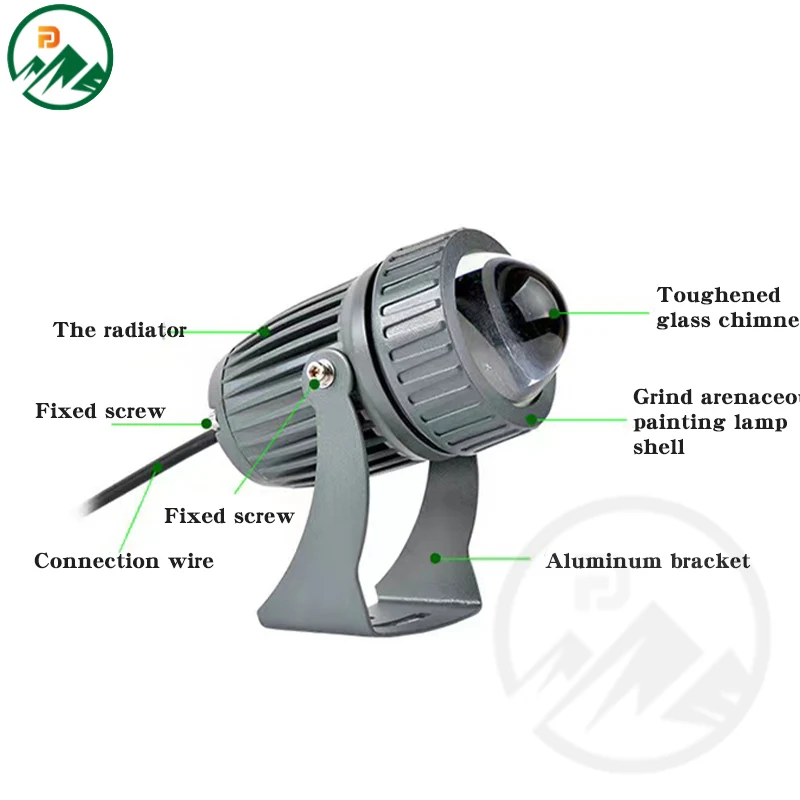

- Die-casting aluminium body provides strong mechanical support and efficient heat dissipation
- Tempered glass lens resists impact and maintains optical clarity over time
- CREE LED chip delivers reliable lumen output with stable colour performance
- Integrated driver simplifies installation by eliminating the need for separate driver mounting
Application Scenarios

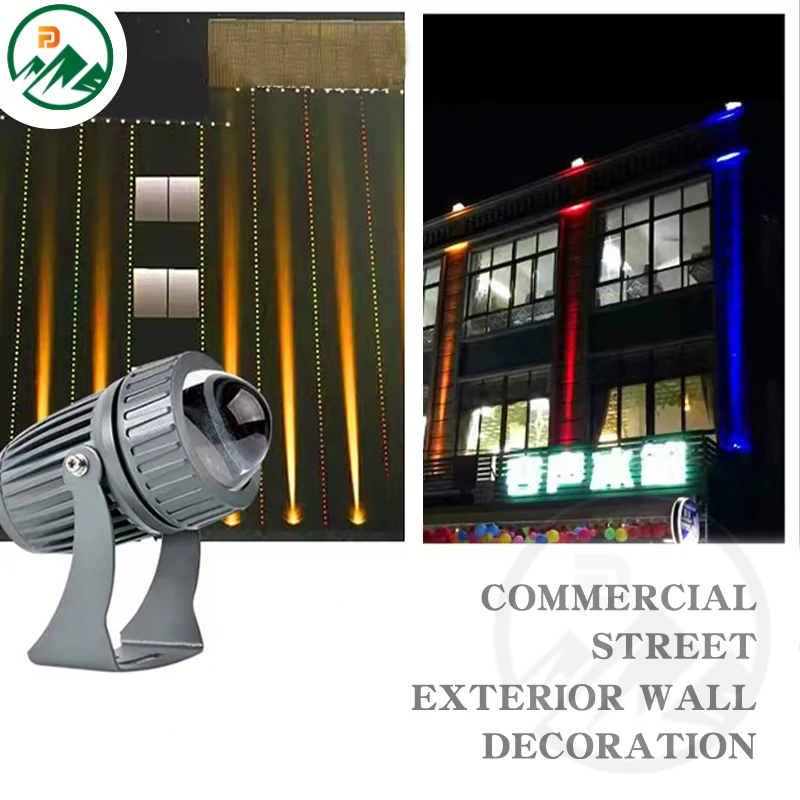

- Highlighting architectural details on building facades during night-time illumination

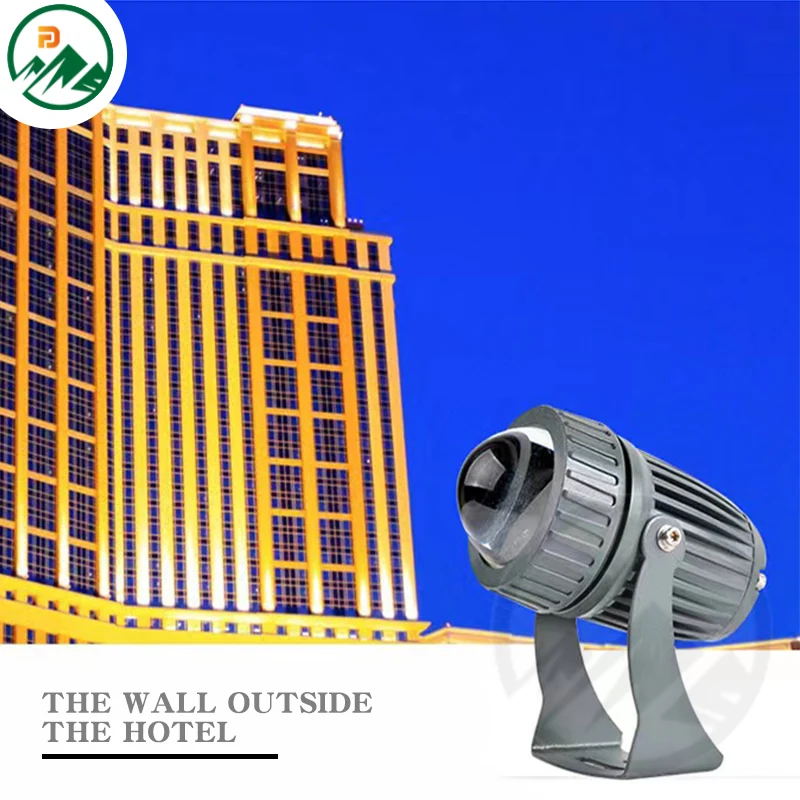

- Flood lighting of columns, cornices, and structural elements in commercial and public buildings
- Accent lighting on textured stone, metal panels, or glass surfaces in urban and landscape projects
- Installation on rooftops, balconies, or exterior walls where compact size and weather resistance are needed
Who It Is For
- Facade and landscape lighting contractors installing spot lights on building exteriors
- Lighting designers specifying precise beam control for architectural features
- Electrical wholesalers supplying LED spot lights for commercial and public projects
- Brand owners sourcing OEM spot lights under their own label with custom logo printing
Problems It Solves
- Exposed spot lights without proper sealing can fail due to water ingress in rainy or humid climates
- Frequent maintenance is needed when fixtures lack durable materials for outdoor exposure
- Inconsistent beam control occurs when spot lights are not precisely aimed during installation
- Separate driver installation increases complexity and space requirements on site
- Low-efficiency or non-standard input voltage fixtures require additional power conversion
Technical Features
- Die-casting aluminium body for structural strength and heat dissipation
- Tempered glass lens for optical clarity and impact resistance
- IP65 rating for protection against water jets and dust accumulation
- CREE LED chip for consistent light output and long life
- Integrated driver (DONE) for simplified on-site installation
- AC85-265V input compatible with standard building power systems
Materials
- Die-casting aluminium body for structural integrity and thermal management
- Tempered glass lens for optical clarity and resistance to impact
- Sealing gasket to maintain IP65 rating under outdoor conditions
Manufacturing Process
- Die-casting of aluminium housing with precision machining
- Tempered glass lens assembly with sealing gasket
- LED board mounting with CREE chips and integrated driver
- Sealing and IP65 verification before final assembly
- Powered ageing test and visual inspection before packing
Quality Control
- Incoming inspection of CREE LED chips and integrated drivers
- IP65 sealing test using water jet spray and dust exposure
- Powered ageing run for 24 hours to verify stability
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Integrated driver can be omitted if centralised drivers are used on site
- OEM and ODM production available for buyers selling under their own brand
- Available in standard configuration or with custom packaging for bulk orders
Compared With the Alternatives
Spot light with separate driver
Simpler installation with integrated driver, but less flexibility if centralised control is preferred
Plastic-bodied spot light
More durable and heat-resistant with die-casting aluminium, but heavier and more expensive
IP67-rated spot light
Higher protection level, but IP65 is sufficient for most facade and flood lighting where direct water jets are the main exposure
Use Guide
- Mount the fixture on a stable surface using the provided mounting hardware
- Ensure the lens is clean and free of debris before powering on
- Avoid pointing the beam directly at reflective surfaces to prevent glare
- Verify the AC85-265V supply matches the site’s electrical system before connection
- Perform a visual check after installation to confirm no water ingress or seal damage
One Beam Of Lighting LED Spot Light Questions
What is the input voltage range for this spot light?
The FD-BL090X10 operates on AC85-265V, which covers standard building electrical systems.
Is the driver included in the fixture?
Yes. The driver is integrated into the unit (DONE), so no separate driver is required.
What does IP65 mean for this product?
IP65 means the fixture is protected against dust and water jets from any direction, suitable for outdoor use.
Can the driver be removed for site-supplied drivers?
The driver is integrated and cannot be removed. If site-supplied drivers are used, a different model without an integrated driver must be selected.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty varies between 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
