New Design of LED Flood Light 12W 18W 24W 36W 48W 72W

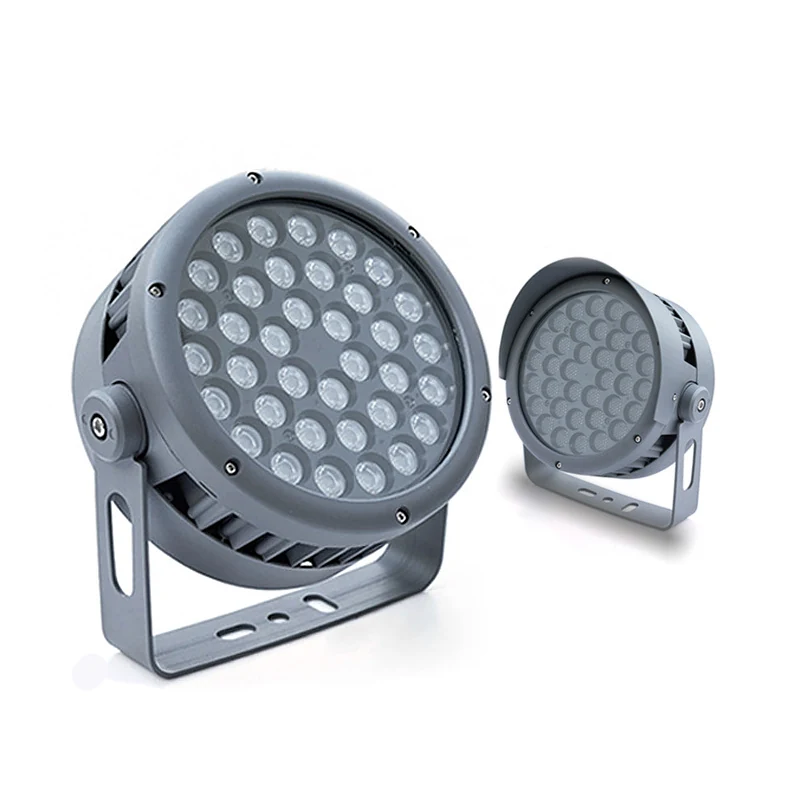

The FD-S030R series is a range of 12W to 72W LED flood lights designed for architectural and landscape facade lighting projects. The fixtures use die-casting aluminium for the housing, providing robustness and heat dissipation. They are rated IP65 for outdoor use in exposed positions, and are available with CREE LED chips and DONE drivers. The input voltage is AC85-265V, allowing direct connection to standard mains supply without additional transformers. The compact D185 x H191 mm dimension suits tight mounting spaces on building facades and structural elements.
| Model | FD-S030R12,FD-S030R18,FD-S030R24 |
|---|---|
| Power | 12/18W/24W/36W/48W/72W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |

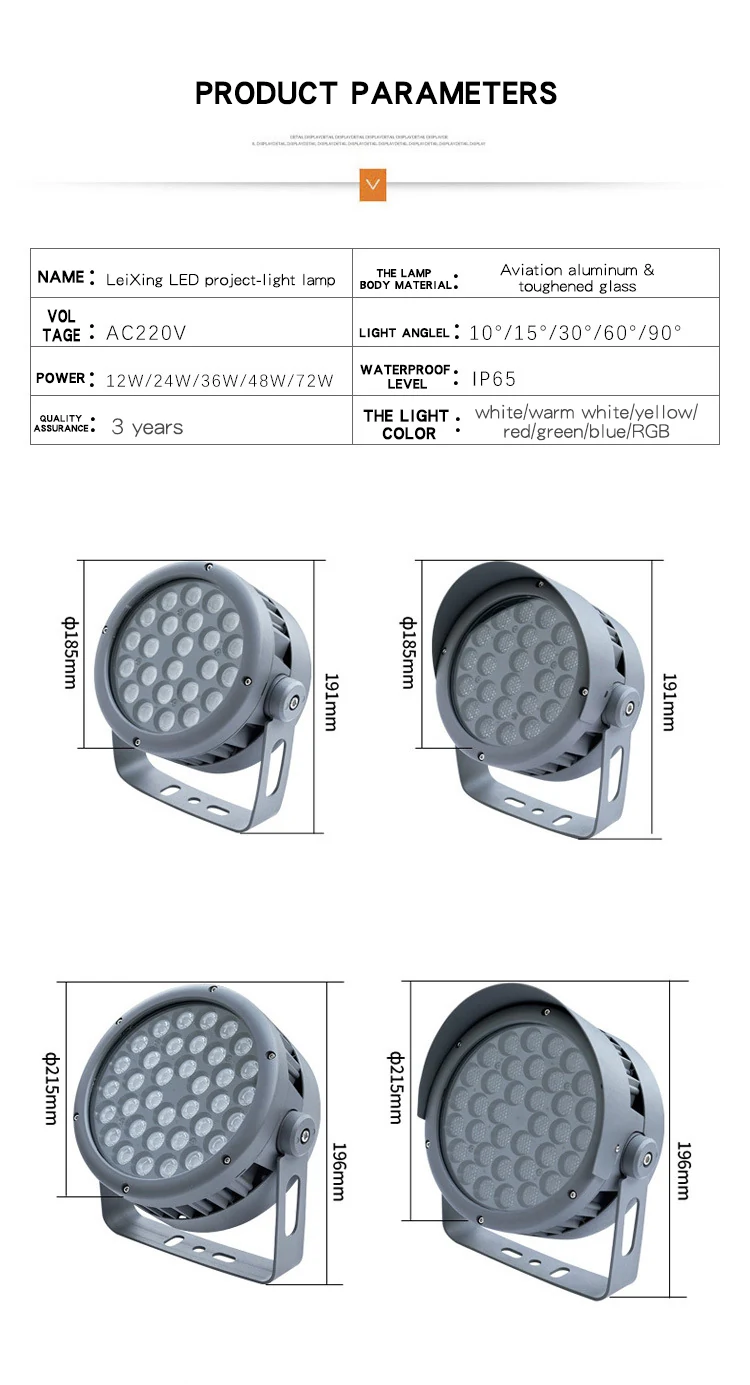

| Dimension | D185 x H191 mm |
| Warranty | 3 Years |
Key Benefits
- Die-casting aluminium housing provides strong mechanical protection and efficient heat transfer
- IP65 rating allows installation in exposed outdoor positions without enclosure
- AC85-265V input supports direct mains connection, simplifying site wiring
- CREE LED chip ensures consistent lumen output and long life in outdoor applications
- DONE driver provides stable current regulation under varying voltage conditions
- 6 power variants (12W to 72W) allow one fixture type to cover multiple lighting tasks
Application Scenarios
- Illuminating building facades with uniform light distribution across textured or flat surfaces
- Lighting structural columns, beams and architectural details in commercial and public buildings
- Highlighting signage, sculptures and landscape features in urban and park environments
- Providing flood lighting in areas with high exposure to rain and dust, such as coastal or industrial zones
Who It Is For
- Facade and landscape lighting contractors installing outdoor flood lights on building exteriors
- Lighting designers specifying flood lights for architectural accenting in project drawings
- Electrical wholesalers supplying LED flood lights for commercial and public projects
- Brand owners sourcing OEM flood lights under their own label with custom logo printing
Problems It Solves
- Non-IP65 rated flood lights fail prematurely in wet or dusty outdoor environments
- Low-quality drivers cause flickering or early failure under fluctuating mains voltage
- Inconsistent LED performance due to poor thermal management in plastic or thin metal housings
- Lack of power flexibility forces the use of multiple fixture models for different lighting tasks
- Fixed mounting options limit positioning when the target surface is not visible during installation
Technical Features
- Die-casting aluminium housing for structural strength and heat dissipation
- IP65 rating for protection against dust and water jets from any direction
- AC85-265V input voltage range for compatibility with standard mains supply
- CREE LED chip for reliable light output and long operational life
- DONE driver for stable current regulation and consistent performance
- Compact D185 x H191 mm dimension for mounting in tight spaces
Materials
- Die-casting aluminium housing for structural integrity and heat dissipation
- CREE LED chip for high lumen output and long life
- DONE driver for stable current regulation
- Sealing gaskets for IP65 protection against dust and water jets
Manufacturing Process
- Die-casting of aluminium housing with precision moulding
- Surface treatment including sandblasting and powder coating for corrosion resistance
- Assembly of LED board with CREE chips and DONE driver
- Sealing with gaskets and testing for IP65 compliance
- Powered ageing test under full load before packing
Quality Control
- Incoming inspection of CREE LED chips and DONE drivers
- IP65 sealing test using spray water and dust exposure
- Powered ageing run for 24 hours at full load before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Fixtures supplied with or without driver to match site control strategy
- OEM and ODM production available for buyers selling under their own brand
- Power variants (12W to 72W) allow one model line to serve multiple project needs
Compared With the Alternatives
Plastic-bodied flood light
More durable and better heat dissipation, but higher cost
Non-IP65 rated flood light
Suitable for indoor or sheltered use only, not for exposed outdoor positions
Fixture with no driver
Requires site-supplied driver, but avoids duplication if central drivers are used
Use Guide
- Mount the fixture on a stable surface with appropriate brackets or mounting hardware
- Ensure the mounting position allows for proper heat dissipation around the housing
- Connect to AC85-265V mains supply without additional transformers
- Avoid directing the beam at reflective surfaces to prevent glare or hotspots
- Clean the lens periodically to maintain light output, especially in dusty or polluted areas
New Design of LED Flood Light 12W 18W 24W 36W 48W 72W Questions
What is the input voltage range?
The input voltage is AC85-265V, which covers standard mains supply in most countries.
Is the driver included?
Yes, the DONE driver is included with each fixture. It can also be supplied without the driver if central drivers are used in the project.
What is the IP rating?
The fixture is rated IP65, which protects against dust ingress and water jets from any direction.
Can I get a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range the warranty is 2 to 5 years depending on the product.
Can I have my logo printed on the fixture?
Yes. Customer logo printing is available, and the design is confirmed against an approved sample before production begins.
