LED Flood Light for Building Facade Lighting Project

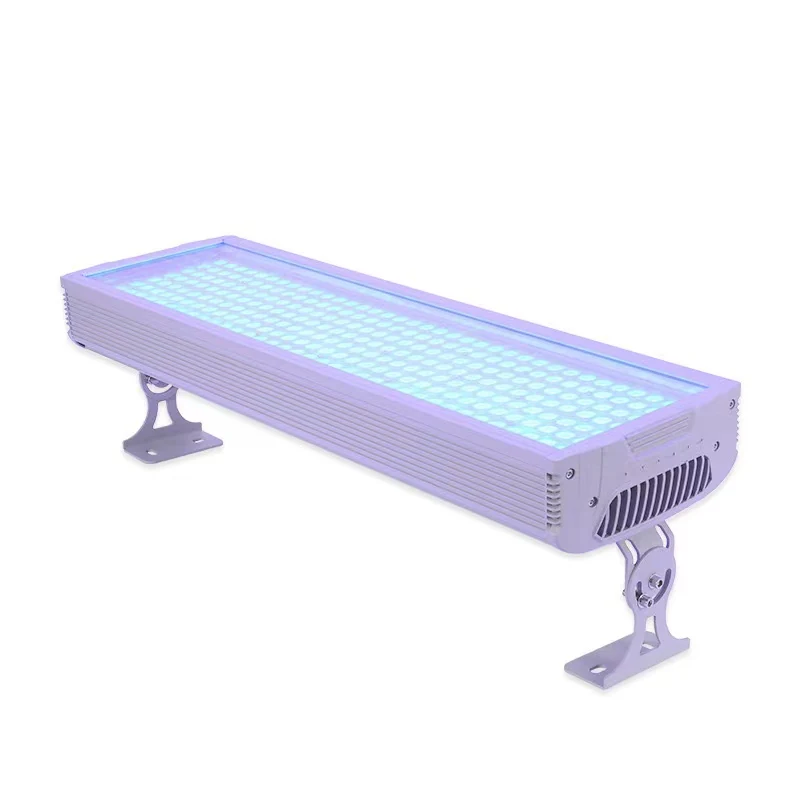

The FD-S010S200 is a 200W LED flood light designed for building facade lighting projects requiring durable, high-output illumination. The fixture uses die-casting aluminium for structural strength and heat dissipation, with a CREE LED chip for consistent light output. It operates on AC85-265V, making it compatible with standard mains voltage across different regions. The IP65 rating ensures protection against dust and water jets, suitable for outdoor mounting on building exteriors exposed to weather. The compact size and robust construction allow for secure installation on facades, columns, and structural elements.
| Model | FD-S010S200 |
|---|---|
| Power | 200w |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |

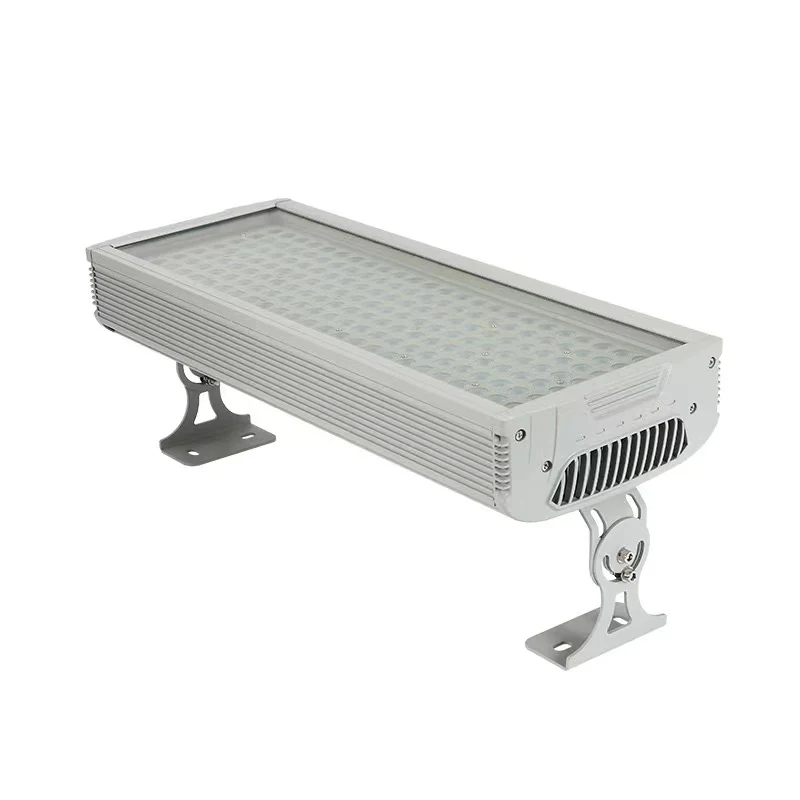

| Dimension | L540 x W210 x 208 mm |
| Material | Die-casting Aluminum |
| LED Chip | CREE |
| Driver | Included |
Key Benefits
- 200W output delivers high-intensity illumination for large facade areas
- Die-casting aluminium body provides strength and effective heat dissipation
- CREE LED chip ensures stable light performance and long life
- IP65 rating resists dust ingress and water jets from any direction
- AC85-265V input supports operation across different regional power supplies
- Compact L540*W210*208mm dimensions allow for discreet mounting on building surfaces
Application Scenarios
- Illuminating large building facades in commercial and residential developments
- Highlighting architectural features such as columns, arches, and textured surfaces
- Providing uniform flood lighting for urban renewal and public space projects
- Mounting on structural elements where space and durability are critical
Who It Is For
- Facade lighting contractors installing flood lights on building exteriors
- Lighting designers specifying high-output fixtures for architectural schemes
- Electrical wholesalers supplying LED flood lights for international projects
- Brand owners sourcing OEM flood lights under their own label
Problems It Solves
- Low-output flood lights require more fixtures to cover large facade areas
- Non-weatherproof fixtures fail prematurely when exposed to rain and dust
- Poor heat dissipation shortens LED lifespan in enclosed or high-temperature mounting positions
- Inconsistent voltage input across regions requires multiple fixture models
Technical Features
- 200W power output for high-intensity facade lighting
- Die-casting aluminium body for structural integrity and thermal management
- CREE LED chip for reliable light performance
- IP65 rating for protection against dust and water jets
- AC85-265V input voltage range for global voltage compatibility
- Fitted driver (DRIVE: DONE) for immediate installation without additional components
Materials
- Die-casting aluminium body for strength and heat dissipation
- CREE LED chip for consistent light output
- IP65-rated sealing components to resist dust and water ingress
Manufacturing Process
- Die-casting of aluminium housing with precision machining
- Assembly of CREE LED modules onto the heat sink base
- Installation of the fitted driver (DRIVE: DONE)
- Sealing and gasket fitting to achieve IP65 rating
- Final power testing and ageing run before packing
Quality Control
- Incoming inspection of CREE LED chips and driver components
- IP65 sealing verification using test procedures
- Powered ageing test to verify stability and performance
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied fitted or omitted when centralised drivers are used
- OEM and ODM production available for buyers selling under their own brand
- AC85-265V input version standard, no alternative voltage options listed
Compared With the Alternatives
Lower power flood light (e.g. 100W)
Requires more fixtures to cover the same facade area, increasing installation and wiring complexity
Non-IP65 rated flood light
More prone to failure in outdoor environments with rain and dust accumulation
Aluminium extrusion body
Die-casting offers better structural strength and heat dissipation for high-power applications
Use Guide
- Mount the fixture securely on a stable surface using the provided mounting hardware
- Ensure the mounting position allows for proper heat dissipation and avoids obstructions
- Verify the AC85-265V supply matches the local voltage before powering
- Clean the lens periodically to maintain light output and prevent dirt buildup
- Do not operate the fixture in environments with continuous immersion in water
LED Flood Light for Building Facade Lighting Project Questions
What is the input voltage range for this flood light?
The FD-S010S200 operates on AC85-265V, suitable for standard mains voltage across different regions.
Is the driver included in the fixture?
Yes. The driver is fitted (DRIVE: DONE), so the fixture is ready for immediate installation.
What is the IP rating and what does it mean?
The fixture has an IP65 rating, which means it is protected against dust and water jets from any direction.
Can the driver be removed for site-supplied drivers?
The driver is fitted as standard. For site-supplied drivers, confirm with FENGDIAN before ordering to check availability.
What is the warranty period?
The warranty is 2 to 5 years depending on the product. This model falls within that range.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
