Facade Lighting Project LED Outdoor Tube
The FD-DL060L12 is a 12W linear LED fixture designed for architectural facade and landscape lighting projects. It features a 270° beam angle and is available in three body types with different dimensions to suit various mounting and aesthetic requirements. The fixture uses EPISTAR LED chips and operates on DC24V, making it suitable for low-voltage systems. It is rated IP65 for outdoor use and supports ON OFF, DALI, and DMX control protocols. The driver is not included, allowing integration with centralised control systems.
| Model | FD-DL060L12 |
|---|---|
| Power | 12W |
| Input Voltage | DC24V |
| IP Rating | IP65 |
| Material | Die-casting Aluminium+PC |
| LED Chip | EPISTAR |
| LED Quantity | 48LEDS |
| Driver | Not included |
| Colour Temperature | 2800-6500K/RGB/RGBW |
| Beam Angle | 270° |
| Control System | ON OFF, DALI, DMX |
| Type A | L1000*W50*H45mm |
| Type B | L1000*W40*H50mm |
| Warranty | 3 Years |
Key Benefits
- 270° beam angle provides wide, even illumination across vertical surfaces without hotspots

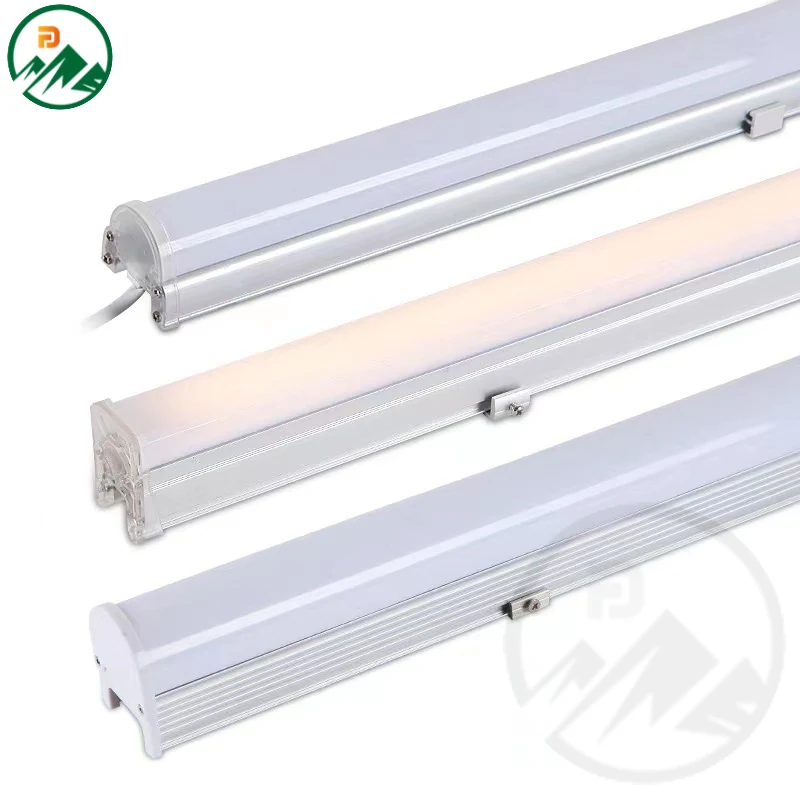

- Three body types (TYPE A, B, C) allow fitment in different architectural profiles and mounting conditions
- IP65 rating ensures protection against dust and water jets, suitable for exposed outdoor facade applications
- DC24V input supports integration with low-voltage control systems and centralised drivers
- No driver included allows the fixture to follow existing site control strategies without redundancy
- Supports ON OFF, DALI, and DMX control for flexible integration with building management and lighting control systems

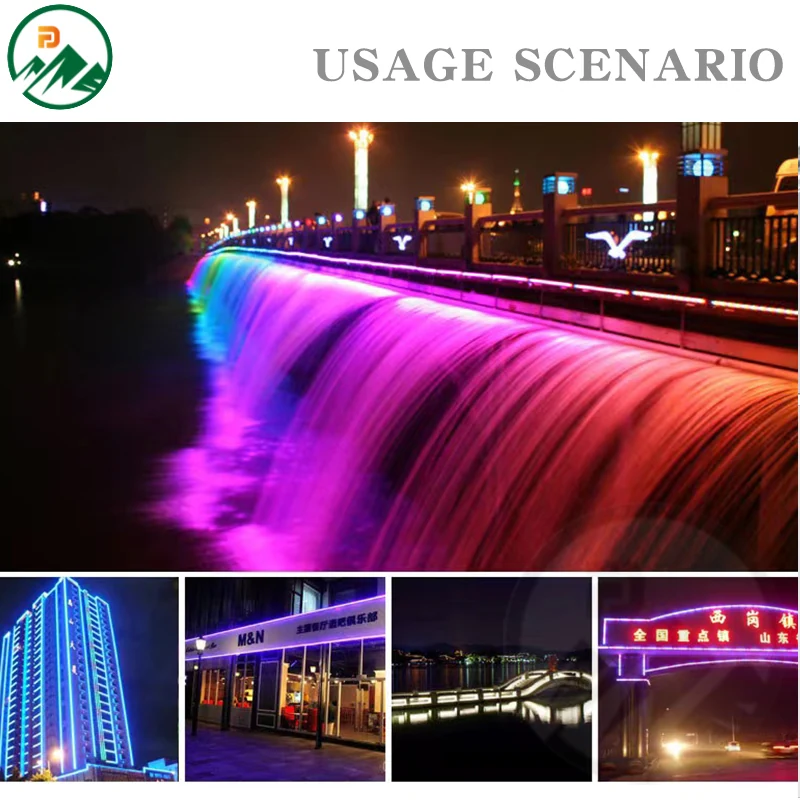

Application Scenarios
- Illuminating vertical building facades with consistent, wide-angle light for architectural accenting
- Lighting continuous wall sections in urban streetscapes and public plazas where uniformity is required
- Installing linear fixtures in recessed channels or surface-mounted profiles on building edges and corners
- Using in DMX-controlled sequences for dynamic facade lighting in commercial and cultural buildings
- Integrating into centralised lighting systems where drivers are managed at the panel level
Who It Is For
- Facade and landscape lighting contractors installing linear LED fixtures on building exteriors
- Lighting designers specifying wide-angle, low-profile linear lights for architectural projects
- Electrical wholesalers supplying linear LED fixtures for commercial and public building projects
- Brand owners sourcing OEM linear luminaires under their own label with custom control options
Problems It Solves
- Fixed beam angle fixtures require precise positioning before installation, increasing risk of rework
- Lack of control protocol flexibility forces integration with incompatible systems or additional components
- Inadequate IP rating leads to early failure in exposed outdoor locations with rain and dust
- Integrated drivers increase cost and complexity when centralised control is already in place
- Non-standard dimensions limit fitment in existing architectural profiles or mounting channels
Technical Features
- 270° beam angle for wide, even light distribution across vertical surfaces
- Three body types (TYPE A, B, C) with different widths and heights for varied mounting needs
- IP65 rating for protection against dust and water jets in outdoor environments
- EPISTAR LED chip packages for consistent light output and long life
- 48 LED chips per fixture for uniform illumination across the full length
- DC24V input with no driver included, allowing use with centralised driver systems
- Support for ON OFF, DALI, and DMX control protocols for integration with various lighting systems

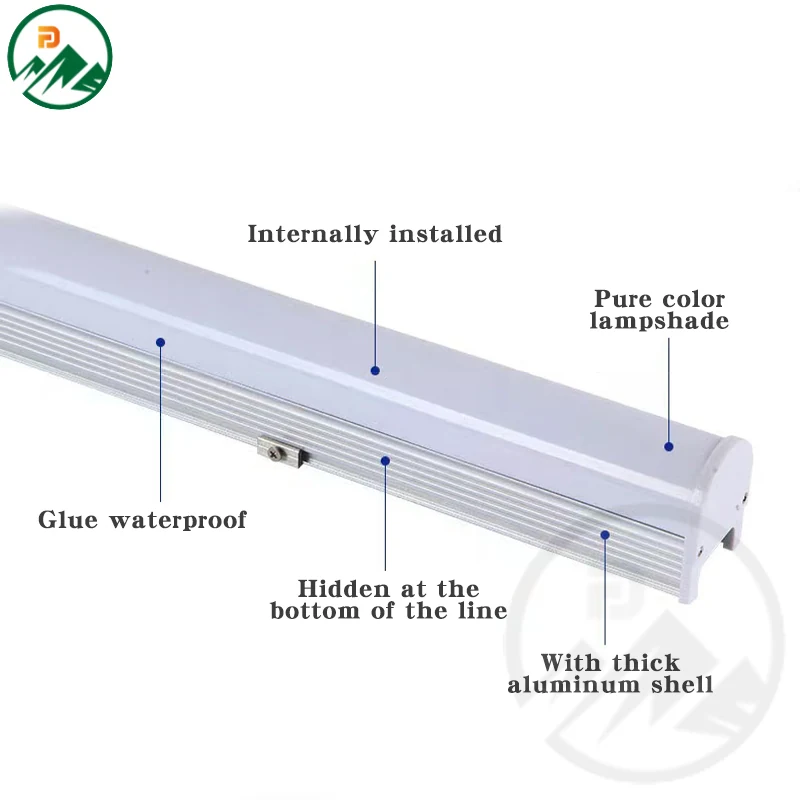

Materials

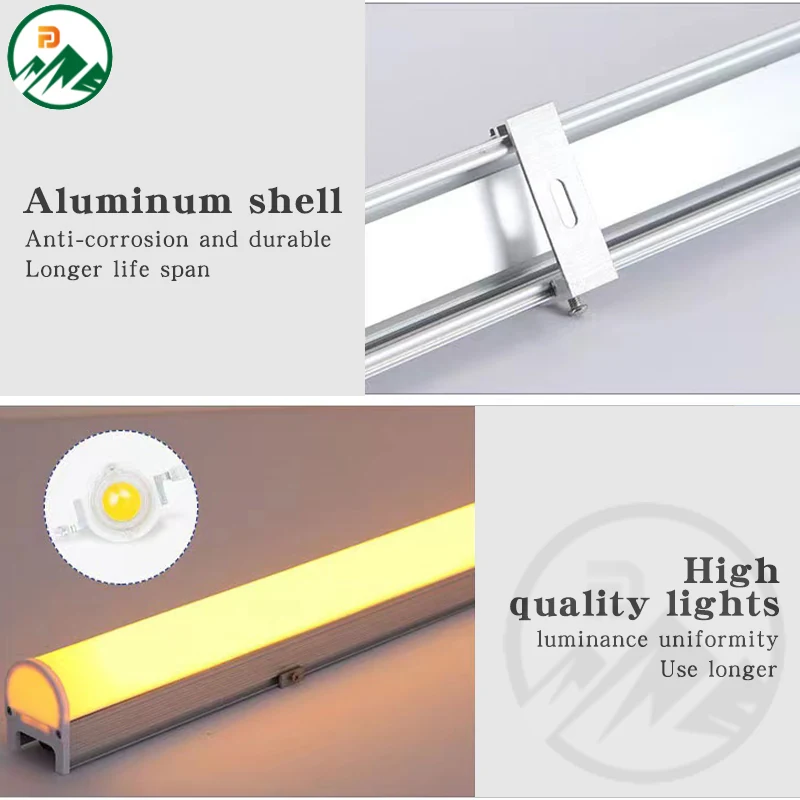

- Die-casting aluminium body for structural rigidity and heat dissipation
- Polycarbonate (PC) lens for impact resistance and weather protection
- EPISTAR LED packages for stable light output and long-term performance
Manufacturing Process
- Die-casting of aluminium body with precision moulding and surface finishing
- Machining and assembly of PC lens with sealing gaskets
- LED board assembly with 48 EPISTAR chips per fixture
- Sealing and IP65 testing before final assembly
- Control protocol programming and functional testing for ON OFF, DALI, and DMX
Quality Control
- Incoming inspection of EPISTAR LED chips and PC lenses
- IP65 sealing verification using spray test before final closure
- Functional test of control protocols (ON OFF, DALI, DMX) under operating conditions
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Available in three body types (TYPE A, B, C) to match different architectural profiles
- DC24V input with no driver included, for use with site-supplied or centralised drivers
- Support for ON OFF, DALI, and DMX control systems as per project requirements
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Fixed beam angle linear fixture
Allows wider coverage without repositioning, but requires more precise mounting before installation
Fixture with integrated driver
Simplifies wiring but adds cost and redundancy when centralised drivers are already used
IP60 rated linear fixture
Less suitable for exposed outdoor locations; IP65 prevents water ingress in rain and dust
Use Guide
- Select the correct body type (A, B, or C) based on the mounting profile and required dimensions
- Ensure the DC24V supply is sized to handle the total load of multiple fixtures on a circuit
- Mount the fixture securely in a continuous run to maintain even spacing and alignment
- Use sealed junction boxes when connecting multiple fixtures in series or parallel
- Program control protocol (ON OFF, DALI, DMX) according to the site's lighting management system
Facade Lighting Project LED Outdoor Tube Questions

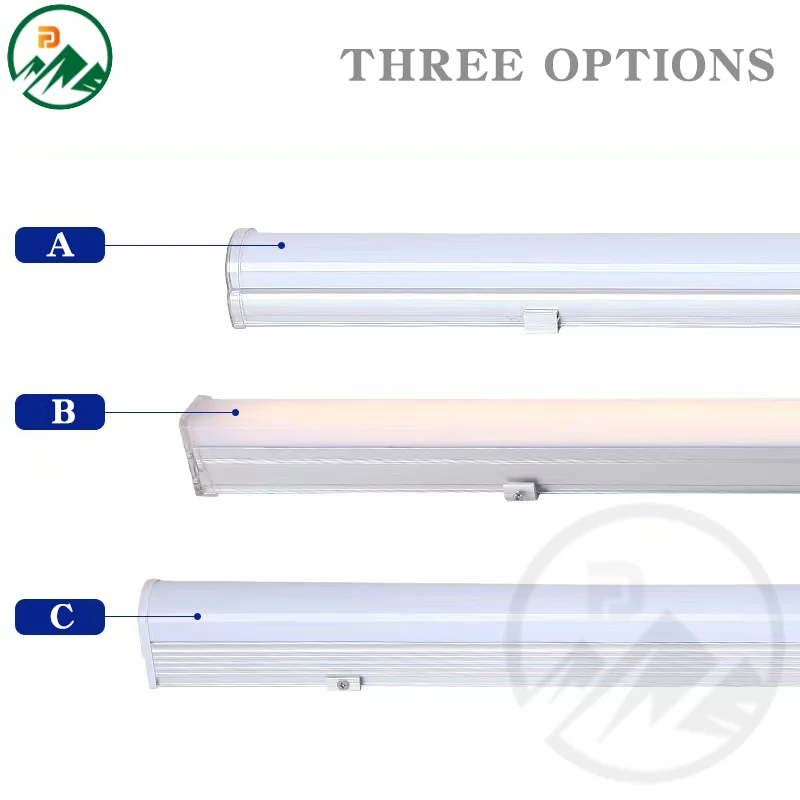

What are the three body types and their dimensions?
TYPE A: L1000 x W50 x H45 mm; TYPE B: L1000 x W40 x H50 mm; TYPE C: L1000 x W50 x H35 mm
Is the driver included?
No. The driver is not included. The fixture is designed for use with site-supplied or centralised drivers.
Can it be used with DALI or DMX control?
Yes. The fixture supports ON OFF, DALI, and DMX control protocols for integration with advanced lighting systems.
What is the beam angle and how does it affect installation?
The 270° beam angle provides wide, even light coverage across vertical surfaces. It reduces the need for multiple fixtures but requires careful alignment to avoid spill light.
Is IP65 sufficient for outdoor facade use?
Yes. IP65 provides protection against dust and water jets, suitable for exposed outdoor applications on building facades.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
