Facade Lighting Project 9W LED Flood Light

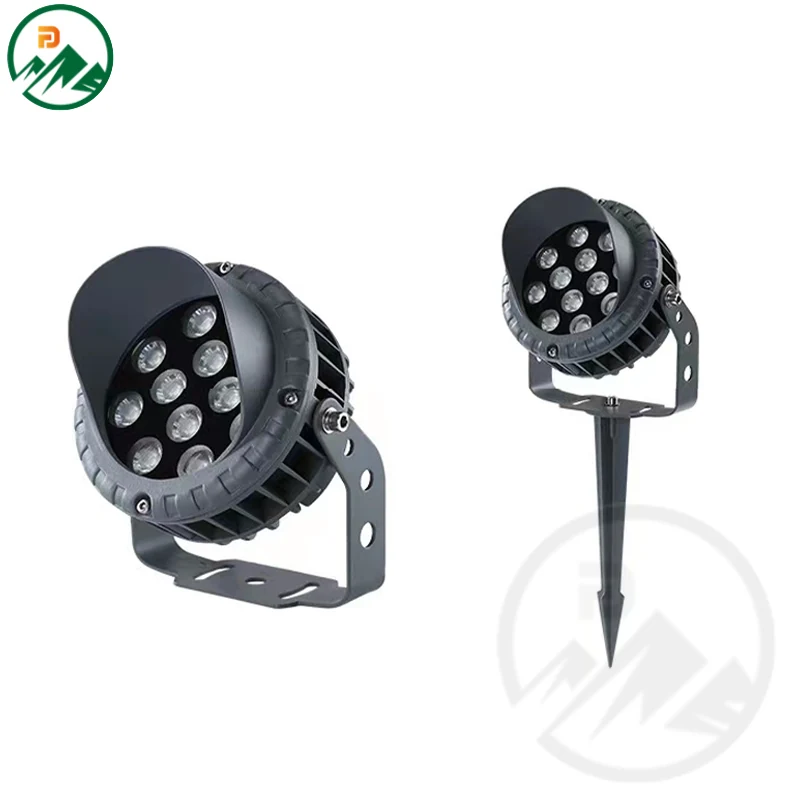

The FD-S210S09 is a 9W LED flood light designed for architectural facade and landscape lighting projects where flexible beam control and durable mounting are required. It features a die-casting aluminium body with a 200mm spike for ground installation, and a total height of 360mm. The light supports multiple beam angles and operates on AC85-265V or DC24V, making it suitable for both mains and low-voltage systems. It is available in 2800-6500K white, RGB, or RGBW colour options and can be controlled via ON/OFF or DMX. The fixture is rated IP65 for outdoor use in exposed environments.
| Model | FD-S210S09 |
|---|---|
| Power | 9W |
| Input Voltage | AC85-265V/DC24V |
| IP Rating | IP65 |

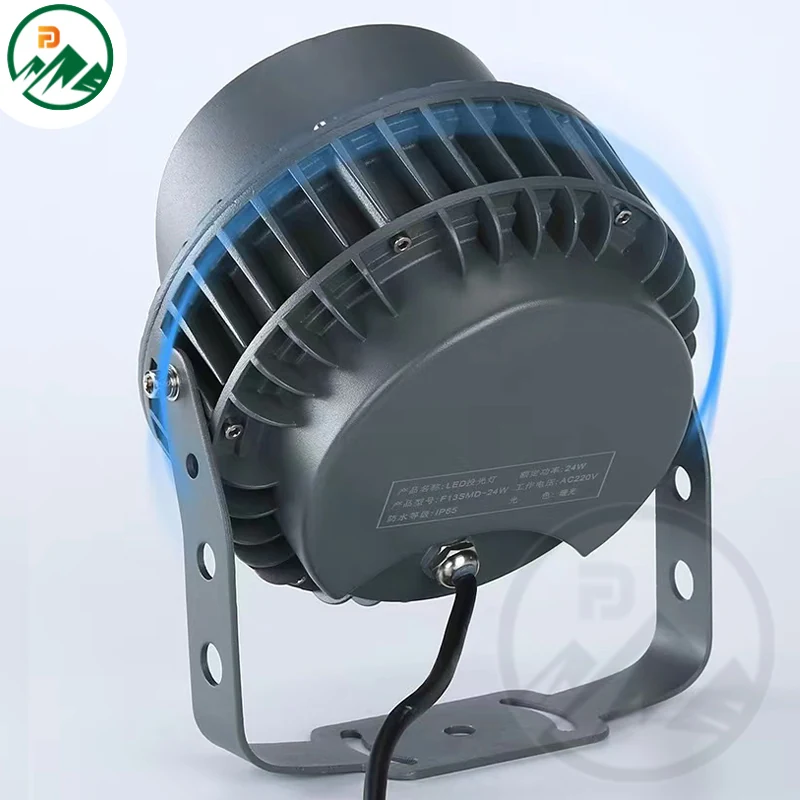

| Dimension | D130 x H160 mm, Spike 200 mm, Total H 360 mm |
| Material | Die-casting Aluminium |
| LED Chip | CREE |
| Driver | Included |
| Colour Temperature | 2800-6500K/RGB/RGBW |

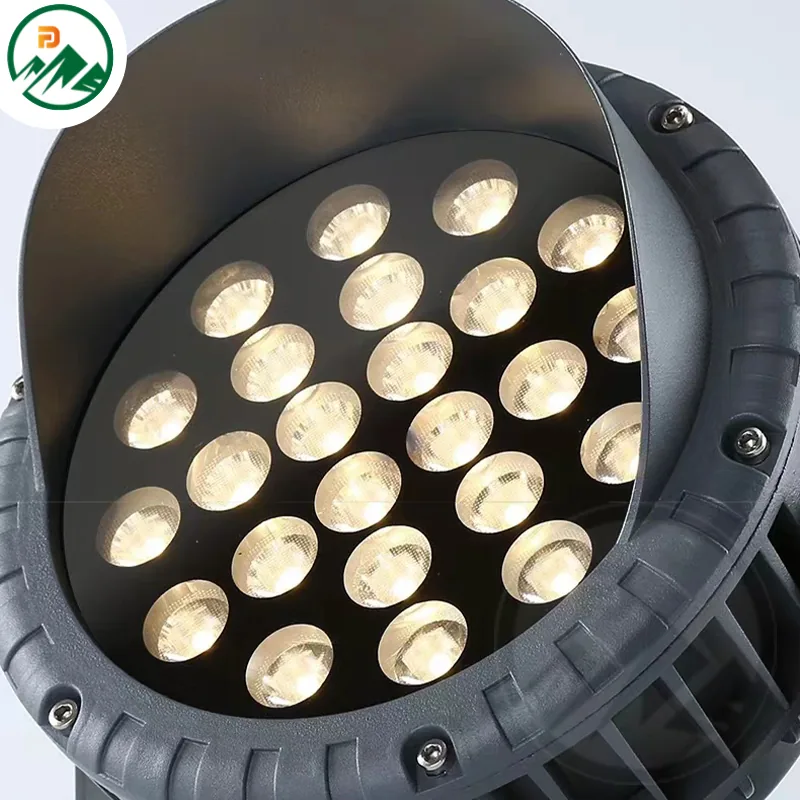

| Beam Angle | 10/15/30/45/60/90/120° |
| Control System | ON/OFF, DMX |
| Output Cable | 30cm |
| Warranty | 3 Years |
Key Benefits
- Multiple beam angles allow one fixture to serve grazing, uplighting, and accent lighting on the same site
- Die-casting aluminium body provides strong mechanical support and heat dissipation for long-term reliability
- IP65 rating ensures protection against dust and water jets, suitable for outdoor facade and landscape applications
- AC85-265V or DC24V input supports integration into both mains and low-voltage site wiring systems
- DMX control option enables dynamic colour and intensity changes in architectural lighting schemes
- CREE LED chip ensures consistent light output and stable performance over time
Application Scenarios
- Grazing textured or patterned building facades with adjustable beam angles to highlight surface details
- Uplighting columns, pillars, and architectural features in urban and commercial landscape schemes
- Accent lighting for trees, statues, and garden features in public parks and residential developments
- Integration into facade lighting systems where colour change or dynamic effects are required via DMX
Who It Is For
- Facade and landscape lighting contractors installing ground-mounted flood lights in outdoor projects
- Lighting designers specifying adjustable beam and colour options for architectural lighting schemes
- Electrical wholesalers supplying LED flood lights for commercial and public infrastructure projects
- Brand owners sourcing OEM flood lights under their own label with custom control and colour options
Problems It Solves
- Fixed beam angle flood lights require multiple SKUs to cover different lighting tasks on a single site
- Non-IP65 rated fixtures fail prematurely in outdoor environments exposed to rain and dust
- Lack of DMX control limits the ability to create dynamic lighting effects in architectural projects
- Inconsistent LED performance over time leads to uneven lighting output in long-term installations
- Weak mounting structures fail under wind load or vibration in exposed locations
Technical Features
- Die-casting aluminium body for structural strength and effective heat dissipation
- Adjustable beam angles: 10, 15, 30, 45, 60, 90, and 120 degrees for flexible aiming
- IP65 rating for protection against dust and water jets in outdoor environments
- CREE LED chip for stable light output and long operational life
- Dual input: AC85-265V or DC24V to match site power systems
- Control options: ON/OFF or DMX for static or dynamic lighting control
- Available in 2800-6500K white, RGB, or RGBW colour configurations
- 30cm output cable for easy connection to power or control systems
Materials
- Die-casting aluminium body for structural strength and thermal management
- Stainless steel or coated fasteners for corrosion resistance in outdoor environments
- Polycarbonate or tempered glass lens for optical clarity and impact resistance
Manufacturing Process
- Die-casting of aluminium housing with precision machining and surface finishing
- Assembly of CREE LED modules and driver circuitry inside the housing
- Installation of beam angle lenses or reflectors based on order specification
- Sealing of joints and cable entry points to achieve IP65 rating
- Final testing under load and control signal to verify DMX and ON/OFF functions
- Aging test and visual inspection before packing
Quality Control
- Incoming inspection of CREE LED chips and driver components
- IP65 sealing verification using spray test before final closure
- Functionality test for ON/OFF and DMX control signals
- Aged operation test for 24 hours at full power before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Beam angle selection at time of order to match the lighting design
- Colour temperature, RGB, or RGBW configuration selected based on project needs
- OEM and ODM production available for buyers selling under their own brand
- Driver can be supplied as built-in (DONE) or omitted if centralised drivers are used
Compared With the Alternatives
Fixed beam angle flood light
Higher cost per unit, but eliminates the need for multiple SKUs when aiming varies across a site
Surface-mounted flood light
Spike mounting allows deeper ground integration, reducing visibility and vulnerability to damage
Plastic-bodied flood light
Die-casting aluminium provides better heat dissipation and mechanical durability in outdoor exposure
Use Guide
- Install the spike into firm ground, ensuring the fixture is vertical and stable
- Select the required beam angle before final installation to match the target surface
- Route the 30cm output cable to the nearest power or control source, avoiding sharp bends
- For DMX control, ensure the signal line is properly terminated and shielded to prevent interference
- Clean the lens periodically to maintain optical output and prevent dirt buildup
Facade Lighting Project 9W LED Flood Light Questions
What is the beam angle range for this flood light?
The FD-S210S09 offers seven beam angles: 10, 15, 30, 45, 60, 90, and 120 degrees.
Can it run on 24V DC?
Yes. The fixture supports both AC85-265V and DC24V input, so it can be used in low-voltage systems.
Is the driver included?
Yes. The driver is built-in (DONE) and supplied with the fixture. It can be omitted if centralised drivers are used.
What is the IP rating?
The fixture is rated IP65, which protects against dust and water jets, suitable for outdoor facade and landscape use.
What colour options are available?
Available in 2800-6500K white, RGB, or RGBW for dynamic colour effects.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit.
