Facade Lighting Project 36W LED Flood Light

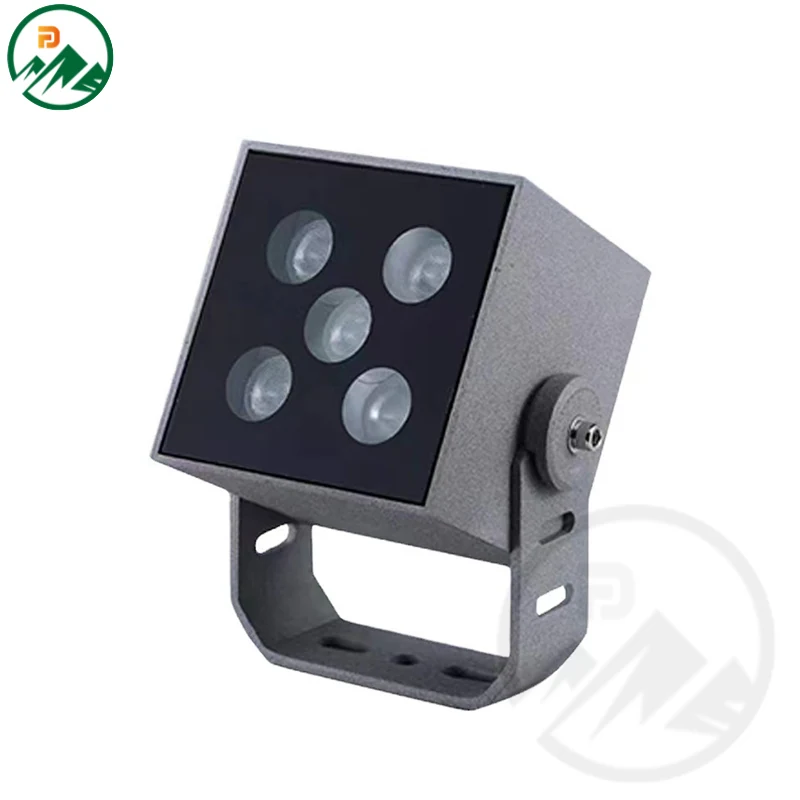

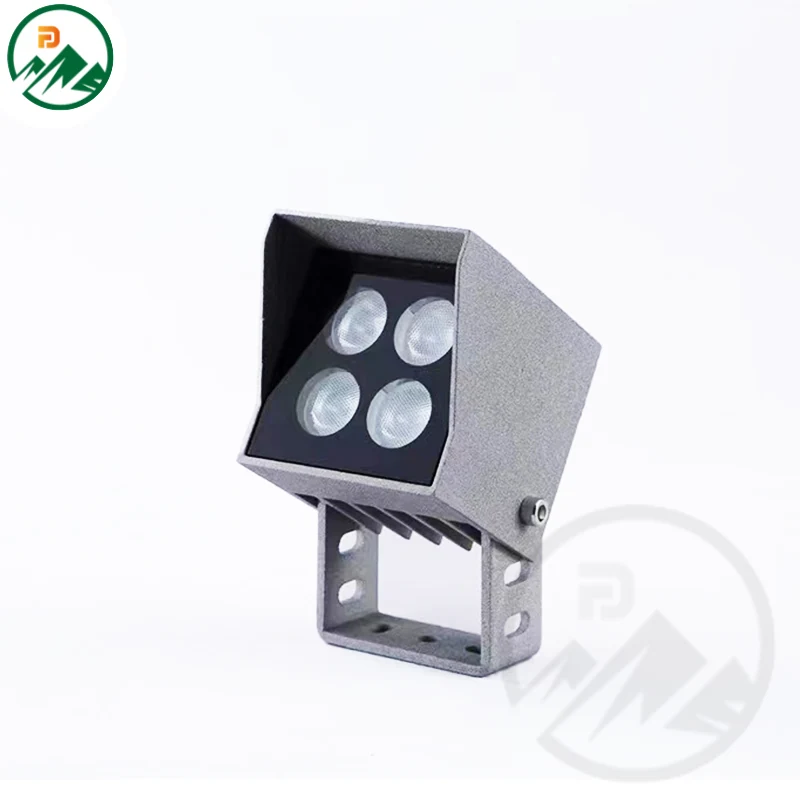

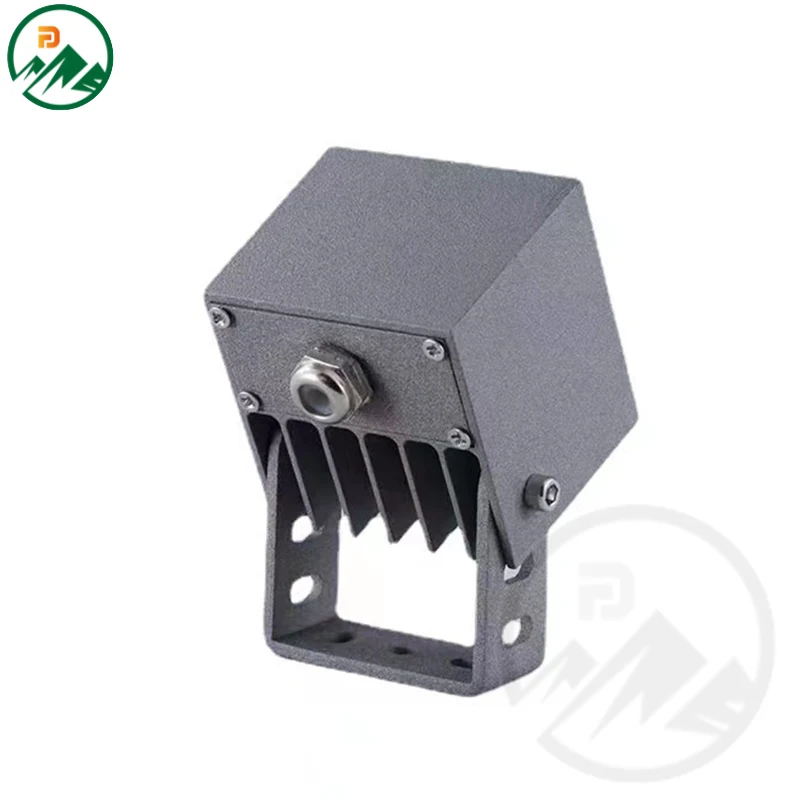

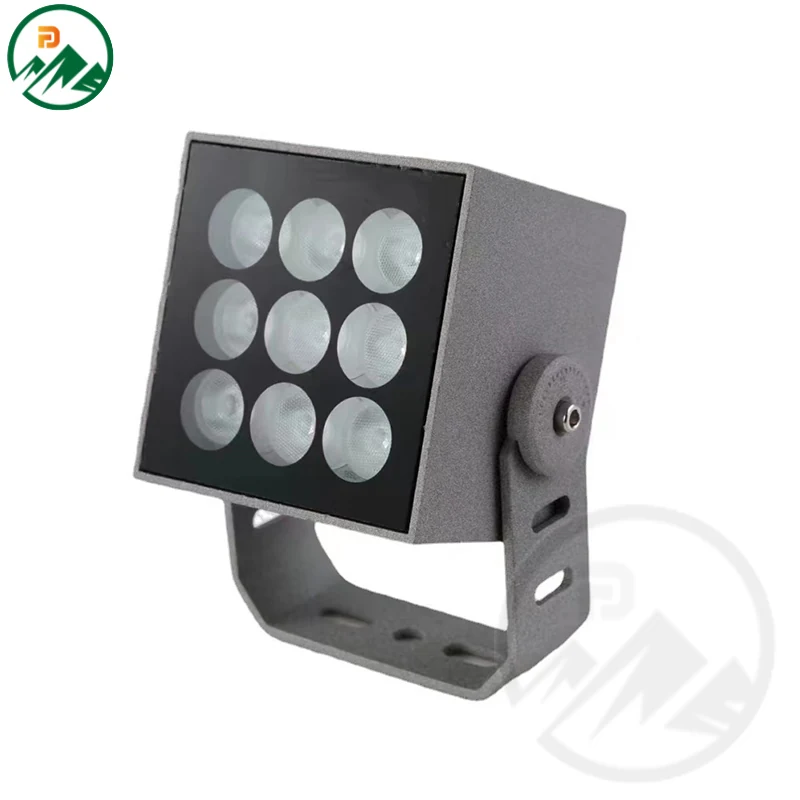

The FD-S294S36 is a 36W LED flood light designed for architectural facade lighting projects requiring flexible beam control and multiple colour options. It features an aluminium body with IP65 protection, making it suitable for outdoor mounting on building exteriors. The light supports both AC85-265V and DC24V input, allowing integration into existing mains or low-voltage systems. It offers seven beam angles and three colour modes: fixed CCT (2800-6500K), RGB, or RGBW, with ON/OFF or DMX control for dynamic lighting sequences. The output cable is 30cm long, and the fixture is built for direct wall or pole mounting.
| Model | FD-S294S36 |
|---|---|
| Power | 36W |
| Input Voltage | AC85-265V/DC24V |
| IP Rating | IP65 |
| Dimension | L115 x W115 x H155 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | Included |
| Colour Temperature | 2800-6500K/RGB/RGBW |
| Beam Angle | 10/15/30/45/60/90/120° |
| Control System | ON/OFF, DMX |
| Output Cable | 30cm |
| Warranty | 3 Years |
Key Benefits
- Seven beam angles allow one fixture to serve grazing, washing, and accent lighting on the same facade
- IP65 rating ensures reliable performance in outdoor conditions with rain and dust exposure
- AC85-265V or DC24V input supports integration into both mains and low-voltage site wiring
- CREE LED chip delivers consistent light output with stable colour performance
- ON/OFF or DMX control enables simple operation or complex dynamic sequences
- RGB and RGBW modes allow for colour-changing effects without needing separate fixtures
- 30cm output cable provides flexibility in cable routing during installation
Application Scenarios

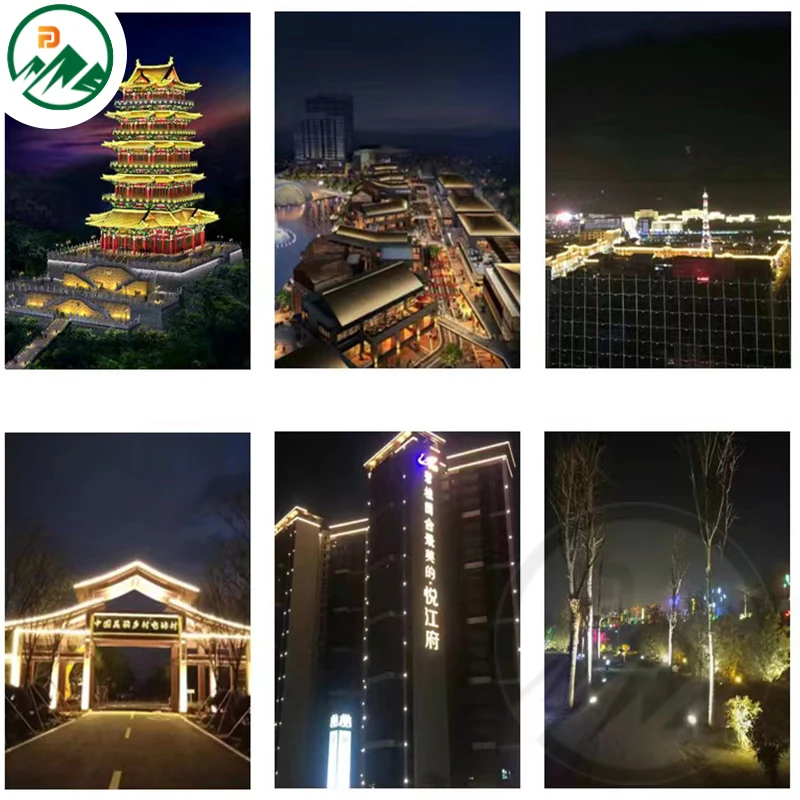

- Highlighting textured stone or concrete facades with adjustable beam angles for precise light distribution
- Creating dynamic colour effects on commercial building exteriors using RGB or RGBW modes
- Illuminating architectural details such as cornices, columns, and recessed panels
- Integrating into DMX-controlled lighting systems for coordinated facade animations
- Mounting on poles or walls in urban environments where space and wiring constraints exist
Who It Is For
- Facade and landscape lighting contractors installing outdoor architectural lighting
- Lighting designers specifying dynamic or variable beam lighting for building exteriors
- Electrical wholesalers supplying LED flood lights for architectural projects in Europe and the Middle East
- Brand owners sourcing OEM flood lights under their own label with custom control options
Problems It Solves
- Fixed beam angle flood lights require multiple SKUs to cover different lighting tasks on a single facade
- Lack of DMX control forces the use of separate controllers or incompatible systems
- Inconsistent colour temperature across fixtures leads to visual mismatch in large-scale projects
- Non-IP65 rated lights fail prematurely in outdoor environments with rain and dust
- Inadequate cable length limits routing options during installation and increases site wiring complexity
Technical Features
- Aluminium body for efficient heat dissipation in continuous outdoor operation
- IP65 rating for protection against dust and water jets from any direction
- Seven beam angles: 10°, 15°, 30°, 45°, 60°, 90°, 120° for flexible light distribution
- CREE LED chip for stable output and long life in outdoor conditions
- AC85-265V or DC24V input to match existing site power systems
- ON/OFF or DMX control for simple or complex lighting sequences
- CCT 2800-6500K, RGB, or RGBW colour options for fixed or dynamic lighting
- 30cm output cable for flexible wiring during installation
Materials
- Aluminium body for heat dissipation and structural rigidity
- Polycarbonate lens or diffuser for light distribution and impact resistance
- Copper or tin-plated terminals for reliable electrical connections in the output cable
Manufacturing Process
- Aluminium body die-casting and surface finishing
- LED board assembly with CREE chips and driver integration
- Cable termination and strain relief fitting
- Sealing and IP65 testing before final assembly
- Aged operation test under full load before packing
Quality Control
- Incoming inspection of CREE LED chips and driver components
- IP65 sealing test using spray and dust exposure
- Full power ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Beam angle selection can be specified per order for fixed-angle variants
- Control system can be set to ON/OFF or DMX based on project needs
- CCT, RGB, or RGBW mode can be selected during production
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Fixed beam angle flood light
Higher upfront cost, but reduces SKU count and avoids reordering when aiming changes on site
Low-voltage only flood light
Supports both AC and DC input, allowing use in mixed or evolving site wiring systems
Non-DMX controlled flood light
Enables dynamic sequences and integration into larger lighting networks, reducing control complexity
Use Guide
- Mount the fixture on a wall or pole using the provided mounting bracket or screws
- Select the desired beam angle before final installation, as it is not adjustable after mounting
- Route the 30cm output cable to the nearest power source, ensuring no sharp bends or strain
- For DMX control, connect to a DMX controller using standard 3-pin XLR wiring
- Ensure the mounting surface is clean and dry to maintain the IP65 seal over time
- Avoid direct exposure to high-pressure water jets during cleaning to preserve the IP65 rating
Facade Lighting Project 36W LED Flood Light Questions
What beam angles are available for this flood light?
Seven options: 10°, 15°, 30°, 45°, 60°, 90°, and 120°, selectable per order.
Can it run on 24V DC instead of mains voltage?
Yes. The model supports both AC85-265V and DC24V input, so it can be used in low-voltage systems.
Is the driver built-in or external?
The driver is built-in (DONE), so no external driver is needed unless specified otherwise.
What colour options are available?
Available in fixed CCT (2800-6500K), RGB, or RGBW modes, selected during production.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
