DMX512 RGB 36W LED Wall Washer
The FD-LW070L36 is a 36W linear LED wall washer designed for architectural facade and landscape lighting projects requiring dynamic colour effects. It operates on DC24V and uses DMX512 control for precise, programmable RGB colour changes. The fixture is built with a high-quality aluminium body and rated IP67, making it suitable for outdoor installation on building facades exposed to rain and dust. The driver is not included, allowing integration with centralised control systems. The unit is 1000mm long, with a slim profile of 50mm width and 60mm height, enabling discreet mounting along architectural edges.
| Model | FD-LW070L36 |
|---|---|
| Power | 36W |
| Input Voltage | DC24V |
| IP Rating | IP67 |
| Dimension | L1000 x W50 x H60 mm |
| Material | High quality Aluminium |
| LED Chip | CREE |
| Driver | Not included |
| Colour Temperature | RGB |
| Control System | DMX512 |
| Warranty | 3 Years |
Key Benefits
- DMX512 control allows precise, remote colour and effect programming for dynamic facade displays
- IP67 rating ensures reliable operation in outdoor environments with rain, dust, and temperature variation
- DC24V input with driver omitted enables integration into centralised power and control systems
- CREE LED chips deliver consistent colour output and long life in high-visibility applications
- Slim 50mm width allows discreet mounting along building edges without dominating the architectural line
- 36W power draws less energy than traditional floodlights while maintaining high visual impact
Application Scenarios
- Creating animated colour washes on building facades during public events or seasonal lighting displays
- Highlighting textured concrete, stone, or metal panels on commercial and residential building exteriors
- Integrating into architectural lighting schemes where centralised DMX control is already in place
- Installing along balconies, cornices, and parapet edges to define building outlines at night
- Using in landscape projects where RGB effects are required on vertical surfaces such as retaining walls
Who It Is For
- Facade and landscape lighting contractors installing programmable LED wall washers in outdoor projects
- Lighting designers specifying DMX-controlled RGB effects for architectural lighting schemes
- Electrical wholesalers supplying linear wall washers for commercial and public building projects
- Brand owners sourcing OEM wall washers under their own label with custom logo and control integration
Problems It Solves
- Fixed-colour wall washers require multiple SKUs to achieve dynamic effects, increasing inventory and installation complexity
- Lack of DMX control in basic wall washers limits the ability to synchronise lighting with events or music
- Inconsistent colour output from low-grade LED chips leads to visible colour shifts over time
- Non-IP67 rated fixtures fail prematurely in outdoor conditions with rain and dust exposure
- Built-in drivers increase cost and reduce flexibility when centralised control systems are used

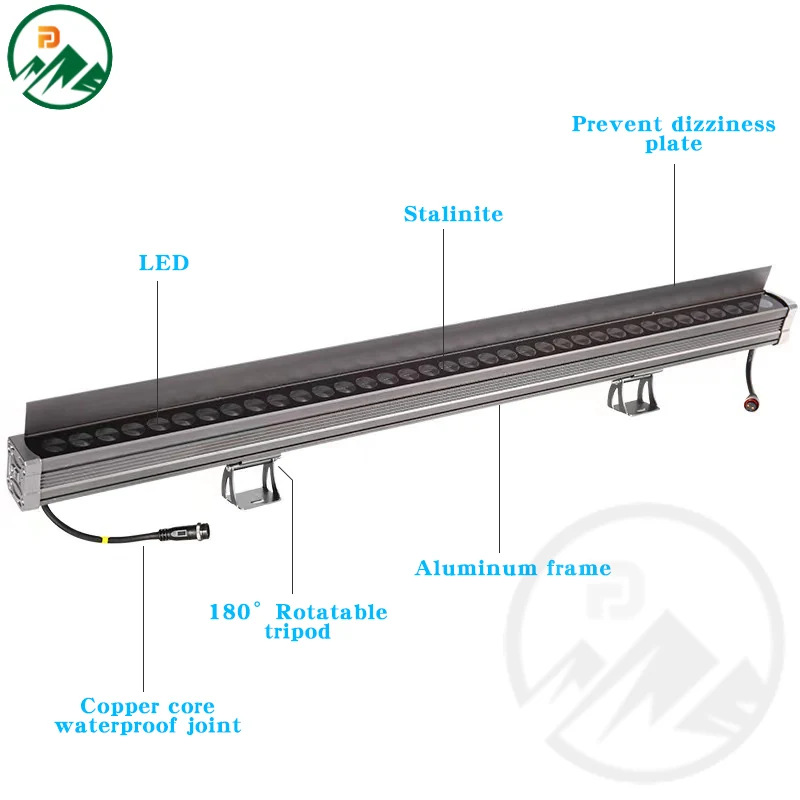

Technical Features
- DMX512 protocol for remote, multi-channel control of RGB colour and animation
- CREE LED chip for consistent colour and stable output across the fixture lifespan
- DC24V input with driver not included, allowing use with centralised power and control panels
- IP67 sealing for protection against dust and temporary immersion in water

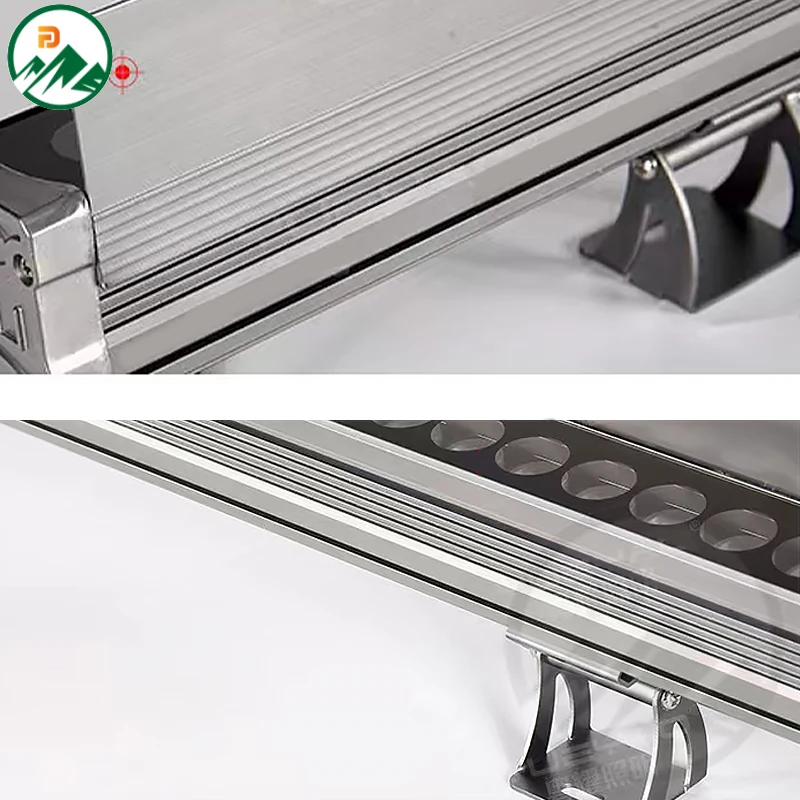

- High-quality aluminium body for heat dissipation and structural rigidity

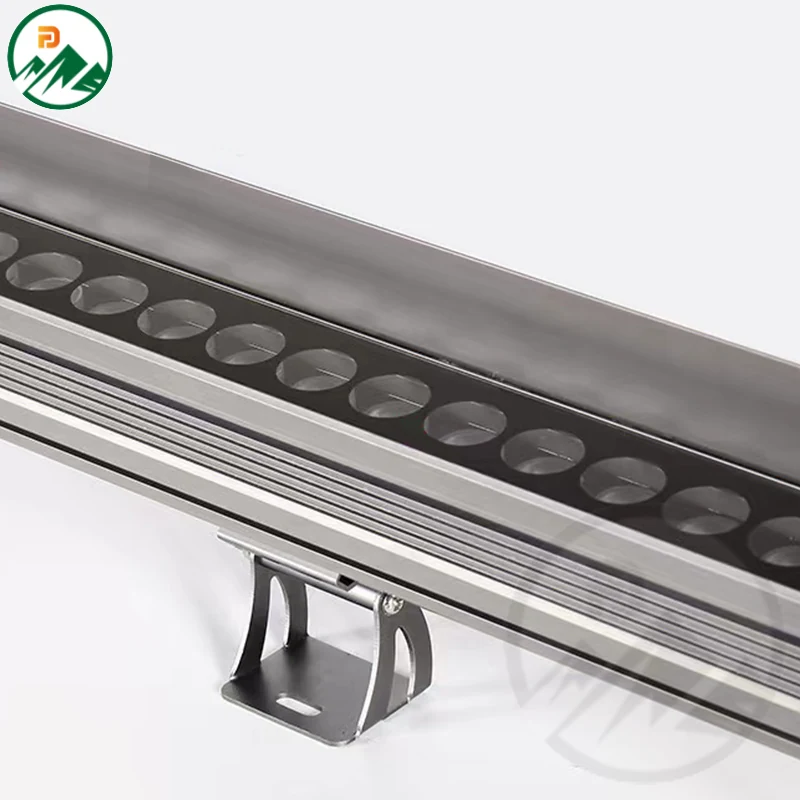

- Linear 1000mm length with slim 50mm width and 60mm height for discreet mounting
Materials
- High-quality aluminium body for heat dissipation and structural strength
- Tempered glass or polycarbonate lens for optical clarity and impact resistance
- IP67-rated sealing gaskets and housing joints to prevent water and dust ingress
Manufacturing Process
- Aluminium body extrusion and surface finishing
- LED board assembly with CREE packages and DMX512 controller
- Sealing and gasket fitting to achieve IP67 rating
- Powered ageing test under normal operating conditions
- Final inspection and packing for shipment
Quality Control
- Incoming inspection of CREE LED chips and DMX512 control modules
- IP67 sealing check using pressure and water spray tests
- Powered ageing run for 72 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied or omitted based on project control strategy
- DMX512 system supports standard protocol; no custom firmware changes
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Non-DMX RGB wall washer
Higher upfront cost, but enables complex animations and synchronisation with events or music
Mains-powered wall washer with built-in driver
More expensive and less flexible; driver omission allows better integration with centralised control systems
Low-grade aluminium wall washer
Better heat dissipation and durability, but higher material cost; suitable for long-term outdoor exposure
Use Guide
- Mount the fixture on a stable surface with proper support to prevent sagging over time
- Connect to a DMX512 controller using standard 5-pin XLR cables and ensure correct address setting
- Use DC24V power supply with sufficient current capacity for the total number of fixtures on the circuit
- Ensure the mounting surface is clean and dry before sealing the fixture into place
- Avoid direct contact with the lens during installation to prevent scratches or contamination
DMX512 RGB 36W LED Wall Washer Questions
What is the input voltage for this wall washer?
The fixture operates on DC24V only.
Is the driver included?
No. The driver is not included. The fixture is designed for use with a centralised driver system.
Can it be controlled with a standard DMX512 system?
Yes. The fixture uses standard DMX512 protocol and is compatible with any DMX512 controller.
What is the IP rating and is it suitable for outdoor use?
The fixture is rated IP67, which means it is protected against dust and temporary immersion in water. It is suitable for outdoor facade installation.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty varies from 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
