DMX RGB 36W LED Wall Washer Light
The FD-LW060L36-RGB is a 36W DMX512-controlled LED wall washer designed for architectural facade lighting where dynamic colour effects are required. It uses OSRAM 3IN1 LED chips to deliver full RGB colour mixing through a single fixture. The unit is built with a die-casting aluminium body for heat dissipation and has an IP65 rating, making it suitable for outdoor installation on building surfaces exposed to rain. It runs on DC24V and is supplied without a driver, allowing integration into centralised control systems with site-provided drivers.
| Model | FD-LW060L36-RGB |
|---|---|
| Power | 36W |
| Input Voltage | DC24V |
| IP Rating | IP65 |

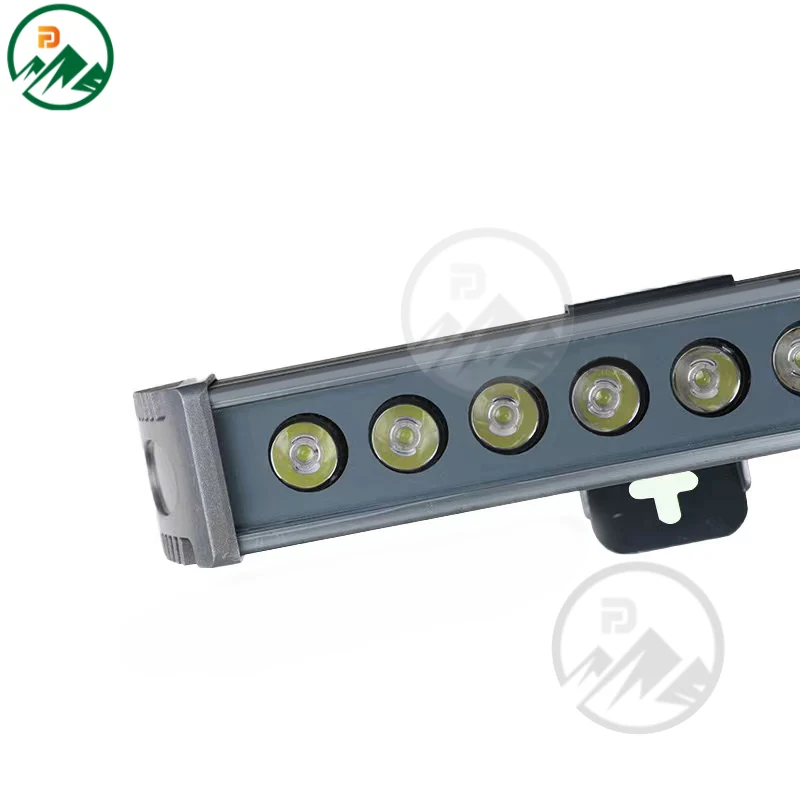

| Dimension | L1000 x W45 x H60 mm |
| Material | Die-casting aluminium |
| LED Chip | OSRAM 3IN1 LED CHIP |
| Driver | Not included |
| Colour Temperature | RGB |
| Control System | DMX512 |
| Warranty | 3 Years |
Key Benefits
- DMX512 control enables dynamic, programmable colour changes on building facades
- OSRAM 3IN1 LED chips provide consistent RGB colour mixing without colour separation
- IP65 rating allows installation on exterior walls without risk from rain or splashing
- Die-casting aluminium body ensures good heat transfer and long-term stability
- Driver not included allows use with centralised drivers already specified in the project
- 1000mm length fits standard facade panel spacing and provides even wash coverage
Application Scenarios

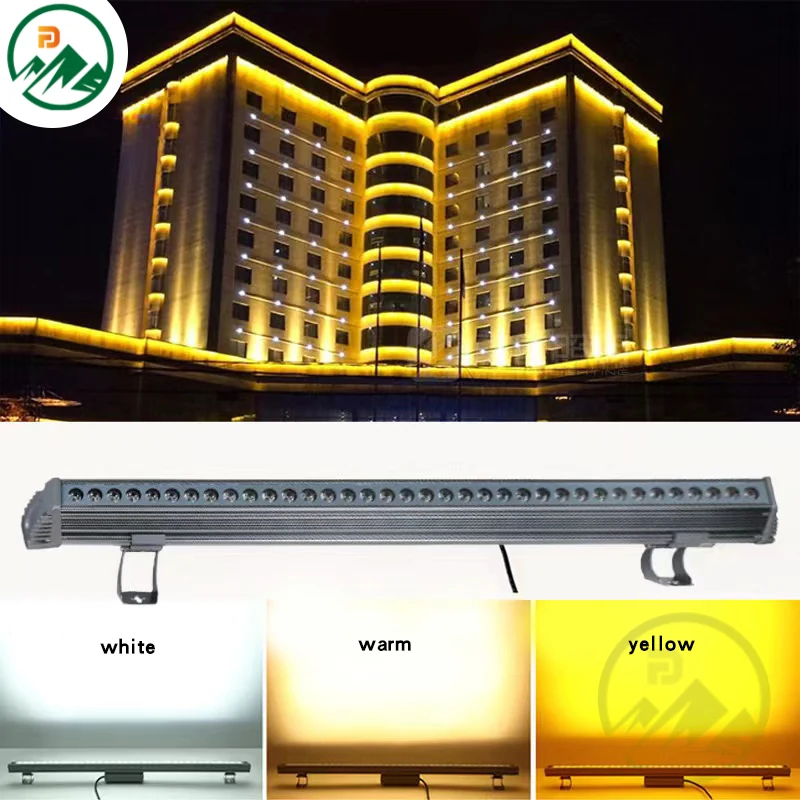

- Creating animated colour washes on hotel and commercial building facades during events
- Highlighting textured or patterned wall surfaces in urban landscape and streetscape projects
- Integrating into architectural lighting schemes with centralised DMX control systems
- Installing on exterior walls in coastal or high-rainfall areas where weather resistance is critical
Who It Is For
- Facade lighting contractors installing programmable LED wall washers in Middle East and European projects
- Lighting designers specifying DMX-controlled colour effects for building illumination
- Electrical wholesalers supplying architectural lighting components with centralised driver systems
- Brand owners sourcing OEM wall washers under their own label with custom logo printing
Problems It Solves
- Fixed-colour wall washers require multiple fixtures for colour variation, increasing cost and complexity
- Non-DMX fixtures cannot respond to centralised programming, limiting dynamic effects
- Low IP-rated fixtures fail when installed on exposed exterior walls with rain exposure
- Inconsistent driver integration forces custom wiring or on-site driver mounting
- Poor heat dissipation in plastic or thin metal housings shortens LED lifespan
Technical Features
- DMX512 protocol for remote control of colour and animation sequences
- OSRAM 3IN1 LED chip for uniform RGB output without colour shift
- IP65 rating for protection against water jets and dust ingress

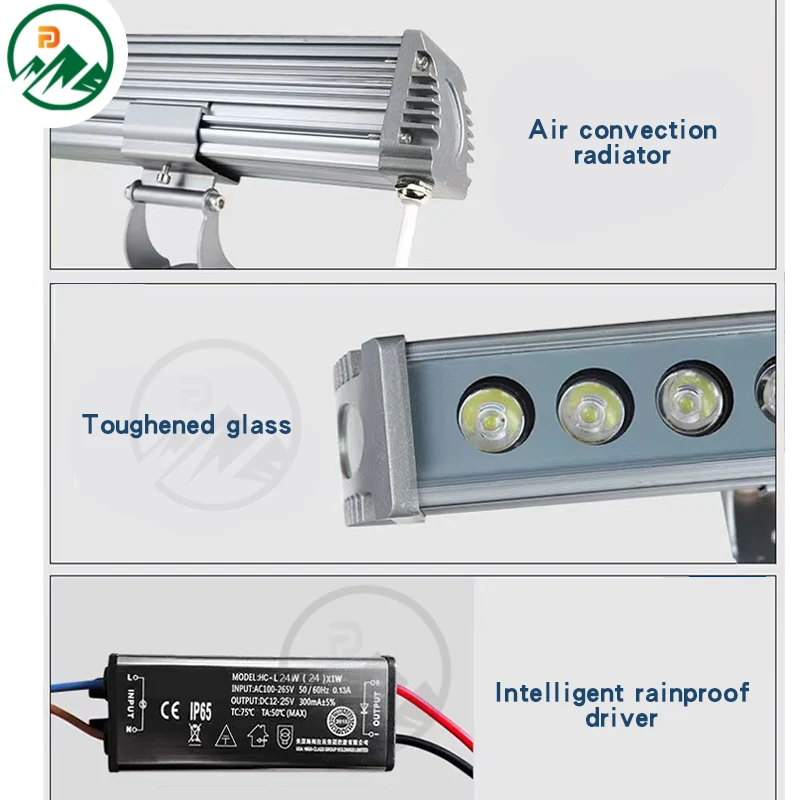

- Die-casting aluminium body for efficient heat dissipation and structural rigidity
- DC24V input with driver supplied separately to match site control strategy
- 1000mm length designed for continuous facade panel coverage without gaps

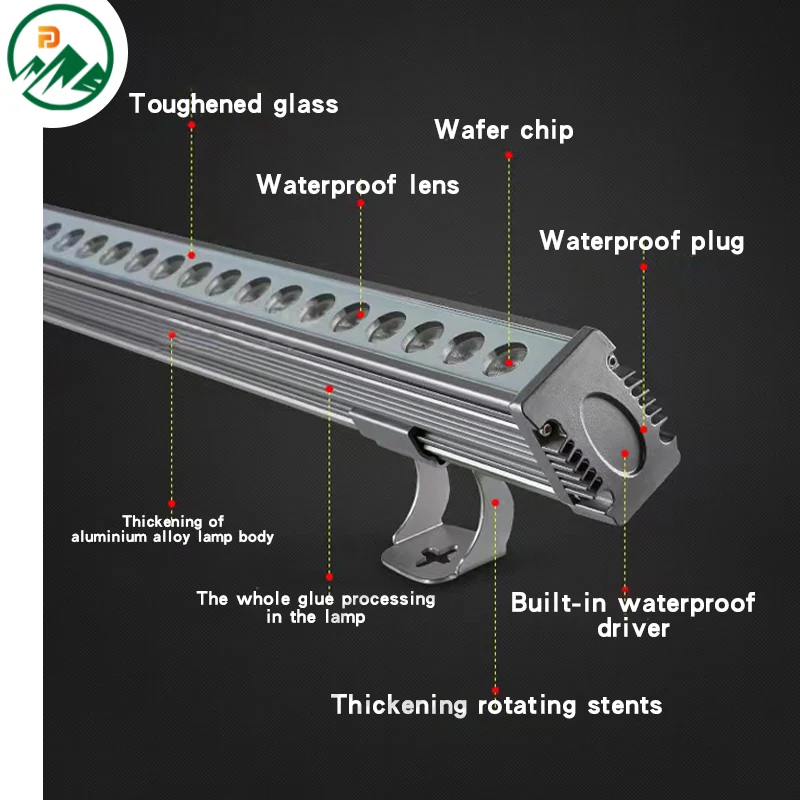

Materials
- Die-casting aluminium body for heat dissipation and structural strength
- Tempered glass or polycarbonate lens over the LED array for weather protection
- Internal heat sink structure integrated into the aluminium housing
Manufacturing Process
- Die-casting of aluminium housing with precision machining for mounting and sealing
- Assembly of OSRAM 3IN1 LED modules on a rigid PCB with thermal interface
- Installation of DMX512 receiver and signal conditioning circuitry
- Sealing of joints and cable entry points to achieve IP65 rating
- Powered ageing test under normal operating conditions before packing
Quality Control
- Incoming inspection of OSRAM LED chips and DMX components
- IP65 sealing test using water spray and dust exposure before final closure
- Function test of DMX512 signal reception and colour output
- Powered ageing run for 24 hours at full load before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied without driver to match centralised driver systems already in place
- DMX512 protocol standard, but other control systems can be discussed for ODM
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Non-DMX wall washer
Higher upfront cost, but enables dynamic colour effects without additional fixtures
Driver-integrated wall washer
Lower cost per fixture, but requires on-site driver installation; this model avoids that
Plastic-bodied wall washer
Less durable in outdoor environments, prone to warping and UV degradation
Use Guide
- Mount the fixture on a flat, stable surface using the provided mounting brackets
- Connect to a DC24V power supply with a centralised driver system
- Assign DMX channel and address using the built-in dip switches or software
- Ensure the cable entry point is sealed to maintain IP65 rating
- Clean the lens surface periodically to maintain light output and colour consistency
DMX RGB 36W LED Wall Washer Light Questions
What is the input voltage for this wall washer?
It runs on DC24V, so it must be connected to a DC24V power source with a centralised driver.
Is the driver included?
No. The fixture is supplied without a driver, allowing integration into centralised control systems already specified in the project.
Can it be controlled with DMX512?
Yes. The fixture uses the DMX512 protocol for remote control of colour and animation sequences.
What is the IP rating and where can it be used?
It has an IP65 rating, which allows installation on exterior walls exposed to rain and splashing water.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can we order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
