DMX RGB 15W LED Point Light for Building Facade Lighting
The FD-PL060X15 is a 15W DMX512-controlled LED point light designed for architectural facade lighting where dynamic colour changes and precise control are required. The fixture uses a CREE LED chip and runs on DC24V, making it suitable for low-voltage control systems common in building lighting projects. It is constructed from aluminium and acrylic, with an IP65 rating for protection against dust and water jets, allowing installation in exposed outdoor positions. The unit is supplied without a driver, so it integrates into centralised control systems where drivers are already provided.
| Model | FD-PL060X15 |
|---|---|
| Power | 15W |
| Input Voltage | DC24V |
| IP Rating | IP65 |
| Dimension | D138 x H70 mm |
| Material | Aluminium+Acrylic |
| LED Chip | CREE |
| Driver | Not included |
| Control System | DMX512 |
| Warranty | 3 Years |
Key Benefits
- DMX512 control enables dynamic colour changes and programmed lighting sequences on building facades
- DC24V input allows integration into low-voltage control systems without additional voltage conversion
- IP65 rating ensures reliable operation in outdoor environments exposed to rain and dust
- CREE LED chip provides consistent output and long life in high-visibility facade applications
- No driver supplied allows for centralised driver use, reducing on-site component count
- Aluminium and acrylic construction offers durability with a clean, modern appearance

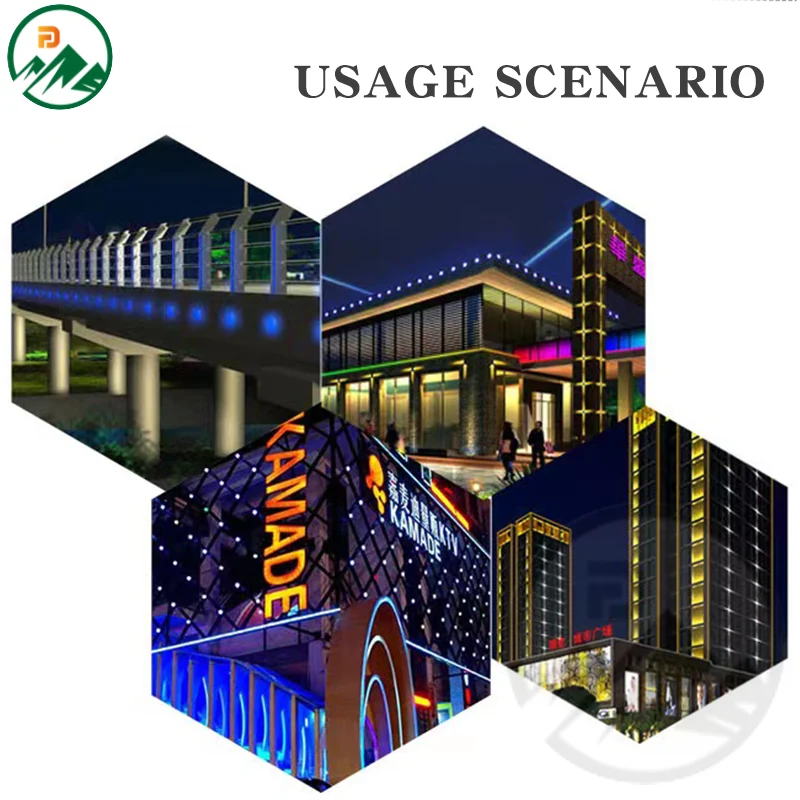

Application Scenarios
- Dynamic colour-changing effects on building facades during events or seasonal displays
- Accent lighting on architectural details such as cornices, edges, and structural elements
- Integration into centralised DMX control systems for large-scale facade lighting projects
- Installation on exposed building surfaces where dust and rain are common, such as in coastal or high-rainfall areas
Who It Is For
- Facade lighting contractors specifying programmable lighting for commercial and public buildings
- Lighting designers creating animated or colour-changing facade schemes with DMX control
- Electrical wholesalers supplying DMX-enabled point lights for architectural projects
- Brand owners sourcing OEM point lights under their own label with custom control integration
Problems It Solves
- Fixed-colour point lights cannot support dynamic lighting effects required for modern facade projects
- High-voltage fixtures require additional safety measures and are harder to integrate into low-voltage control systems
- Lack of IP65 protection leads to early failure in outdoor installations exposed to rain and dust
- On-site drivers increase cost, complexity, and failure points when centralised control is already in place
- Inconsistent LED performance from non-branded chips reduces reliability in long-term facade applications
Technical Features
- DMX512 control system for remote, programmable colour and intensity changes
- CREE LED chip for consistent lumen output and long operational life
- DC24V input voltage for compatibility with low-voltage control systems
- IP65 rating for protection against dust and water jets in outdoor environments
- Aluminium body with acrylic lens for heat dissipation and optical clarity
- Driver not included, allowing use with centralised or site-supplied drivers

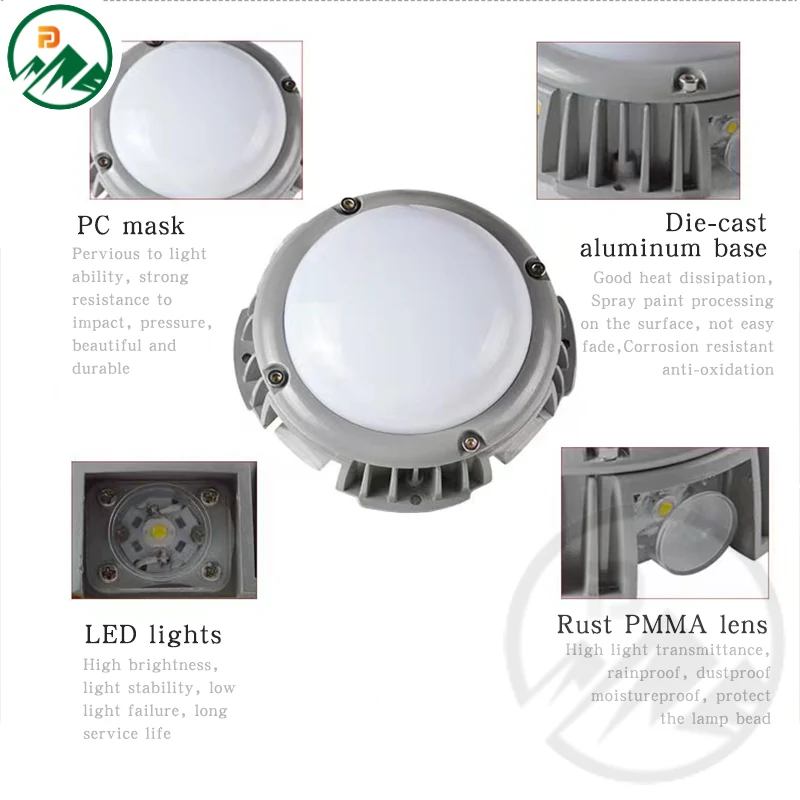

Materials
- Aluminium body for heat dissipation and structural rigidity
- Acrylic lens for optical clarity and impact resistance
- Sealing gasket for IP65 protection against dust and water ingress
Manufacturing Process
- Aluminium body machining and surface finishing
- Acrylic lens cutting and polishing
- CREE LED module assembly with DMX512 interface
- Sealing and gasket fitting to achieve IP65
- DMX512 signal testing and power verification
- Aged lighting test before packing
Quality Control
- Incoming inspection of CREE LED chips and DMX512 components
- IP65 sealing verification using spray test
- Powered ageing run under full load for 24 hours
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied without driver to match centralised control systems
- DMX512 control system standard, no alternative protocols offered
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Non-DMX point light
Higher upfront cost, but enables dynamic lighting effects without additional control hardware
Mains-voltage point light
Safer and easier to integrate into low-voltage systems, but requires a driver if used with DC24V control
IP64-rated point light
Higher protection level for outdoor use, but requires more robust sealing and gasketing
Use Guide
- Mount the fixture on the building facade using the provided mounting bracket or custom bracket
- Connect to a DMX512 control system using standard 3-pin or 5-pin DMX cables
- Ensure the DC24V power supply is sized to handle the total load of all connected fixtures
- Avoid directing the beam at reflective surfaces to prevent glare or hotspots
- Clean the acrylic lens periodically to maintain optical performance and colour accuracy
DMX RGB 15W LED Point Light for Building Facade Lighting Questions
What is the input voltage for this point light?
The fixture runs on DC24V, which is standard for low-voltage DMX control systems.
Is the driver included?
No. The fixture is supplied without a driver, so it can be used with centralised or site-supplied drivers.
What is the IP rating and what does it mean?
The fixture has an IP65 rating, which means it is protected against dust and water jets from any direction, suitable for outdoor facade use.
Can it be used with a centralised driver system?
Yes. Since the driver is not included, it is designed to be used with centralised drivers already installed in the control panel.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty varies between 2 and 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
