Discount Price LED Outdoor Facade Tube

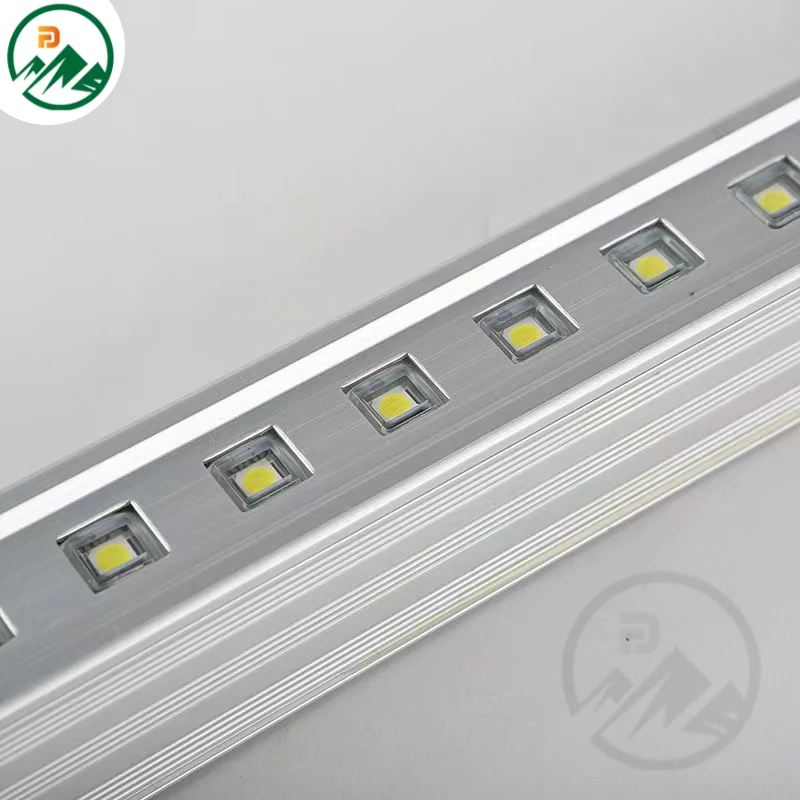

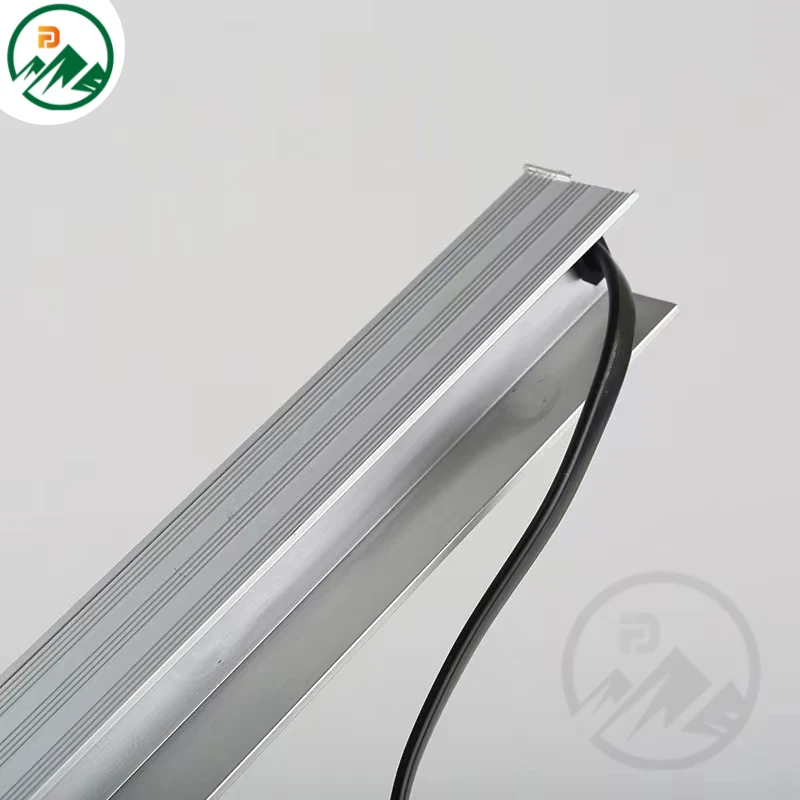

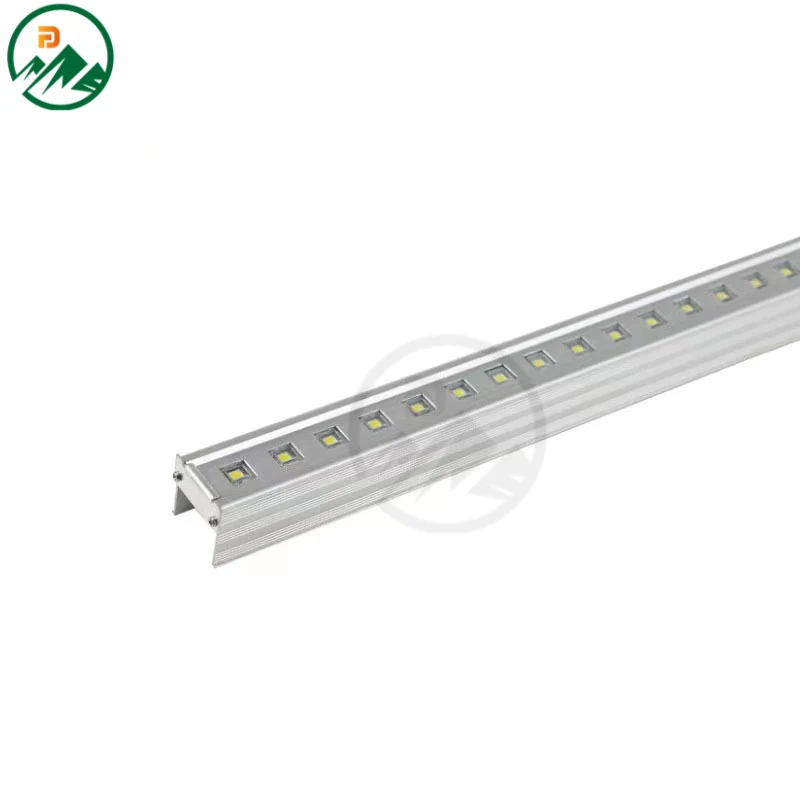

The FD-FL020L15 is a 15W linear LED fixture designed for architectural facade applications where a slim, low-profile profile is required. It is built for mounting on building edges, cornices, and structural details with minimal visual impact. The fixture uses a DC24V input, making it suitable for low-voltage systems common in facade lighting projects. It features a 10*60°/120° beam angle for flexible light distribution, and supports ON/OFF, DALI, and DMX control systems for integration into smart lighting networks. The aluminium body provides efficient heat dissipation and durability in outdoor conditions.
| Model | FD-FL020L15 |
|---|---|
| Power | 15W |
| Input Voltage | DC24V |
| IP Rating | IP65 |
| Dimension | L1000 x W30 x H30 mm |
| Material | Aluminium |
| Colour Temperature | 2800-6500K |
| Beam Angle | 10*60°/120° |
| Control System | ON/OFF, DALI, DMX |
| Warranty | 3 Years |
Key Benefits
- 15W power with DC24V input allows integration into low-voltage facade lighting systems
- 10*60°/120° beam angle offers both focused and wide light spread from a single fixture
- Aluminium body ensures good thermal performance and long-term stability in outdoor use
- IP65 rating protects against dust and water jets, suitable for exposed building edges
- Supports ON/OFF, DALI, and DMX control for compatibility with building management and dynamic lighting schemes

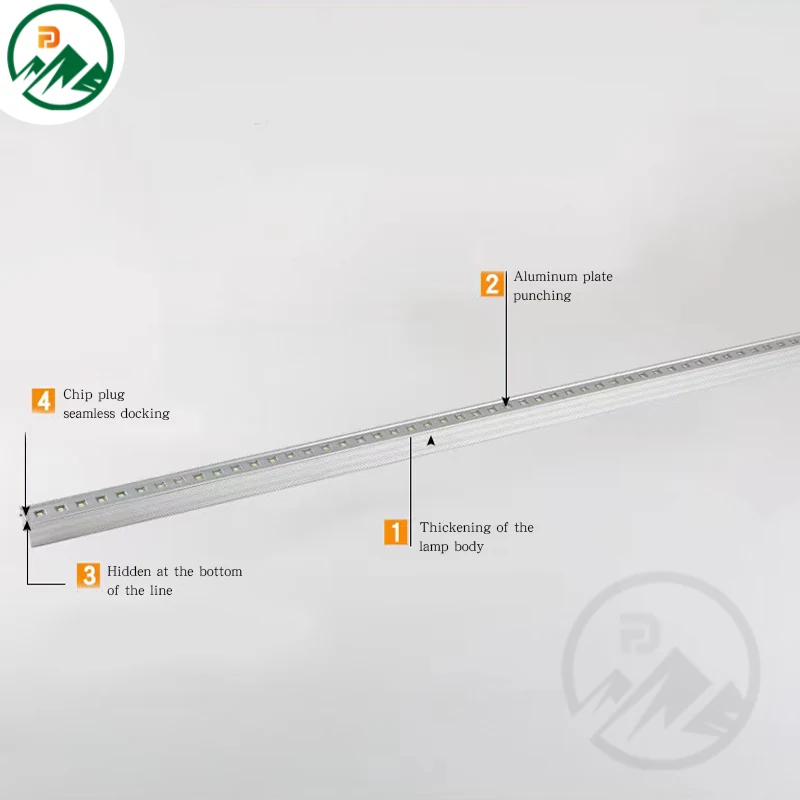

- Slim L1000*W30*H30mm profile minimises visual intrusion on architectural details
Application Scenarios
- Highlighting building cornices, parapets, and edge details on commercial and residential facades
- Creating continuous linear lighting along rooflines and architectural transitions
- Integrating into facade lighting schemes with digital control via DALI or DMX
- Installing on exposed building edges where low profile and weather resistance are required
- Using in projects with centralised low-voltage power distribution and control
Who It Is For
- Facade lighting contractors specifying linear fixtures for building edge lighting
- Architectural lighting designers needing slim, low-impact fixtures for cornice and parapet applications
- Electrical wholesalers supplying linear LED fixtures for facade projects in Europe and the Middle East
- Brand owners sourcing OEM linear lights under their own label with custom control options
Problems It Solves
- Fixed beam angle fixtures require multiple SKUs for different aiming needs on a single facade
- Non-IP65 rated fixtures fail in exposed positions where rain and dust accumulate
- High-power fixtures with large profiles disrupt architectural continuity on thin edges
- Lack of digital control compatibility limits integration into smart building lighting systems
- Inconsistent heat dissipation in non-aluminium bodies reduces LED lifespan in outdoor use
Technical Features
- 15W power with DC24V input for low-voltage system compatibility
- 10*60°/120° beam angle allows both narrow and wide light spread from one fixture
- Aluminium body for effective heat transfer and long-term durability
- IP65 rating for protection against dust and water jets in outdoor conditions
- Supports ON/OFF, DALI, and DMX control systems for flexible integration
- Slim L1000*W30*H30mm profile for minimal visual impact on architectural edges

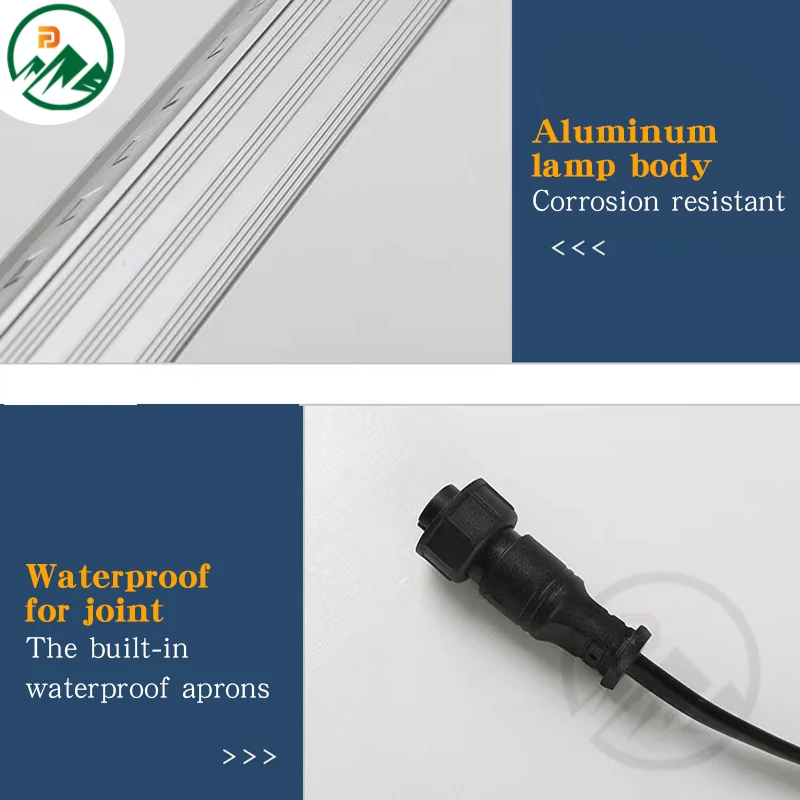

Materials
- Aluminium body for heat dissipation and structural rigidity
- Sealed housing with gaskets to maintain IP65 rating
- Internal components designed for outdoor exposure and long-term operation
Manufacturing Process
- Aluminium extrusion and surface finishing for the body

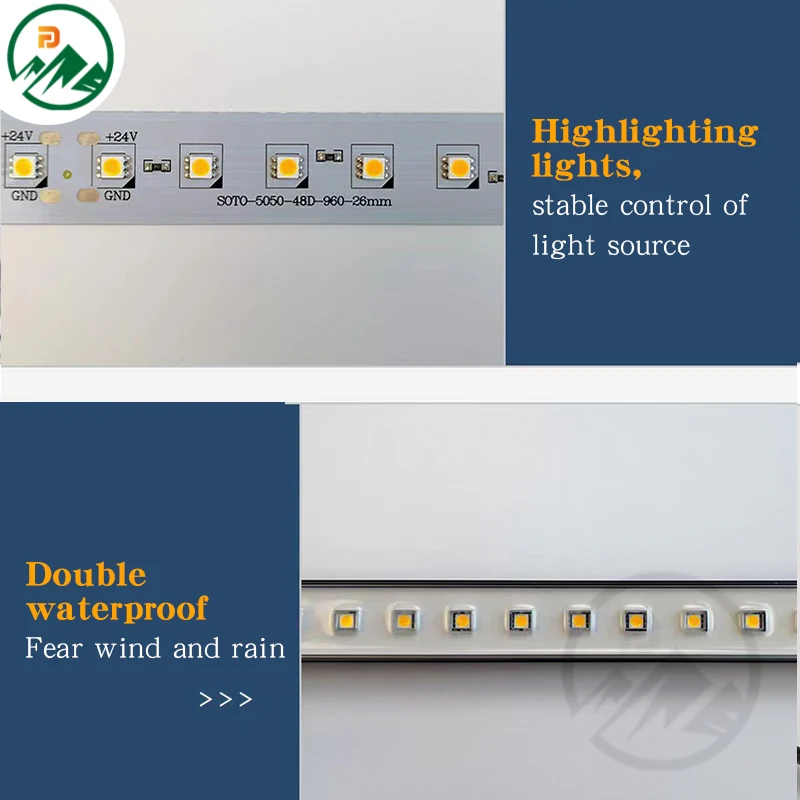

- LED board assembly with OSRAM or CREE chips (as per product page)
- Sealing and gasket fitting to achieve IP65
- Control system integration (ON/OFF, DALI, or DMX) based on order
- Final testing under operating conditions before packing
Quality Control
- Incoming inspection of LED chips and control components
- IP65 sealing verification using pressure and spray tests
- Functional testing of control systems (ON/OFF, DALI, DMX)
- Powered ageing test before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Control system can be configured as ON/OFF, DALI, or DMX based on project needs
- Available in DC24V input only, as specified in the product data
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Standard ON/OFF linear fixture
Higher cost, but enables dynamic control and integration with building automation systems
Non-aluminium linear fixture
Better thermal performance and longer lifespan, but higher material cost
IP64 rated fixture
Higher protection level against water jets, suitable for exposed facade positions
Use Guide
- Mount the fixture on building edges using the provided mounting brackets or custom brackets
- Ensure the DC24V power supply is sized to handle the total load of the circuit
- Keep the fixture clean and free from debris to maintain light output and IP rating
- Use DALI or DMX control systems with compatible drivers and controllers
- Verify the beam angle setting matches the intended lighting effect before final installation
Discount Price LED Outdoor Facade Tube Questions
What is the input voltage for this fixture?
The fixture operates on DC24V only.
Is the beam angle fixed or adjustable?
The beam angle is fixed at 10*60°/120°, as specified in the product data.
Can it be controlled via DALI or DMX?
Yes. The fixture supports ON/OFF, DALI, and DMX control systems.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Is IP65 sufficient for outdoor facade use?
Yes. IP65 provides protection against dust and water jets, suitable for exposed building edges and facade applications.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
