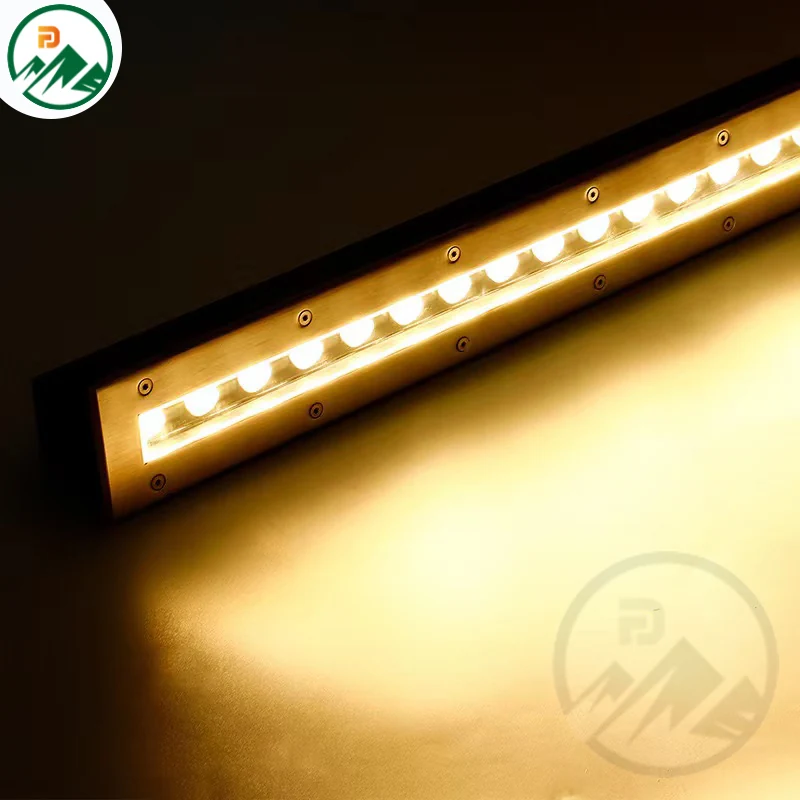

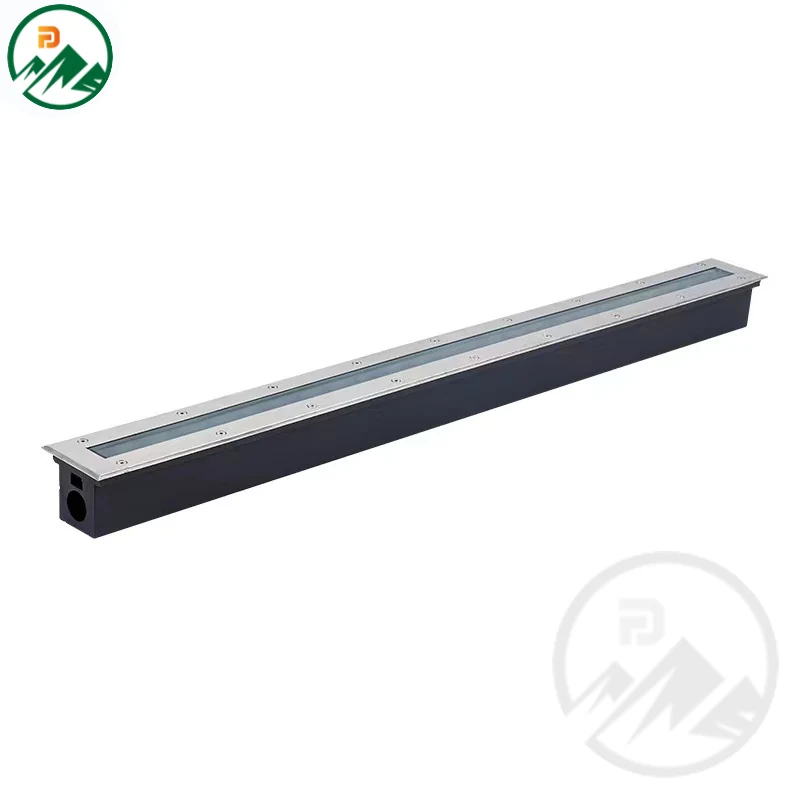

Discount Activity LED Linear Undeground Light 12W
The FD-LU040S12 is a 12W linear in-ground luminaire designed for facade and landscape lighting projects requiring a low-profile, durable solution. The fixture features an aluminium body with a stainless steel 304 cover, rated IP67 for installation in paved areas exposed to standing water. It operates on AC85-265V, making it compatible with standard mains wiring. The OSRAM LED chip delivers a wide range of colour temperatures from 2800K to 6500K, allowing selection to match architectural or landscape design intent. The driver is built into the fixture, simplifying site installation and reducing the need for additional components.
| Model | FD-LU040S12 |
|---|---|
| Power | 12W |
| Input Voltage | AC85-265V |
| IP Rating | IP67 |
| Dimension | L1000 x W90 x H75 mm |

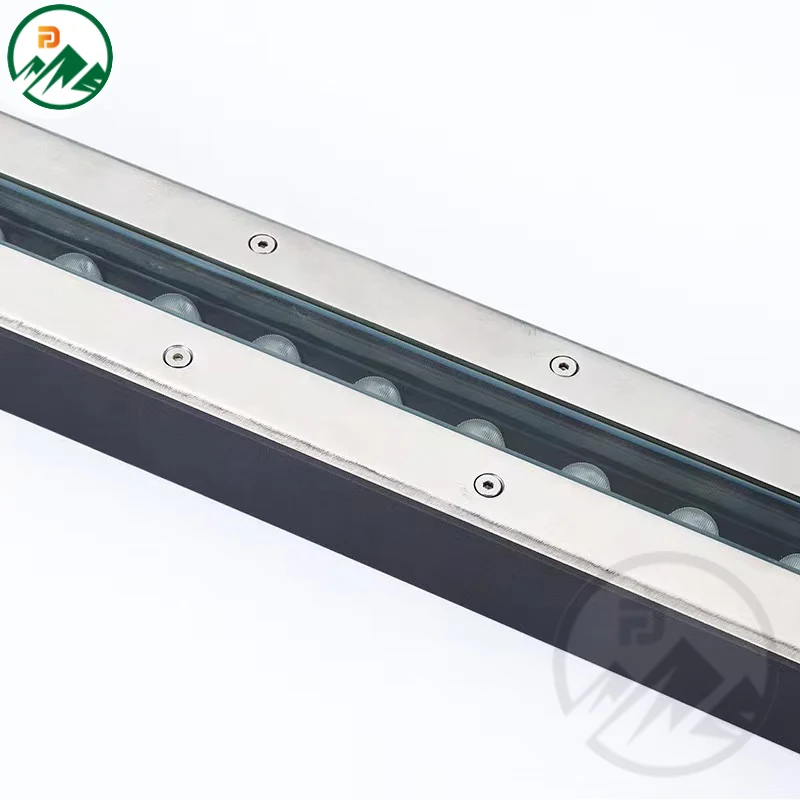

| Material | Aluminium Body+Stainless Steel 304 Cover |
| LED Chip | OSRAM |
| Driver | Included |
| Colour Temperature | 2800-6500K |
| Warranty | 3 Years |
Key Benefits
- IP67 rating ensures reliable performance in recessed positions subject to temporary immersion
- Stainless steel 304 cover resists corrosion and wear where the trim is walked on and washed down
- AC85-265V input supports direct connection to standard mains wiring without additional voltage conversion
- 12W power level offers energy efficiency for long-term operation in outdoor lighting schemes
- Wide CCT range from 2800K to 6500K allows matching of lighting tone to architectural or landscape design
- Built-in driver reduces site wiring complexity and eliminates need for external driver placement
Application Scenarios
- Linear lighting along building edges or plaza perimeters to define architectural outlines
- Pathway and courtyard edge lighting in residential and commercial developments
- Garden and landscape feature lighting where a low-profile, flush-mounted fixture is required
- Facade accent lighting in urban and mixed-use projects where a discreet, durable light is needed
- Public space lighting in areas with frequent foot traffic and exposure to rain and cleaning
Who It Is For
- Facade and landscape lighting contractors installing linear in-ground fixtures in hardscape
- Lighting designers specifying low-profile, durable linear lights for outdoor architectural schemes
- Electrical wholesalers supplying linear in-ground luminaires for European and Middle Eastern projects
- Brand owners sourcing OEM linear in-ground lights under their own label with custom logo printing
Problems It Solves
- Non-IP67 rated fixtures fail when installed in recessed positions that flood during rain
- Aluminium-only covers degrade under repeated foot traffic and cleaning in paved areas
- Fixture designs requiring external drivers increase site wiring complexity and installation time
- Fixed colour temperature options limit design flexibility in projects with varied lighting zones
- Lack of built-in drivers forces contractors to source and install separate driver units on site
Technical Features
- Aluminium body with stainless steel 304 cover for structural strength and corrosion resistance
- IP67 sealing for recessed installation in paved areas that experience temporary immersion
- AC85-265V input voltage range compatible with standard mains supply across Europe and the Middle East
- OSRAM LED chip for consistent light output and long-term reliability
- Built-in driver (DRIVE: DONE) simplifies site wiring and reduces component count
- 12W power level provides efficient illumination for linear lighting applications

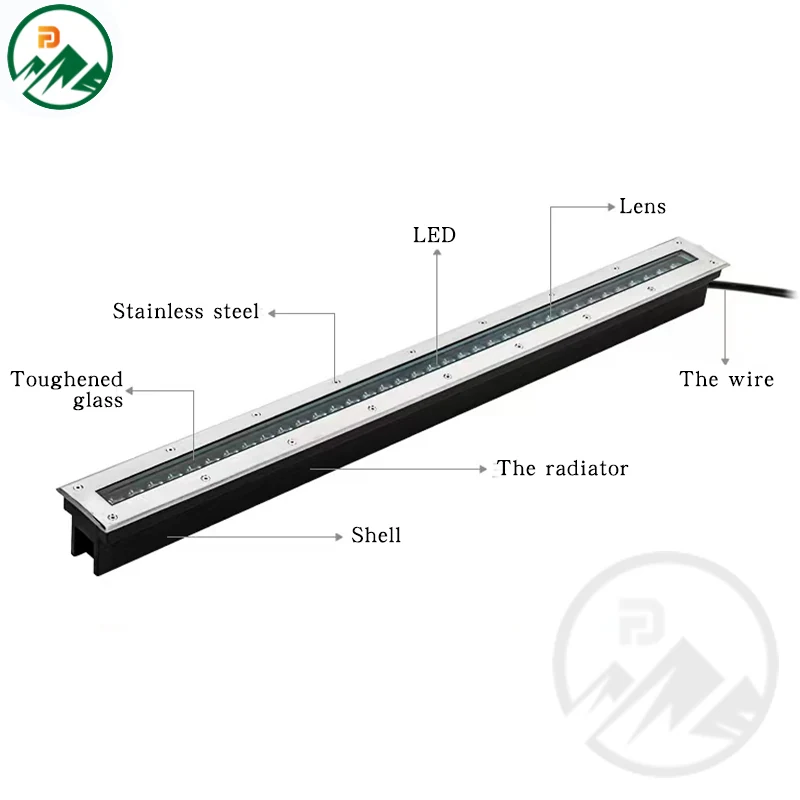

Materials

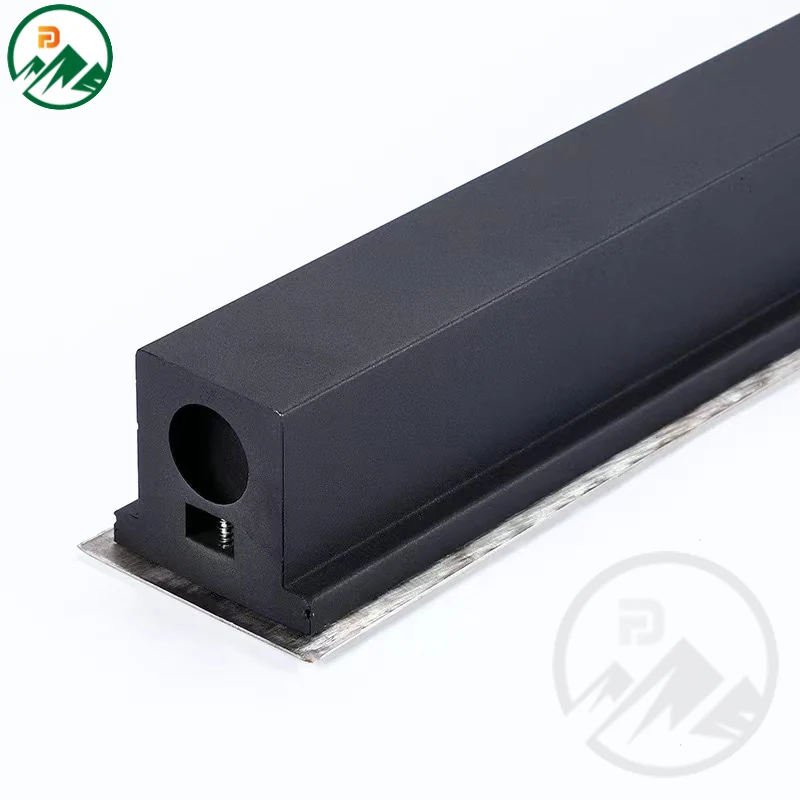

- Aluminium body for heat dissipation and structural rigidity

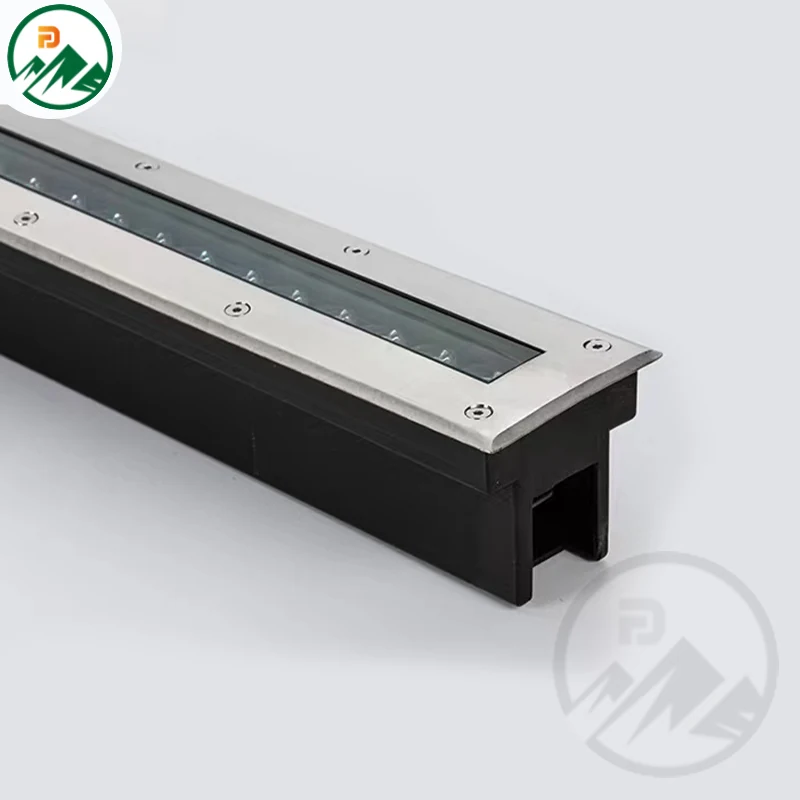

- Stainless steel 304 cover for the exposed surface to resist corrosion and wear
- Tempered glass or polycarbonate lens over the LED array (implied by IP67 and standard design)
Manufacturing Process
- Aluminium body machining and surface finishing
- Stainless steel 304 cover forming and edge treatment
- LED board assembly with OSRAM packages and driver integration
- Sealing and gasket fitting to achieve IP67 rating
- Final inspection and powered ageing test before packing
Quality Control
- Incoming inspection of OSRAM LED chips and driver components
- IP67 sealing verification before fixture closure
- Powered ageing test under full load before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Built-in driver standard, but can be omitted if site uses centralised drivers (based on ODM flexibility)
- AC85-265V input standard, no alternative voltage options stated
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Linear in-ground light with external driver
Higher site wiring complexity, but allows centralised driver control in large projects
Aluminium-trim in-ground light
Less corrosion resistance on the exposed trim, but lower cost and lighter weight
Non-IP67 rated linear in-ground light
Higher risk of failure in wet or flooded recessed positions, not suitable for paved areas with standing water
Use Guide
- Cast or core a recessed pot with dimensions matching the fixture's L1000 x W90 x H75 mm and provide drainage below
- Ensure the cover is flush with the finished paving surface to avoid trip hazards
- Connect directly to AC85-265V mains supply; verify voltage compatibility at the site
- Clean the lens surface during routine maintenance to maintain light output
- Use only in locations where the fixture will not be permanently submerged; for underwater use, select a dedicated underwater model
Discount Activity LED Linear Undeground Light 12W Questions
What is the cut-out size for this linear underground light?
The fixture is L1000 x W90 x H75 mm. A recessed pot of similar dimensions is required, with drainage provided below the fixture.
Can the driver be omitted for centralised control?
The driver is built-in (DRIVE: DONE). For centralised driver setups, confirm with FENGDIAN if a version without driver is available for ODM orders.
Is this light suitable for paved areas that flood after rain?
Yes. The IP67 rating ensures it can withstand temporary immersion, which is typical in paved areas after rainfall.
What colour temperatures are available?
The fixture supports a range from 2800K to 6500K, allowing selection to match design intent across warm to cool white tones.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN product range, warranty varies between 2 and 5 years depending on the product.
Can I order a sample before placing a project order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
