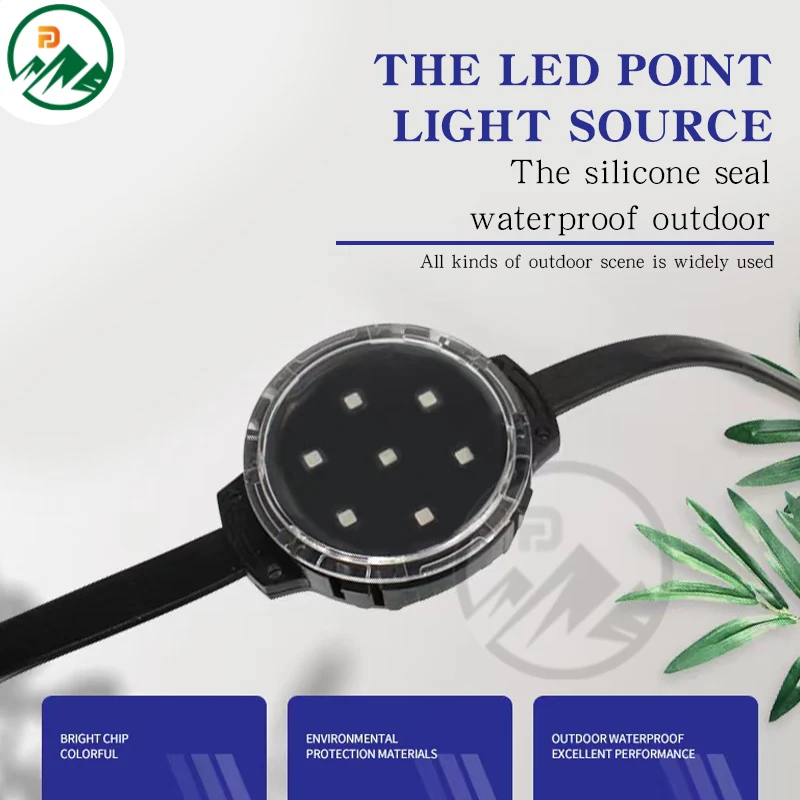

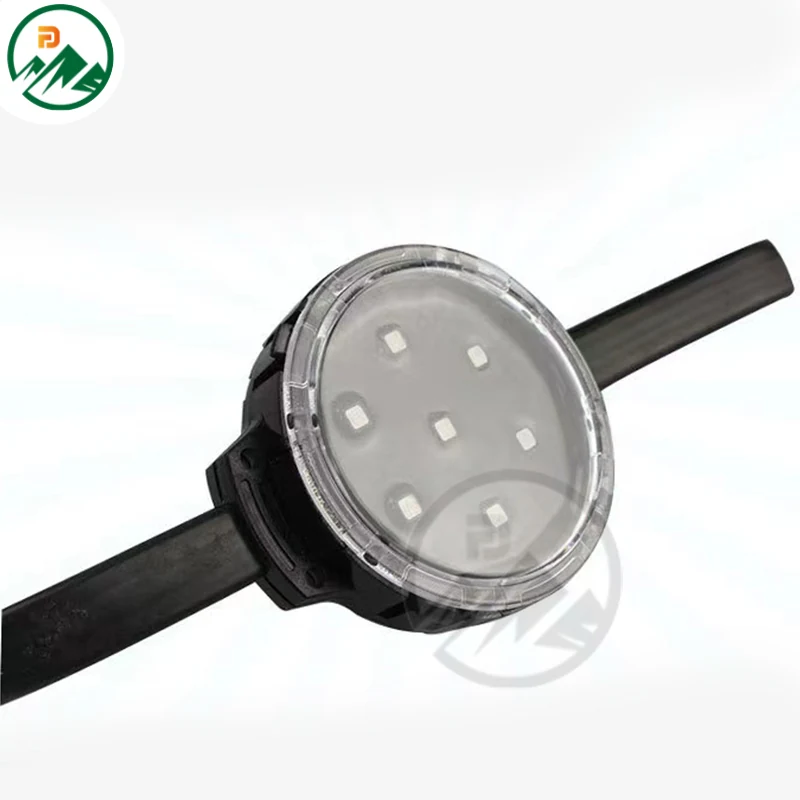

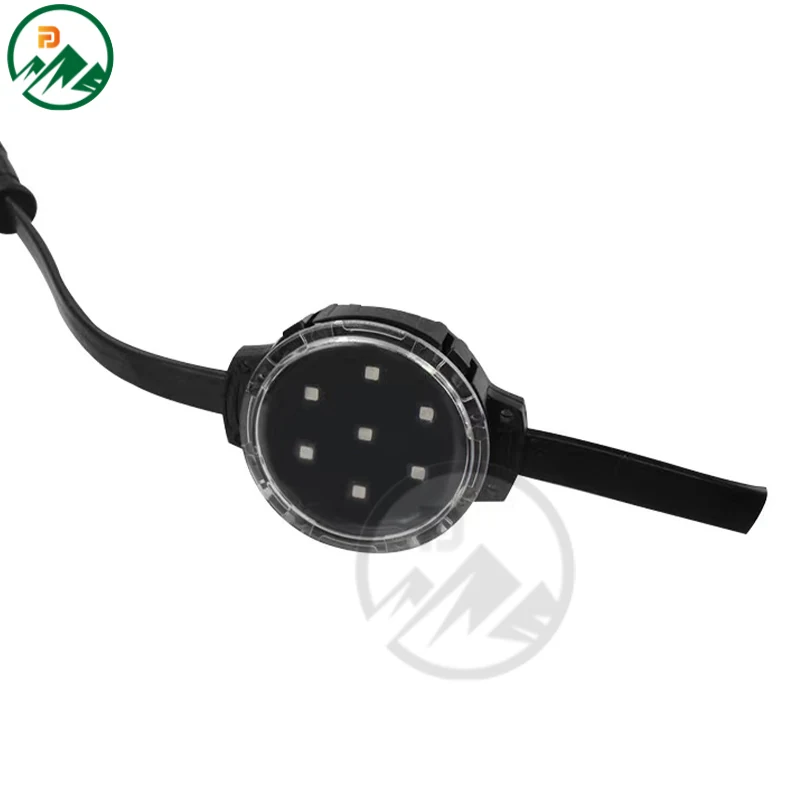

D50mm DC24V LED Point Light RGB RGBW DMX Control
The FD-PL020R01 is a 1W recessed point light designed for architectural facade and landscape lighting where dynamic colour control is required. It operates on DC24V and uses DMX control to manage RGB or RGBW colour output. The compact D50mm diameter housing is made from polycarbonate (PC) and rated IP65 for outdoor use. The fixture is supplied without a driver, allowing integration into centralised DMX-controlled systems. It is suitable for applications requiring precise, programmable lighting effects on building edges, columns, and landscape features.
| Model | FD-PL020R01 |
|---|---|
| Power | 1W |
| Input Voltage | DC24V |
| IP Rating | IP65 |
| Dimension | D50 mm |
| Material | PC |
| LED Chip | EPISTAR |
| Driver | Not included |
| Colour Temperature | RGB/RGBW |
| Control System | DMX |
| Warranty | 2 Years |
Key Benefits
- DC24V input allows integration into low-voltage DMX-controlled systems without local drivers
- RGB and RGBW colour modes enable dynamic lighting effects for architectural features
- IP65 rating supports outdoor installation in exposed positions on facades and landscapes
- Compact D50mm size fits into tight spaces without disrupting surface continuity
- No driver supplied allows centralised power and control management in large projects
- EPISTAR LED chip provides consistent colour output across multiple units
Application Scenarios
- Highlighting building edges, cornices, and structural columns with programmable colour effects
- Creating dynamic lighting sequences on landscape features such as stone walls and garden edges
- Integrating into DMX-controlled facade systems for event-based or seasonal lighting displays
- Installing in tight recessed positions on facades where a flush profile is required
- Using in landscape schemes where low-voltage wiring and central control are already in place
Who It Is For
- Facade and landscape lighting contractors installing programmable point lights in architectural projects
- Lighting designers specifying DMX-controlled colour effects for building features
- Electrical wholesalers supplying low-voltage, DMX-capable point lights to European and Middle Eastern markets
- Brand owners sourcing OEM point lights under their own label with custom control integration
Problems It Solves
- Fixed colour point lights require multiple SKUs for different colour needs, increasing inventory
- High-voltage fixtures complicate low-voltage DMX systems and require local driver space
- Non-IP65 rated lights fail in outdoor positions exposed to rain and dust
- Lack of DMX control limits the ability to synchronise lighting effects across multiple fixtures
- Driver-included fixtures increase cost and complicate centralised power and control design
Technical Features
- 1W power consumption with DC24V input for low-voltage system compatibility
- RGB and RGBW colour modes controlled via DMX protocol
- IP65 sealing for protection against dust and water jets in outdoor environments
- Polycarbonate (PC) housing for impact resistance and weather durability
- EPISTAR LED chip for stable and consistent colour output
- Driver not included, allowing integration into centralised DMX control systems
Materials
- Polycarbonate (PC) housing for weather resistance and impact durability
- EPISTAR LED package for consistent colour performance
- Internal wiring and connectors rated for outdoor use and DC24V operation
Manufacturing Process
- Polycarbonate housing injection moulding and surface finishing
- LED board assembly with EPISTAR chips and DMX control circuitry
- Sealing and gasket fitting to achieve IP65 rating
- DMX protocol testing and colour calibration
- Final inspection and packaging without driver
Quality Control
- Incoming inspection of EPISTAR LED chips and DMX components
- IP65 sealing verification using spray test
- DMX signal and colour output testing before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied without driver to match centralised DMX control systems
- RGB or RGBW colour mode selectable based on project requirements
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Fixed-colour point light
Requires multiple SKUs for different colours, but avoids DMX complexity
Driver-included point light
Simplifies installation but increases cost and limits central control options
AC-powered point light
Needs local driver and higher voltage, complicating low-voltage DMX systems
Use Guide
- Install in a recessed or surface-mounted position with a D50mm hole and proper drainage
- Connect to a central DMX controller using standard 3-pin XLR or 5-pin DMX cables
- Ensure the DC24V power supply is sized to handle the total load of all connected fixtures
- Verify DMX address and channel settings before commissioning the system
- Clean the PC housing periodically to maintain light output and appearance
D50mm DC24V LED Point Light RGB RGBW DMX Control Questions
What is the input voltage for this point light?
The fixture operates on DC24V, suitable for low-voltage DMX systems.
Is the driver included?
No. The fixture is supplied without a driver, allowing integration into centralised DMX control systems.
Can it run in RGBW mode?
Yes. The model supports both RGB and RGBW colour modes via DMX control.
What is the IP rating?
The fixture is rated IP65, protecting against dust and water jets in outdoor environments.
What is the warranty period?
This model carries a 2-year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, with goods shipped via DHL, UPS, FedEx, or TNT in 3-5 days transit, or by air or sea freight.
