Big Power Square Shape 80W LED Flood Light
The FD-FL090S80 is an 80W square-shaped LED flood light designed for architectural facade and large-scale outdoor lighting projects. It features a robust aluminium housing and a CREE LED chip for consistent output. The IP66 rating ensures protection against dust and water jets, making it suitable for exposed mounting on buildings, bridges, and industrial structures. It operates on AC85-265V, allowing direct connection to standard mains supply without additional voltage conversion.
| Model | FD-FL090S80 |
|---|---|
| Power | 80W |
| Input Voltage | AC85-265V |
| IP Rating | IP66 |

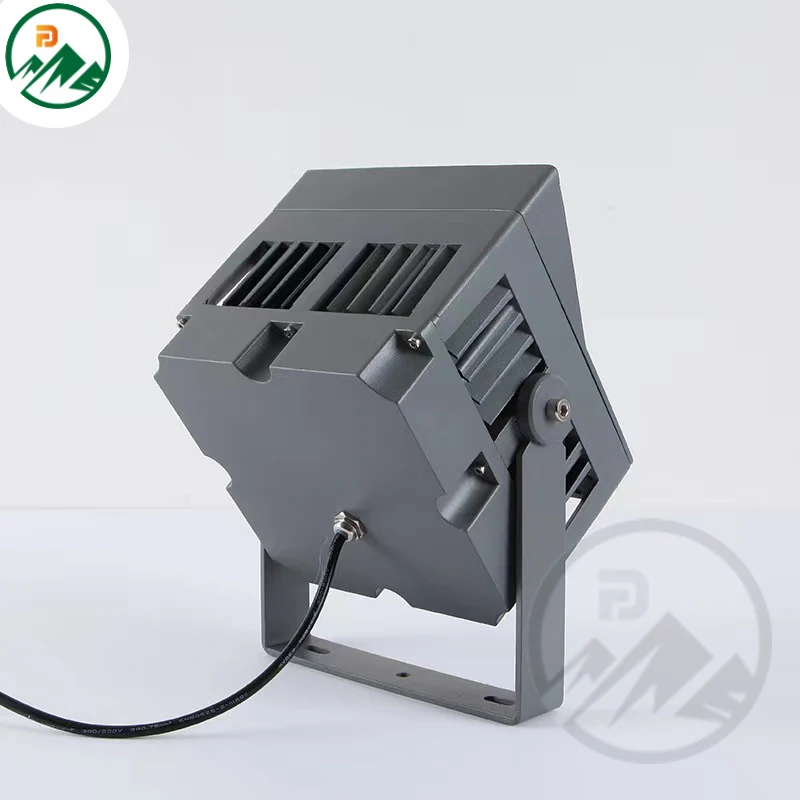

| Dimension | L195 x W195 x H280 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- Square shape allows for even light distribution across flat or angular facade surfaces
- IP66 rating resists dust and water jets, suitable for exposed outdoor mounting
- CREE LED chip ensures stable lumen output and long life in high-temperature environments
- AC85-265V input supports direct mains connection without external transformers
- Aluminium body provides efficient heat dissipation for sustained performance
- 80W power delivers high output for large area illumination without excessive energy use
Application Scenarios
- Illuminating flat or angular building facades in commercial and public sector projects
- Lighting large industrial structures such as warehouses, silos, and factory walls
- Highlighting architectural details on bridges, tunnels, and public monuments
- Providing perimeter lighting for sports stadiums and large outdoor venues
Who It Is For
- Facade and landscape lighting contractors installing flood lights on exposed building surfaces
- Lighting designers specifying high-output fixtures for large-scale architectural schemes
- Electrical wholesalers supplying LED flood lights for commercial and public projects
- Brand owners sourcing OEM flood lights under their own label with custom logo printing
Problems It Solves
- Fixed beam angle flood lights require precise pre-installation aiming, increasing risk of misalignment
- Low IP-rated fixtures fail in harsh weather conditions, leading to early failure and maintenance
- Non-heat-dissipating housings cause thermal stress on LEDs, reducing lifespan
- Inconsistent lumen output from low-grade LED chips leads to uneven illumination across a site
Technical Features
- Square-shaped housing for symmetrical light distribution on flat surfaces
- CREE LED chip for consistent lumen output and reliability
- IP66 rating for protection against dust and water jets from any direction
- AC85-265V input for direct mains connection without step-down transformers
- Aluminium body for effective heat transfer and long-term thermal stability
- Driver is supplied as part of the fixture (DRIVE: DONE)
Materials
- Aluminium body for structural strength and heat dissipation
- CREE LED chip for high lumen output and long life
- IP66-rated sealing gaskets and housing joints to resist dust and water ingress
Manufacturing Process
- Aluminium die-casting and surface finishing for the housing
- LED board assembly with CREE chips and driver integration
- Sealing and gasket fitting to achieve IP66 performance
- Final power testing and ageing run before packing
Quality Control
- Incoming inspection of CREE LED chips and driver components
- IP66 sealing verification under test conditions before final closure
- Powered ageing test for 24 hours to detect early failures
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver supplied as part of the fixture, no option to omit
- OEM and ODM production available for buyers selling under their own brand
- Available in standard configuration with AC85-265V input and CREE chip
Compared With the Alternatives
Round-shaped flood light
Square shape provides more even coverage on flat surfaces, reducing shadow gaps
Low IP-rated flood light
IP66 resists water jets and dust, suitable for exposed mounting without enclosure
Fixture with external driver
Integrated driver reduces wiring complexity and connection points on site
Use Guide
- Mount the fixture on a stable bracket or structural support with proper alignment
- Ensure the mounting surface is clean and dry before securing the fixture
- Connect to AC85-265V mains supply with appropriate cable sizing for the run length
- Avoid direct exposure to high-pressure water jets during cleaning to maintain IP66 integrity
- Inspect the seal and housing annually for signs of damage or debris accumulation
Big Power Square Shape 80W LED Flood Light Questions
What is the input voltage for this flood light?
It operates on AC85-265V, allowing direct connection to standard mains supply.
Is the driver included?
Yes. The driver is integrated into the fixture (DRIVE: DONE).
What is the IP rating and what does it mean?
IP66 means the fixture is protected against dust and water jets from any direction, suitable for outdoor exposure.
Can I get a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long is the production lead time?
Mass production lead time is typically 1-2 weeks after sample confirmation and deposit.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty varies from 2 to 5 years depending on the product.
Can I have my logo printed on the fixture?
Yes. Customer logo printing is available, and the design is confirmed against an approved sample before production begins.
