Adjustable Beam Angle LED Underground Light
The FD-U299R48 is a 48W recessed in-ground LED luminaire designed for architectural and landscape projects requiring on-site beam angle adjustment. The optic assembly tilts within the housing, allowing the same fixture to graze walls, uplight columns, or illuminate trees without changing the buried pot. The stainless steel 304 cover resists corrosion in high-traffic or frequently washed paving, while the IP67 rating ensures performance in areas subject to standing water after rain. It operates on AC85-265V or DC24V, enabling integration into both mains-fed and low-voltage site wiring systems.
| Model | FD-U299R48 |
|---|---|
| Power | 48W |
| Input Voltage | AC85-265V/DC24V |
| IP Rating | IP67 |
| Dimension | D310 x H160 mm, Hole D300 mm |
| Material | Stainless Steel 304 Cover+Aluminum Body |
| LED Chip | OSRAM |
| Driver | Included or without |
| Warranty | 3 Years |
Key Benefits
- Beam direction can be adjusted after the pot is cast, eliminating the need for re-coring due to aiming errors
- One fixture type serves grazing, uplighting, and tree lighting on the same site
- IP67 rating supports installation in paved areas that flood during rain
- Stainless steel 304 cover resists wear and corrosion where the trim is walked on and cleaned
- Dual input voltage options (AC85-265V or DC24V) allow compatibility with existing site wiring
- Driver can be supplied fitted or omitted to match centralised driver systems
Application Scenarios
- Grazing textured stone or concrete facades from a paved plaza at the building line
- Uplighting colonnades and structural columns in hotel and mall entrances
- Tree and palm uplighting in landscape and streetscape schemes
- Marking pedestrian routes and courtyard edges in mixed-use developments
Who It Is For
- Facade and landscape lighting contractors installing recessed fixtures in hardscape
- Lighting designers who need aiming flexibility after the concrete work is finished
- Electrical wholesalers supplying architectural projects in the Middle East and Europe
- Brand owners sourcing OEM in-ground luminaires under their own label
Problems It Solves
- Fixed-optic in-ground lights require final aiming decisions before the pot position is confirmed
- Non-adjustable fixtures may need re-coring when facade details change on site
- Painted or plated trims degrade in wet, salted, or frequently washed paving
- Sites using both mains and 24V wiring otherwise require two different fixture types
Technical Features

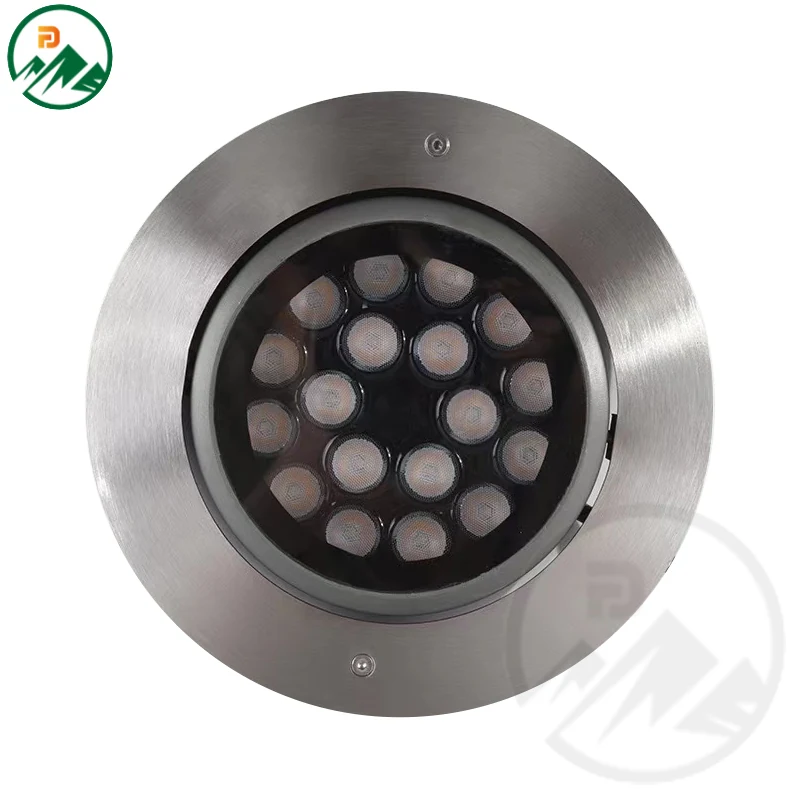

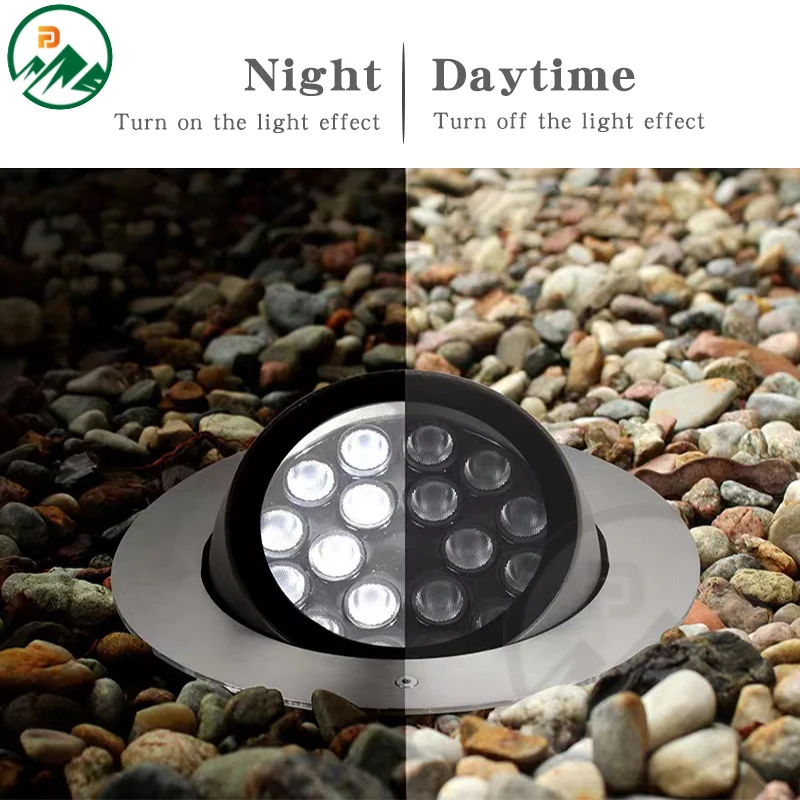

- Optic assembly tilts inside the housing for on-site beam aiming
- Stainless steel 304 cover over an aluminium body for heat transfer and corrosion-resistant face
- IP67 sealing for recessed positions subject to standing water
- OSRAM LED package
- Wide-range AC85-265V input, with a DC24V option for low-voltage systems
- Supplied with driver, or without driver when centralised drivers are used

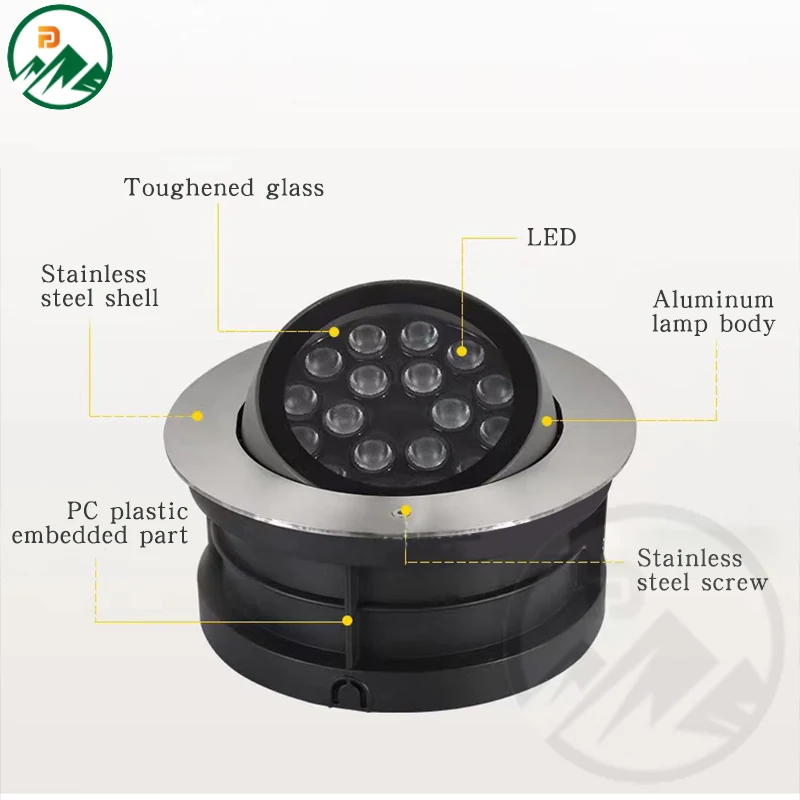

Materials
- Stainless steel 304 cover for the walked-on surface
- Aluminium body for heat dissipation into the surrounding backfill
- Tempered glass lens over the optic
Manufacturing Process
- Aluminium body machining and finishing
- Stainless steel 304 cover forming
- LED board assembly with OSRAM packages
- Sealing and gasket fitting to IP67
- Ageing and lighting test before packing
Quality Control
- Incoming inspection of LED packages and drivers
- IP67 sealing check before the fixture is closed
- Powered ageing run before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied with or without driver to match the site's control strategy
- AC85-265V or DC24V input version
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Fixed-optic in-ground light
Costs more per fixture, but avoids re-coring paving when the aiming changes late in the job
Surface-mounted spike light
Needs civil work and a drained pot, but leaves nothing above the paving to be damaged or vandalised
Aluminium-trim in-ground light
Heavier and more expensive, but the stainless steel 304 face holds up better where paving is washed down
Use Guide
- Cast or core a D300 mm hole and provide drainage below the fixture before backfilling
- Set the tilt angle with the fixture powered so the beam can be checked against the facade
- Keep the cover flush with the finished paving level so the trim is not a trip edge
- For DC24V runs, size the cable for voltage drop over the full circuit length
- Clean the glass during normal paving maintenance to keep output consistent
Adjustable Beam Angle LED Underground Light Questions
What is the cut-out size for this underground light?
The fixture is D310 x H160 mm and needs a D300 mm hole, with drainage provided below the pot.
Can it run on 24V rather than mains?
Yes. The model is offered for AC85-265V or DC24V input, so it can follow whichever supply the site already uses.
Is the driver included?
It can be supplied either way. Fixtures are available with the driver fitted, or without a driver when the project uses centralised drivers in a panel.
Is IP67 enough for paving that floods in heavy rain?
IP67 covers temporary immersion, which is the condition recessed fixtures see in paving after rain. For fixtures permanently under water, use an underwater luminaire instead.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range the warranty is 2 to 5 years depending on the product.
Can we order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
