AC220V 18W LED Wall Washer for Buiding wall lighting
The FD-LW030L18 is a 18W wall washer luminaire designed for building facade lighting where uniform light distribution across vertical surfaces is required. The fixture uses a die-casting aluminium body for structural rigidity and heat dissipation, and is rated IP65 for outdoor use in exposed wall-mounted positions. It operates on AC85-265V, allowing direct connection to standard mains wiring without additional voltage conversion. The OSRAM LED chip ensures consistent output, and the driver is supplied as part of the fixture. The slim profile and fixed beam angle make it suitable for linear wall washing in architectural and landscape lighting schemes.
| Model | FD-LW030L18 |
|---|---|
| Power | 18W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |

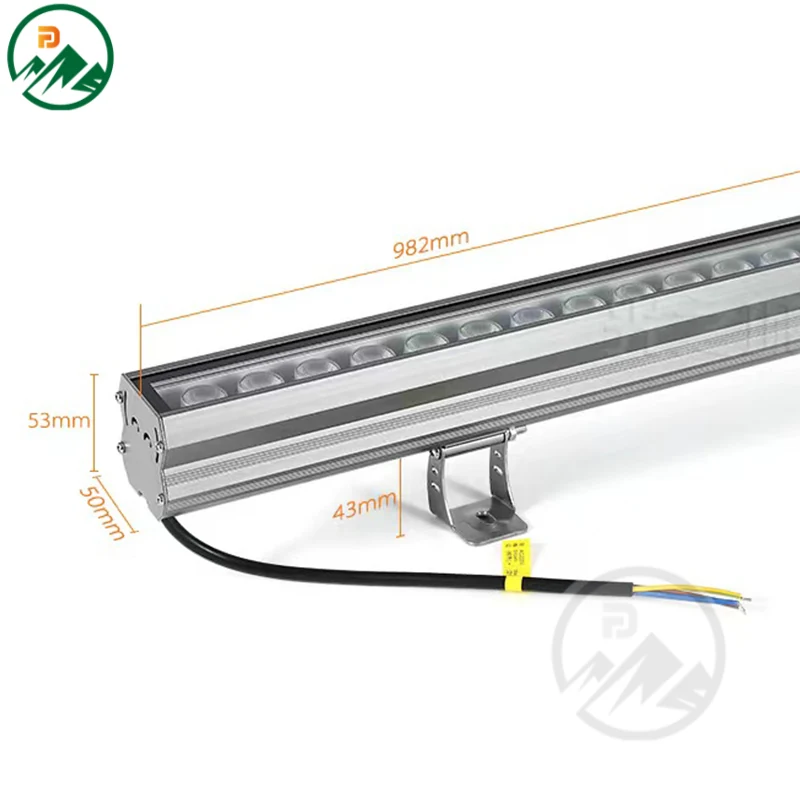

| Dimension | L1000 x W50 x H53 mm(support H43 mm) |
| Material | Die-casting aluminium |

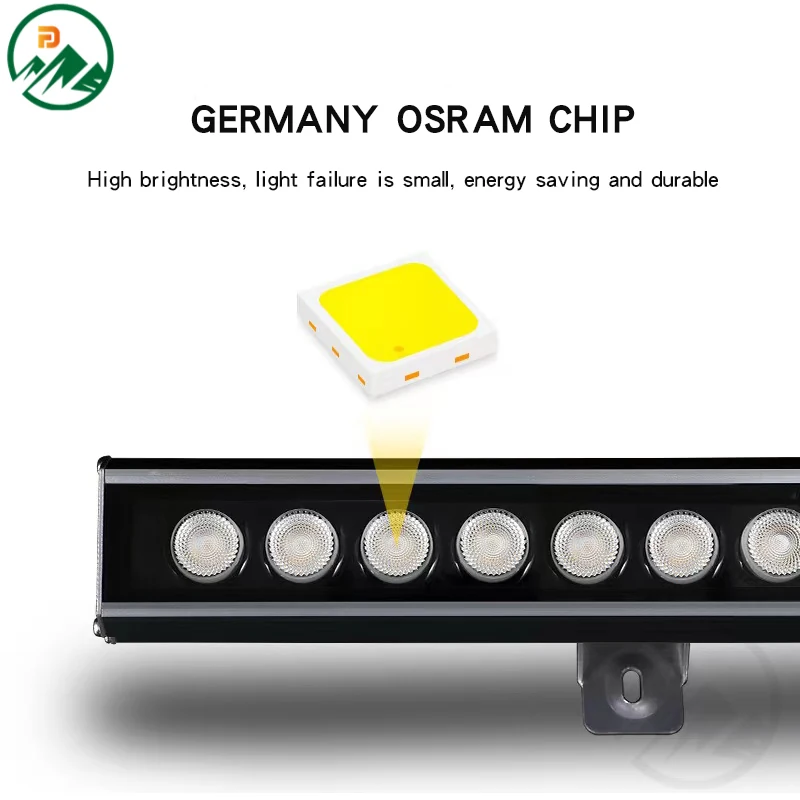

| LED Chip | OSRAM |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- IP65 rating protects against dust and water jets, suitable for exposed wall mounting in outdoor environments
- AC85-265V input allows direct connection to standard mains power without voltage conversion
- Die-casting aluminium body provides rigidity and effective heat dissipation for long-term reliability
- OSRAM LED chip delivers consistent light output and colour performance
- Fixed beam angle ensures uniform wash across vertical surfaces without aiming adjustments

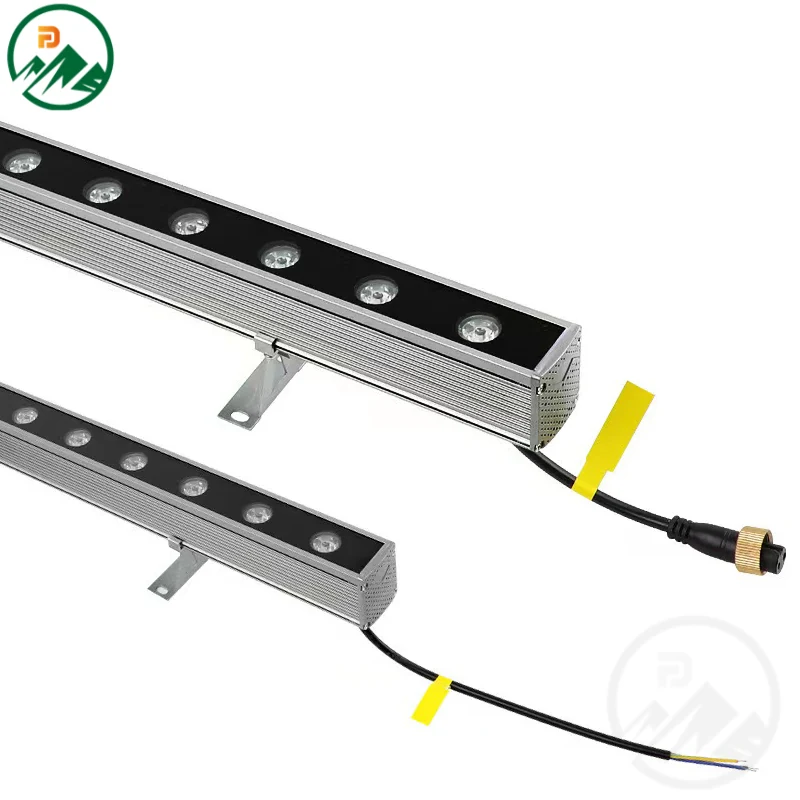

- Slim profile (L1000 x W50 x H53mm) fits flush against walls with minimal visual intrusion
Application Scenarios

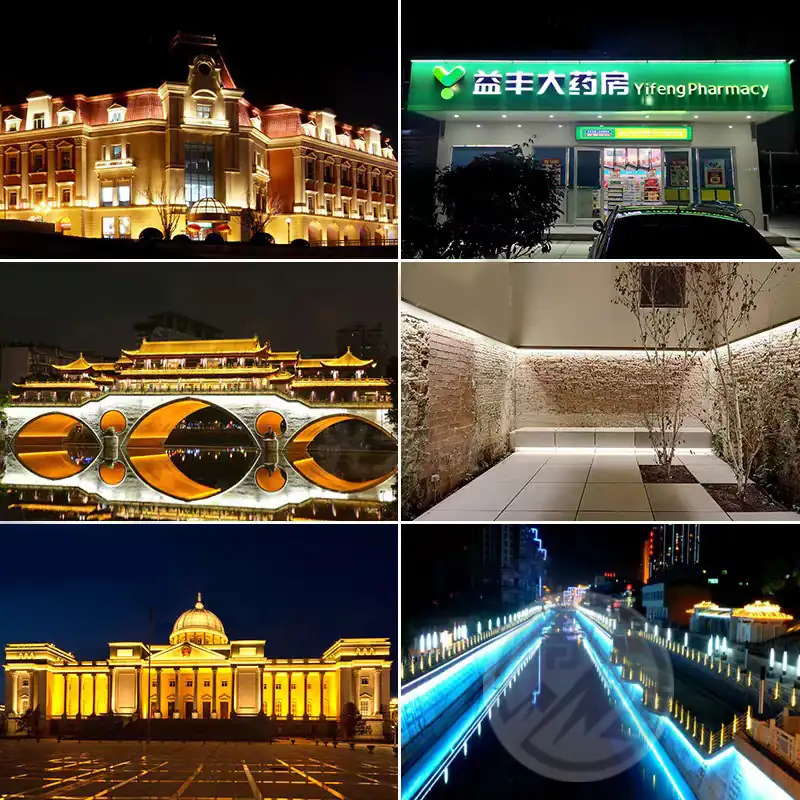

- Evenly washing large concrete or stone facades in commercial and residential building exteriors
- Highlighting architectural details such as window frames, recessed panels, or vertical joints
- Creating continuous light bands along the sides of multi-storey buildings in urban lighting projects
- Lighting vertical surfaces in public plazas, hotel entrances, and shopping mall exteriors
Who It Is For
- Facade lighting contractors installing wall washers on building exteriors
- Lighting designers specifying uniform wash lighting for architectural projects
- Electrical wholesalers supplying linear wall washers for commercial and residential builds
- Brand owners sourcing OEM wall washers under their own label for international projects
Problems It Solves
- Exposed wall-mounted fixtures are vulnerable to dust and water ingress without proper protection
- Inconsistent light distribution from poorly aimed or non-uniform fixtures on vertical surfaces
- Overheating in plastic or thin metal housings reduces LED lifespan in outdoor conditions
- Need for additional voltage conversion when using fixtures with narrow input ranges
- Lack of standardised mounting support for fixtures with inconsistent structural depth
Technical Features
- Die-casting aluminium body for structural strength and heat dissipation
- IP65 rating for protection against dust and water jets from any direction
- AC85-265V input voltage range for compatibility with standard mains supply
- OSRAM LED chip for consistent lumen output and colour performance
- Integrated driver (DONE) supplied with the fixture for plug-and-play installation
- Fixed beam angle with support height of H43mm for mounting on vertical surfaces
Materials
- Die-casting aluminium body for structural strength and thermal management
- Integrated driver (DONE) for reliable power conversion within the fixture
- Sealed housing with gaskets to maintain IP65 rating in outdoor conditions
Manufacturing Process
- Die-casting of aluminium housing with precision machining for mounting and sealing
- Assembly of OSRAM LED modules onto the driver board
- Integration of the DONE driver into the housing with secure wiring
- Sealing of joints and gaskets to achieve IP65 rating
- Final inspection and powered testing before packing
Quality Control
- Incoming inspection of OSRAM LED chips and DONE drivers
- IP65 sealing verification using pressure and spray tests
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied fitted or omitted when centralised drivers are used
- OEM and ODM production available for buyers selling under their own brand
- Finish and mounting support can be adjusted to match project-specific requirements
Compared With the Alternatives
Low-voltage wall washer (e.g. 12V or 24V)
Requires additional transformers or central drivers, but reduces risk of electric shock in wet areas
Plastic-bodied wall washer
Less durable in outdoor conditions, more prone to warping and UV degradation
Fixture without integrated driver
Simplifies wiring but requires a separate driver enclosure, increasing installation complexity
Use Guide
- Mount the fixture on a solid wall surface with the support height of H43mm aligned to the desired mounting level
- Ensure the wall surface is clean, dry, and free of debris before mounting
- Connect the fixture to AC85-265V mains supply using appropriate wiring and conduit
- Avoid blocking the front lens or diffuser during installation to maintain light output
- Perform a visual inspection after installation to confirm no gaps or misalignment in the seal
AC220V 18W LED Wall Washer for Buiding wall lighting Questions
What is the input voltage range for this wall washer?
The fixture operates on AC85-265V, which covers standard mains voltages in most countries.
Is the driver included?
Yes. The driver is integrated as DONE and supplied with the fixture.
What does IP65 mean for outdoor use?
IP65 means the fixture is protected against dust and water jets from any direction, suitable for exposed wall mounting.
Can I use this fixture with a central driver system?
Yes. The driver can be omitted if the project uses centralised drivers in a control panel.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, with goods shipping via DHL, UPS, FedEx, or TNT in 3-5 days transit, or by air or sea freight.
