80W LED Flood Light For Facade Lighting Project

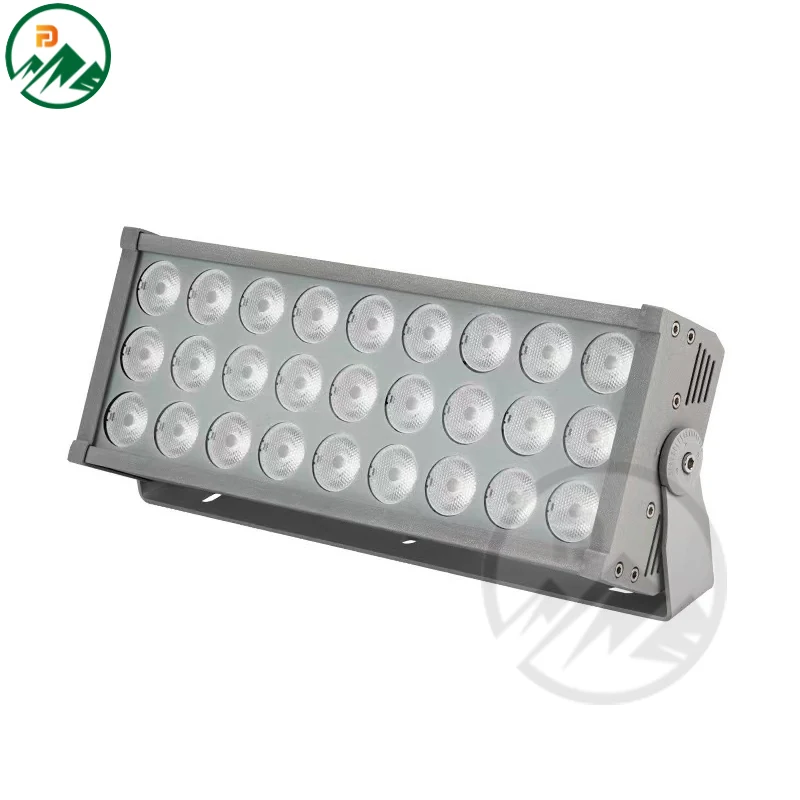

The FD-FL110S80 is an 80W LED flood light designed for architectural facade lighting projects requiring durable, high-output illumination. The fixture is built with an aluminium body for efficient heat dissipation and a robust IP66 rating, suitable for outdoor mounting on building exteriors exposed to rain and dust. It operates on AC85-265V, allowing direct connection to standard mains supply without additional voltage conversion. The CREE LED chip ensures consistent light output, while the DONE driver provides reliable performance under variable input conditions.
| Model | FD-FL110S80 |
|---|---|
| Power | 80W |
| Input Voltage | AC85-265V |
| IP Rating | IP66 |
| Dimension | 155 x 145 x 465 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- IP66 rating protects against dust and water jets, suitable for exposed facade mounting
- Aluminium body provides effective heat dissipation for long-term reliability
- AC85-265V input supports direct mains connection without external transformers
- CREE LED chip delivers stable output with minimal lumen depreciation
- 80W power level provides high output for large facade areas without excessive energy use
- DONE driver ensures stable operation under fluctuating input voltage
Application Scenarios
- Illuminating textured stone or concrete facades in commercial and public buildings
- Highlighting architectural details such as cornices, arches, and recessed panels
- Lighting large-scale building exteriors in urban redevelopment and landmark projects
- Providing consistent flood lighting in coastal or high-rainfall regions where weather resistance is critical
Who It Is For
- Facade lighting contractors installing outdoor flood lights on building exteriors
- Lighting designers specifying durable, high-output fixtures for architectural projects
- Electrical wholesalers supplying LED flood lights for commercial and public infrastructure
- Brand owners sourcing OEM flood lights under their own label for international projects
Problems It Solves
- Non-weatherproof fixtures fail prematurely in exposed facade positions with rain and dust ingress
- Poor heat dissipation in low-quality housings leads to early LED degradation
- Inconsistent input voltage causes flickering or driver failure in unregulated mains environments
- Low-power flood lights require more fixtures to achieve the same coverage, increasing installation cost
- Lack of reliable drivers leads to field failures and higher maintenance demand
Technical Features
- Aluminium body for effective thermal management and structural durability

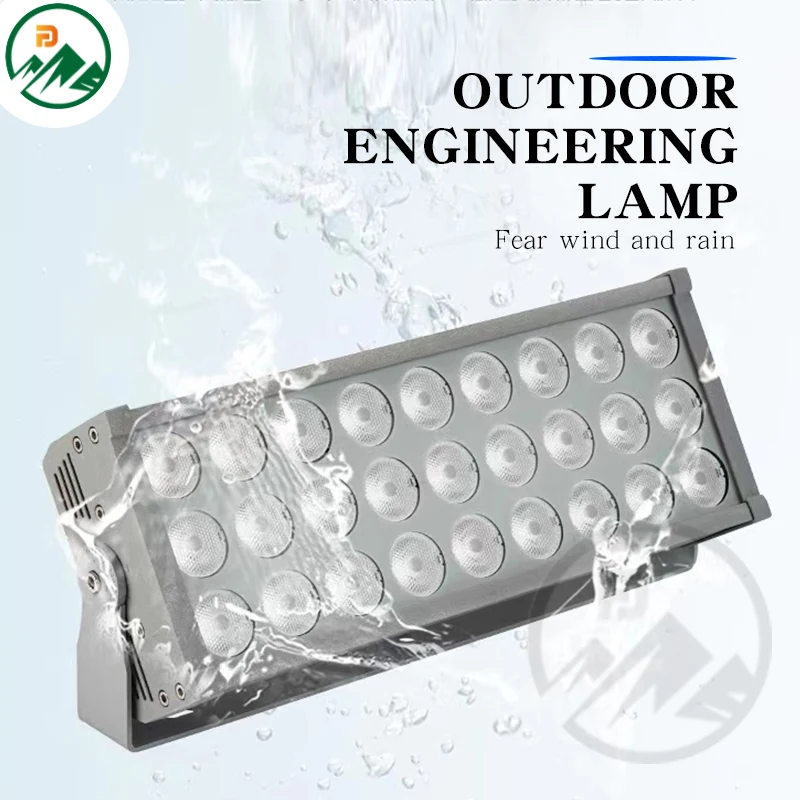

- IP66 rating for protection against dust and water jets from any direction
- AC85-265V input range for compatibility with standard mains supply across regions
- CREE LED chip for consistent lumen output and long life
- DONE driver integrated into the fixture for stable power regulation

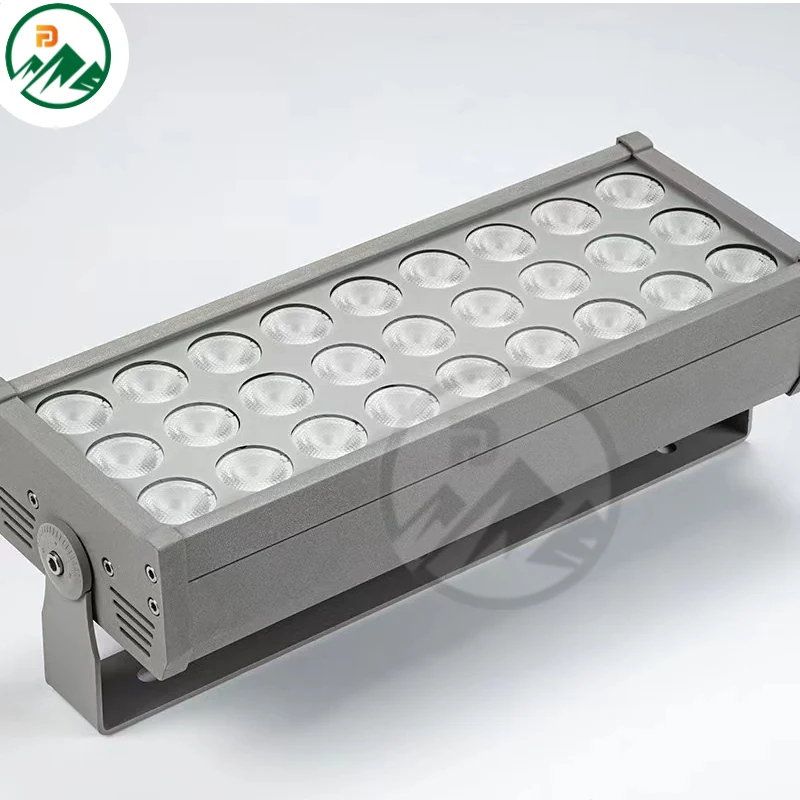

- Compact size of 155 x 145 x 465 mm allows for discreet mounting on building surfaces
Materials
- Aluminium body for heat dissipation and structural rigidity

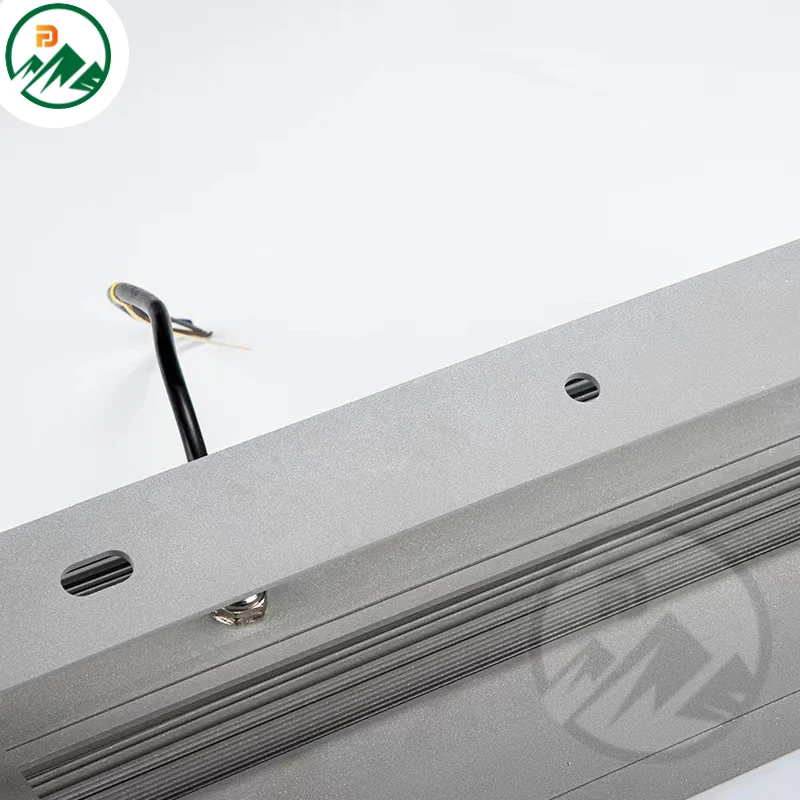

- Sealed housing with gaskets to maintain IP66 integrity
- CREE LED packages for consistent light output
- DONE driver for stable power regulation
Manufacturing Process
- Aluminium body die-casting and surface finishing
- LED board assembly with CREE chips and DONE driver
- Sealing and gasket fitting to achieve IP66 rating
- Final power and environmental testing before packing
Quality Control
- Incoming inspection of CREE LED chips and DONE drivers
- IP66 sealing verification using pressure and spray tests
- Powered ageing test under full load for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied fitted or omitted when centralised drivers are used
- OEM and ODM production available for buyers selling under their own brand
- Fixture can be supplied with or without driver to match site control strategy
Compared With the Alternatives
Plastic-bodied flood light
More durable and heat-resistant, but higher initial cost; suitable for long-term facade exposure
Lower power flood light (e.g. 50W)
Higher output reduces the number of fixtures needed, lowering installation and wiring complexity
Fixture without integrated driver
Simplifies site wiring when centralised drivers are used, but requires additional control equipment
Use Guide
- Mount the fixture on a stable surface with appropriate brackets to prevent vibration
- Ensure the mounting location allows for proper heat dissipation and avoids obstructions
- Connect to AC85-265V mains supply; verify voltage compatibility before installation
- Do not operate the fixture in enclosed spaces without ventilation to avoid overheating
- Clean the lens periodically to maintain light output, especially in dusty or polluted areas
80W LED Flood Light For Facade Lighting Project Questions
What is the input voltage range for this flood light?
The fixture operates on AC85-265V, suitable for standard mains supply across most regions.
Is the driver included in the fixture?
Yes, the DONE driver is integrated into the fixture. It can also be supplied without the driver if centralised drivers are used.
What does IP66 mean for this fixture?
IP66 means the fixture is dust-tight and protected against powerful water jets from any direction, suitable for outdoor facade mounting.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship via DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I get custom branding on the fixture?
Yes. Customer logo printing is available, confirmed against an approved sample before production begins.
