3W Mini Power LED Underground Light

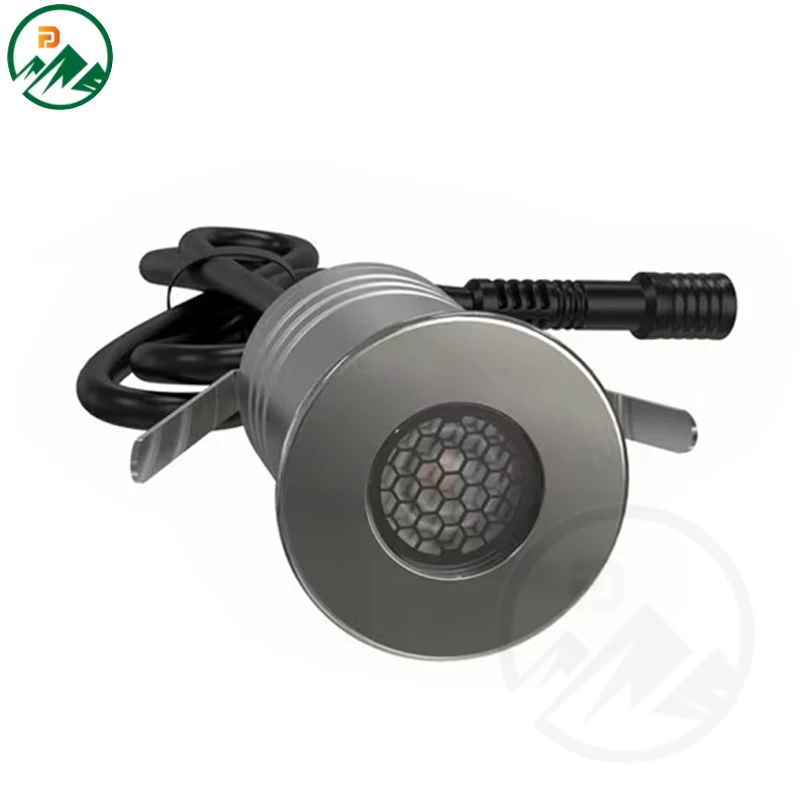

The FD-U130R03 is a 3W recessed in-ground LED luminaire designed for low-power landscape and facade lighting where space and power constraints are tight. The fixture has a compact D48 x H50 mm body and fits into a D36 mm cut-out, making it suitable for narrow paving joints and tight spaces. It operates on DC12V or DC24V, so it integrates directly into low-voltage landscape circuits without requiring a local transformer. The beam angle is available in 15°, 30° or 60° to suit different lighting effects. The stainless steel 304 cover resists wear and corrosion, and the IP67 rating ensures it remains sealed in wet or flooded conditions. The driver is not included, allowing the fixture to be used with site-supplied or centralised drivers.
| Model | FD-U130R03 |
|---|---|
| Power | 3W |
| Input Voltage | DC12/24V |
| IP Rating | IP67 |

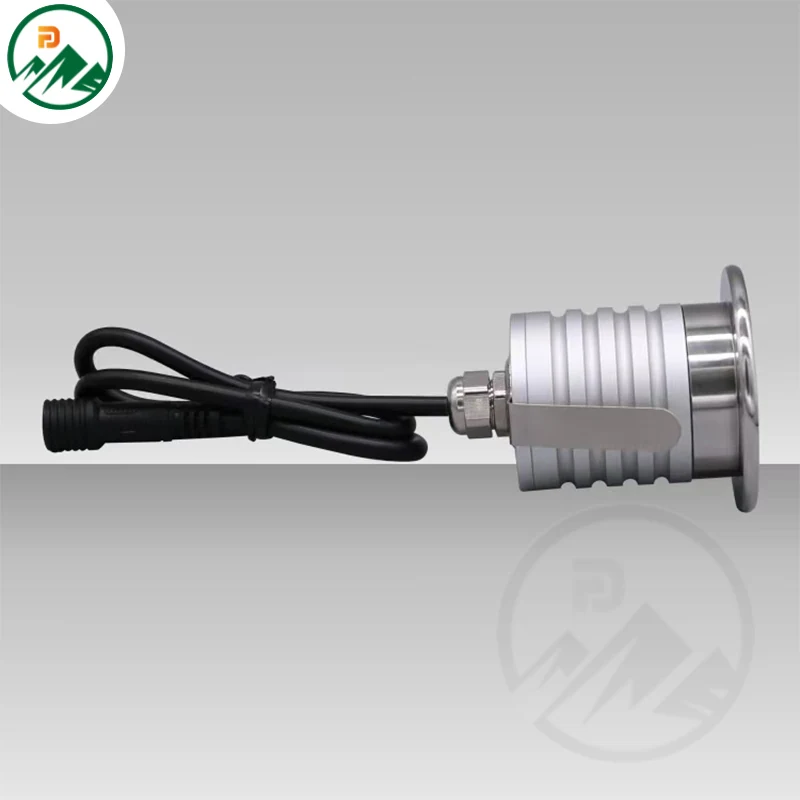

| Dimension | D48 x H50 mm, Hole D36 mm |
| Material | Aluminium Body+Stainless Steel 304 Cover |
| LED Chip | OSRAM |
| Driver | Not included |
| Beam Angle | 15/30/60° |
| Warranty | 3 Years |
Key Benefits
- Compact size fits into narrow paving joints and tight spaces
- DC12V or DC24V input matches low-voltage landscape wiring systems
- Three beam angle options allow one fixture to serve multiple lighting needs
- IP67 rating ensures operation in wet or flooded recessed positions
- Stainless steel 304 cover resists corrosion and wear in high-traffic areas
- Driver not included allows integration with centralised or site-supplied drivers
Application Scenarios
- Marking narrow garden paths and courtyard edges in residential and public spaces
- Highlighting small architectural details on building facades with minimal light spill
- Lighting small planters, flower beds, and low hardscape features in urban landscaping
- Installing in tight joints between paving stones where larger fixtures won't fit
- Using in low-voltage landscape circuits without requiring local power conversion
Who It Is For
- Lighting contractors installing low-power in-ground lights in tight spaces
- Landscape designers specifying compact fixtures for narrow path marking
- Electrical wholesalers supplying small-scale architectural lighting projects
- Brand owners sourcing OEM in-ground luminaires under their own label
Problems It Solves
- Large in-ground lights cannot fit into narrow paving joints or tight spaces
- Mains-powered fixtures require local transformers in low-voltage circuits
- Fixed beam angles limit flexibility when the design changes after installation
- Plated or painted trims degrade in wet or frequently washed paving areas
- Centralised driver systems require fixtures without built-in drivers
Technical Features
- 3W power with DC12V or DC24V input for low-voltage site wiring
- Beam angle options: 15°, 30° or 60° to match different lighting needs
- IP67 sealing for recessed positions subject to standing water
- Stainless steel 304 cover over an aluminium body for durability and heat transfer
- Driver not included, so it can be used with site-supplied or centralised drivers
- Compact D48 x H50 mm body with D36 mm cut-out hole for tight installations
Materials

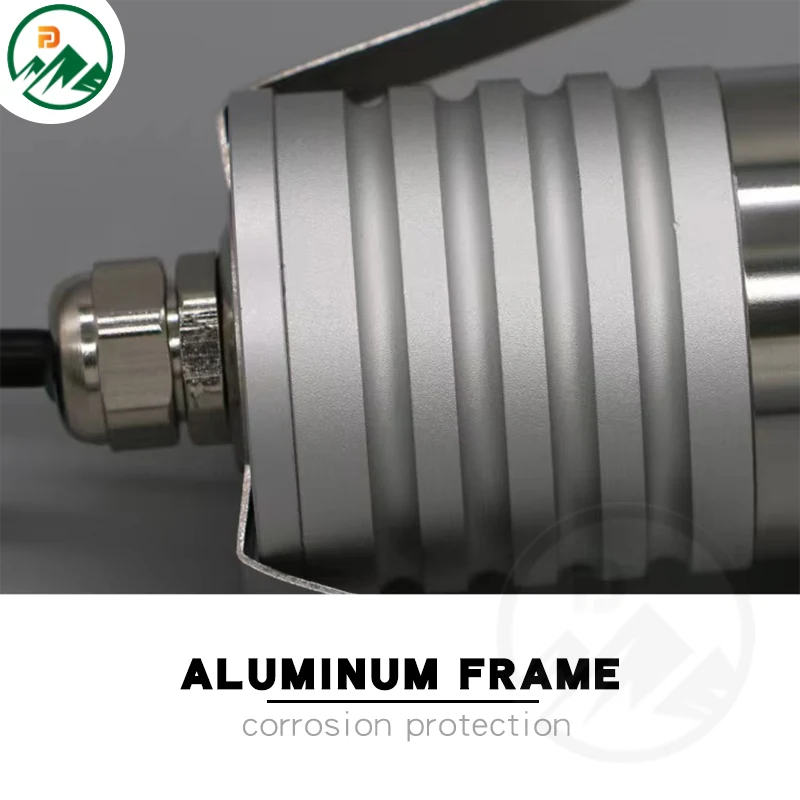

- Aluminium body for heat dissipation into the surrounding backfill
- Stainless steel 304 cover for the walked-on surface
- Tempered glass lens over the optic
Manufacturing Process
- Aluminium body machining and finishing
- Stainless steel 304 cover forming
- LED board assembly with OSRAM packages
- Sealing and gasket fitting to IP67
- Ageing and lighting test before packing
Quality Control
- Incoming inspection of LED packages and drivers
- IP67 sealing check before the fixture is closed
- Powered ageing run before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied without driver to match site or centralised driver systems
- Beam angle selected at order stage: 15°, 30° or 60°
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Standard in-ground light with built-in driver
Higher cost per unit, but reduces wiring complexity when using local drivers
Larger in-ground light with 12W or more
Better light output, but cannot fit into narrow paving joints or tight spaces
Aluminium-trim in-ground light
Less durable face; stainless steel 304 cover resists wear and corrosion better in high-traffic areas
Use Guide
- Cast or core a D36 mm hole and provide drainage below the fixture before backfilling
- Select the beam angle (15°, 30° or 60°) at order stage to match the lighting effect
- Set the fixture flush with the finished paving level to avoid trip hazards
- Use DC12V or DC24V wiring as specified; ensure cable size accounts for voltage drop
- Clean the glass during routine maintenance to maintain light output
3W Mini Power LED Underground Light Questions
What is the cut-out size for this underground light?
The fixture requires a D36 mm hole for installation.
Can it run on 12V or 24V?
Yes. The model operates on DC12V or DC24V, so it matches low-voltage landscape circuits.
Is the driver included?
No. The driver is not included, so the fixture can be used with site-supplied or centralised drivers.
Is IP67 enough for wet paving?
Yes. IP67 covers temporary immersion, which is sufficient for recessed fixtures in paving that flood after rain.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range the warranty is 2 to 5 years depending on the product.
Can we order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
