24W Project DC24V LED Wall Washer with Baffle
The FD-LW010L24 is a 24W linear wall washer designed for architectural facade projects requiring precise light distribution and control. It uses a die-cast aluminium housing and a baffle to manage glare and spread light evenly across vertical surfaces. The fixture operates on DC24V, making it suitable for low-voltage systems common in building integration. It supports on/off, DMX, and DALI control protocols, allowing integration into centralised lighting management systems. The IP65 rating ensures protection against water jets, suitable for outdoor facade mounting.
| Model | FD-LW010L24 |
|---|---|
| Power | 24W |
| Input Voltage | DC24V |
| IP Rating | IP65 |

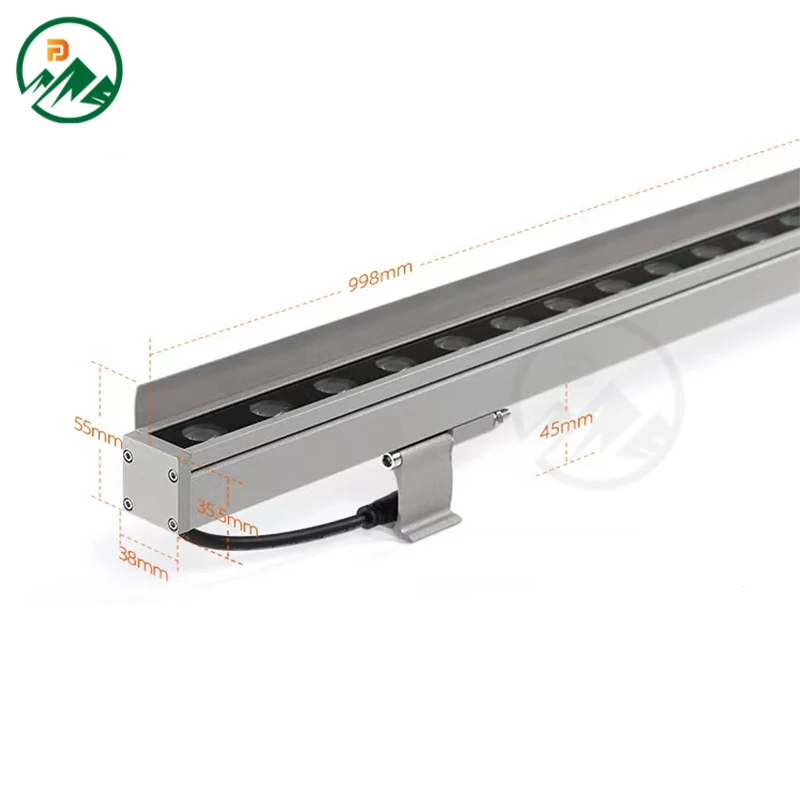

| Dimension | L1000 x W38 x Light with Baffle H55 mm+Support H45 mm |
| Material | Die-casting Aluminium |
| LED Chip | CREE |
| Driver | Not included |
| Colour Temperature | 2800-6500K/RGB/RGBW |
| Control System | On/off, DMX, DALI |
| Warranty | 3 Years |
Key Benefits
- DC24V input matches low-voltage systems used in building electrical integration

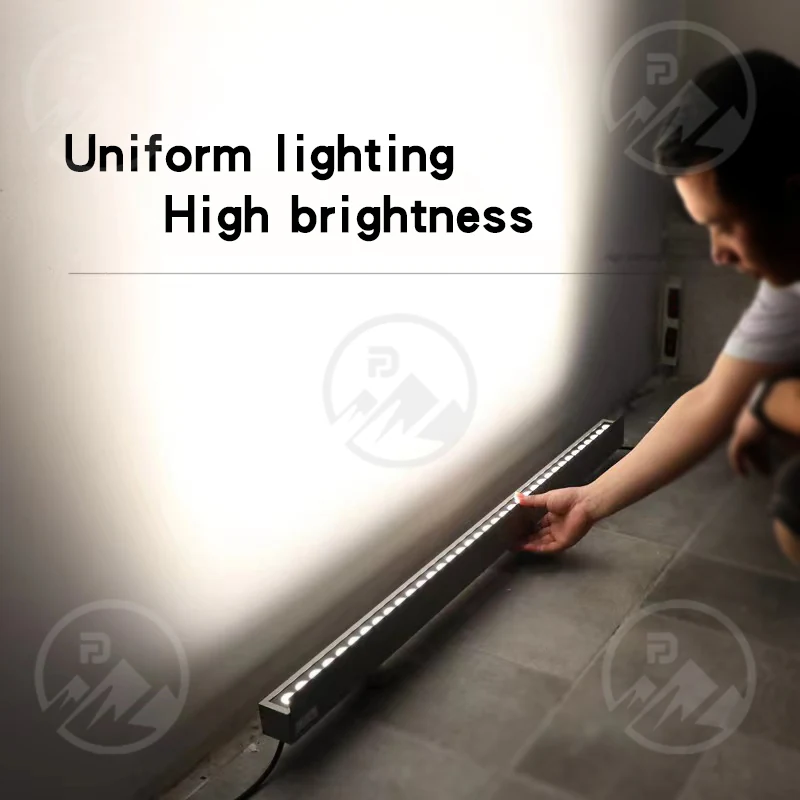

- Baffle reduces glare and improves light uniformity on vertical surfaces
- IP65 rating allows outdoor mounting without risk from rain or cleaning jets
- Supports on/off, DMX, and DALI control for flexible integration with building management
- CREE LED chip ensures consistent output and long life in continuous operation
- 3-year warranty covers performance and reliability in project environments
Application Scenarios
- Illuminating textured concrete or stone facades in commercial and residential buildings
- Highlighting architectural details such as joints, panels, and recessed elements on building exteriors
- Creating uniform wash lighting on vertical surfaces in urban landscape and streetscape projects
- Integrating into building management systems using DMX or DALI for scheduled or responsive lighting
Who It Is For
- Facade and landscape lighting contractors installing linear washers on building exteriors
- Lighting designers specifying controlled, even wash lighting for architectural features
- Electrical wholesalers supplying linear wall washers for commercial and residential projects
- Brand owners sourcing OEM wall washers under their own label for project delivery
Problems It Solves
- Fixed light spread without a baffle leads to hot spots and uneven wash on facades
- Mains-fed fixtures require additional isolation when used in low-voltage building systems
- Lack of DALI or DMX support limits integration with centralised building control systems
- Inadequate IP rating causes early failure in outdoor mounting due to water ingress
- No driver included forces buyers to source and match drivers separately, increasing complexity
Technical Features

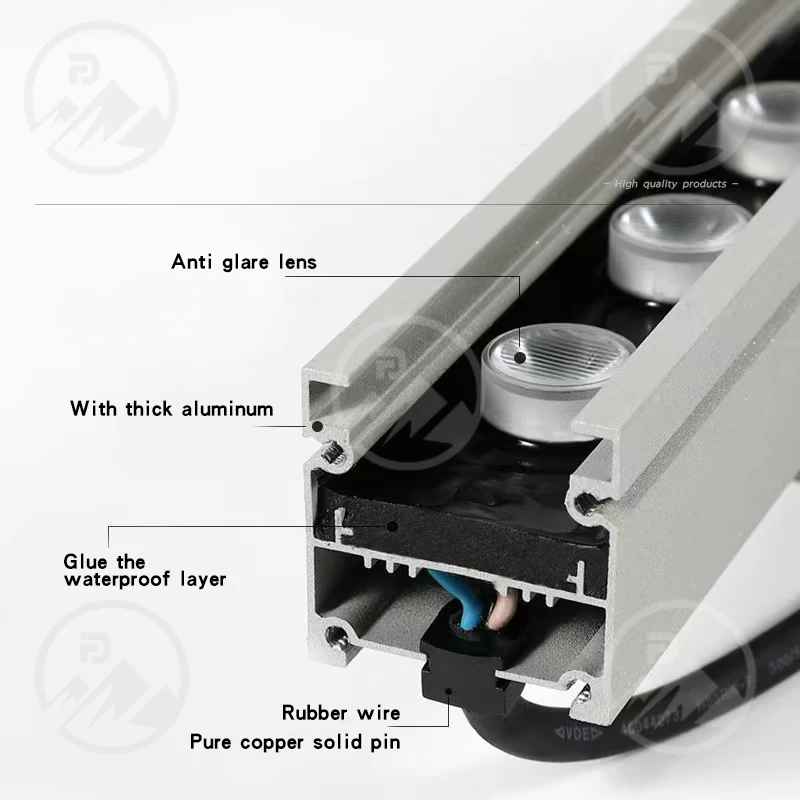

- Die-cast aluminium housing for structural strength and heat dissipation

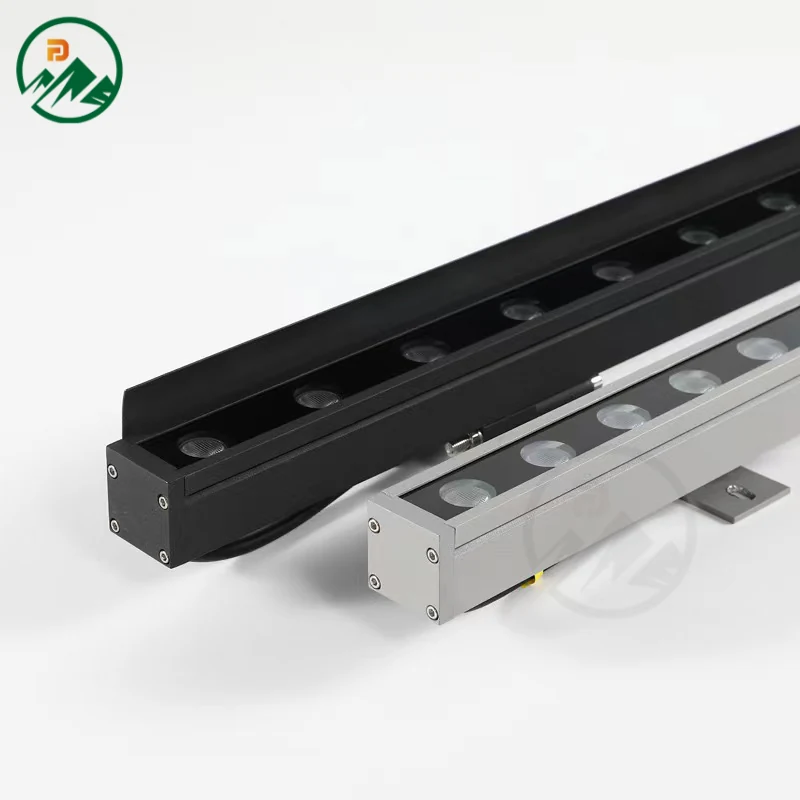

- Integrated baffle to control light spread and reduce glare
- DC24V input for compatibility with low-voltage building wiring and control systems
- Support for on/off, DMX, and DALI control protocols
- IP65 rating for protection against water jets and outdoor exposure
- CREE LED chip for consistent output and long-term performance
- Driver not included, allowing site-specific driver selection or use of centralised drivers
Materials
- Die-cast aluminium housing for structural rigidity and heat dissipation
- Baffle made of material to control light spread and reduce glare
- Sealed joints and gaskets to maintain IP65 rating in outdoor conditions
Manufacturing Process
- Die-casting of aluminium housing and surface finishing
- Assembly of LED board with CREE chips and driver-free configuration
- Installation of baffle and alignment for light distribution
- Sealing and gasket fitting to achieve IP65 rating
- Final testing under operating voltage and control protocols before packing
Quality Control
- Incoming inspection of CREE LED packages and driver components
- IP65 sealing verification using spray test before final closure
- Functional test under DC24V with on/off, DMX, and DALI signals
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied if required, though standard is without driver

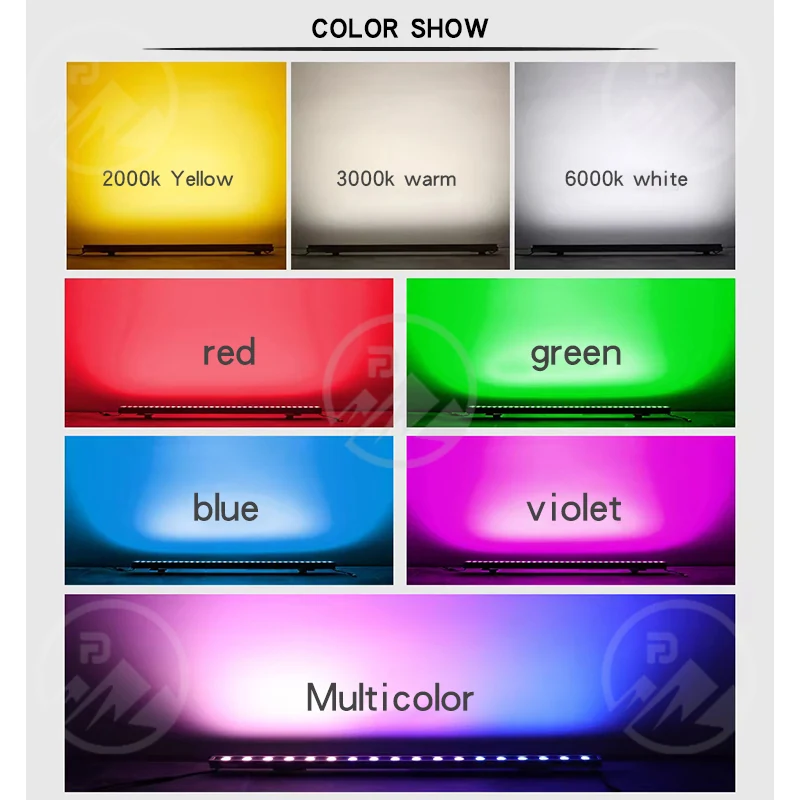

- CCT options include 2800-6500K, RGB, and RGBW for colour flexibility
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Wall washer with driver included
Higher cost and less flexibility; this model allows site-specific driver matching
AC240V wall washer
Requires isolation transformer in low-voltage systems; DC24V avoids this complexity
Wall washer without baffle
Produces uneven light spread and glare; baffle improves uniformity and visual comfort
Use Guide

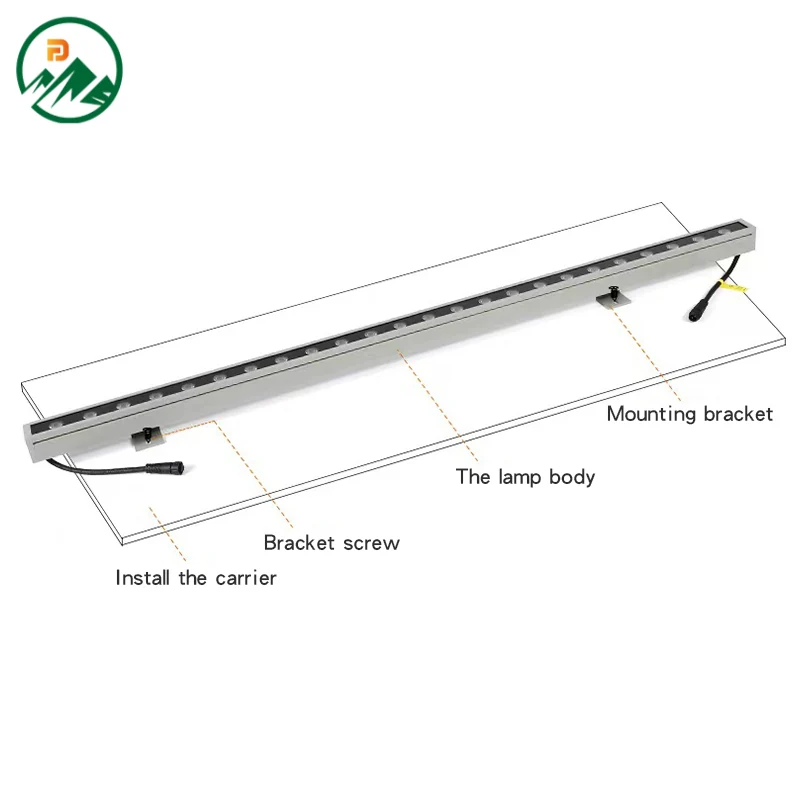

- Mount the fixture on a vertical surface using the provided support bracket
- Ensure the baffle is aligned to direct light evenly across the target surface
- Connect to a DC24V power supply with proper cable sizing to avoid voltage drop
- Program the control system (on/off, DMX, or DALI) according to the project's lighting schedule
- Clean the baffle and lens periodically to maintain light output and prevent dirt buildup
24W Project DC24V LED Wall Washer with Baffle Questions
What is the input voltage for this wall washer?
It operates on DC24V, suitable for low-voltage building systems.
Is the driver included?
No, the driver is not included. This allows the buyer to use site-supplied or centralised drivers.
What control systems are supported?
It supports on/off, DMX, and DALI control protocols for integration with building management systems.
What is the IP rating and where can it be used?
IP65 rating allows outdoor use on facades exposed to rain and cleaning jets.
Can I get a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, with shipping via DHL, UPS, FedEx, or TNT taking 3-5 days in transit.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranties range from 2 to 5 years depending on the product.
