24W One Beam of Light Design LED Wall Lamp

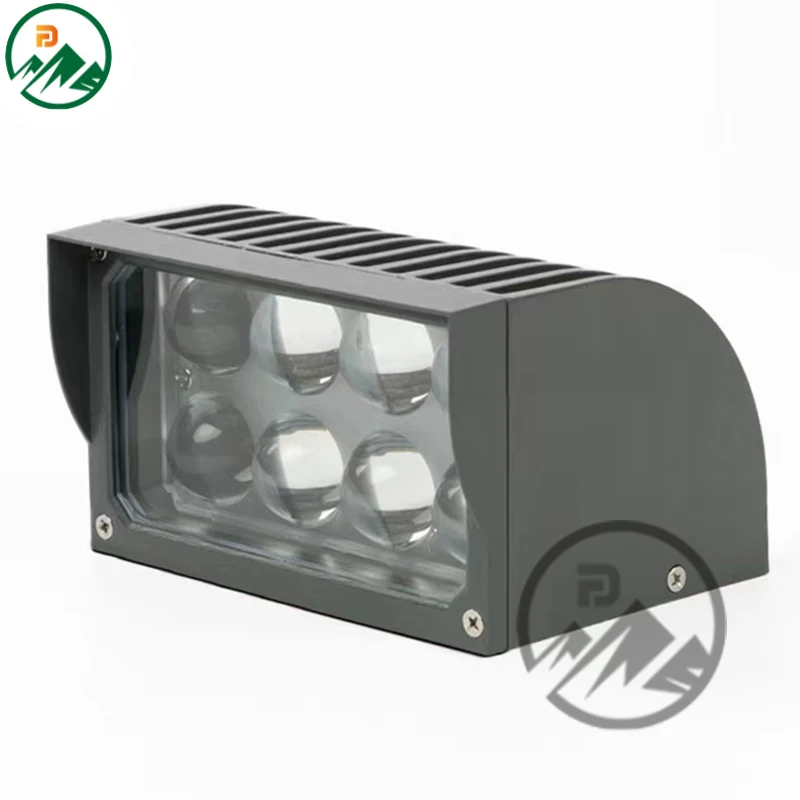

The FD-OBW010S24 is a 24W wall-mounted LED luminaire designed for facade, flood, and point lighting applications where a focused beam is required. The fixture features a snoot with a diameter of 127mm that directs the light precisely, reducing spill and glare. It is constructed from aluminium for heat dissipation and durability, with an IP65 rating suitable for outdoor use in exposed locations. The unit operates on AC85-265V and includes a driver, making it ready for direct connection to standard building wiring. The colour temperature range of 2800K to 6500K allows for flexibility in matching architectural lighting schemes.
| Model | FD-OBW010S24 |
|---|---|
| Power | 24W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |
| Dimension | L150 x W112(With Snoot D127 mm) x H90 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | Included |
| Colour Temperature | 2800-6500K |
| Warranty | 3 Years |
Key Benefits
- Fixed snoot design ensures consistent beam direction without on-site adjustment
- IP65 rating allows installation in exposed outdoor locations with rain and dust exposure
- Aluminium body provides effective heat dissipation for long-term LED performance
- CREE LED chip delivers stable output with a wide colour temperature range
- Integrated driver simplifies installation by eliminating the need for separate driver mounting
- 24W power level offers high output in a compact form factor suitable for tight wall spaces
Application Scenarios

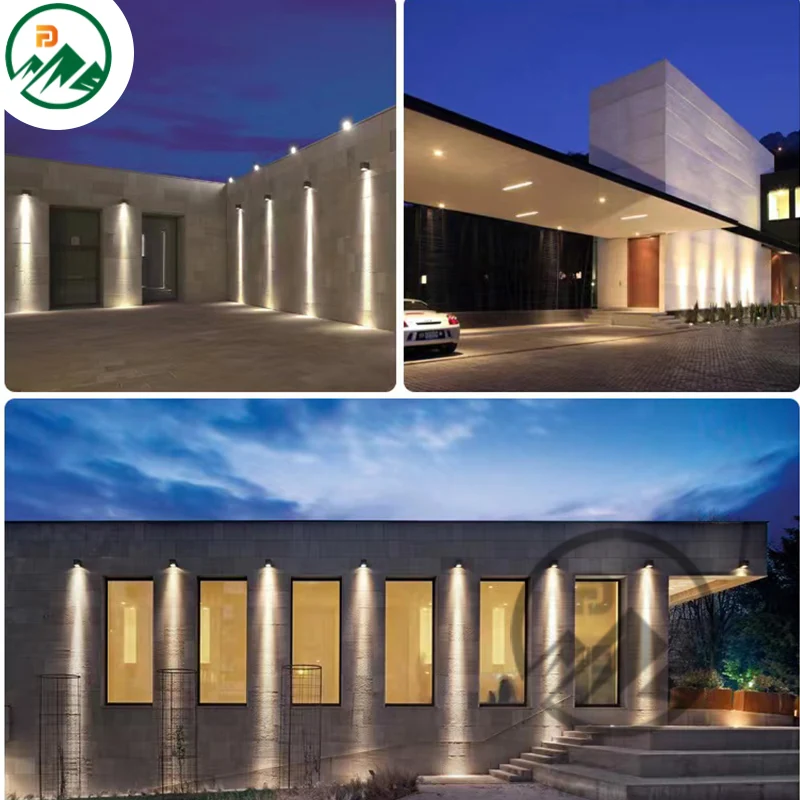

- Highlighting architectural details on building facades such as cornices, panels, and window surrounds
- Flood lighting of textured stone, brick, or concrete surfaces to enhance depth and form
- Point lighting for accenting columns, pillars, or structural elements in urban and commercial settings
- Installing in exposed wall positions where weather resistance is required but space is limited
Who It Is For
- Facade and landscape lighting contractors installing wall-mounted fixtures in outdoor projects
- Lighting designers specifying focused beam lighting for architectural features
- Electrical wholesalers supplying LED wall lamps for commercial and public building projects
- Brand owners sourcing OEM wall lamps under their own label with custom logo printing
Problems It Solves
- Fixed beam direction from a snoot prevents misalignment after installation, reducing rework
- IP65 rating avoids the need for additional weatherproof enclosures in exposed wall positions
- Integrated driver reduces wiring complexity and space required in wall-mounted installations
- Aluminium body prevents overheating in enclosed wall cavities where ventilation is limited
- CREE LED chip ensures consistent light output over time, reducing maintenance frequency
Technical Features
- Fixed snoot with D127mm diameter for precise beam control and reduced spill light

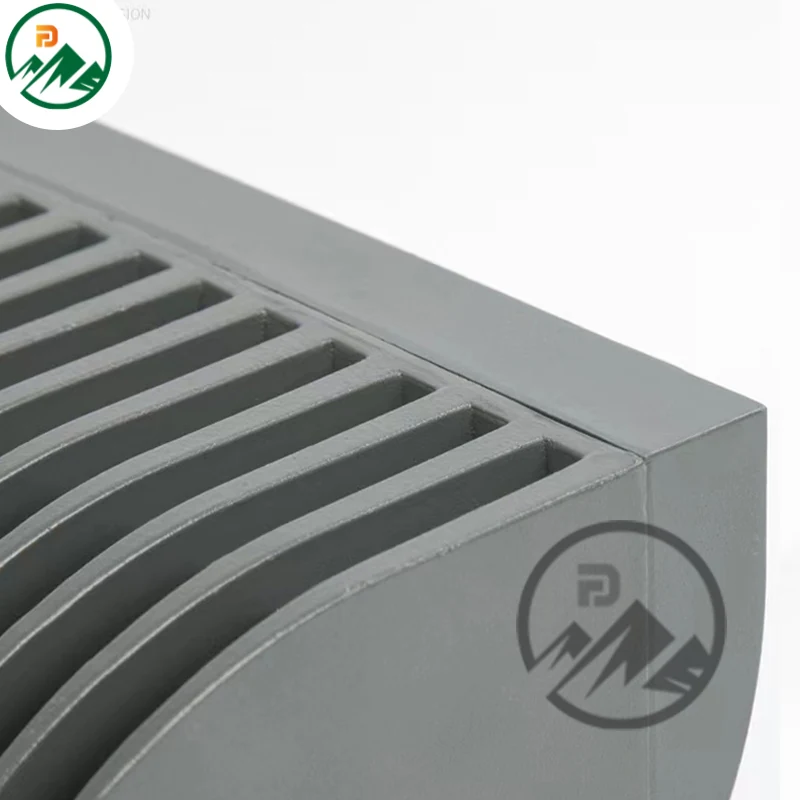

- Aluminium body for efficient heat transfer and long-term thermal stability
- IP65 rating for protection against dust and water jets, suitable for outdoor wall mounting
- CREE LED chip for reliable performance and consistent colour output
- Integrated driver (DONE) for direct connection to AC85-265V mains supply
- Wide colour temperature range of 2800K to 6500K to match different architectural lighting schemes
Materials
- Aluminium body for structural strength and heat dissipation
- Snoot with D127mm diameter made from the same aluminium material
- Internal driver housing with heat-resistant components
- Sealing gasket for IP65 protection at joints and cable entry points
Manufacturing Process
- Aluminium body die-casting and surface finishing
- Snoot forming and integration with the main body
- LED board assembly with CREE packages and driver integration
- Sealing and IP65 testing at cable entry and joint points
- Final lighting and performance test before packing
Quality Control
- Incoming inspection of CREE LED packages and driver components
- IP65 sealing verification using spray test before final assembly
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied integrated or omitted if site uses centralised drivers
- Colour temperature range of 2800K to 6500K allows for matching project-specific lighting schemes
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Wall lamp with external driver
Requires separate driver enclosure and additional wiring, but allows for driver replacement without replacing the fixture
Adjustable beam wall lamp
Fixed beam ensures no misalignment after installation, but cannot be re-aimed on site
Plastic-bodied wall lamp
Less durable in outdoor environments, but lighter and lower cost; aluminium offers better heat dissipation and longevity
Use Guide

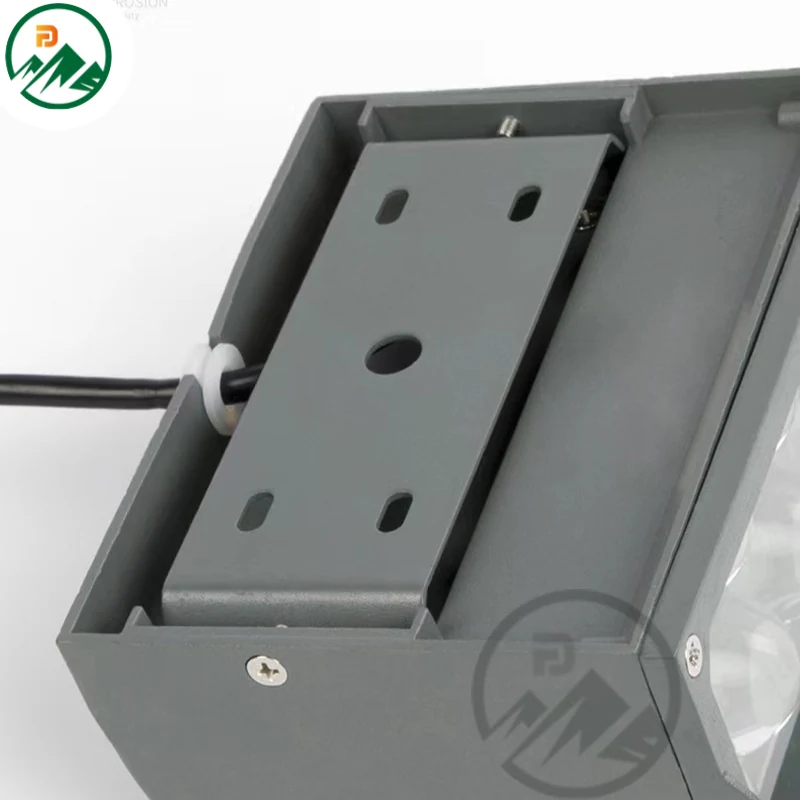

- Mount the fixture on a solid wall surface with appropriate fasteners for the load
- Ensure the snoot is aligned with the target area before final tightening
- Avoid directing the beam into reflective surfaces to prevent glare and light pollution
- Clean the snoot and lens periodically to maintain optical performance
- Use only AC85-265V supply; do not connect to DC or non-standard voltage sources
24W One Beam of Light Design LED Wall Lamp Questions
What is the beam angle of this wall lamp?
The beam is fixed by the snoot design with a D127mm diameter, which provides a focused beam without adjustable optics.
Is the driver included in the fixture?
Yes. The driver is integrated (DONE) and cannot be removed. It is designed for direct connection to AC85-265V mains.
Can the colour temperature be changed after installation?
No. The colour temperature is fixed at the time of manufacture. The range of 2800K to 6500K is available as different model variants.
Is this fixture suitable for wet locations?
Yes. It has an IP65 rating, which protects against water jets and dust, making it suitable for outdoor wall mounting in exposed areas.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
