200W Solar Flood Light with Solar Panel and Battery

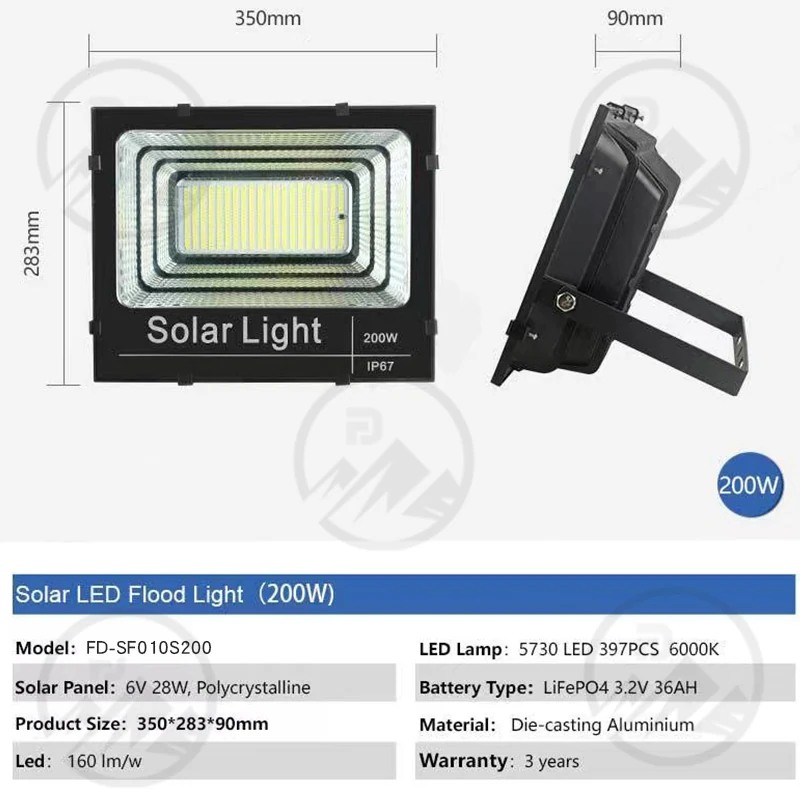

The FD-SF010S200 is a 200W solar-powered flood light with an integrated solar panel and LiFePO4 battery. It is designed for outdoor applications where grid power is unavailable or impractical. The fixture uses 397 pieces of 5730 LED at 6000K, delivering 160 lumens per watt. The polycrystalline solar panel is rated at 28W, 6V, and the battery is 3.2V 36AH LiFePO4. The housing is die-cast aluminium with an IP65 rating, suitable for exposed mounting on walls, poles or freestanding structures. It operates on solar charge and stored energy, with no need for wiring to a power source.
| Model | FD-SF010S200 |
|---|---|
| Power | 200W |
| IP Rating | IP65 |
| Material | Die-casting Aluminium |
| LED Chip | 160W/lm |
| Solar Panel | 6V 28W, Polycrystalline |
| Warranty | 3 Years |
Key Benefits
- No need for electrical wiring or grid connection, reducing installation cost and complexity
- Integrated solar panel and battery allow full off-grid operation
- LiFePO4 battery offers longer cycle life and better thermal stability than standard lithium-ion
- IP65 rating protects against dust and water jets, suitable for outdoor exposure
- Die-cast aluminium body provides robust mechanical strength and heat dissipation
- 160 lumens per watt output delivers high efficiency for solar-powered lighting
Application Scenarios
- Flood lighting for perimeter security on remote industrial sites without grid access
- Illumination of parking areas, gates and entry points at rural or off-grid facilities
- Lighting for outdoor construction sites where temporary power is not available
- Solar-powered flood lighting for public parks and recreational areas in remote zones
- Emergency lighting backup for critical outdoor zones during power outages
Who It Is For
- Facility managers installing lighting at off-grid or temporary sites
- Contractors specifying solar solutions for remote construction or security projects
- Electrical wholesalers supplying solar flood lights to regional markets
- Brand owners sourcing OEM solar flood lights under their own label
Problems It Solves
- Grid connection is not feasible or too costly for remote or temporary outdoor locations
- Traditional flood lights require running cables and trenching, increasing project cost and time
- Standard lithium-ion batteries degrade faster in high temperatures and short cycle life
- Frequent maintenance is needed when using non-rechargeable or low-capacity batteries
- Exposed fixtures without proper sealing fail prematurely in wet or dusty conditions
Technical Features
- 200W total power with 397 x 5730 LED at 6000K for bright white light output
- Integrated 6V 28W polycrystalline solar panel for daytime charging
- 3.2V 36AH LiFePO4 battery for long-term energy storage and stable discharge
- Die-cast aluminium housing for durability and heat dissipation
- IP65 rating for protection against dust and water jets
- No external wiring required; all components are built into a single unit
Materials
- Die-cast aluminium housing for structural strength and thermal management
- Polycrystalline solar panel for reliable daytime energy harvesting
- LiFePO4 battery for stable voltage and long cycle life
- 5730 LED packages for high brightness and consistent output
Manufacturing Process
- Die-casting of aluminium housing with precision moulding
- Assembly of solar panel and battery into the housing
- Mounting of LED array with 5730 chips on the heat sink
- Sealing of joints and gaskets to achieve IP65 rating
- Final testing under simulated solar and load conditions
Quality Control
- Incoming inspection of solar panels, batteries and LED chips
- IP65 sealing test using spray and dust exposure
- Full charge-discharge cycle test on battery before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Can be supplied with or without driver, depending on site control strategy
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Grid-powered flood light
Higher upfront cost but no solar panel or battery needed; requires wiring and electrical access
Solar flood light with standard lithium-ion battery
LiFePO4 battery lasts longer and performs better in high temperatures, but costs more upfront
Solar flood light with external battery
Integrated battery reduces installation complexity and wiring, but limits battery replacement options
Use Guide
- Mount the fixture on a wall, pole or freestanding structure with clear exposure to sunlight
- Ensure the solar panel faces south (in the northern hemisphere) and is unshaded during daylight
- Do not cover or obstruct the solar panel after installation to maintain charging efficiency
- The battery charges during daylight and powers the light at night; full charge takes approximately 8-10 hours of sunlight
- Clean the solar panel surface periodically to maintain charging performance
200W Solar Flood Light with Solar Panel and Battery Questions
Is the solar panel and battery built into the fixture?
Yes. The 6V 28W polycrystalline solar panel and 3.2V 36AH LiFePO4 battery are integrated into the main housing.
What is the battery type and why is it used?
The battery is LiFePO4, which offers longer cycle life, better thermal stability, and safer operation than standard lithium-ion.
How long does it take to charge the battery?
Under full sunlight, the battery charges in approximately 8-10 hours. Charging time varies with sunlight intensity and weather.
Can the battery be replaced after the fixture is installed?
The battery is built into the housing and not designed for field replacement. Replacement requires returning the unit for service.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
