High Quality With Snoot Design LED Spike Light

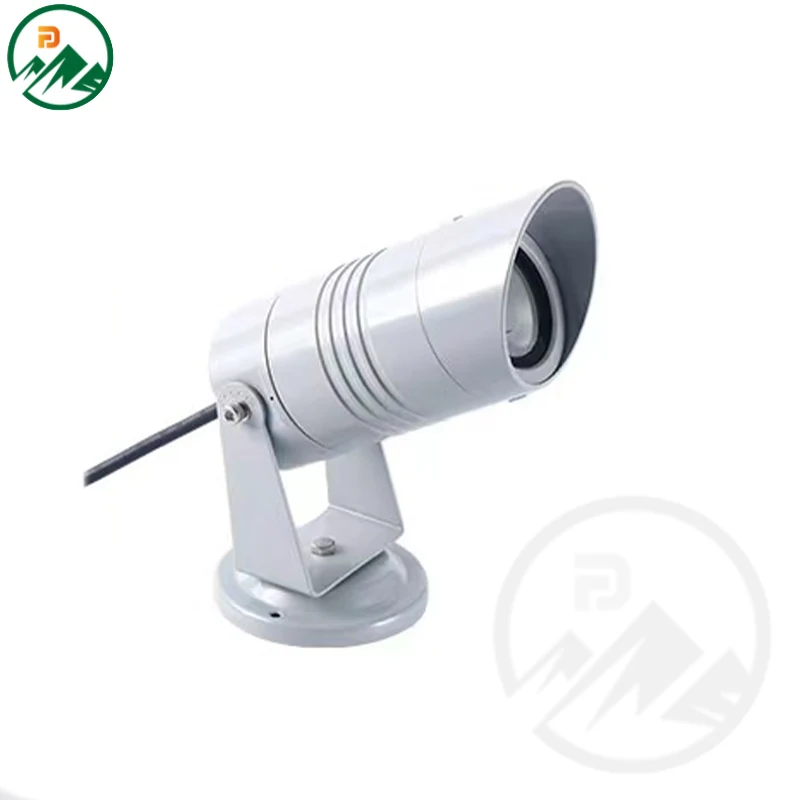

The FD-PL040R05 is a 5W LED spike light with a snoot design for landscape and flood lighting applications. The snoot restricts the beam to reduce glare and light spill, making it suitable for highlighting specific features like trees, architectural details, or garden elements without affecting adjacent areas. It is built with a die-casting aluminium body for durability and heat dissipation, and rated IP67 for outdoor use in wet or dusty conditions. The fixture accepts AC85-265V or DC24V input, allowing it to be used in both mains-fed and low-voltage systems. The beam angle is selectable in 3°, 10°, 20°, 30°, or 60°, enabling precise control over light distribution.
| Model | FD-PL040R05 |
|---|---|
| Power | 5W |
| Input Voltage | AC85-265V/DC24V |
| IP Rating | IP67 |
| Dimension | D49 mm x L115 x H290 mm |
| Material | Die-casting Aluminium |
| LED Chip | CREE |
| Driver | FENGDIAN |
| Colour Temperature | 2800-6500K |
| Beam Angle | 3/10/20/30/60° |
| Warranty | 3 Years |
Key Benefits
- Snoot design reduces glare and light spill, improving visual comfort and targeting accuracy
- Multiple beam angles (3°, 10°, 20°, 30°, 60°) allow one model to serve multiple lighting tasks
- IP67 rating ensures reliable operation in outdoor environments with rain, dust, or temporary immersion
- Die-casting aluminium body provides strong mechanical protection and effective heat dissipation
- AC85-265V or DC24V input supports integration into both standard mains and low-voltage landscape circuits
- CREE LED chip ensures consistent lumen output and long life in outdoor conditions

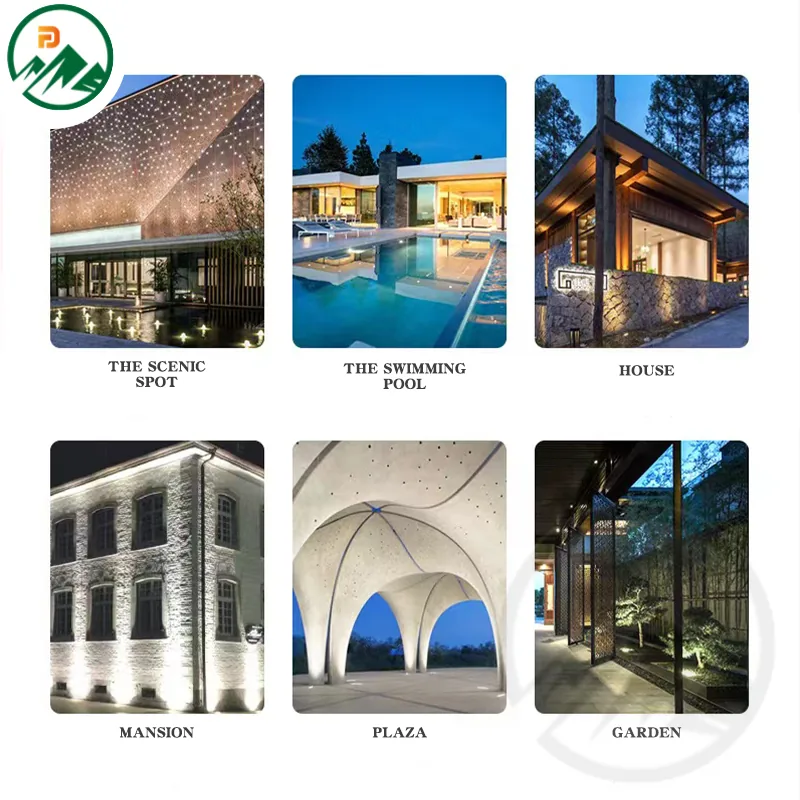

Application Scenarios

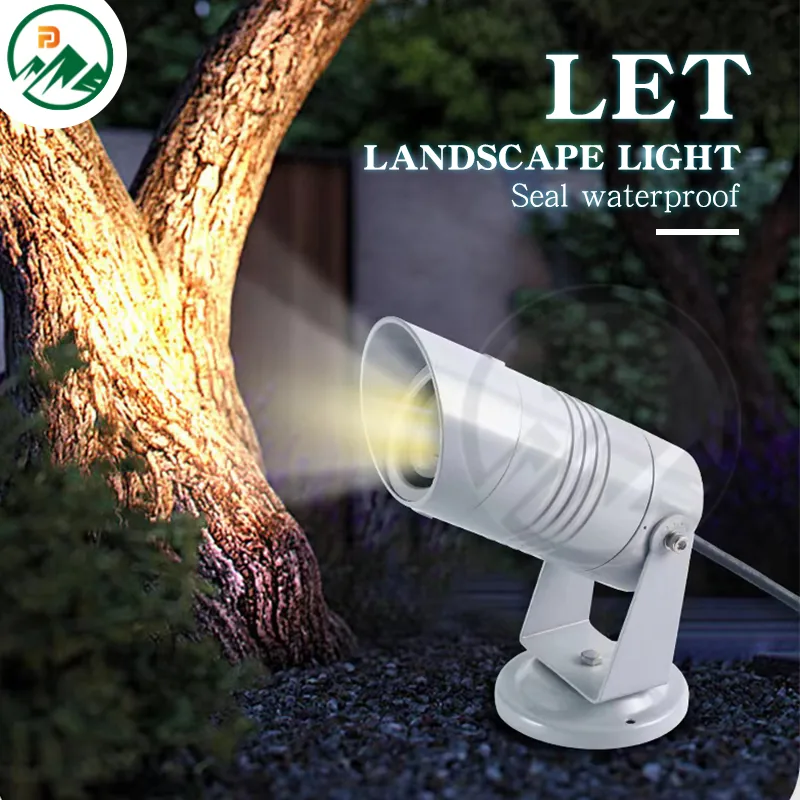

- Highlighting tree trunks, shrubs, or architectural features in residential and commercial gardens
- Accent lighting on building facades, columns, or garden walls in landscape schemes
- Low-level illumination in pathways, courtyards, and public plazas where light spill must be minimised
- Flood lighting for outdoor sculptures, fountains, or heritage features with controlled beam spread
- Installation in areas with mixed wiring systems where both AC and DC power are used
Who It Is For
- Landscape lighting contractors installing spike lights in gardens and public spaces
- Facade and lighting designers specifying precise beam control for accent lighting
- Electrical wholesalers supplying outdoor lighting for Middle East and European projects
- Brand owners sourcing OEM spike lights under their own label with custom branding
Problems It Solves
- Uncontrolled light spill from standard spike lights causes glare and affects nearby areas
- Fixed beam angles require multiple SKUs to cover different lighting needs on the same site
- Non-IP67 rated fixtures fail in wet or dusty outdoor conditions after short use
- Incompatible input voltages force the use of different fixture types when wiring systems vary
- Poor heat dissipation in plastic or thin metal housings reduces LED lifespan in outdoor use
Technical Features
- Snoot design restricts beam spread to reduce glare and spill
- Selectable beam angles: 3°, 10°, 20°, 30°, 60° for precise targeting
- Die-casting aluminium body for structural strength and heat dissipation
- IP67 rating for protection against dust and temporary immersion
- CREE LED chip for consistent performance and long life
- FENGDIAN driver for reliable operation across input voltage ranges
- AC85-265V or DC24V input to match site wiring configuration

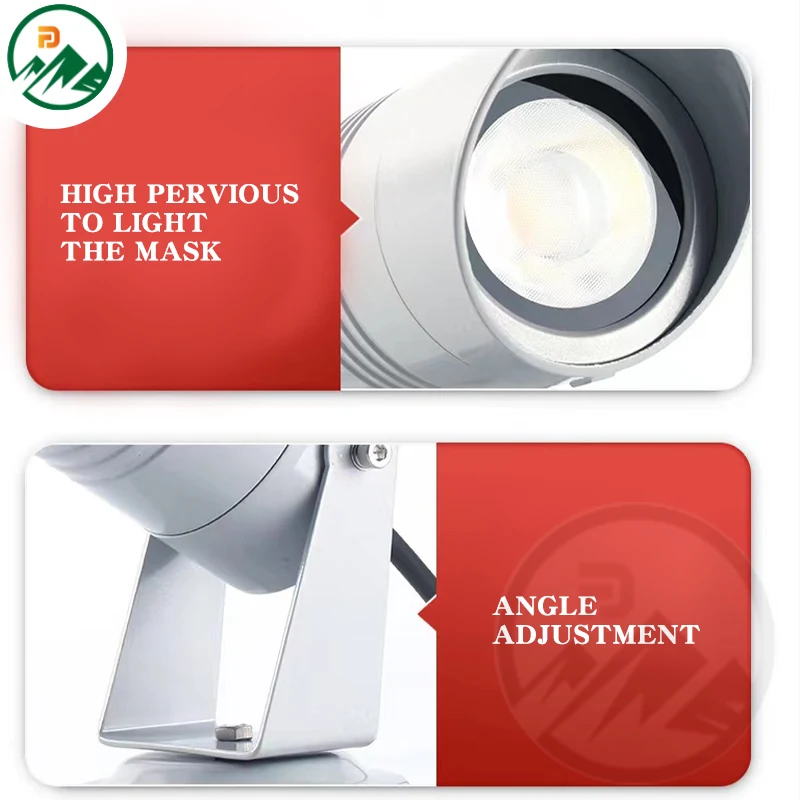

- Adjustable beam angle via replaceable optic or fixed optic per model variant
Materials
- Die-casting aluminium body for structural integrity and heat transfer
- Snoot made from metal or plastic to restrict beam spread
- Tempered glass or polycarbonate lens over the LED for protection
- Sealing gaskets to maintain IP67 rating under outdoor exposure
Manufacturing Process
- Die-casting of aluminium housing with precision machining
- Surface treatment including powder coating or anodising for corrosion resistance
- LED board assembly with CREE chips and FENGDIAN driver
- Installation of snoot and optic with beam angle selection
- IP67 sealing test using pressure and water spray before final assembly
- Aged lighting test and visual inspection before packing
Quality Control
- Incoming inspection of CREE LED chips and FENGDIAN drivers
- IP67 sealing verification using pressure and water spray tests
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Beam angle can be set at production based on order specification
- AC85-265V or DC24V input version selected per project requirement
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Standard spike light without snoot
Higher light spill and glare, less control over beam direction
Fixed beam angle spike light
Requires multiple SKUs for different applications, increases inventory and ordering complexity
Plastic-bodied spike light
Less durable in outdoor conditions, poorer heat dissipation, shorter lifespan
Use Guide
- Install the spike light into soil or ground with the base fully embedded for stability
- Select the desired beam angle (3°, 10°, 20°, 30°, 60°) based on the target distance and width
- Ensure the snoot is aligned to avoid light spill into adjacent areas or windows
- Use AC85-265V or DC24V wiring as specified in the project design
- Avoid placing the fixture in areas with constant standing water; use an underwater luminaire if needed
High Quality With Snoot Design LED Spike Light Questions
What beam angles are available for this spike light?
The FD-PL040R05 offers five beam angles: 3°, 10°, 20°, 30°, and 60°, selectable based on project needs.
Can it run on 24V DC instead of mains voltage?
Yes. The fixture supports both AC85-265V and DC24V input, so it can be used in low-voltage landscape systems.
Is the snoot design effective in reducing light spill?
Yes. The snoot restricts the beam to reduce glare and spill, improving targeting accuracy in landscape and accent lighting.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN product range, warranties vary between 2 and 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
Is the driver included?
Yes. The driver is included in the fixture. However, it can be omitted if the project uses centralised drivers in a control panel.
