Bird’s Nest Design Outdoor LED Tree Spot Light
The FD-BS010S48 is a 48W outdoor tree spot light designed for landscape and architectural lighting where a natural, organic form is required. The fixture features a rattan weaving cover over a die-cast aluminium body, mimicking a bird's nest in appearance. It is rated IP65 for outdoor use in exposed locations and supports multiple beam angles and colour options. The light can be controlled via ON/OFF or DMX, and the driver is integrated into the system. It is suitable for highlighting trees, columns, and architectural features in parks, gardens, and public spaces.
| Model | FD-BS010S48 |
|---|---|
| Power | 48W |
| Input Voltage | AC85-265V/DC24V |
| IP Rating | IP65 |

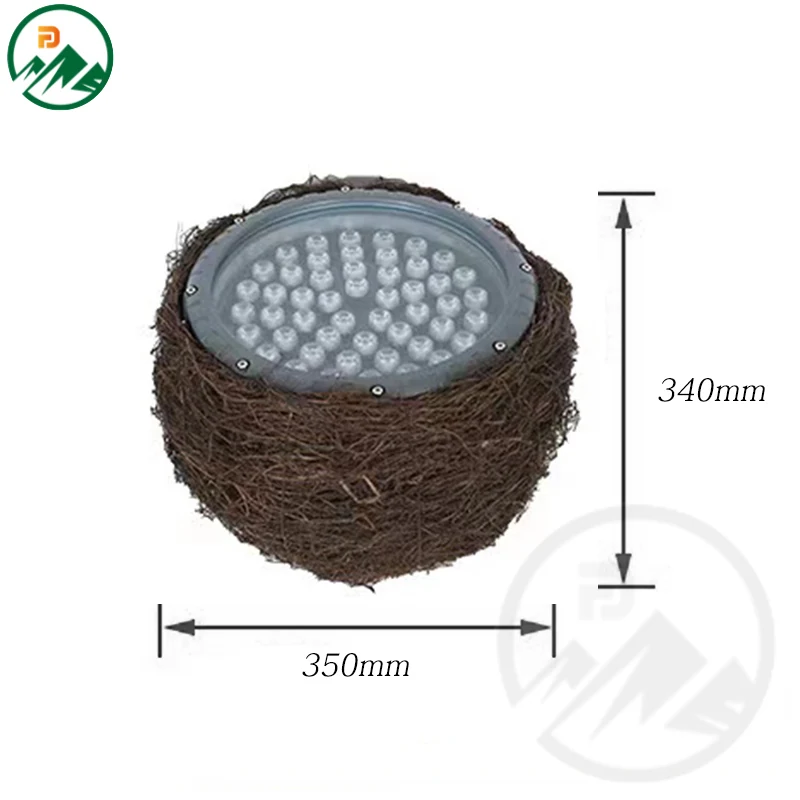

| Dimension | D350 x H340 mm |
| Material | Die-casting Aluminium+Tempered Glass+Rattan Weaving |
| LED Chip | CREE |
| Driver | Included |
| Colour Temperature | 2800-6500K/RGB/RGBW |
| Beam Angle | 10/15/30/45/60/90/120° |
| Control System | ON/OFF, DMX |
| Output Cable | 30cm |
| Warranty | 3 Years |
Key Benefits
- Rattan weaving cover provides a natural, organic appearance that blends into outdoor environments
- IP65 rating allows installation in exposed outdoor areas without risk of water ingress
- Multiple beam angles (10° to 120°) allow one fixture to serve different lighting needs on site
- CREE LED chip ensures consistent light output and long life
- DMX control enables dynamic lighting effects in landscape and architectural schemes
- Integrated driver (DONE) reduces on-site wiring complexity and installation time
Application Scenarios
- Highlighting tree trunks and canopies in public parks and residential gardens
- Uplighting columns, pillars, and architectural features in landscape and urban design
- Creating ambient lighting in garden pathways and courtyard spaces
- Accentuating natural textures and forms in landscape installations with a soft, organic look
Who It Is For
- Landscape lighting contractors installing tree and feature lights in outdoor projects
- Facade and landscape designers specifying organic-looking fixtures for public spaces
- Electrical wholesalers supplying outdoor lighting for European and Middle Eastern markets
- Brand owners sourcing OEM tree spot lights with custom branding and control options
Problems It Solves
- Fixed or industrial-looking lights disrupt the natural aesthetic of garden and park environments
- Lack of beam angle flexibility requires multiple fixture types for different lighting tasks
- Exposed drivers or loose wiring increase installation time and risk of failure
- Non-weatherproof fixtures fail in outdoor conditions with rain and dust exposure
- Inconsistent colour rendering or poor light distribution affects the visual quality of tree lighting
Technical Features
- Die-cast aluminium body for structural strength and heat dissipation
- Tempered glass lens for optical clarity and impact resistance
- Rattan weaving cover for natural appearance and aesthetic integration
- CREE LED chip for reliable performance and consistent output
- Integrated driver (DONE) for simplified on-site installation
- Multiple beam angles (10°, 15°, 30°, 45°, 60°, 90°, 120°) selectable during ordering
- Colour temperature range: 2800K to 6500K, with RGB and RGBW options for dynamic lighting
- Control via ON/OFF or DMX for fixed or programmable lighting schemes
- 30cm output cable for flexible wiring routing
- AC85-265V or DC24V input to match site power supply
Materials
- Die-cast aluminium body for structural integrity and thermal management
- Tempered glass lens for optical clarity and resistance to impact
- Rattan weaving cover for natural visual integration in outdoor settings
- Integrated driver (DONE) for compact, reliable power management
Manufacturing Process
- Die-casting of aluminium body with surface finishing
- Forming and fitting of rattan weaving cover
- Assembly of LED board with CREE chips
- Installation of integrated driver (DONE)
- Sealing of joints and gasket fitting to achieve IP65
- Final testing under DMX and ON/OFF control before packing
Quality Control
- Incoming inspection of CREE LED packages and driver components
- IP65 sealing verification using pressure and water spray test
- Functional testing of ON/OFF and DMX control systems
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Beam angle selected at order stage from 10°, 15°, 30°, 45°, 60°, 90°, 120°
- Colour temperature or RGB/RGBW option specified at order stage
- OEM and ODM production available for buyers selling under their own brand
- Driver can be supplied with or without, depending on site control strategy
Compared With the Alternatives
Standard metal tree spot light
More aesthetically integrated in natural settings, but heavier and more complex to install due to rattan cover
Plastic or resin tree light
More durable and heat-resistant, but lacks the natural texture and visual depth of rattan weaving
Fixture with external driver
Simpler to replace, but requires additional enclosure and wiring; integrated driver reduces site complexity
Use Guide
- Mount the fixture securely to a tree trunk or pole using the provided mounting hardware
- Select the desired beam angle during ordering to match the target object and distance
- Route the 30cm output cable to the nearest power source, ensuring it is protected from physical damage
- For DMX control, connect to a compatible controller and assign the correct channel
- Avoid direct exposure to high-pressure water jets during cleaning to maintain IP65 rating
- Clean the tempered glass lens periodically with a soft cloth to maintain optical performance
Bird’s Nest Design Outdoor LED Tree Spot Light Questions
What is the beam angle range for this tree spot light?
The beam angle can be selected from 10°, 15°, 30°, 45°, 60°, 90°, or 120° at the time of order.
Can it run on 24V DC?
Yes. The fixture supports both AC85-265V and DC24V input, so it can be used in low-voltage systems.
Is the driver included?
Yes. The driver is integrated into the system (DONE), so no separate driver is needed.
What is the IP rating and is it suitable for outdoor use?
The fixture is rated IP65, which means it is protected against dust and water jets, making it suitable for outdoor installation.
What colour options are available?
Available in 2800K to 6500K white light, RGB, or RGBW for dynamic colour changes.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, and goods are shipped via DHL, UPS, FedEx, or TNT with 3-5 days in transit, or by air or sea freight.
