1W Mini Size Frosted Acrylic Cover LED Underground Light

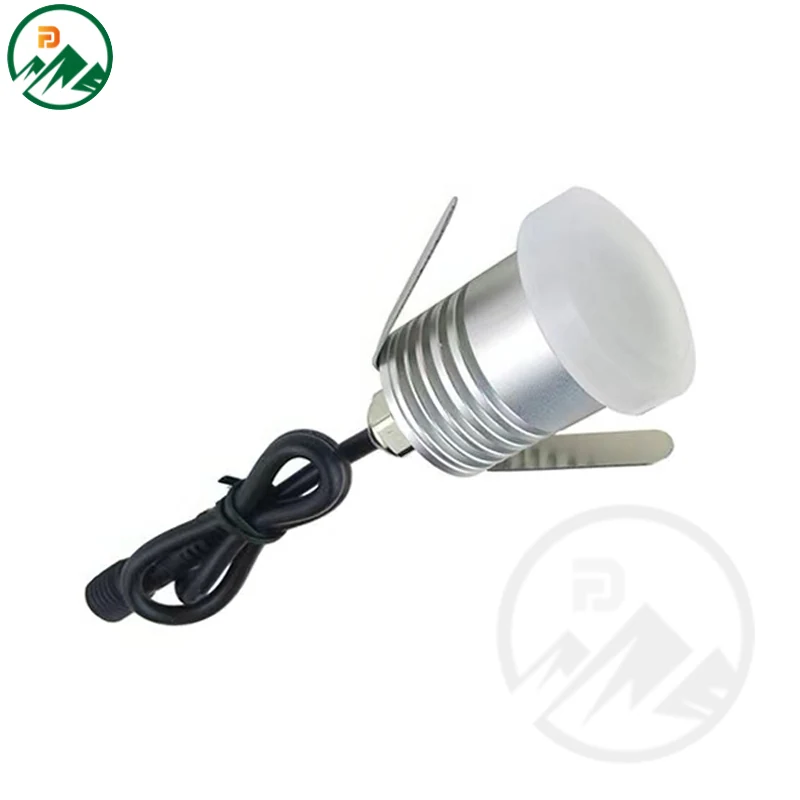

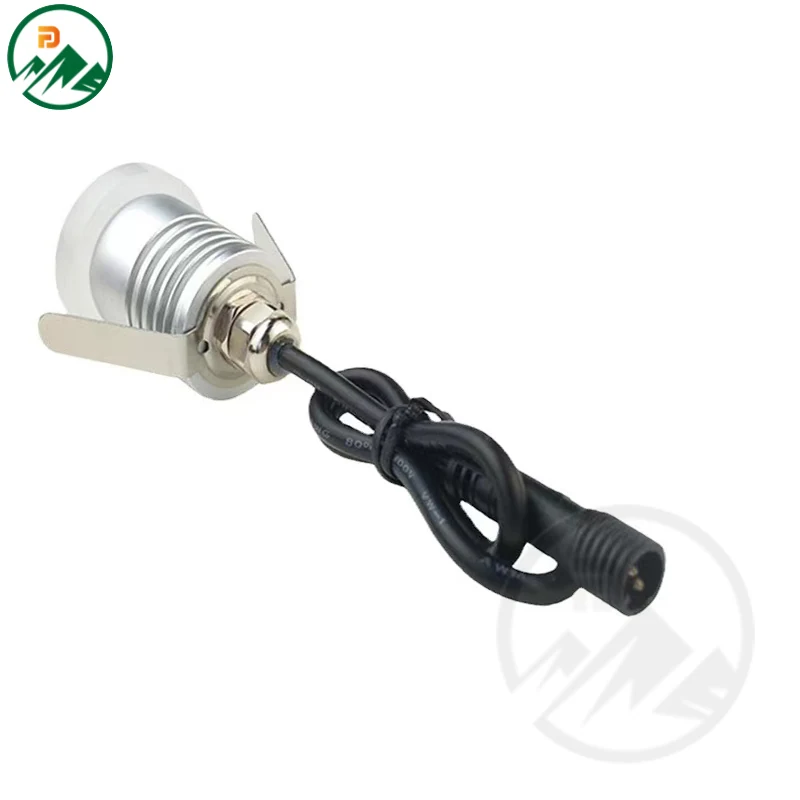

The FD-U150R01 is a 1W recessed in-ground LED luminaire designed for compact landscape and facade lighting applications where minimal visual impact and durable installation are required. The fixture features a frosted acrylic cover over an aluminium body, with a DC12/24V input and IP67 sealing for use in paved areas exposed to rain. It is supplied without a driver, allowing integration into systems with centralised power management. The small size and low power make it suitable for low-light accenting in tight spaces.
| Model | FD-U150R01 |
|---|---|
| Power | 1W |
| Input Voltage | DC12/24V |
| IP Rating | IP67 |
| Dimension | D36 x H39 mm, Hole D27 mm |
| Material | Aluminium+Acrylic |
| LED Chip | OSRAM |
| Driver | Not included |
| Warranty | 3 Years |
Key Benefits
- 1W power draws minimal energy, ideal for solar or low-voltage systems
- Frosted acrylic cover diffuses light evenly, reducing glare in close proximity
- IP67 rating ensures reliable operation in recessed positions subject to standing water
- DC12/24V input supports both low-voltage and solar-powered installations
- No driver included allows use with centralised or site-specific driver systems
- Small D36 x H39 mm footprint fits into tight cut-outs without disrupting paving
Application Scenarios
- Accent lighting along garden paths and courtyard edges in residential and commercial landscapes
- Low-level illumination in plaza edges and building perimeters where minimal profile is needed
- Highlighting architectural details such as stone joints, thresholds, or low walls
- Solar-powered landscape schemes where low power draw extends battery life
- Projects requiring multiple small fixtures with consistent appearance and low maintenance
Who It Is For
- Facade and landscape lighting contractors installing small in-ground lights in hardscape
- Lighting designers specifying low-profile, low-power accent lights for tight spaces
- Electrical wholesalers supplying compact in-ground luminaires for European and Middle Eastern projects
- Brand owners sourcing OEM in-ground lights under their own label with custom logo printing
Problems It Solves
- Large in-ground lights disrupt paving continuity and are visually intrusive in tight spaces
- High-power fixtures waste energy in applications requiring only subtle illumination
- Fixtures with built-in drivers complicate system design when centralised drivers are used
- Non-IP67 sealed lights fail in recessed positions after rain exposure
- Lack of low-power options limits solar integration and increases system cost
Technical Features
- 1W output with OSRAM LED chip for consistent light quality
- Frosted acrylic cover for even light diffusion and reduced glare
- Aluminium body for heat dissipation and structural rigidity
- IP67 sealing suitable for recessed installations in paved areas
- DC12/24V input voltage range for compatibility with low-voltage and solar systems
- Driver not included, enabling use with centralised or site-supplied drivers
Materials
- Aluminium body for heat dissipation and structural strength
- Frosted acrylic cover for light diffusion and impact resistance
- Sealing gasket for IP67 protection against dust and water ingress
Manufacturing Process
- Aluminium body machining and surface finishing
- Frosted acrylic cover forming and edge polishing
- LED board assembly with OSRAM packages
- Sealing and gasket fitting to achieve IP67
- Powered ageing test before packing
Quality Control
- Incoming inspection of OSRAM LED packages and acrylic covers
- IP67 sealing check before final closure
- Powered ageing run under load before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied without driver to match site-specific control strategies
- DC12/24V input version for compatibility with low-voltage systems
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Standard 3W in-ground light
Uses less power and fits into smaller cut-outs, reducing civil work and material cost
Surface-mounted spike light
Installed flush with paving, avoiding tripping hazards and visual clutter
Driver-included in-ground light
Saves space in centralised driver panels, but requires matching driver specs
Use Guide
- Cut a D27 mm hole in the paving and ensure drainage is provided below the fixture
- Install the fixture flush with the finished paving surface to avoid tripping
- Connect to a DC12V or DC24V power supply, ensuring cable size accounts for voltage drop
- Use with a centralised driver or site-supplied driver to avoid redundancy
- Clean the acrylic cover during routine maintenance to maintain light output
1W Mini Size Frosted Acrylic Cover LED Underground Light Questions
What is the cut-out size for this underground light?
The fixture requires a D27 mm hole, with a body size of D36 x H39 mm.
Can it run on 12V or 24V?
Yes. The model is designed for DC12V or DC24V input, suitable for low-voltage and solar systems.
Is the driver included?
No. The fixture is supplied without a driver, allowing integration with centralised or site-supplied drivers.
Is IP67 sufficient for outdoor recessed use?
Yes. IP67 covers temporary immersion, which is typical for recessed fixtures in paved areas after rain.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
