18W New Design LED Linear Light
The FD-LU050S18 is a 18W linear LED luminaire designed for architectural and landscape applications where a slim, durable profile is needed in exposed or recessed positions. The fixture has an aluminium body with a tempered glass lens, rated IP67 for installation in paved areas, underground channels, or exposed outdoor locations. It operates on AC85-265V, making it compatible with standard mains supply across Europe and the Middle East. The colour temperature range of 2800-6500K allows selection between warm, neutral, and cool white light for different design intents. The driver is integrated into the fixture, simplifying installation and reducing on-site wiring complexity.
| Model | FD-LU050S18 |
|---|---|
| Power | 18W |
| Input Voltage | AC85-265V |
| IP Rating | IP67 |

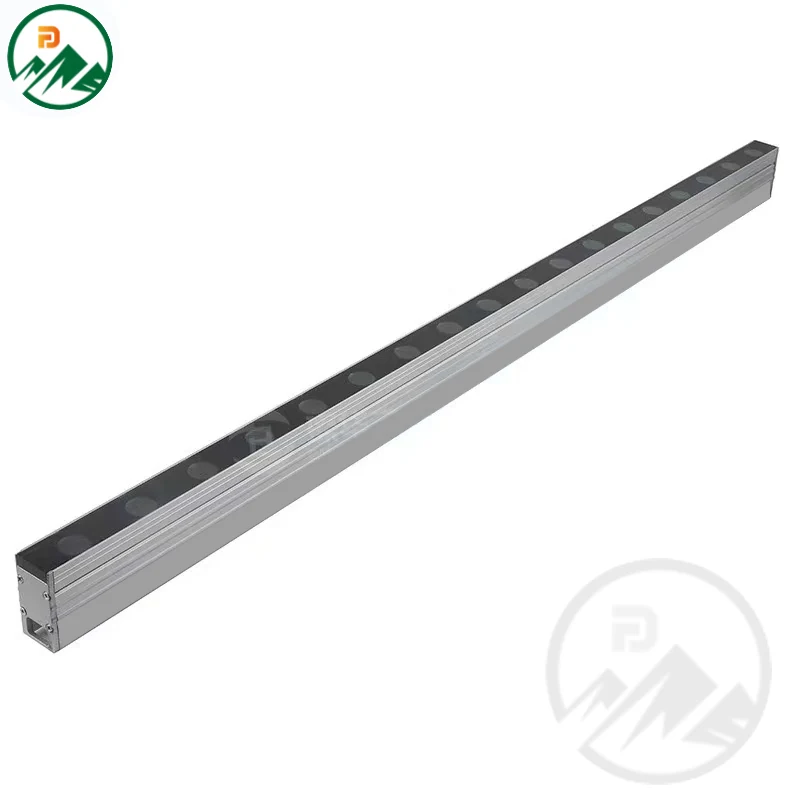

| Dimension | L1000 x W30 x H60 mm |
| Material | Aluminium Body+Tempered Glass |
| LED Chip | OSRAM |
| Driver | Included |
| Colour Temperature | 2800-6500K |
| Warranty | 3 Years |
Key Benefits
- IP67 rating ensures reliable performance in wet or flooded environments such as underground channels or paved surfaces
- Integrated driver reduces on-site wiring and control unit requirements
- 18W power with OSRAM LED chip delivers consistent output across the 2800-6500K range
- Slim profile of L1000 x W30 x H60 mm fits into tight architectural joints and narrow channels
- Aluminium body with tempered glass provides good heat dissipation and optical clarity
- Wide colour temperature range allows one model to serve multiple lighting design needs

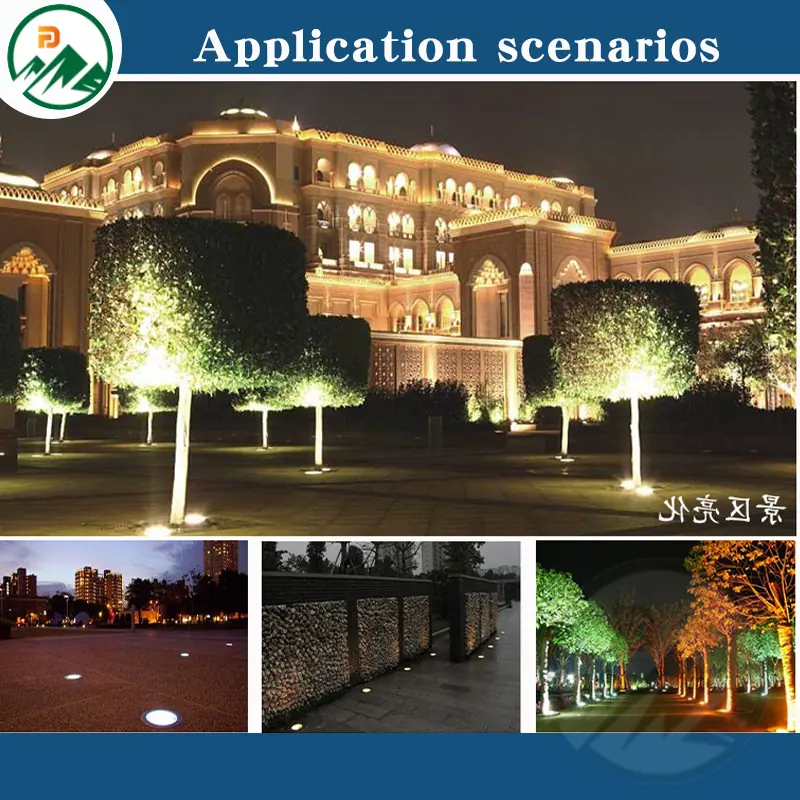

Application Scenarios
- Recessed linear lighting in paving for pedestrian pathways and courtyard edges
- Facade accent lighting along building edges or horizontal joints in modern architecture
- Underground channel lighting in urban plazas and public spaces
- Linear uplighting for columns, walls, or structural elements in landscape schemes
- Low-profile linear lighting in commercial office buildings with exposed ceiling or wall channels
Who It Is For
- Facade and landscape lighting contractors installing linear fixtures in hardscape or exposed positions
- Lighting designers specifying slim, durable linear lights for architectural detailing
- Electrical wholesalers supplying linear LED luminaires for outdoor and commercial projects
- Brand owners sourcing OEM linear lights under their own label with custom logo printing
Problems It Solves
- Non-integrated drivers require separate mounting and wiring, increasing installation time and complexity
- Fixtures without IP67 rating fail in underground or wet locations due to water ingress
- Fixed colour temperature models require multiple SKUs to cover different design needs
- Thick or bulky fixtures do not fit into narrow architectural joints or channel profiles
- Poor heat dissipation from low-quality materials leads to early LED degradation
Technical Features
- Integrated driver (DRIVE: DONE) simplifies site installation and reduces control unit count
- Aluminium body for efficient heat transfer and structural rigidity
- Tempered glass lens for optical clarity and impact resistance
- IP67 sealing suitable for permanent immersion in water, such as in underground channels
- AC85-265V input supports standard mains supply across Europe and the Middle East
- OSRAM LED chip ensures consistent lumen output and long life across the 2800-6500K range
Materials
- Aluminium body for heat dissipation and structural strength
- Tempered glass lens for optical clarity and resistance to impact
- Sealing gaskets and IP67-rated joints to prevent water ingress
Manufacturing Process
- Aluminium body machining and surface finishing
- Tempered glass lens cutting and edge polishing
- LED board assembly with OSRAM packages
- Driver integration and electrical testing
- Sealing and IP67 verification before final assembly
- Aged lighting test and visual inspection before packing
Quality Control
- Incoming inspection of OSRAM LED chips and driver components
- IP67 sealing test performed on each fixture before final closure
- Powered ageing run for 24 hours to verify stable output and no flicker
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Integrated driver is standard, but can be omitted if site uses centralised drivers
- Available in AC85-265V input only, as per the source data
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Linear light with separate driver
Higher installation effort and more wiring, but allows centralised driver control in large projects
Non-IP67 linear light
Not suitable for underground or wet locations; risk of early failure in exposed outdoor use
Thicker or bulkier linear fixture
Does not fit into narrow architectural joints or channel profiles; limits design flexibility
Use Guide
- Ensure the installation channel or recess is clean and dry before mounting the fixture
- Align the fixture flush with the surrounding surface to avoid tripping hazards
- Verify the AC85-265V supply matches the local mains voltage before powering
- Clean the tempered glass lens periodically to maintain optical output
- Do not exceed the rated power or voltage; use only approved wiring and connectors
18W New Design LED Linear Light Questions
What is the input voltage range?
The fixture operates on AC85-265V, suitable for standard mains supply across Europe and the Middle East.
Is the driver included?
Yes. The driver is integrated into the fixture (DRIVE: DONE), so no separate driver is needed.
What is the IP rating?
The fixture is rated IP67, which means it is protected against dust and temporary immersion in water.
Can the colour temperature be changed after installation?
No. The colour temperature is fixed at the time of manufacture. Choose the desired CCT (2800-6500K) when ordering.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty varies between 2 to 5 years depending on the product.
Can we order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
