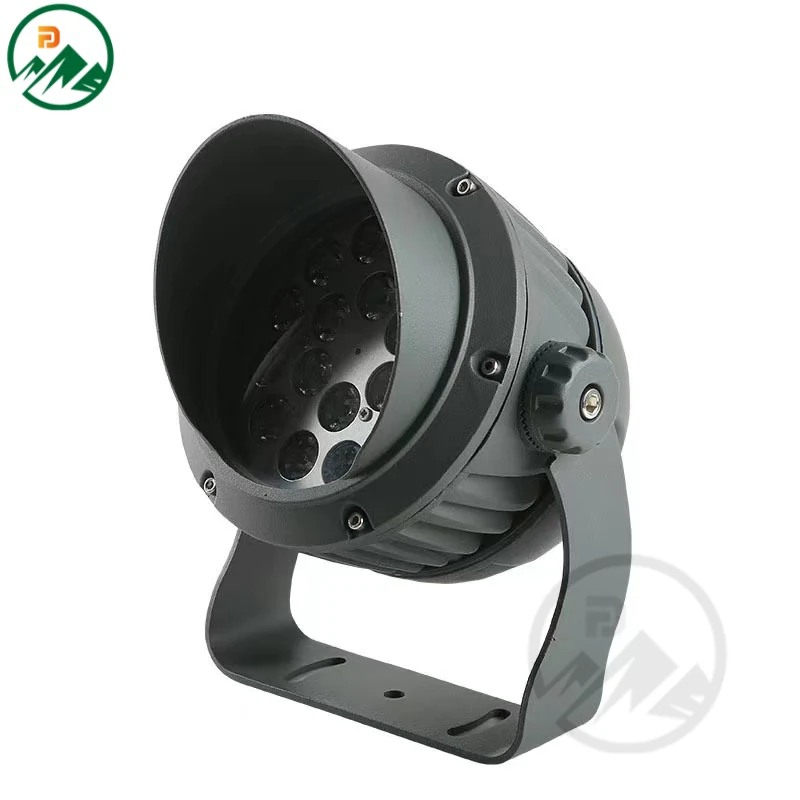

18W LED Flood Light With Snoot
The FD-S825R18 is an 18W LED flood light with a snoot designed for precise beam control in architectural and landscape lighting projects. The snoot restricts light spill and enhances contrast when illuminating specific facade details, columns, or sculptural elements. It operates on AC85-265V or DC24V input, making it compatible with both mains and low-voltage systems. The fixture is built with an aluminium body for heat dissipation and has an IP65 rating for outdoor use in exposed locations. It supports ON/OFF or DMX control, allowing integration into both simple and complex lighting sequences.
| Model | FD-S825R18 |
|---|---|
| Power | 18W |
| Input Voltage | AC85-265V/DC24V |
| IP Rating | IP65 |
| Dimension | D160 x H200 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | Included |
| Colour Temperature | 2800-6500K/RGB/RGBW |
| Beam Angle | 10/15/30/45/60/90/120° |
| Control System | ON/OFF, DMX |
| Output Cable | 30cm |
| Warranty | 3 Years |
Key Benefits
- Snoot design limits light spill for focused illumination on specific architectural features
- Beam angle options from 10° to 120° allow selection based on target distance and coverage width
- AC85-265V or DC24V input supports both mains and low-voltage site wiring
- IP65 rating ensures reliable operation in outdoor environments with rain and dust
- DMX control enables dynamic lighting effects in facade and landscape schemes
- CREE LED chip ensures consistent lumen output and long life in demanding applications
Application Scenarios
- Highlighting textured stone or concrete facades with a narrow beam for accenting architectural details
- Illuminating columns, arches, and structural elements in hotel and commercial building entrances
- Creating dynamic lighting sequences on building facades using DMX control
- Lighting sculptural features and garden art in landscape and public space projects
- Installing in exposed positions on rooftops, balconies, and exterior walls where weather resistance is required
Who It Is For
- Facade and landscape lighting contractors installing precision flood lights on building exteriors
- Lighting designers specifying controlled beam angles for accent and feature lighting
- Electrical wholesalers supplying LED flood lights for architectural projects in Europe and the Middle East
- Brand owners sourcing OEM flood lights under their own label with custom control options
Problems It Solves
- Uncontrolled light spill from standard flood lights washes out adjacent surfaces and reduces contrast
- Lack of beam angle flexibility forces the use of multiple fixture types for different coverage needs
- Incompatible input voltages require separate models for mains and low-voltage systems
- Insufficient weather protection in IP64 or lower rated fixtures leads to early failure in outdoor use
- Fixed control systems prevent integration into larger lighting networks or dynamic sequences
Technical Features
- Snoot fitted to the front to restrict beam spread and improve targeting accuracy
- Beam angles available in 10°, 15°, 30°, 45°, 60°, 90°, and 120° for precise application matching
- AC85-265V or DC24V input to suit different site power systems
- IP65 rating for protection against dust and water jets in outdoor environments
- CREE LED chip for stable performance and long operational life
- ON/OFF or DMX control system for static or dynamic lighting operation
Materials
- Aluminium body for effective heat dissipation and structural durability
- Snoot made from metal to block unwanted light spill and improve beam focus
- Sealed housing with gaskets to maintain IP65 rating under outdoor conditions
Manufacturing Process
- Aluminium body die-casting and surface finishing
- Snoot attachment and alignment for beam control
- LED board assembly with CREE chips and driver integration
- Sealing and gasket fitting to achieve IP65 rating
- DMX or ON/OFF control system integration based on order
- Final testing under power and environmental conditions before packing
Quality Control
- Incoming inspection of CREE LED chips and driver components
- IP65 sealing verification using pressure and spray tests
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Beam angle selected at order stage from 10° to 120°
- Control system configured as ON/OFF or DMX based on project needs
- CCT options of 2800-6500K, RGB, or RGBW available
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Standard flood light without snoot
More light spill and less contrast, requiring more fixtures to achieve the same visual effect
Fixed beam angle flood light
Requires multiple SKUs for different coverage needs, increasing inventory and ordering complexity
Low-voltage only flood light
Limited to 24V systems; this model supports both 24V and mains, reducing the need for separate models
Use Guide
- Mount the fixture on a wall, pole, or structure with a secure bracket suitable for outdoor use
- Select the beam angle during ordering based on the distance to the target surface
- Ensure the snoot is aligned to block light from spilling into adjacent areas
- For DMX control, connect to a compatible controller and assign the correct channel
- Keep the lens clean and free of debris to maintain output and beam quality
- Use the 30cm output cable to route power to the nearest junction point
18W LED Flood Light With Snoot Questions
What is the beam angle range for this flood light?
The FD-S825R18 offers beam angles of 10°, 15°, 30°, 45°, 60°, 90°, and 120°, selected at order time.
Can it run on 24V DC?
Yes. The model supports both AC85-265V and DC24V input, so it can be used in low-voltage systems.
Is DMX control included?
Yes. The fixture supports ON/OFF or DMX control, with the system configured based on the order.
What is the IP rating and where can it be used?
The fixture has an IP65 rating, suitable for outdoor use in exposed locations with rain and dust.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
