18W Facade lighting LED Wall Washer
The FD-LW020L18 is a 18W linear LED wall washer designed for architectural facade lighting where consistent, even washes of light are needed on vertical surfaces. The fixture uses a die-casting aluminium body for heat dissipation and durability, with a slim profile that fits flush against walls. It operates on DC24V and supports on/off, DMX, and DALI control systems, allowing integration into both simple and complex lighting networks. The light is rated IP65, suitable for outdoor installation in exposed positions. The CREE LED chip ensures stable output, and the fixture is supplied without a driver to match site-specific control strategies.
| Model | FD-LW020L18 |
|---|---|
| Power | 18W |
| Input Voltage | DC24V |
| IP Rating | IP65 |

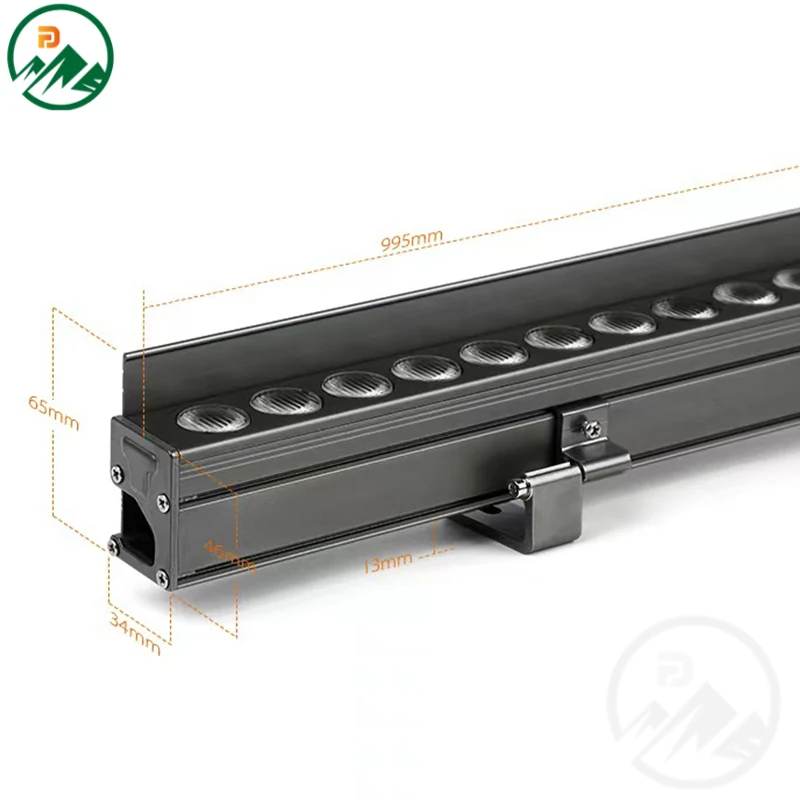

| Dimension | L1000 x W34 x Light with Baffle H65 mm+Support H13 mm |
| Material | Die-casting Aluminium |
| LED Chip | CREE |
| Driver | Not included |
| Colour Temperature | 2800-6500K/RGB/RGBW |
| Control System | On/off, DMX, DALI |
| Warranty | 3 Years |
Key Benefits
- DC24V input allows integration into low-voltage lighting systems common in architectural projects
- IP65 rating protects against dust and water jets, suitable for exposed facade mounting
- Supports on/off, DMX, and DALI control for flexible integration with building management or lighting control systems
- CREE LED chip provides consistent light output and long life in outdoor conditions

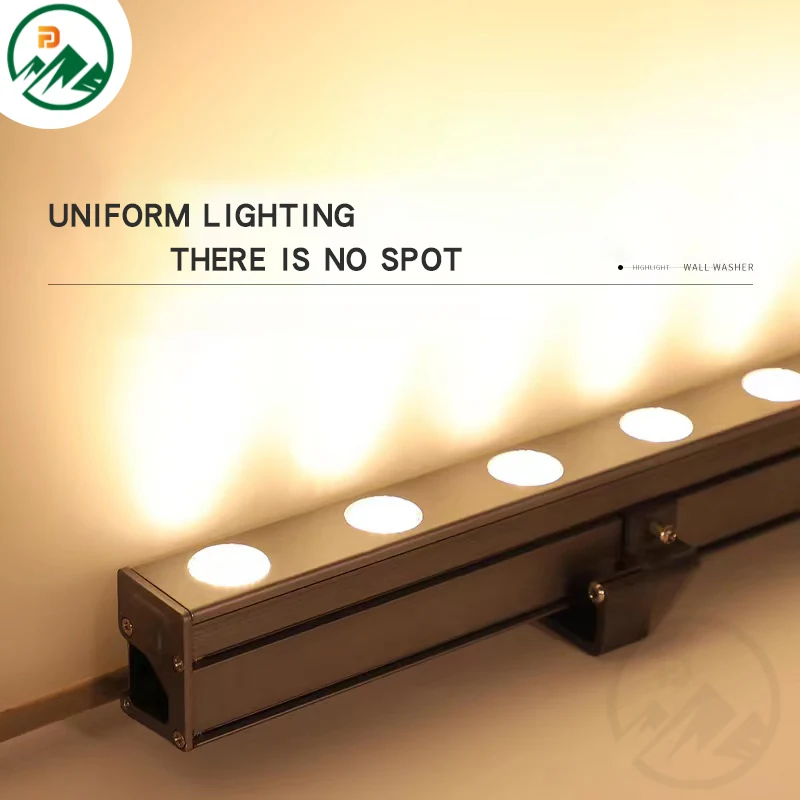

- Slim profile with baffle reduces glare and ensures even light distribution across the wall surface
- Supplied without a driver, so the fixture can be matched to centralised or distributed driver solutions
Application Scenarios
- Evenly washing large stone or concrete facade panels in urban building projects
- Highlighting textured wall surfaces in hotel and commercial building entrances
- Creating uniform light bands on vertical surfaces in mixed-use developments
- Integrating into DMX-controlled lighting sequences for architectural animation in public spaces
Who It Is For
- Facade and landscape lighting contractors installing linear washers on building exteriors
- Lighting designers specifying controlled, even washes for architectural features
- Electrical wholesalers supplying linear LED wall washers for commercial and public projects
- Brand owners sourcing OEM wall washers under their own label with custom control options
Problems It Solves
- Fixed driver integration can limit flexibility in projects using centralised or distributed driver systems
- Low-voltage systems require fixtures that operate on DC24V, not just AC mains
- Exposed wall-mounted fixtures need protection from dust and water ingress in outdoor environments
- Inconsistent light distribution from poorly baffled fixtures causes hotspots and uneven washes
- Lack of control protocol options forces the use of multiple fixture types for different control needs
Technical Features
- DC24V input for compatibility with low-voltage site wiring and centralised drivers
- IP65 rating for protection against dust and water jets in outdoor mounting
- CREE LED chip for stable light output and long-term performance
- Supports on/off, DMX, and DALI control systems for integration into complex lighting networks
- Die-casting aluminium body for heat dissipation and structural durability

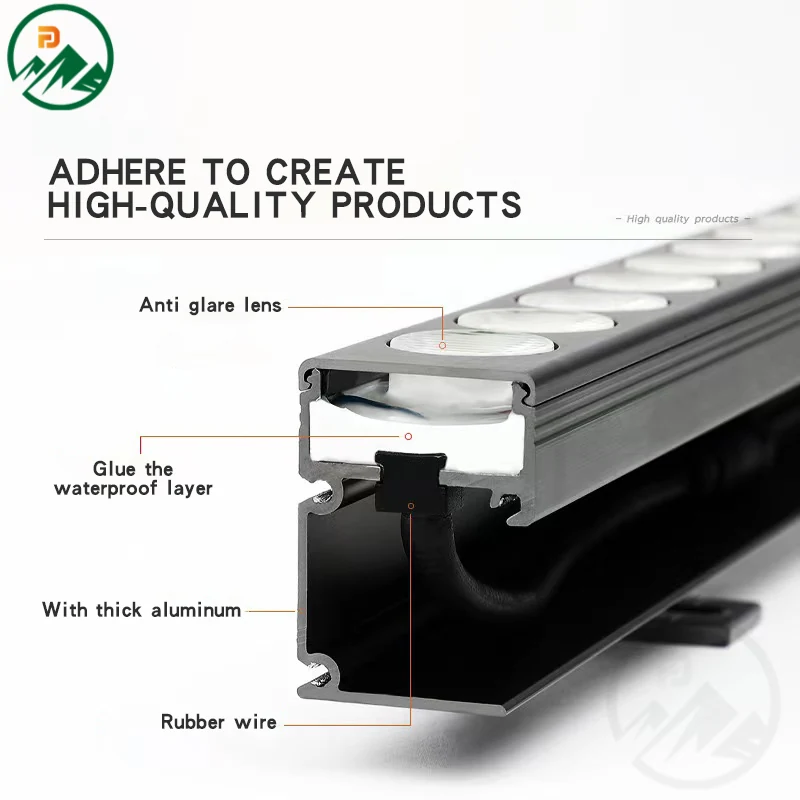

- Baffle design reduces glare and ensures even light distribution across the wall surface
- Supplied without a driver to match project-specific control and power distribution strategies
Materials
- Die-casting aluminium body for heat dissipation and structural strength

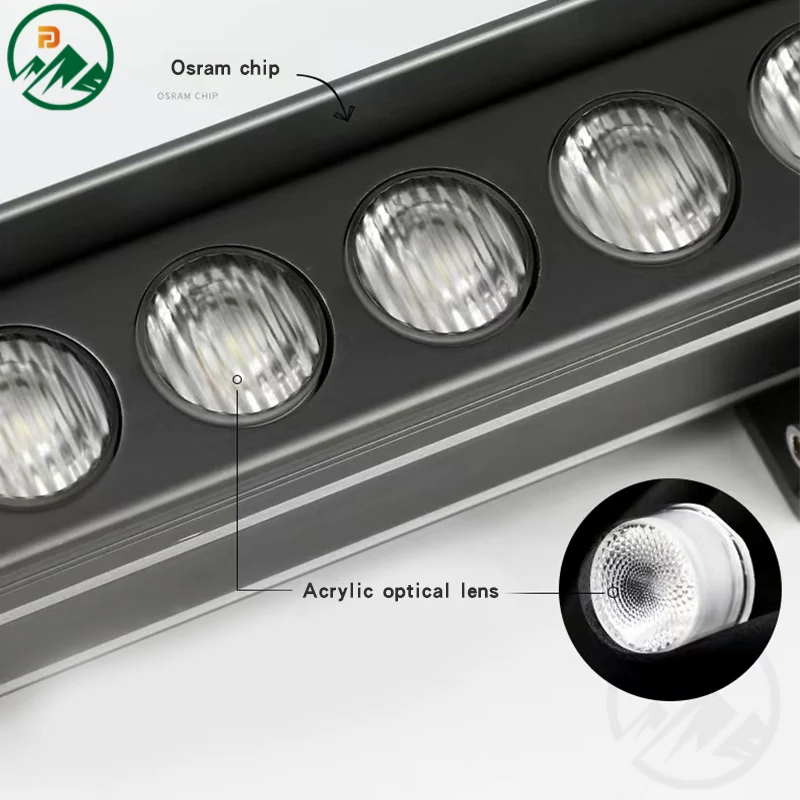

- Tempered glass or polycarbonate lens over the LED array for protection
- Internal baffle to control light spread and reduce glare
- Corrosion-resistant finish on the aluminium surface for outdoor durability
Manufacturing Process
- Die-casting of aluminium housing and post-processing for surface finish
- Assembly of CREE LED modules with driver-free configuration
- Installation of baffle and lens to control light distribution
- Sealing and IP65 testing before final assembly
- Powered ageing and performance testing before packing
Quality Control
- Incoming inspection of CREE LED packages and driver components
- IP65 sealing verification using pressure and spray tests
- Powered ageing run under normal operating conditions
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied without a driver to match site-specific control and power distribution
- Available in CCT 2800-6500K, RGB, or RGBW for colour flexibility
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
AC mains wall washer
Requires a driver on site, but DC24V models avoid local driver integration
Driver-integrated wall washer
More expensive and less flexible, but reduces site wiring complexity
Non-IP65 rated wall washer
Not suitable for exposed outdoor mounting where water jets or dust are present
Use Guide
- Mount the fixture flush against the wall using the provided support brackets
- Ensure the DC24V power supply is sized to handle the total load of multiple fixtures
- Use the baffle to control light spread and avoid glare on adjacent surfaces
- For DMX or DALI control, ensure the signal lines are shielded and terminated properly
- Clean the lens periodically during maintenance to maintain light output
18W Facade lighting LED Wall Washer Questions
What is the input voltage for this wall washer?
The fixture operates on DC24V, suitable for low-voltage lighting systems.
Is the driver included?
No. The fixture is supplied without a driver, so it can be matched to centralised or distributed driver solutions.
What control systems are supported?
The fixture supports on/off, DMX, and DALI control systems for integration into complex lighting networks.
What is the IP rating?
The fixture is rated IP65, protecting against dust and water jets in outdoor environments.
Can I get RGB or RGBW versions?
Yes. The model is available in CCT 2800-6500K, RGB, or RGBW for colour flexibility.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range the warranty is 2 to 5 years depending on the product.
Can I order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
