18W Facade Lighting LED Underground Light

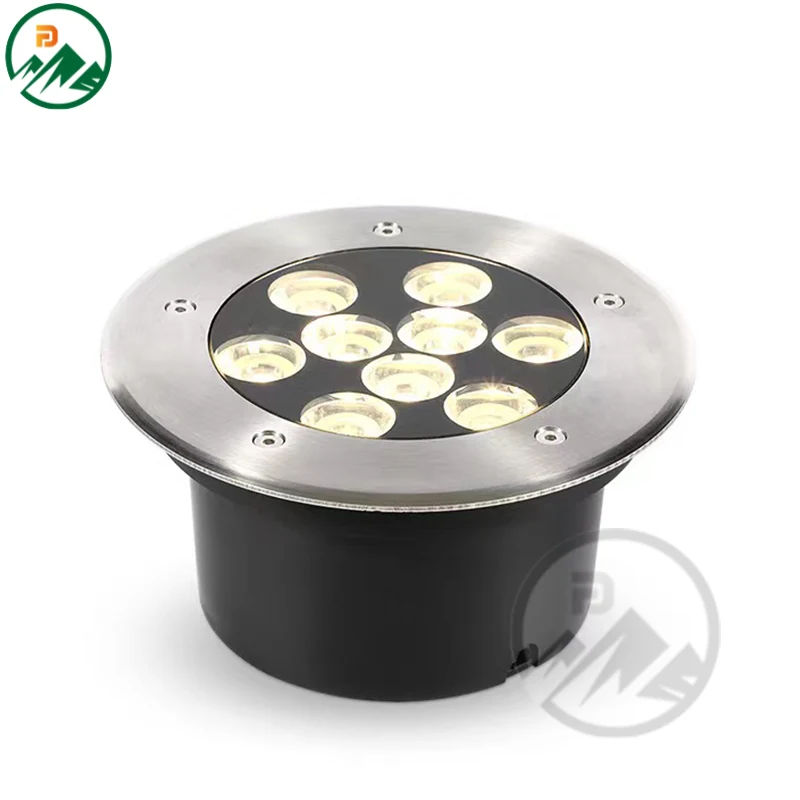

The FD-U030R18 is an 18W recessed in-ground luminaire designed for architectural facade lighting where a clean, flush installation is required. The fixture is built with a stainless steel 304 cover over a compact body, rated IP67 for permanent installation in paved areas that may flood. It operates on AC85-265V, making it compatible with standard mains wiring in commercial and residential projects. The CREE LED chip ensures consistent output in outdoor conditions. The fixture is supplied with a driver, and the design allows for easy integration into landscape and building facade schemes.
| Model | FD-U030R18 |
|---|---|
| Power | 18W |
| Input Voltage | AC85-265V |
| IP Rating | IP67 |
| Dimension | D167 x H178 mm, Bottom D112 mm, Hole D145 mm |
| Material | Stainless steel 304 |
| LED Chip | CREE |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- IP67 rating ensures reliable performance in paved areas exposed to standing water after rain
- Stainless steel 304 cover resists corrosion and wear in high-traffic or frequently washed paving
- 18W power level offers efficient lighting for facade grazing and accenting without excessive energy use
- AC85-265V input allows direct connection to standard building mains without additional voltage conversion
- Driver is included, reducing site wiring complexity and installation time
- Compact D167 x H178 mm size fits in tight spaces and minimizes civil works during installation
Application Scenarios
- Grazing textured or smooth building facades from a paved plaza at the building line
- Accent lighting on architectural details such as cornices, edges, and recessed panels
- Edge marking and path lighting in courtyard and public space developments
- Low-level illumination in mixed-use buildings where a flush, unobtrusive design is required
Who It Is For
- Facade and landscape lighting contractors installing recessed fixtures in hardscape
- Lighting designers specifying flush-mounted in-ground lights for architectural projects
- Electrical wholesalers supplying architectural lighting components in the Middle East and Europe
- Brand owners sourcing OEM in-ground luminaires under their own label
Problems It Solves
- Non-IP67 rated fixtures fail in wet paving conditions, leading to early failure and maintenance
- Aluminium or plated trims degrade when exposed to frequent washing, salt, or foot traffic
- Fixtures without built-in drivers require additional site wiring and control components
- Large or bulky in-ground lights increase civil works and backfill volume
- Inconsistent aiming or beam control when using fixed-optic models in complex facade layouts
Technical Features
- Stainless steel 304 cover for the exposed surface, resistant to corrosion and mechanical wear
- IP67 sealing for permanent installation in recessed positions subject to standing water
- AC85-265V input for direct connection to standard building mains
- CREE LED chip for stable light output and long life in outdoor conditions
- Driver supplied with the fixture, eliminating the need for separate on-site installation
- Compact D167 x H178 mm body with D145 mm cut-out hole, suitable for tight civil works
Materials
- Stainless steel 304 cover for the exposed surface, resistant to corrosion and wear

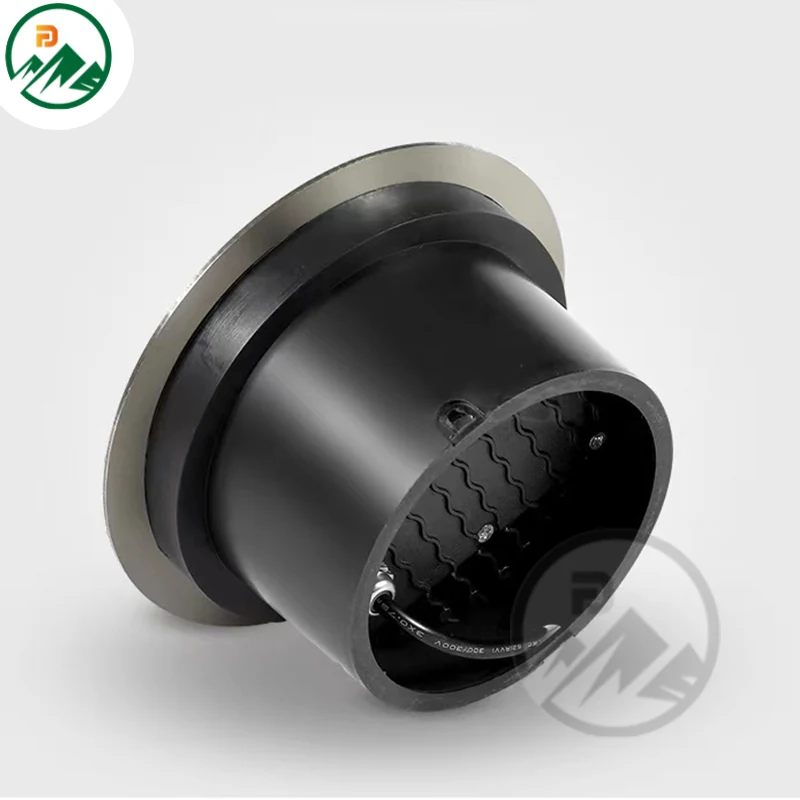

- Aluminium body for heat dissipation into the surrounding backfill
- Tempered glass lens over the optic for impact and weather resistance
Manufacturing Process
- Stainless steel 304 cover forming and finishing
- Aluminium body machining and surface treatment
- LED board assembly with CREE packages
- Driver integration and electrical testing
- Sealing and gasket fitting to achieve IP67
- Ageing and lighting test before packing
Quality Control
- Incoming inspection of CREE LED packages and drivers
- IP67 sealing check before the fixture is closed
- Powered ageing run before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied with driver, as specified in the order
- OEM and ODM production for buyers selling under their own brand
- AC85-265V input version available for standard mains projects
Compared With the Alternatives
Aluminium-trim in-ground light
Stainless steel 304 cover resists corrosion better in wet, salted, or frequently washed paving
Surface-mounted spike light
Flush installation avoids tripping hazards and damage from foot traffic or vehicles
Fixture without built-in driver
Built-in driver reduces site wiring complexity and installation time, especially in projects with multiple units
Use Guide
- Cast or core a D145 mm hole and provide drainage below the fixture before backfilling
- Set the fixture flush with the finished paving level to avoid trip hazards
- Ensure the backfill material is compacted around the fixture to prevent settling
- Verify the AC85-265V supply matches the site’s mains voltage before connection
- Clean the glass lens during routine paving maintenance to maintain light output
18W Facade Lighting LED Underground Light Questions
What is the cut-out size for this underground light?
The fixture requires a D145 mm hole, with a bottom diameter of D112 mm and a total height of H178 mm.
Is the driver included?
Yes. The model is supplied with a driver, so no additional driver is needed at the site.
Can it run on 24V DC?
No. The model is rated for AC85-265V only. For DC24V applications, a different model is required.
Is IP67 sufficient for paving that floods?
Yes. IP67 covers temporary immersion, which is the condition recessed fixtures experience after rain. For permanent submersion, use an underwater luminaire.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty varies from 2 to 5 years depending on the product.
Can we order a sample before a project quantity?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
