18W 24W 36W DC24V LED Wall Washer

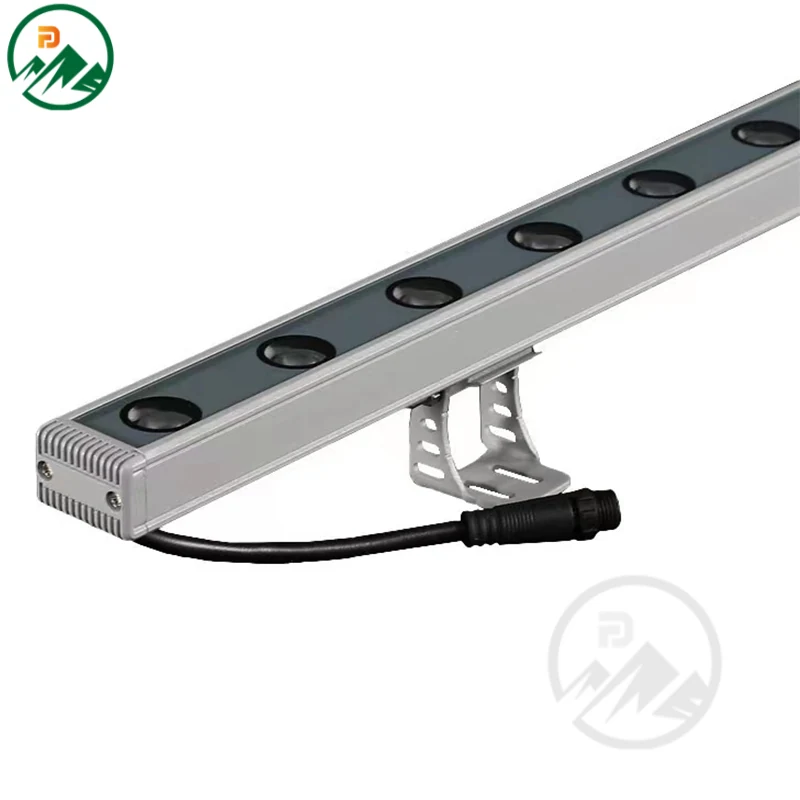

The FD-LW040L18 is a 18W, 24W and 36W linear LED wall washer designed for architectural facade lighting with a DC24V input. It features a die-casting aluminium body and an OSRAM LED chip. The fixture is rated IP65 for outdoor use and is supplied without a driver, allowing integration into centralised control systems. The slim profile of 26mm height makes it suitable for tight mounting spaces on building surfaces.

Model	FD-LW040L18
Power	18W
Input Voltage	DC24V
IP Rating	IP65
Dimension	L1000 x W37 x H26 mm(Support H44 mm)
Material	Die-casting Aluminium

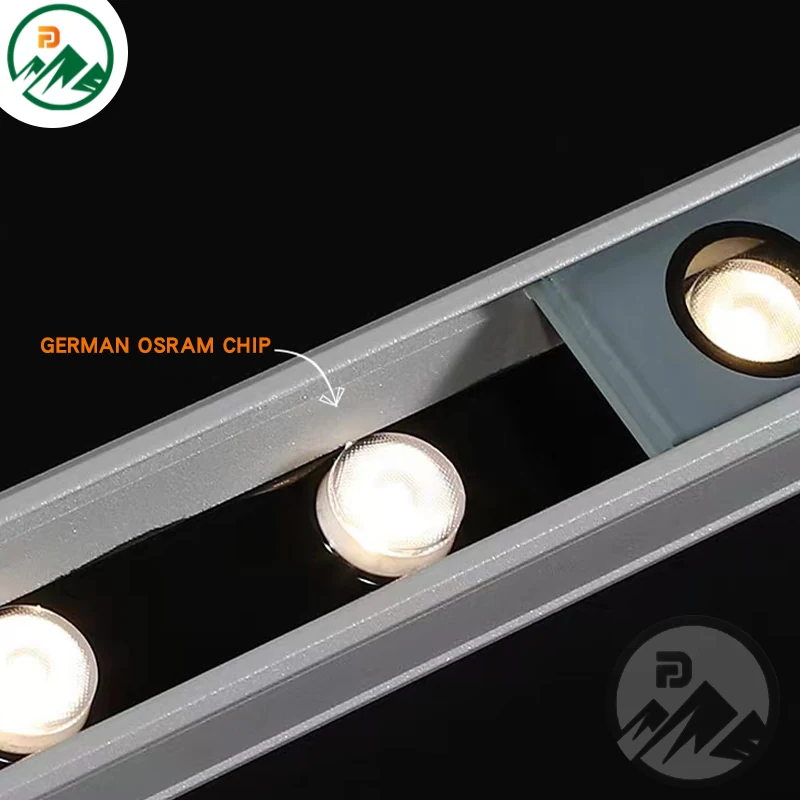

LED Chip	OSRAM
Driver	Not included
Warranty	3 Years

Benefits

Key Benefits

DC24V input allows direct integration with low-voltage control systems and centralised drivers
IP65 rating provides protection against dust and water jets, suitable for exterior building surfaces
Die-casting aluminium body offers good heat dissipation and structural rigidity
Supplied without a driver to match site-specific control strategies and reduce redundancy

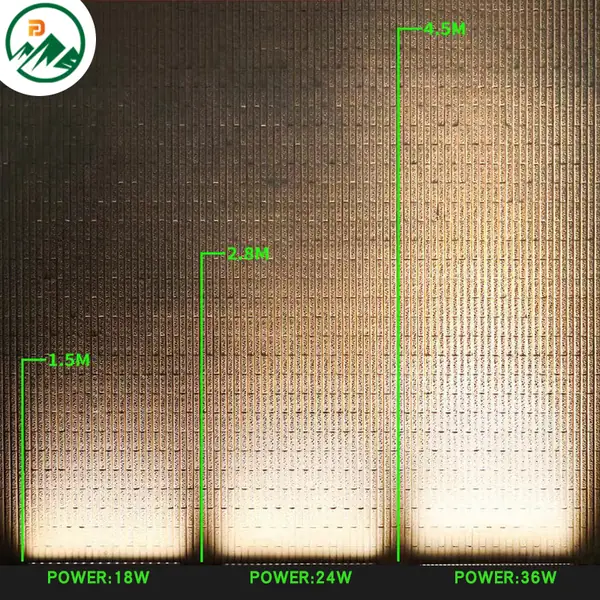

Available in 18W, 24W and 36W versions for different facade lighting intensity needs
Slim 26mm profile fits in narrow mounting zones without protruding from the wall

Where It Is Used

Application Scenarios

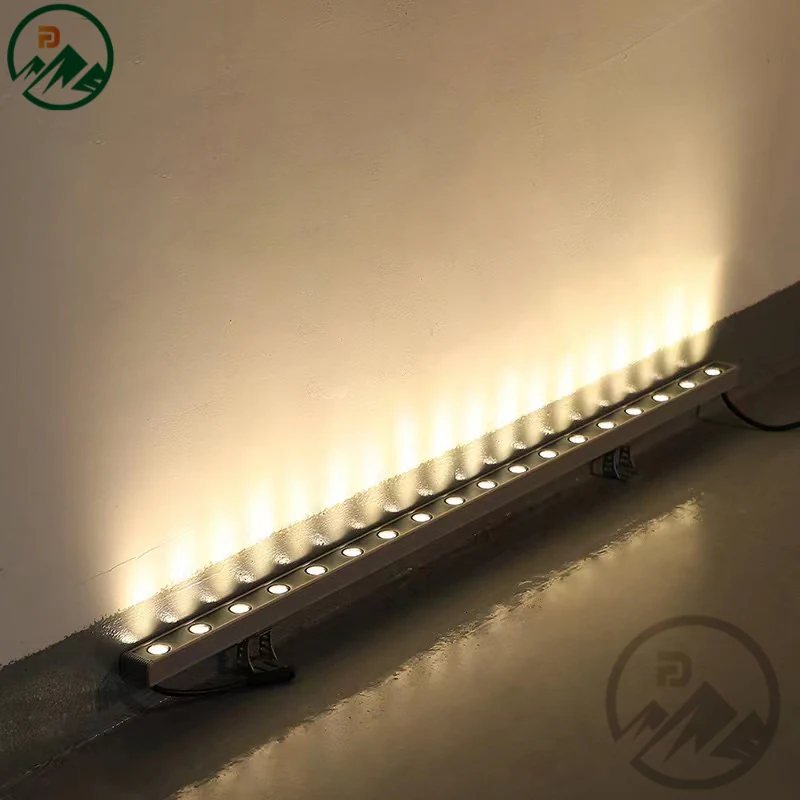

Evenly washing large flat surfaces of building facades in commercial and residential developments
Highlighting textured or patterned wall panels in urban and public architecture
Lighting vertical surfaces in landscape and streetscape schemes where low profile is required
Integrating into centralised lighting systems with a single power supply for multiple fixtures

Buyers

Who It Is For

Facade lighting contractors installing linear washers on building exteriors
Lighting designers specifying low-profile, driver-free fixtures for centralised systems
Electrical wholesalers supplying linear wall washers for architectural projects in Europe and the Middle East
Brand owners sourcing OEM wall washers under their own label with custom logo printing

Why It Matters

Problems It Solves

Fixed driver integration forces redundant power supply units when centralised drivers are already in place
Non-IP65 rated fixtures fail in outdoor environments with rain and dust exposure
Thick or bulky wall washers interfere with wall joints or create visual obstructions
Lack of multiple power options limits flexibility in projects using low-voltage systems
Inconsistent beam spread from non-uniform LED arrays leads to uneven wash effects

Engineering

Technical Features

DC24V input for compatibility with low-voltage systems and centralised drivers
IP65 rating for protection against dust and water jets in outdoor environments
Die-casting aluminium body for structural strength and heat dissipation
OSRAM LED chip for consistent light output and long life
Supplied without a driver to match site-specific control architecture
Slim profile of 26mm height for discreet mounting on building surfaces

Materials

Die-casting aluminium body for heat dissipation and structural strength
OSRAM LED chip for stable light output and longevity
Polycarbonate or tempered glass lens (implied by IP65 sealing, not explicitly stated)
Sealing gaskets for IP65 protection against dust and water ingress

Production

Manufacturing Process

Die-casting of aluminium housing with precision machining
Surface treatment for corrosion resistance and aesthetic finish
LED board assembly with OSRAM packages
Sealing and gasket fitting to achieve IP65 rating
Final inspection and powered testing before packing

Quality Control

Incoming inspection of OSRAM LED packages and components
IP65 sealing check using spray test before final closure
Powered ageing test to verify stability and output consistency
Stated defective rate below 0.2%

Compliance

Certification

Only the certification the factory publishes is listed here.

CE certificate and report
Stated conformity with CE, RoHS and FCC

OEM and ODM

Customisation Options

Customer logo printing available, confirmed against an approved sample before production
Supplied without a driver to match site-specific control systems
Available in 18W, 24W and 36W versions for different lighting intensity needs
OEM and ODM production for buyers selling under their own brand

Comparison

Compared With the Alternatives

Wall washer with built-in driver

Higher cost and redundancy when centralised drivers are used; this model avoids that by being driver-free

IP64 rated wall washer

Less protection against water jets; IP65 is required for exposed outdoor facades in high-wind or rainy climates

Plastic-bodied wall washer

Lower durability and heat dissipation; die-casting aluminium offers better performance and longevity in outdoor use

Installation

Use Guide

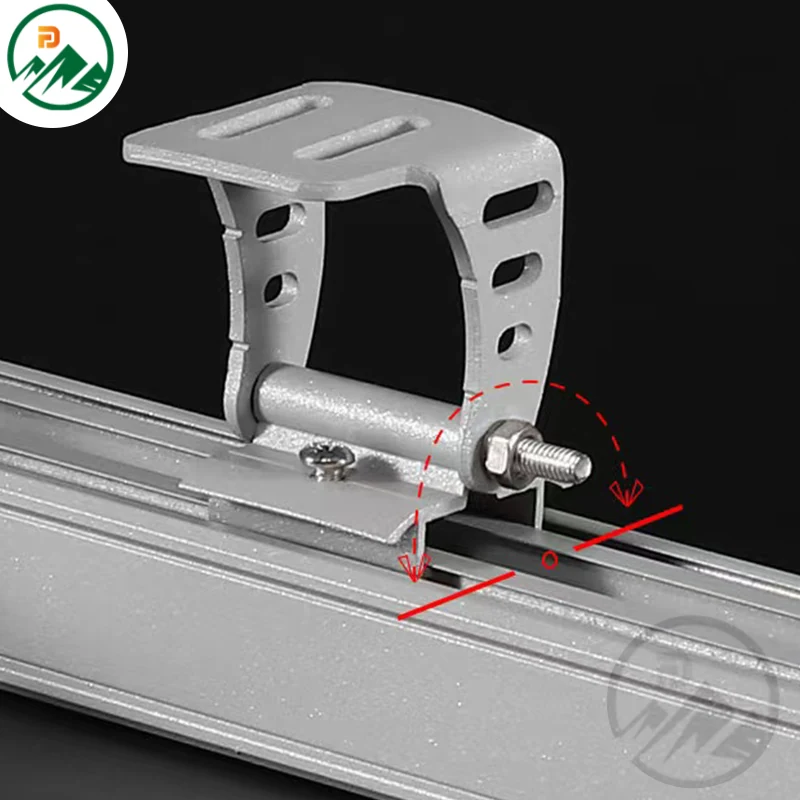

Mount the fixture on a flat, stable surface with the support height of 44mm to allow for proper alignment
Ensure the DC24V power supply is sized to handle the total load of multiple fixtures on the circuit

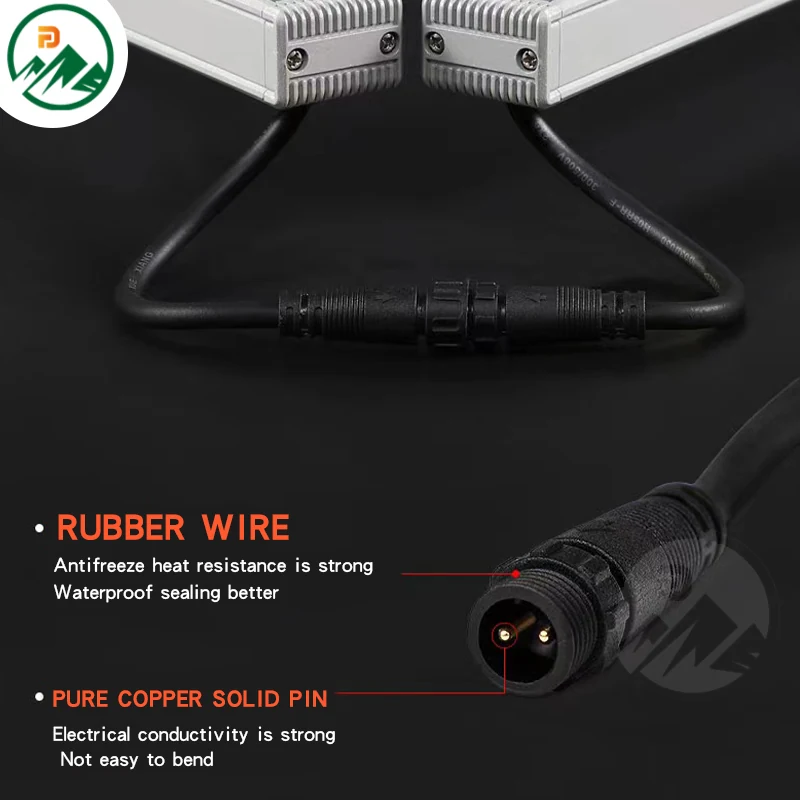

Use sealed connectors and junction boxes to maintain IP65 integrity at the connection point
Avoid direct exposure to high-pressure water jets during cleaning to preserve the IP65 rating
Clean the lens periodically with a soft cloth to maintain consistent light output
