12W Linear LED Floor Tile Lamp
The FD-FT020S12 is a 12W linear LED floor tile lamp designed for architectural and landscape applications where a slim, flush-mounted light is needed in high-traffic or wet areas. It is built into paving or flooring surfaces with a stainless steel 201 frame and frosted tempered glass cover, rated IP67 for permanent immersion. The fixture operates on DC24V and is supplied without a driver, allowing integration into systems with centralised power supplies. The 1000mm length fits standard floor tile layouts, and the CCT range of 2800K to 6500K allows colour tuning for ambient or functional lighting.
| Model | FD-FT020S12 |
|---|---|
| Power | 12W |
| Input Voltage | DC24V |
| IP Rating | IP67 |

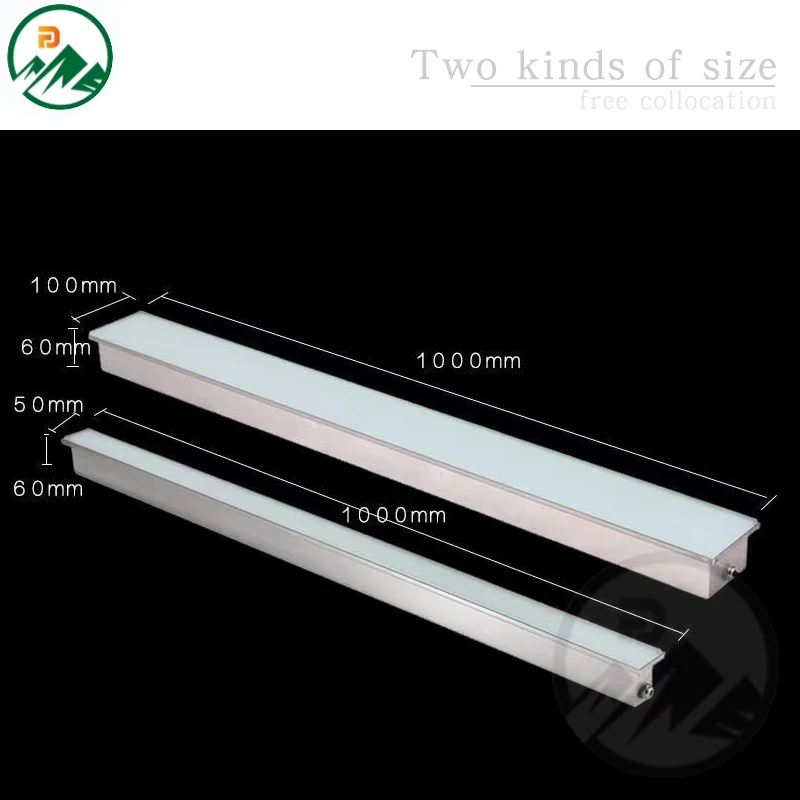

| Dimension | L1000 x W100 x H60 mm |
| Material | Stainless Steel 201+Frosted Tempered Glass |
| LED Chip | EPISTAR |
| Driver | Not included |
| Colour Temperature | 2800-6500K |
| Warranty | 3 Years |
Key Benefits
- Flush-mounted design fits into paving without creating trip hazards
- IP67 rating ensures performance in areas with standing water after rain
- DC24V input with no driver included allows use with centralised power systems
- 1000mm length matches standard floor tile dimensions for seamless integration
- Stainless steel 201 frame resists deformation under foot traffic
- Frosted tempered glass cover diffuses light evenly without glare
Application Scenarios
- Lighting pedestrian walkways and plazas in urban and commercial developments
- Highlighting floor-level architectural features in hotel and mall entrances
- Illuminating underground parking access ramps and stairwells
- Providing ambient lighting in landscape courtyards and garden pathways
- Marking floor edges and transitions in mixed-use buildings
Who It Is For
- Facade and landscape lighting contractors installing floor-integrated lighting
- Lighting designers specifying low-profile, flush-mounted fixtures in hardscape
- Electrical wholesalers supplying architectural lighting for Middle East and European projects
- Brand owners sourcing OEM linear floor tile lamps under their own label
Problems It Solves
- Raised or protruding lights create trip hazards in high-traffic areas
- Non-IP67 rated fixtures fail in wet or flooded paving conditions
- Fixtures with built-in drivers increase complexity when centralised power is used
- Shorter or non-standard lengths require custom cutting or gaps in layout
- Glass or plastic covers degrade under repeated foot traffic or cleaning
Technical Features
- Linear 1000mm form factor for alignment with standard floor tiles

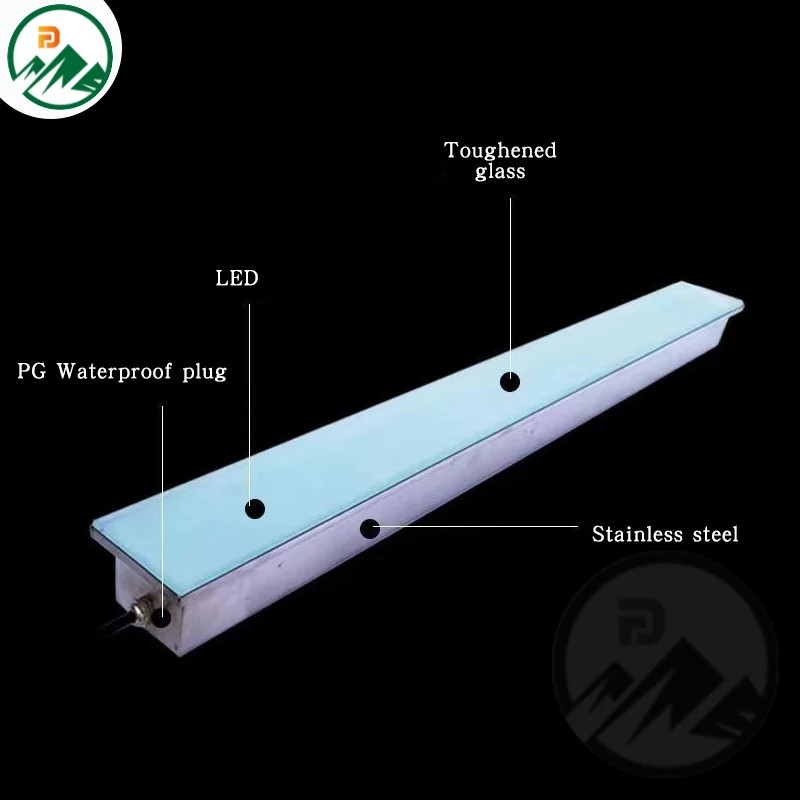

- Stainless steel 201 frame with frosted tempered glass cover for durability
- IP67 sealing for permanent immersion in wet or flooded environments
- DC24V input with no driver included, for use with centralised power systems
- EPISTAR LED chip for consistent light output and long life
- CCT range of 2800K to 6500K for colour flexibility in different environments
Materials
- Stainless steel 201 frame for structural rigidity and resistance to deformation
- Frosted tempered glass cover for even light diffusion and impact resistance
- Sealing gaskets to maintain IP67 rating under repeated foot traffic
Manufacturing Process
- Stainless steel 201 frame forming and surface treatment
- Frosted tempered glass cutting and edge polishing
- LED board assembly with EPISTAR packages
- Sealing and gasket fitting to achieve IP67
- Powered ageing test before packing
Quality Control
- Incoming inspection of EPISTAR LED packages and glass components
- IP67 sealing check using pressure test before final closure
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing, confirmed against an approved sample before production
- Supplied without driver to match centralised power systems
- DC24V input version for low-voltage site wiring
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
Surface-mounted linear light
Lower profile and flush with paving, but requires a drained pot and more civil work
Fixture with built-in driver
Simpler installation, but not compatible with centralised power systems
Aluminium frame with plastic cover
Less durable under foot traffic; stainless steel 201 resists deformation better
Use Guide
- Install the fixture in a pre-cast or pre-drilled paving section with proper drainage below
- Ensure the glass cover is flush with the finished floor surface to avoid tripping
- Use DC24V wiring sized for voltage drop over the full circuit length
- Clean the glass surface during routine maintenance to maintain light output
- Avoid using abrasive cleaners that could scratch the frosted glass surface
12W Linear LED Floor Tile Lamp Questions
What is the input voltage for this floor tile lamp?
It operates on DC24V and is supplied without a driver.
Is the driver included?
No. The fixture is supplied without a driver, so it can be used with centralised power systems.
What is the IP rating?
The fixture is rated IP67, suitable for permanent immersion in wet or flooded environments.
Can I use this in a high-traffic area?
Yes. The stainless steel 201 frame and tempered glass cover are designed to withstand foot traffic.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, with shipping via DHL, UPS, FedEx, or TNT taking 3-5 days in transit.
