Machine Customization
DLCNC is a demand oriented corporation. The vision is to turn a customer need into a real machine and a large part of the output each year is built to a customer specification rather than a catalogue sheet.
From Requirement Analysis to Final Delivery
Eight stages. Each one exists because a project has gone wrong at that point before.
Define the Gap
Start from what a catalogue machine cannot do. A panel that does not fit a cut that must not go through the board or an alignment reference that only exists on the board itself.
Table and Frame
The work table can be made wider and longer. Where the format goes beyond a bench machine the planer type gantry on a full granite mechanical frame is used instead.
Drive and Control
Imported AC servo with imported high precision ball screw and linear square rails or linear motor drive. The planer type machine runs the DLCNC self owned control system.
Function Options
Depth control CCD camera auto pin insert and tool cassette size adjusted per customer requirement including 66pcs for one spindle on the planer type machine.
Protection Package
Displacement restriction protection covering hardware and software overheat overload and overcurrent protection and automatic water recycling cooling with thermal monitoring.
Build and Test
The machine is assembled and run in testing. A recorded run of the machine in testing is available before shipment.
Documentation
Specification sheet operation and maintenance documents are handed over with the machine.
After Sales
Three domestic service stations plus overseas partners who take care of after sale service.
Machines in This Solution

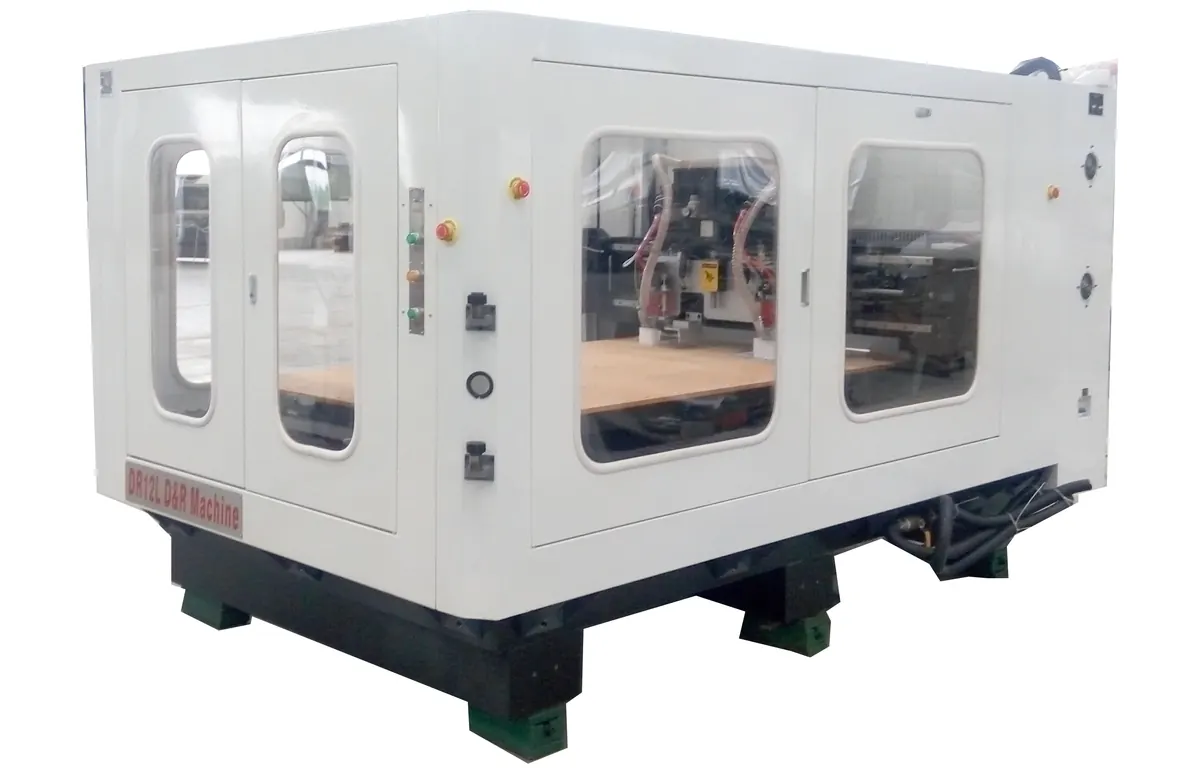

Planer Type PCB Router Machine
Planer type customized machine built on a full granite mechanical frame with a DLCNC self owned control system.
View Specifications →
CNC PCB Drilling Routing Machine
The PCB CNC drilling and routing machine focuses on offering a high precision drilling and routing choice on one platform. This model i...
View Specifications →
6 Heads PCB CNC Routing Machine
Six head routing machine for volume batch board routing. It is the model chosen when the routing station has to keep pace with the rest...
View Specifications →
UV LED Exposure Machine for PCB
Energy saving LED cold light source double layer semi automatic UV LED exposure machine for PCB.
View Specifications →Related Applications and Guides
Prototype and Small Batch PCB
A prototype shop changes job more often than it changes shift. The machine that suits it is not the fastest on...
See The Application →PCB Depaneling and Profiling
Routing is where the panel becomes the product. DLCNC machines are applied in the precision drilling and milli...
See The Application →How To Choose a CNC Drilling and Routing Machine
CNC machines are vital in PCB processing. These are the points DLCNC engineers work through with a buyer befor...
Read More →Auto Pin Insert Function for PCB Routing Machines
Traditional pin insert is done by hand manually. It pushes up labour cost and it has an accuracy problem. DLCN...
Read More →Machine Customization FAQ
What can actually be customized
Do customized machines cost much more
Who owns the control system
Can I see the machine before it ships
Start With the Requirement Not the Catalogue
Send the numbers you have to hit. Board format hole or slot geometry cycle time and the environment the machine will live in.
CAD and drawing files are accepted on request through WhatsApp or email. No form to fill in.
