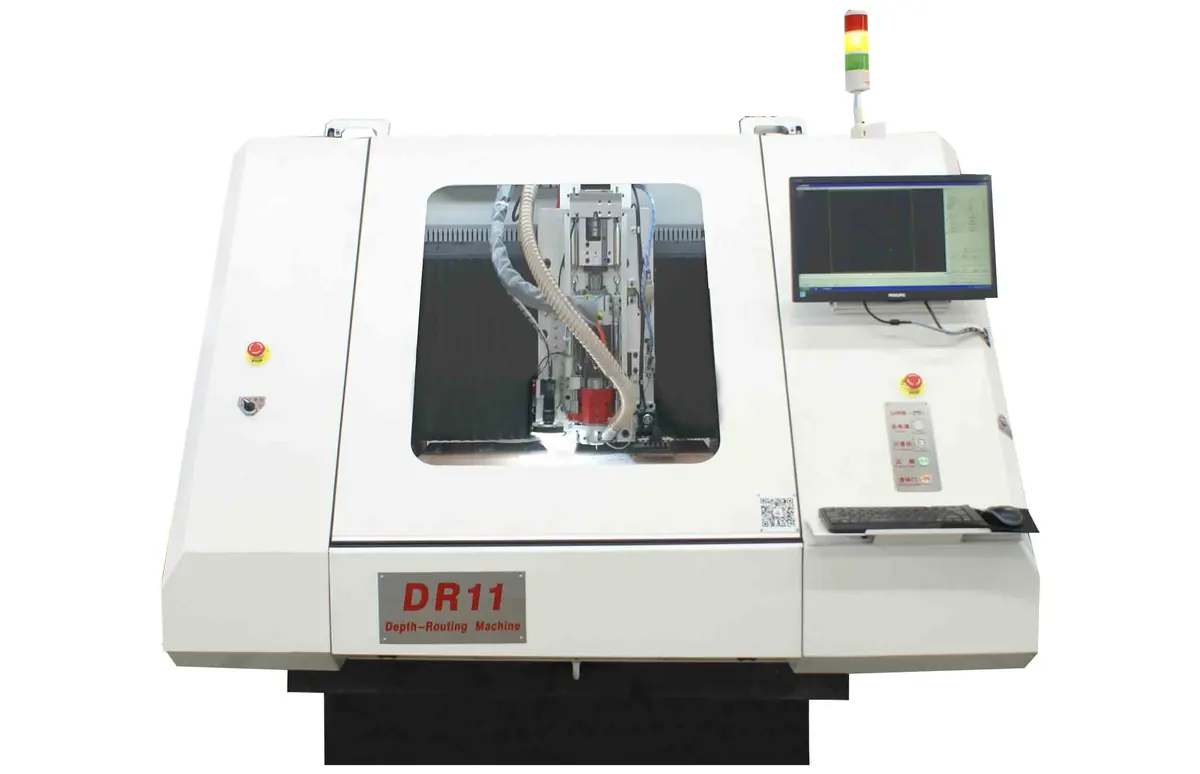

CNC PCB Drilling and Routing Machine DR Series
The PCB CNC drilling and routing machine focuses on offering a high precision drilling and routing choice on one platform. This model is equipped with a CCD camera or depth control function.
Send a drawing or a drill file by WhatsApp or email. There is no form on this site.
Product Overview
Where a plant does not have the volume to justify separate drilling and routing machines but still needs both operations held to a tight tolerance the DR series puts them on one high precision platform.
The model is supplied with a CCD camera or with the depth control function depending on which problem you are solving. CCD suits work that must be aligned to features already on the board. Depth control suits partial depth routing.
Technical Features
- Customized build
- High precision drilling and routing on one platform
- CCD camera option
- Depth control option
Key Benefits
Two operations one setup
Drilling and routing on the same machine removes a transfer and a re registration between the two operations.
Align to the board not the fixture
The CCD camera option references features already on the board which matters on boards that have moved during previous processing.
Control the cut depth
Depth control holds partial depth routing where a through cut would damage the product.
Sized to your panel
The work table can be made wider and longer as a customized model example.
Who It Is For
- PCB fabricators depanelling rigid boards after solder mask and surface finish
- Assembly houses separating assembled panels into single boards
- Shops producing slots cut outs and irregular board frames
- Buyers who need a wider or longer work table than a standard model provides
Problems It Solves
- Manual pin insertion pushing up labour cost and introducing position error
- Output rate limited because a single spindle routes one board at a time
- Standard table size too small for the panel format actually used in the plant
- Cut depth on partial depth routing that cannot be held without depth control
Use and Maintenance Guide
Before The Shift
Check appearance spindle and tool cassette tooling computer electric cabin lubricant oil cooling liquid air pipe tooling box and shelf. Run the spindle at low speed for at least ten minutes.
Every Week
Cut the power first. Clean inside and outside lubricate the worktable clean and lubricate the collet and sort the computer cables. About one hour on the night shift.
Every Month
Add guide rail cover removal cleaning and lubrication the limit switch check and the electric cabin fan filter. About one and a half hours with repair staff present.
When Accuracy Drifts
Work the four factors in order. Equipment condition then technics parameters then tool status then operator method.
Quality Control and Certification
- ISO-9001 quality certificate obtained in 2012
- National High Tech Enterprise approved by Sichuan provincial authorities
- Patented auto pin insert function for PCB routing machines granted November 2019
- Joint Intellectual Equipment Technology Research and Develop Center with Xihua University
