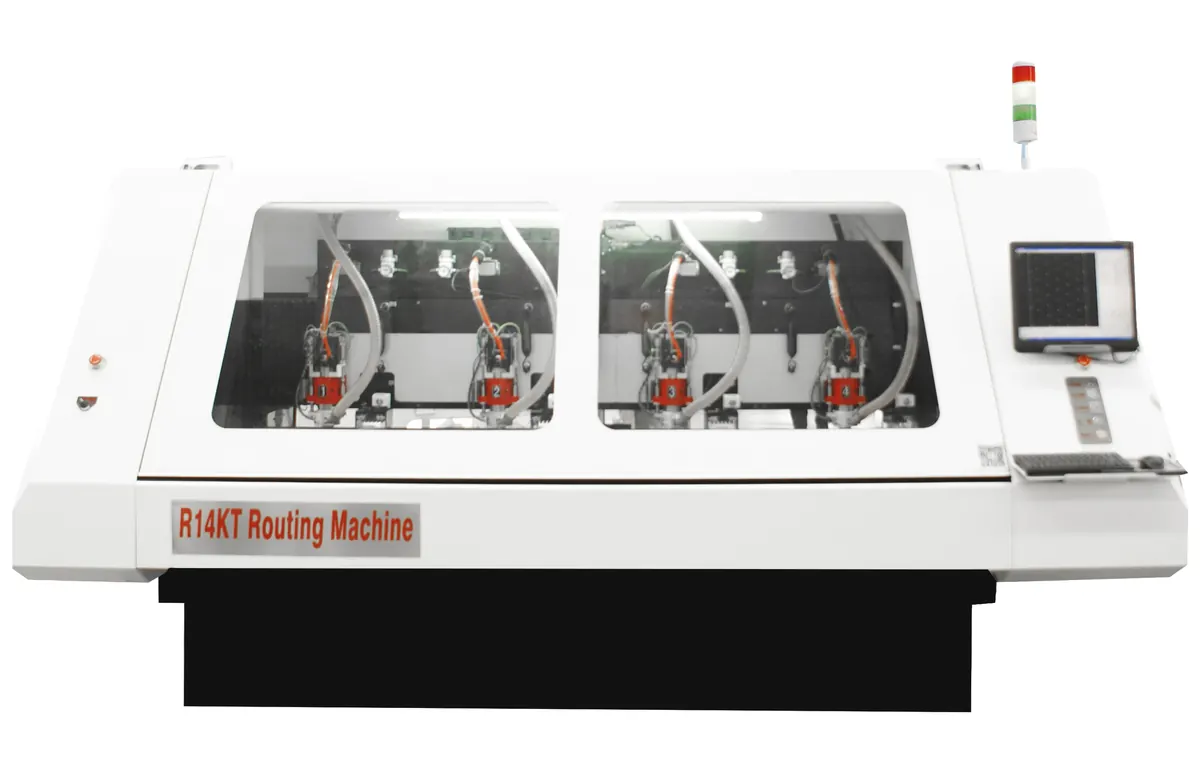

4 Heads PCB CNC Routing Machine R14 Series
Four head routing machine independently developed by DLCNC for steady production routing of circuit boards.
Watch this machine running on video →
Send a drawing or a drill file by WhatsApp or email. There is no form on this site.
Product Overview
DLCNC aims to provide customers with a total solution that embodies professional cutting edge and timely service. The PCB router machine was independently developed by DLCNC in China.
Four spindles run from a single Z axis so four boards are cut in the same pass. For a shop moving from manual depanelling or from a two head machine this is normally the first step that removes routing from the critical path.
Technical Features
- Customized table and tool count
- Cost effective four spindle output
- Steady cut quality across all four stations
- Easy going operation interface
Key Benefits
Four boards per cycle
Four spindles cut together from one Z axis which multiplies the output of a single head machine without multiplying the machine cost.
Consistent edge quality
Positioning accuracy ±0.01mm and repeatability ±0.005mm hold the same profile on every station.
Fits standard panel formats
520mm by 650mm processing area with 700mm by 825mm by 55mm XYZ movement area.
Ready for auto pin insert
The routing line can be specified with the patented auto pin insert function that removes the manual pinning step.
Specifications
Copied from the DLCNC machine documentation without change.
| Number of Z axis | 1 |
| Number of Spindles | 4 |
| Processing Area of Each Axis | 520mm×650mm |
| XYZ axis Movement Area | 700mm×825mm×55mm |
| Drilling Diameter | φ0.5-φ6.35mm |
| Routing Diameter | φ0.6-φ6.35mm |
| XY axis max movement speed | 28/min |
| Z axis max movement speed | 25/min |
| Positioning Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.005mm |
| Routing Accuracy | ±0.05mm |
| Power Supply Requirement | 3PH-AC380V+PE 50/60Hz 4KVA |
| Compressed Air Requirement | 0.7-0.8MPa |
| Cooling Water Temperature | 18℃-25℃ |
| Working Condition Temperature | 20℃-25℃ |
| Humidity | 50%-75% |
Who It Is For
- PCB fabricators depanelling rigid boards after solder mask and surface finish
- Assembly houses separating assembled panels into single boards
- Shops producing slots cut outs and irregular board frames
- Buyers who need a wider or longer work table than a standard model provides
Problems It Solves
- Manual pin insertion pushing up labour cost and introducing position error
- Output rate limited because a single spindle routes one board at a time
- Standard table size too small for the panel format actually used in the plant
- Cut depth on partial depth routing that cannot be held without depth control
Comparison With Other Models
Same category different configuration. Where a figure is not published in the documentation the cell shows a dash.
| Item | 4 Heads PCB CNC Routing Machine | 2 Heads PCB CNC Routing Machine | 6 Heads PCB CNC Routing Machine |
|---|---|---|---|
| Processing Area of Each Axis | 520mm×650mm | 680mm×730mm | 580mm×730mm |
| Number of Spindles | 4 | 2 | 6 |
| Drilling Diameter | φ0.5-φ6.35mm | φ0.5-φ6.35mm | φ0.5-φ6.35mm |
| Routing Diameter | φ0.6-φ6.35mm | φ0.6-φ6.35mm | φ0.6-φ6.35mm |
| XY axis max movement speed | 28/min | 28/min | 35/min |
| Z axis max movement speed | 25/min | 25/min | - |
| Routing Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Use and Maintenance Guide
Before The Shift
Check appearance spindle and tool cassette tooling computer electric cabin lubricant oil cooling liquid air pipe tooling box and shelf. Run the spindle at low speed for at least ten minutes.
Every Week
Cut the power first. Clean inside and outside lubricate the worktable clean and lubricate the collet and sort the computer cables. About one hour on the night shift.
Every Month
Add guide rail cover removal cleaning and lubrication the limit switch check and the electric cabin fan filter. About one and a half hours with repair staff present.
When Accuracy Drifts
Work the four factors in order. Equipment condition then technics parameters then tool status then operator method.
Quality Control and Certification
- ISO-9001 quality certificate obtained in 2012
- National High Tech Enterprise approved by Sichuan provincial authorities
- Patented auto pin insert function for PCB routing machines granted November 2019
- Joint Intellectual Equipment Technology Research and Develop Center with Xihua University
