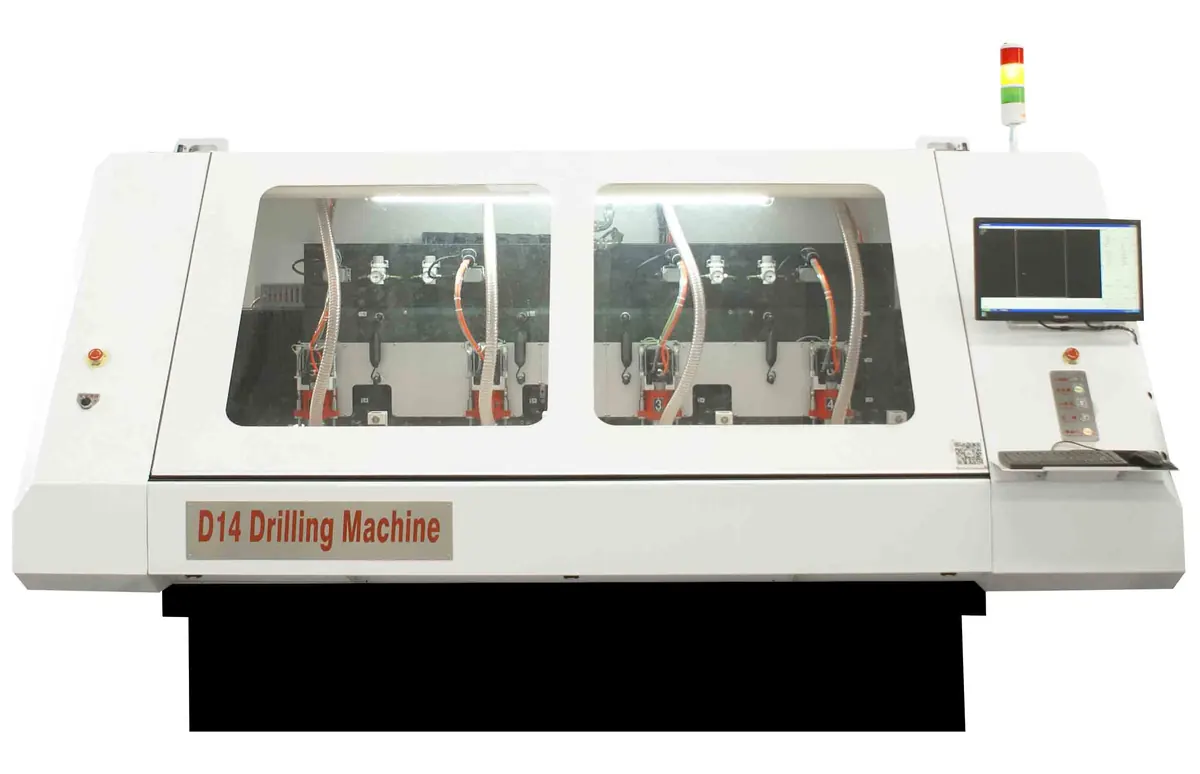

D1X PCB Drilling Machine
One Z axis carrying one or multiple spindles with a maximum of four spindles on XYZ ball screw drive. The entry point into the DLCNC drilling range.
Send a drawing or a drill file by WhatsApp or email. There is no form on this site.
Product Overview
The D1X applies to printed circuit board drilling and is economical accurate and quick. The granite base frame gives good rigidity and good vibration absorption so the bed is not inclined to distortion.
China has become the largest manufacturing country in the PCB industry and has completed the entire industrial chain layout from low end to high end. In response to the ongoing adoption of higher density smaller hole size multi layer structure and more diverse designs and materials in PCBs DLCNC continues to act as a solution partner for the PCB manufacturing industry.
Configuration
- XYZ axis imported AC servo drive system
- Imported high precision ball screw and linear guides
- Air bearing spindles
- Granite marble base frame
Technical Features
- Smart gripper design picks and loads efficiently and precisely
- 66pcs tooling capacity for the spindle to handle
- Automatic tooling length check
- Contacted tooling broken detection greatly reduces reaction time
- Water cooling system with real time monitoring on cooling temperature and water flow to protect the spindles
Key Benefits
Lowest entry cost in the range
One Z axis serving up to four spindles keeps the machine price down for shops taking drilling in house.
Air bearing spindles as standard
Air bearing spindles reach the speed that improves drilling precision which is why they are used on drilling rather than routing machines.
Catch a broken bit early
Contacted tooling broken detection greatly reduces the reaction time so fewer panels are affected.
Granite base
Good rigidity and vibration absorption and a bed that is not inclined to distortion.
Specifications
Copied from the DLCNC machine documentation without change.
| Processing Area of Each Axis | 580mm×680mm |
| Spindle Speed | 160krpm |
| Drilling Diameter | φ0.3-φ6.35mm |
| XY axis max movement speed | 28-35m/min |
| Positioning Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.005mm |
| Power Supply Requirement | 3PH-AC380V+PE 50/60Hz |
| Compressed Air Requirement | 35L/min per axis air pressure 2Kg/cm |
| Cooling Water Temperature | 18℃-25℃ |
| Working Condition Temperature | 20℃-25℃ |
| Humidity | 50%-75% |
Who It Is For
- PCB fabricators drilling multilayer rigid boards in volume
- Quick turn and prototype shops that change tool sets many times per shift
- In house PCB departments inside electronics manufacturers
- Machine dealers and service partners covering the PCB equipment market
Problems It Solves
- Hole location accuracy drifting outside the CPK window the customer has to report
- Long waiting time between drill cycles caused by slow tool change and tool checking
- Broken drill bits discovered only after a whole panel stack is scrapped
- Spindle damage caused by cooling water that is not monitored in real time
Comparison With Other Models
Same category different configuration. Where a figure is not published in the documentation the cell shows a dash.
| Item | D1X PCB Drilling Machine | D2X PCB Drilling Machine | D3X PCB Drilling Machine |
|---|---|---|---|
| Processing Area of Each Axis | 580mm×680mm | 680mm×680mm | 680mm×680mm |
| Spindle Speed | 160krpm | 160-200krpm | 160-200krpm |
| Drilling Diameter | φ0.3-φ6.35mm | φ0.15-φ6.35mm | φ0.15-φ6.35mm |
| XY axis max movement speed | 28-35m/min | 50/min | 80/min |
Use and Maintenance Guide
Before The Shift
Check appearance spindle and tool cassette tooling computer electric cabin lubricant oil cooling liquid air pipe tooling box and shelf. Run the spindle at low speed for at least ten minutes.
Every Week
Cut the power first. Clean inside and outside lubricate the worktable clean and lubricate the collet and sort the computer cables. About one hour on the night shift.
Every Month
Add guide rail cover removal cleaning and lubrication the limit switch check and the electric cabin fan filter. About one and a half hours with repair staff present.
When Accuracy Drifts
Work the four factors in order. Equipment condition then technics parameters then tool status then operator method.
Quality Control and Certification
- ISO-9001 quality certificate obtained in 2012
- National High Tech Enterprise approved by Sichuan provincial authorities
- Patented auto pin insert function for PCB routing machines granted November 2019
- Joint Intellectual Equipment Technology Research and Develop Center with Xihua University
