Drilling Line Solution
Choosing a drilling machine is a decision about drive technology tool management and environment. This is how DLCNC works through it with a buyer.
From Requirement Analysis to Final Delivery
Eight stages. Each one exists because a project has gone wrong at that point before.
Requirement Analysis
Smallest hole diameter panel format stack height target cycle time and the hole count per panel are collected first. The smallest diameter is what rules series in or out because the D1X starts at φ0.3mm while D2X D3X and D4X start at φ0.15mm.
Series Selection
Ball screw drive on D1X and D2X or linear motor drive on D3X and D4X. Linear motor drive gives the quicker feed rate. Ball screw drive lowers the sensitivity of the machine to a dusty environment because it does not depend on a linear scale.
Table and Structure
Maximum process table size is set by the board size you will process. Every series runs on a granite marble base frame for rigidity and vibration absorption.
Tool Management
Drilling normally handles about 200 tools. D2X D3X and D4X carry 220pcs with automatic tool length and diameter check. D1X carries 66pcs with automatic length check.
Utilities and Environment
3PH-AC380V+PE 50/60Hz 4KVA power compressed air at 35L/min per axis cooling water at 18℃ to 25℃ room temperature at 20℃ to 25℃ and humidity at 50 to 75 percent.
Protection and Safety
Slide door and infrared ray protection are checked as part of the machine specification along with the contacted tooling broken detection.
Installation and Training
The machine is installed and the operators are trained on the control and operation system before the line is released.
Maintenance Handover
The daily weekly and monthly maintenance schedule is handed over with the machine and the regional service stations carry the regular maintenance.
Machines in This Solution

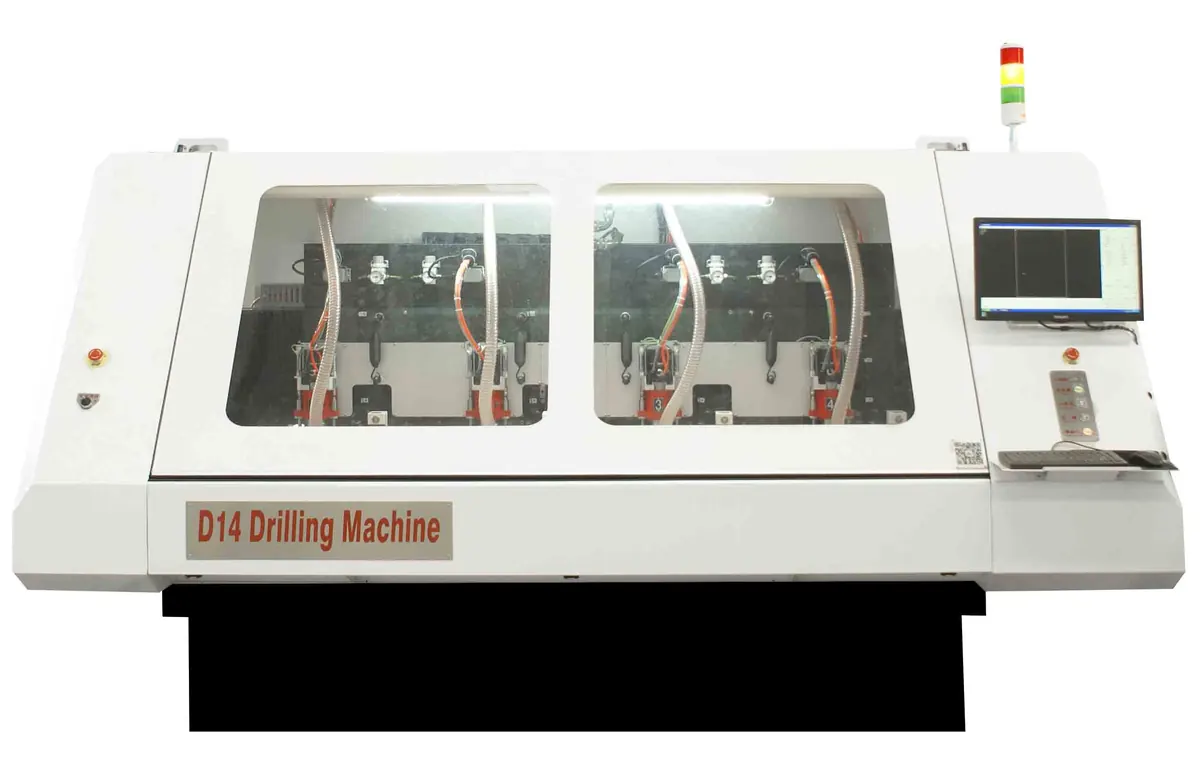

D1X PCB Drilling Machine
One Z axis carrying one or multiple spindles with a maximum of four spindles on XYZ ball screw drive. The entry point into the DLCNC dr...
View Specifications →D2X PCB Drilling Machine
Independent Z axis structure on XYZ ball screw drive. The independent Z axis holds the vertical accuracy of the machine and improves th...
View Specifications →
D3X PCB Drilling Machine
XYZ axis linear motor drive with high precision linear scale and guide. The fastest configuration in the DLCNC drilling range.
View Specifications →
D4X PCB Drilling Machine
Linear motor drive with high precision linear scale and guide on a granite marble base frame. The D4X is the volume drilling configurat...
View Specifications →Related Applications and Guides
Multilayer Rigid PCB Drilling
Drilling takes up the longest time of the whole PCB process and around 90 percent of it is performed by mechan...
See The Application →Prototype and Small Batch PCB
A prototype shop changes job more often than it changes shift. The machine that suits it is not the fastest on...
See The Application →Ball Screw and Linear Motor Drives Compared
The drive train is the single biggest difference between the four DLCNC drilling series. This is what changes ...
Read More →PCB Drilling Hole Location Accuracy and CPK
Good hole location accuracy makes the following processes easier and to some extent even makes up for weakness...
Read More →How To Choose a CNC Drilling and Routing Machine
CNC machines are vital in PCB processing. These are the points DLCNC engineers work through with a buyer befor...
Read More →Drilling Line Solution FAQ
How do I decide between ball screw and linear motor
What control system do the machines use
How much air does a drilling machine need
Who installs the machine
Start With the Requirement Not the Catalogue
Send the numbers you have to hit. Board format hole or slot geometry cycle time and the environment the machine will live in.
CAD and drawing files are accepted on request through WhatsApp or email. No form to fill in.
