PCB Drill Bits Milling Cutters and Consumable Parts
DLCNC fully supports customers for spare part sourcing and supply on the machine.
Send a drawing or a drill file by WhatsApp or email. There is no form on this site.
Product Overview
Consumables decide how long a hole stays inside the accuracy window. Tool grinding and control pressure foot status pin situation and vacuum pressure are listed among the factors that affect hole location accuracy which is why the tooling supply is treated as part of the machine and not as a separate purchase.
Mechanical spares are held against the brands actually fitted to the machines so a failed part can be replaced with the same specification rather than a substitute.
Technical Features

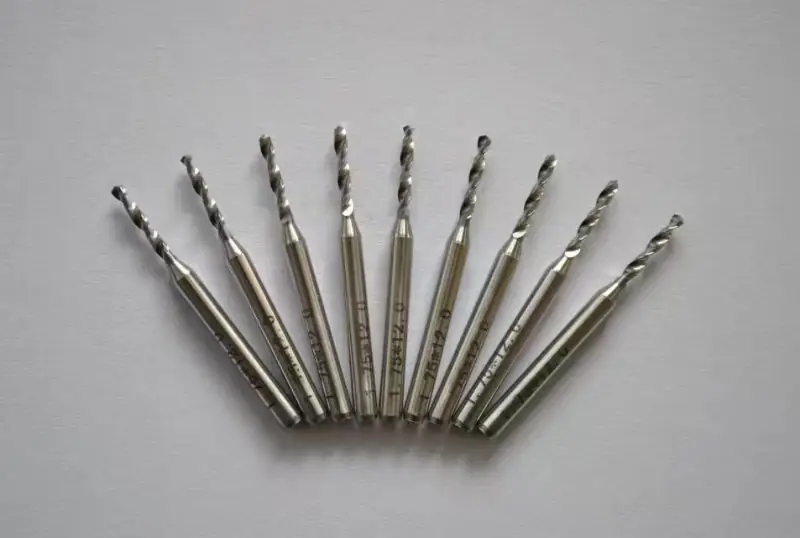

- PCB drill bit with all diameters and specifications

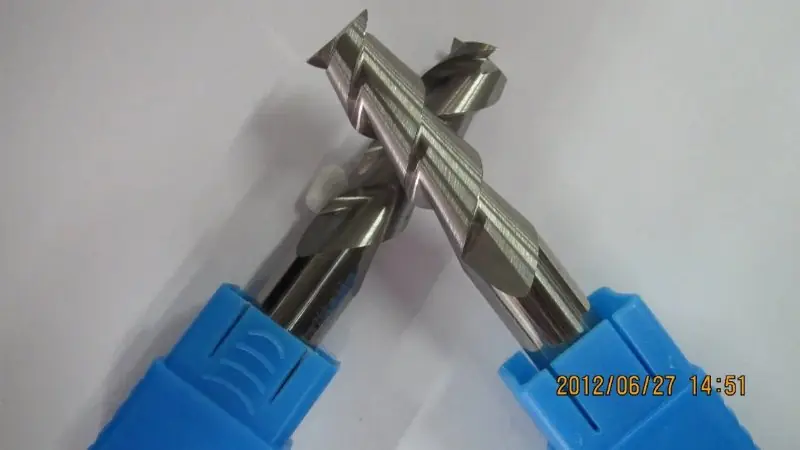

- PCB milling cutter with all diameters and specifications
- Collets
- Ball screw brand THK Hiwin and equivalent
- Guide rail with slide block brand THK Hiwin and equivalent
- Inverters brand Delta and equivalent
- Spindles brand Westwind and domestic
- Bearings collets armature and disc spring
- PLC card
Key Benefits
One source for the whole machine
Cutting tools and mechanical spares come from the same supplier that built the machine so the specification matches.
Brands you already run
THK and Hiwin linear motion Delta inverters and Westwind spindles.
All diameters
Drill bits and milling cutters in all diameters and specifications rather than a fixed catalogue range.
Supports the maintenance schedule
Spares held against the daily weekly and monthly maintenance items published in the maintenance guideline.
Who It Is For
- Plants running DLCNC machines that hold a working spare stock
- Maintenance teams following daily weekly and monthly service schedules
- Buyers sourcing drill bits and milling cutters in mixed diameters
Problems It Solves
- Machine downtime waiting for a single wear part to arrive
- Mixed drill bit quality causing hole accuracy to drift between batches
- Guide rails contaminated by dust reducing linear scale accuracy
Use and Maintenance Guide
Before The Shift
Check appearance spindle and tool cassette tooling computer electric cabin lubricant oil cooling liquid air pipe tooling box and shelf. Run the spindle at low speed for at least ten minutes.
Every Week
Cut the power first. Clean inside and outside lubricate the worktable clean and lubricate the collet and sort the computer cables. About one hour on the night shift.
Every Month
Add guide rail cover removal cleaning and lubrication the limit switch check and the electric cabin fan filter. About one and a half hours with repair staff present.
When Accuracy Drifts
Work the four factors in order. Equipment condition then technics parameters then tool status then operator method.
Quality Control and Certification
- ISO-9001 quality certificate obtained in 2012
- National High Tech Enterprise approved by Sichuan provincial authorities
- Patented auto pin insert function for PCB routing machines granted November 2019
- Joint Intellectual Equipment Technology Research and Develop Center with Xihua University
