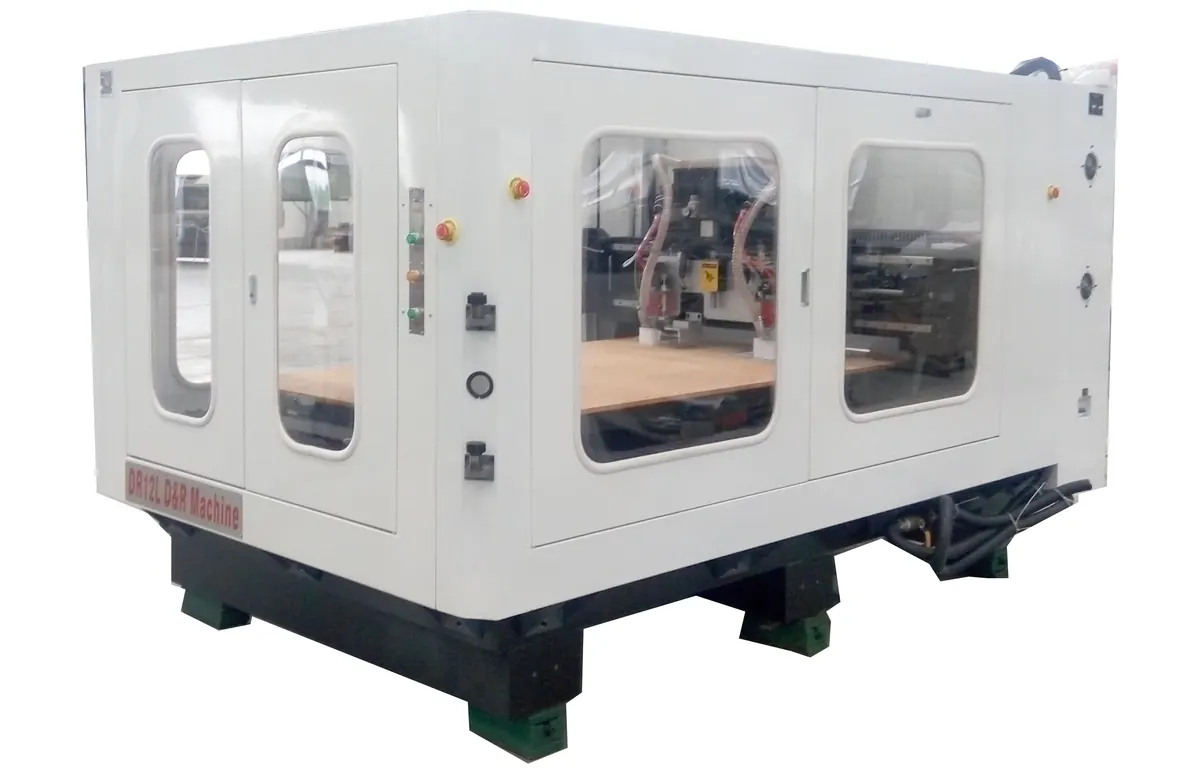

Planer Type PCB Router Machine LMR12A and LMR12B
Planer type customized machine built on a full granite mechanical frame with a DLCNC self owned control system.
Send a drawing or a drill file by WhatsApp or email. There is no form on this site.
Product Overview
The planer type router is a customized machine. It is specified when the board format the fixture or the enclosure requirement falls outside what a bench style router can carry.
The gantry structure runs on imported AC servo drives with imported high precision ball screws and linear square rails on a full granite mechanical frame.
Configuration
- XYZ axis imported AC servo
- Imported high precision ball screw and linear square rails
- Full granite mechanical frame
- Self owned control system
Technical Features
- Tool cassette beside the spindle for easy tool pick up
- 66pcs tool capacity for one spindle adjusted per customer requirement
- Tool length checked automatically
- Automatic water recycling cooling system with thermal monitoring to keep the spindles working safely
- Automatic memory of the original point of the programme
- A complete set of displacement restriction protection for hardware and software
- Overheat overload and overcurrent protection system
Key Benefits
Built around your format
The planer type machine is quoted against your board size fixture and enclosure requirement rather than against a fixed catalogue table.
Granite through the whole frame
A full granite mechanical frame gives the rigidity and vibration absorption that keeps the cut stable on a long gantry.
Protected spindles
Automatic water recycling with thermal monitoring plus overheat overload and overcurrent protection guard the most expensive parts of the machine.
Programme recovery
The control system remembers the original point of the programme so an interrupted job can be picked up correctly.
Who It Is For
- PCB fabricators depanelling rigid boards after solder mask and surface finish
- Assembly houses separating assembled panels into single boards
- Shops producing slots cut outs and irregular board frames
- Buyers who need a wider or longer work table than a standard model provides
Problems It Solves
- Manual pin insertion pushing up labour cost and introducing position error
- Output rate limited because a single spindle routes one board at a time
- Standard table size too small for the panel format actually used in the plant
- Cut depth on partial depth routing that cannot be held without depth control
Use and Maintenance Guide
Before The Shift
Check appearance spindle and tool cassette tooling computer electric cabin lubricant oil cooling liquid air pipe tooling box and shelf. Run the spindle at low speed for at least ten minutes.
Every Week
Cut the power first. Clean inside and outside lubricate the worktable clean and lubricate the collet and sort the computer cables. About one hour on the night shift.
Every Month
Add guide rail cover removal cleaning and lubrication the limit switch check and the electric cabin fan filter. About one and a half hours with repair staff present.
When Accuracy Drifts
Work the four factors in order. Equipment condition then technics parameters then tool status then operator method.
Quality Control and Certification
- ISO-9001 quality certificate obtained in 2012
- National High Tech Enterprise approved by Sichuan provincial authorities
- Patented auto pin insert function for PCB routing machines granted November 2019
- Joint Intellectual Equipment Technology Research and Develop Center with Xihua University
