Stainless Steel Nozzle with Internal Star Insert
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.

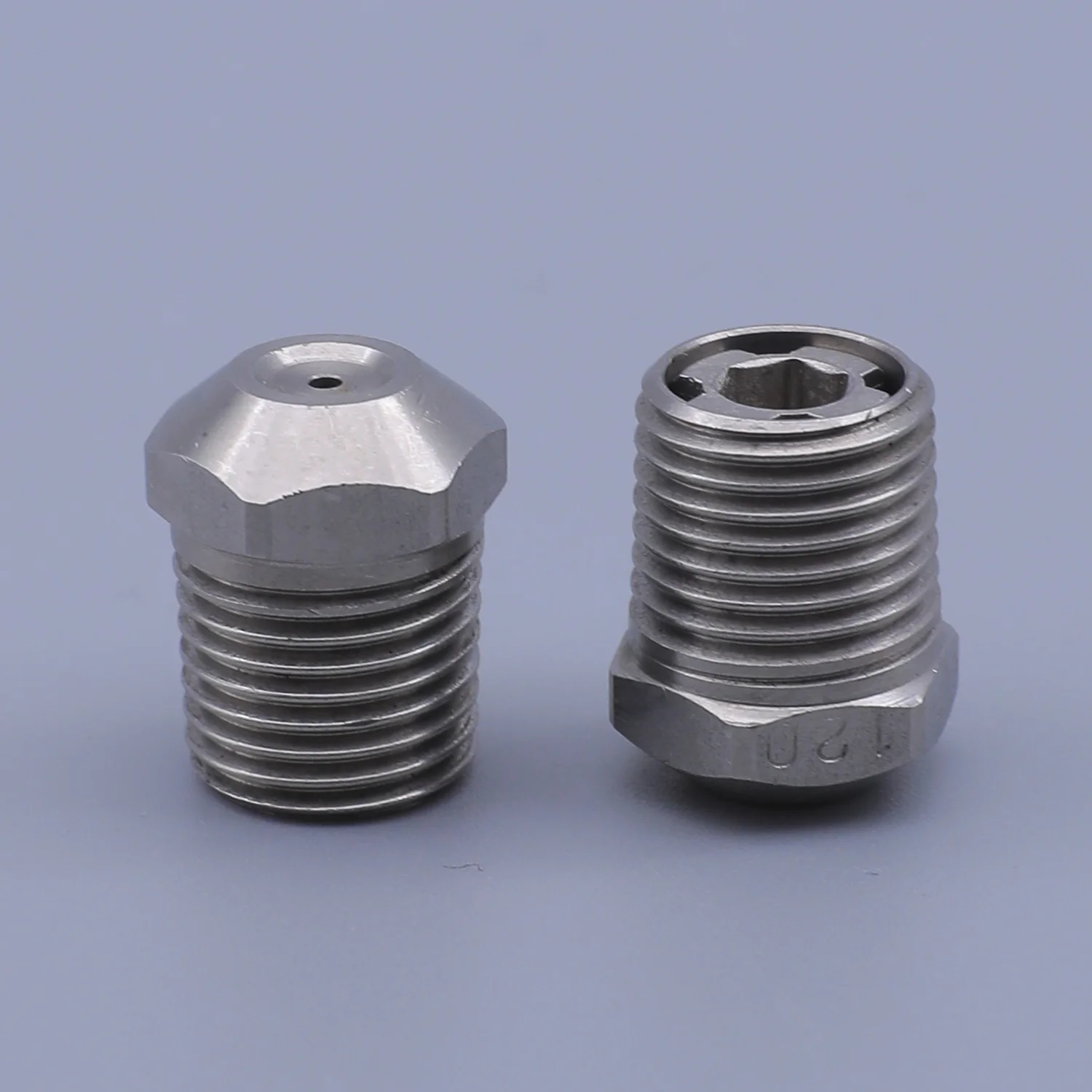

A stainless steel nozzle with internal star insert maintains consistent spray distribution in high-pressure washing or papermaking applications where debris or solids may clog a standard orifice. The star insert creates a stable internal flow path that resists blockage and ensures even droplet dispersion across the spray pattern.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Internal star insert reduces clogging risk in dirty or recirculated water systems
- Stainless steel body resists corrosion in wet or chemically aggressive environments
- Hexagonal base allows secure wrench fitting during installation or maintenance
- Threaded connection fits standard pipe fittings without adapters
- Internal geometry maintains spray pattern consistency under varying pressure
- No external moving parts to wear or loosen during operation
Application Scenarios
Where It Is Installed
- Paper machine wet end where pulp or fiber residue could block standard nozzles
- High-pressure washing lines handling water with suspended solids or scale
- Surface treatment systems where consistent spray coverage is critical for process control
- Industrial cleaning lines with recirculated water that may carry debris
- Maintenance environments where nozzle reliability reduces downtime
Who It Is For
Buyers Who Specify It
- Maintenance managers replacing clogged nozzles in paper machine or washing lines
- Process engineers specifying nozzles for high-pressure systems with variable water quality
- OEM machine builders integrating reliable nozzles into washing or coating equipment
- Plant engineers upgrading from brass or plastic nozzles to more durable stainless steel
- Facility managers seeking low-maintenance spray components for continuous duty
Problems It Solves
What It Fixes on the Line
- Nozzle clogging caused by fibers, scale, or suspended solids in recirculated water
- Inconsistent spray pattern due to orifice blockage or erosion over time
- Frequent replacement of brass or plastic nozzles in corrosive or abrasive service
- Difficulty in installing or removing nozzles due to poor grip on smooth bodies
- Unreliable performance in high-pressure systems where flow stability is essential
Technical Features
How It Is Built
- Internal star insert stabilizes flow and resists clogging from solids
- Hexagonal body allows secure grip with standard wrench tools
- Threaded connection for direct mounting on standard pipe fittings
- One-piece construction with no internal parts to disassemble or lose
- Designed for continuous operation under high-pressure conditions
- No external seals or gaskets required for standard installation
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial washing and papermaking service
- 316 stainless steel where chlorides or higher corrosion resistance is required
- 304 stainless steel for moderate chemical and temperature exposure
Manufacturing Process
How the Part Is Made
- Material selection based on the operating environment and fluid type
- Machining of the body and internal star insert
- Inspection of thread accuracy and internal flow path
- Final spray pattern verification before packaging
- Packaging and shipment with protection against transport damage
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including custom marking and packaging
- Small volume orders accepted for trial or replacement use
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Standard stainless steel nozzle | The internal star insert improves resistance to clogging in dirty water, while a standard nozzle may fail faster under the same conditions |
|---|---|
| Plastic nozzle | Stainless steel offers better durability and heat resistance, but plastic may be lighter and less expensive for low-pressure water service |
| Nozzle with external filter | The internal star insert prevents clogging without requiring a separate filter, reducing maintenance and pressure drop |
Use Guide
Fitting and Running It
- Confirm the thread size and pressure range before selecting the model
- Ensure the internal star insert is compatible with the fluid type and particle size
- Install with a wrench on the hex base to avoid slippage
- Inspect the internal insert periodically for wear or debris accumulation
- Use in systems where water quality may vary, especially in recirculated lines
- Match the nozzle to the application’s required spray pattern and coverage
Questions Buyers Ask
Stainless Steel Nozzle with Internal Star Insert Questions
What is the purpose of the internal star insert?
The internal star insert maintains consistent flow and reduces clogging in applications with suspended solids or debris, which is common in papermaking and high-pressure washing.
Which stainless steel grades are available for this nozzle?
303 stainless steel, 304 stainless steel, and 316 stainless steel are available, selected based on the operating environment and chemical exposure.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are typically ready within 10 days.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard nozzles can be made to your drawing, and OEM orders including custom marking are accepted.
What is the quality guarantee period?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us the photo and operating conditions for assessment.
What are the payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email to confirm the terms for your order.
Are dimensions and thread size confirmed on enquiry?
Yes. Dimensions, thread size, and material are confirmed against your drawing or duty sheet before production begins.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Nozzle with Internal Star Insert
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
