General Nozzle

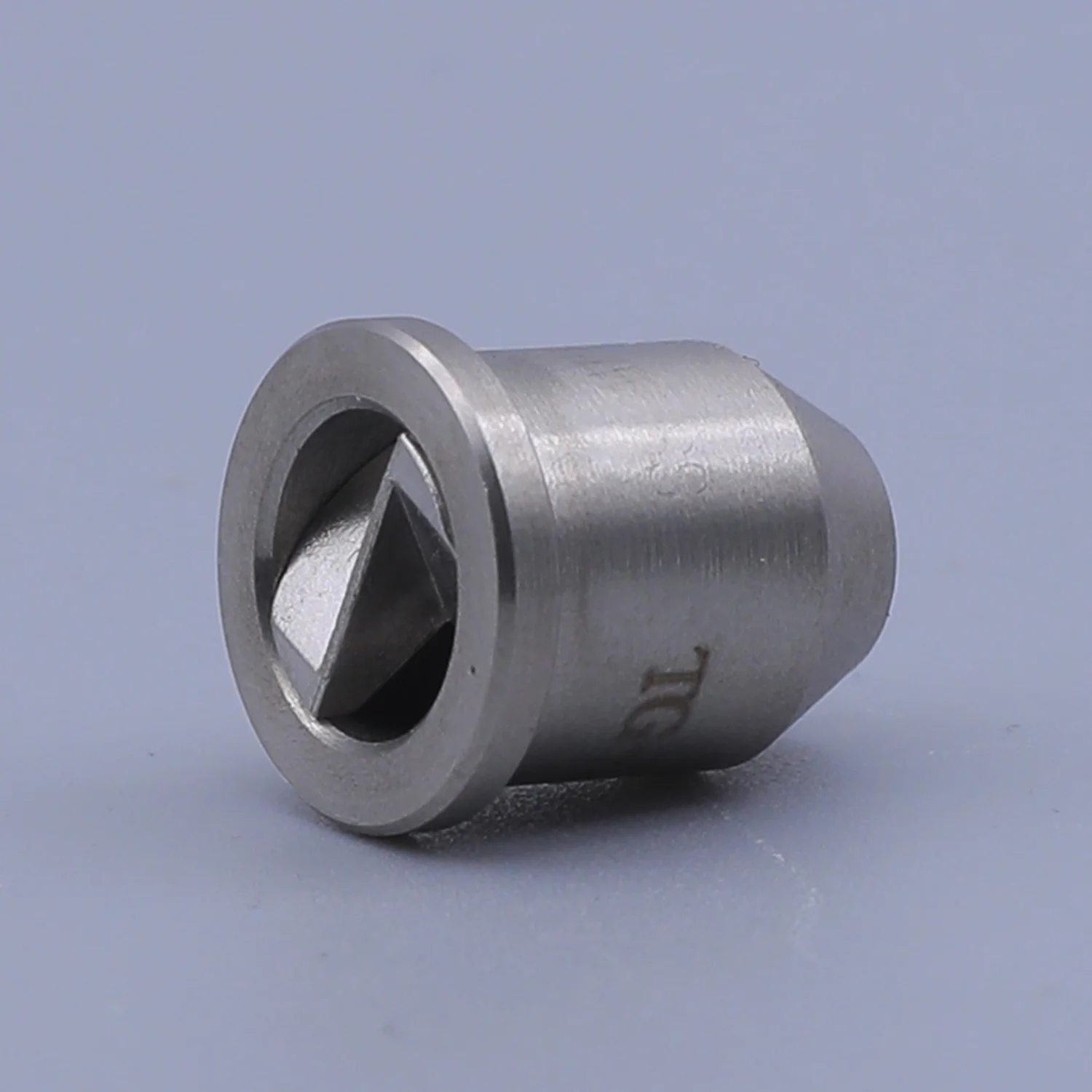

Stainless Steel Nozzle with Diamond Orifice
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.
A stainless steel nozzle with a diamond orifice delivers a focused, high-impact spray pattern ideal for precision washing, surface treatment, or paper web conditioning where consistent droplet distribution and resistance to wear are required. This design minimizes clogging and maintains orifice integrity under continuous operation.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Diamond-shaped orifice resists clogging in recirculated or particulate-laden water streams
- Stainless steel construction ensures long service life in abrasive or chemically aggressive environments
- Tapered body allows for secure fitting in tight spaces or angled mounting positions
- Laser-etched text enables quick identification and traceability in high-volume installations
- One-piece construction reduces risk of internal part failure or leakage
- Free trial samples available to verify performance before full production commitment
Application Scenarios
Where It Is Installed
- Precision cleaning of paper web surfaces where uniform droplet impact is critical to avoid streaking or water marks
- Surface treatment lines requiring consistent spray coverage without overspray or dry spots
- Parts washing systems handling small components where high-impact, focused spray improves cleaning efficiency
- Industrial washing lines with recirculated water containing suspended solids
- Maintenance teams replacing nozzles in high-wear areas where standard orifices fail prematurely
Who It Is For
Buyers Who Specify It
- Maintenance managers in paper mills replacing worn nozzles on web conditioning or drying sections
- Plant engineers specifying nozzles for high-impact cleaning in parts washing or surface treatment lines
- OEM machine builders integrating durable nozzles into automated cleaning systems
- Facility managers in steel or mining plants needing corrosion-resistant components for washing duty
- Distributors stocking industrial nozzles for repair and replacement in harsh environments
Problems It Solves
What It Fixes on the Line
- Clogging of standard round orifices in water with suspended solids or scale
- Premature wear of brass or low-grade metal nozzles in abrasive or high-pressure service
- Inconsistent spray patterns due to orifice deformation under thermal or mechanical stress
- Difficulty identifying nozzles in large installations due to missing or faded markings
Technical Features
How It Is Built
- One-piece stainless steel body with integrated diamond-shaped orifice
- Tapered top for secure mounting and alignment in confined spaces
- Laser-etched text for part identification and batch traceability
- No internal components to loosen or dislodge during operation
- Designed for use in high-pressure or continuous-duty washing applications
- Smooth internal flow path reduces turbulence and promotes consistent spray
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial washing and rinsing duty
- 316 stainless steel where chlorides or chemical scrubbing liquor are present
- 304 stainless steel for moderate temperature and pressure service
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's duty description
- Machining of the body and diamond orifice to specified geometry
- Inspection of orifice shape and surface finish
- Laser etching of part number and marking
- Packaging and labeling for shipment
- Final inspection and testing before dispatch
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking and packaging
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Round orifice stainless steel nozzle | The diamond orifice resists clogging better in particulate-laden water and maintains consistent flow under abrasive conditions |
|---|---|
| Brass nozzle with round orifice | Stainless steel construction offers superior resistance to corrosion and wear, especially in chemical or high-pressure service |
| Plastic body nozzle | Stainless steel withstands higher temperatures and pressures, and is more durable in abrasive or high-impact applications |
| Nozzle with filter screen | The diamond orifice design reduces the need for a separate strainer by resisting clogging, simplifying maintenance |
Use Guide
Fitting and Running It
- Confirm the required spray pattern and pressure before selecting the nozzle
- Ensure the mounting orientation allows for proper alignment with the target surface
- Inspect the orifice regularly for signs of wear or partial blockage
- Use in systems with filtered water to extend service life
- Compare the orifice shape and size against the original part if replacing an existing nozzle
- Document the application conditions when requesting a sample to ensure proper evaluation
Questions Buyers Ask
Stainless Steel Nozzle with Diamond Orifice Questions
What is the benefit of a diamond-shaped orifice?
The diamond orifice resists clogging in water with suspended solids and maintains consistent flow under abrasive or high-pressure conditions.
Which stainless steel grades are available for this nozzle?
303 stainless steel, 304 stainless steel, and 316 stainless steel are available, selected based on the operating environment and chemical exposure.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard nozzles can be made to your drawing, including customer marking and packaging.
What is the quality guarantee for this product?
A 3 month quality guarantee is provided. If a nozzle fails in service, send us a photo and the operating conditions for assessment.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email for confirmation.
How is the nozzle identified in the field?
The nozzle features laser-etched text for part number and marking, enabling quick identification and traceability.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Nozzle with Diamond Orifice
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
