Stainless Steel Hex Body Spray Nozzle 5
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.

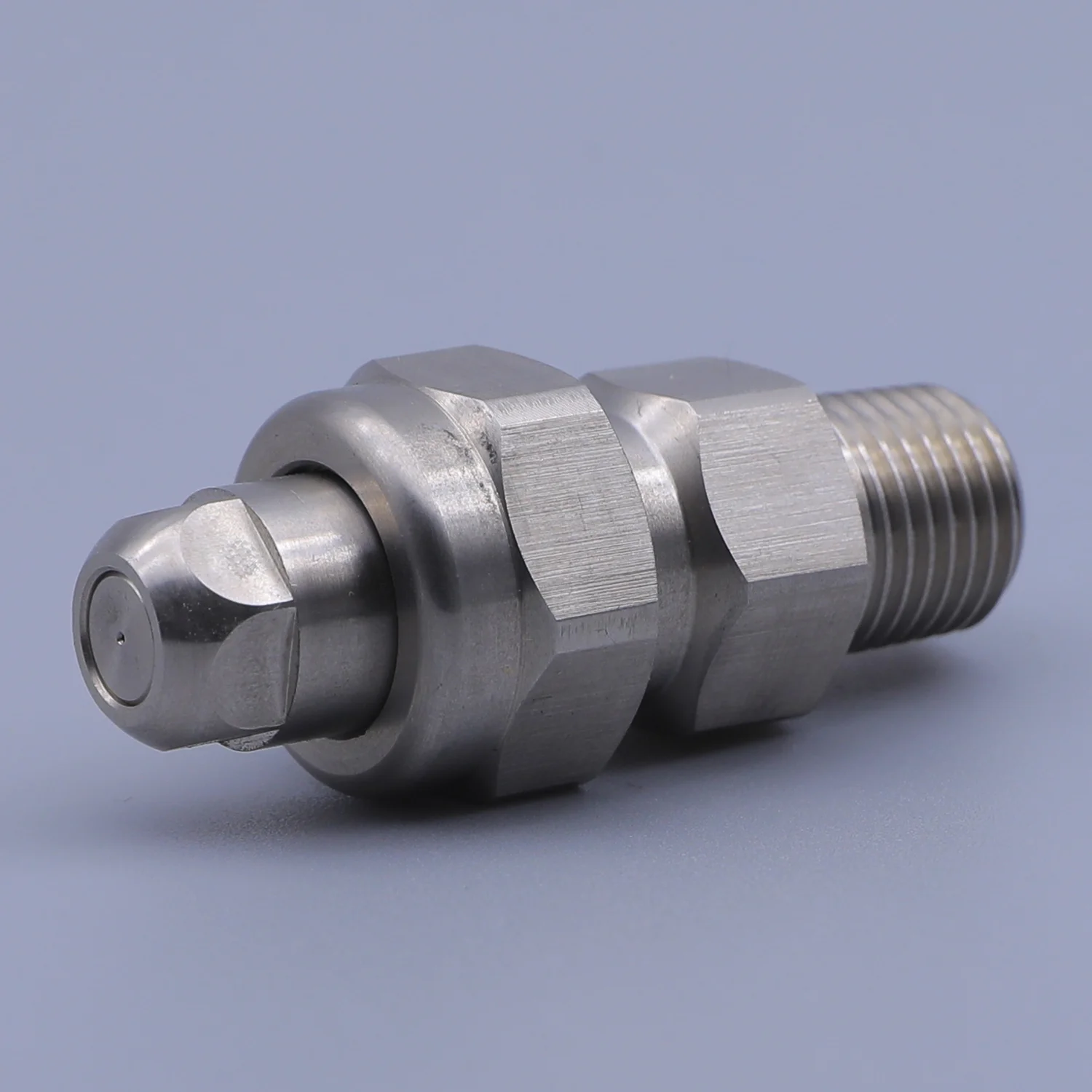

A stainless steel hex body spray nozzle delivers consistent spray distribution in high-pressure or abrasive industrial environments where mechanical strength and corrosion resistance are required. This CNSS nozzle is designed for use in paper making, parts washing, surface treatment, and general industrial cleaning lines where a durable, reliable nozzle body is needed to maintain spray pattern integrity under continuous operation.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Hex body provides secure grip during installation and reduces risk of damage during handling
- Stainless steel construction resists corrosion and wear in aggressive or high-pressure service
- Male threaded connection allows direct mounting into standard pipe fittings without adapters
- One-piece construction eliminates loose internal parts that could fail or clog
- Suitable for repeated cleaning cycles and high-temperature water or chemical service
- Free trial samples available to verify fit and spray pattern before full order commitment
Application Scenarios
Where It Is Installed
- Paper making lines where consistent water distribution is needed across a moving web
- Parts washing systems requiring durable nozzles that withstand repeated high-pressure rinsing
- Surface treatment lines using chemical solutions that attack softer materials
- General industrial cleaning applications where nozzle longevity and reliability are critical
- Maintenance teams replacing nozzles in harsh environments with limited access or downtime
Who It Is For
Buyers Who Specify It
- Maintenance managers replacing worn nozzles in high-pressure industrial systems
- Plant engineers specifying durable nozzles for chemical or abrasive service
- OEM machine builders integrating nozzles into equipment with tight space constraints
- Process engineers needing a reliable nozzle for continuous operation in paper or metal processing
- Procurement teams sourcing industrial nozzles with consistent performance and long life
Problems It Solves
What It Fixes on the Line
- Nozzle body deformation or thread stripping under repeated tightening or high pressure
- Corrosion or pitting in brass or plastic nozzles when exposed to water or chemicals
- Frequent replacement due to weak body materials in abrasive or high-temperature service
- Inconsistent spray pattern caused by loose internal parts or worn seals
- Difficulty installing nozzles in tight spaces due to lack of grip or improper body shape
Technical Features
How It Is Built
- One piece construction with no internal components to loosen or fail
- Hex body design allows secure gripping with standard tools during installation or removal
- Male threaded connection enables direct mounting into standard pipe fittings
- Stainless steel body resists deformation under pressure and thermal cycling
- Nozzle body is designed to maintain spray pattern integrity over time
- Nozzle is suitable for use in continuous operation with minimal maintenance
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial use with moderate pressure and temperature
- 316 stainless steel for service with chlorides or aggressive chemicals
- 304 stainless steel for applications requiring good corrosion resistance and mechanical strength
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's process duty and fluid type
- Machining of the hex body and threaded connection
- Inspection of thread accuracy and body geometry
- Final spray pattern verification before packaging
- Packaging and transportation with protection against damage
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking and packaging
- Small volume orders accepted for trial or replacement use
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Brass hex body nozzle | Brass is less resistant to corrosion and abrasion; stainless steel is preferred in chemical or high-pressure service |
|---|---|
| Plastic body nozzle | Plastic is lighter and cheaper but cannot withstand high pressure or temperature; stainless steel is better for harsh industrial environments |
| Nozzle with female thread | Male thread allows direct mounting into pipe fittings; female thread requires a coupling, adding complexity |
Use Guide
Fitting and Running It
- Confirm the thread standard and size against the existing pipe or fitting before ordering
- Use a wrench on the hex body to install or remove the nozzle without damaging the threads
- Inspect the nozzle for wear or clogging if spray pattern becomes uneven
- Ensure the mounting surface is clean and free of debris before installation
- Match the material to the fluid and temperature of the process to avoid premature failure
- Replace nozzles in sets if multiple units are used on a single line to maintain uniform spray
Questions Buyers Ask
Stainless Steel Hex Body Spray Nozzle 5 Questions
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are available within 10 days of request.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard nozzles can be made to your drawing under an OEM order, including custom marking.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us the photo and operating conditions for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Provide the model, quantity, and destination port by email, and we will confirm the payment terms.
Is this nozzle suitable for high-pressure applications?
Yes. The stainless steel hex body is designed for high-pressure and abrasive service, with a one-piece construction to maintain structural integrity.
How do I install this nozzle?
Use a wrench on the hex body to tighten the male thread into the fitting. Ensure the body is aligned and not cross-threaded during installation.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Hex Body Spray Nozzle 5
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
