General Nozzle
Stainless Steel Hex Body Spray Nozzle 4
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.

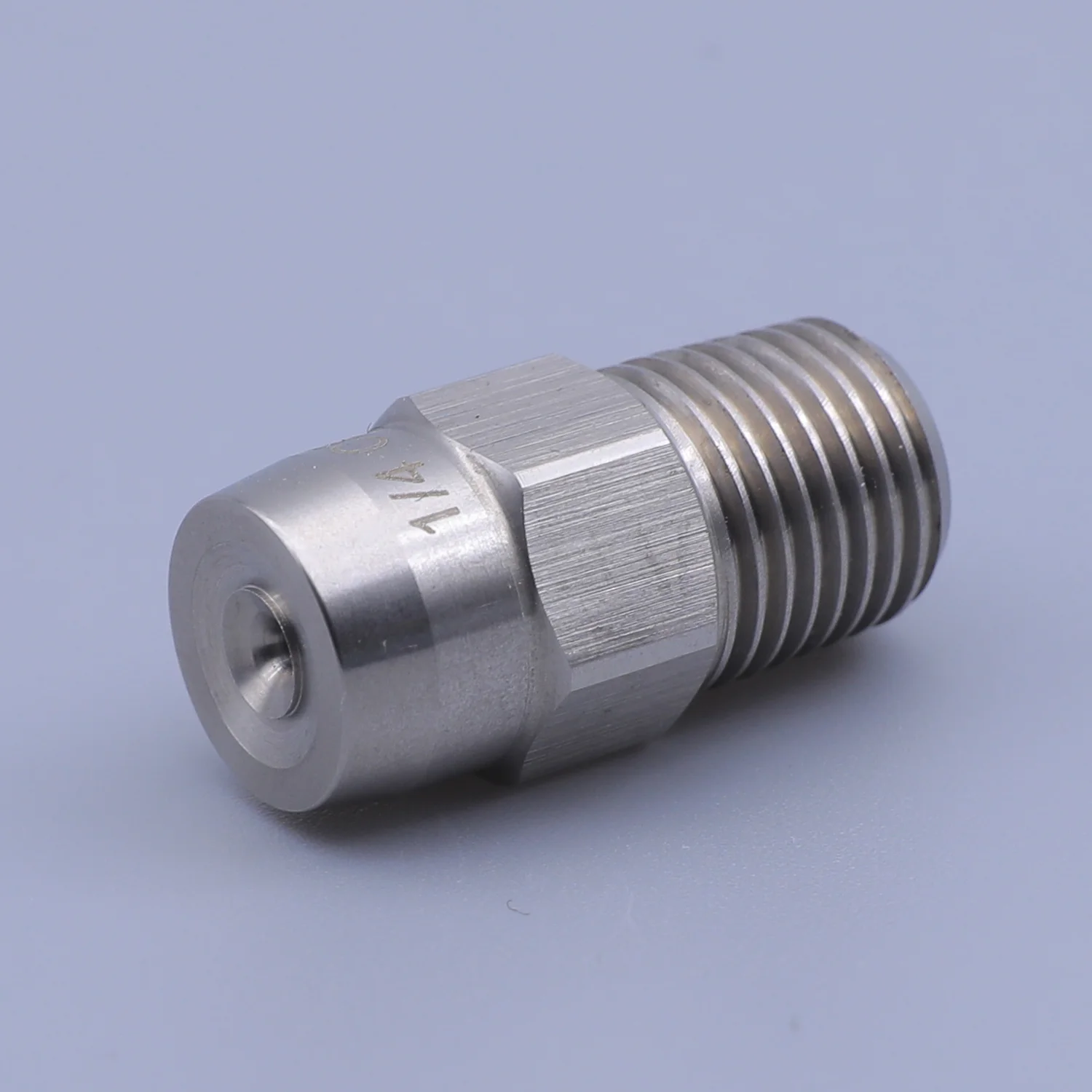

A stainless steel hex body spray nozzle delivers consistent spray distribution in high-pressure or chemically aggressive environments, which is essential when maintaining uniform coverage on paper web lines, washing systems, or surface treatment processes where corrosion resistance and mechanical stability are required.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Hex body design provides a secure grip for installation and maintenance in tight or high-vibration areas
- Stainless steel construction resists corrosion and wear in harsh industrial environments
- Threaded fitting with engraved size marking allows quick identification and replacement
- Robust body geometry supports high-pressure operation without deformation
- Male thread configuration enables direct mounting on standard pipe fittings
- No internal components to disassemble or lose during operation
Application Scenarios
Where It Is Installed
- Paper machine wet end where consistent water distribution is needed across the web width
- Parts washing systems requiring durable nozzles in continuous high-pressure operation
- Surface treatment lines where chemical resistance and mechanical strength are critical
- Industrial cleaning systems exposed to abrasive or corrosive fluids
- Maintenance teams replacing nozzles in high-pressure washing or cooling circuits
Who It Is For
Buyers Who Specify It
- Maintenance managers replacing nozzles in paper machines or washing lines
- Plant engineers specifying durable nozzles for high-pressure or corrosive duty
- OEM machine builders integrating nozzles into industrial equipment
- Facility managers upgrading to stainless steel components for longer service life
- Procurement engineers sourcing reliable nozzles with consistent material and thread standards
Problems It Solves
What It Fixes on the Line
- Nozzle failure due to corrosion in chemical or high-pressure washing environments
- Loose or misaligned nozzles during operation caused by weak body design
- Difficulty identifying nozzle size during replacement due to lack of marking
- Inconsistent spray pattern from deformed or worn bodies under pressure
- Frequent replacement of low-grade nozzles in demanding industrial processes
Technical Features
How It Is Built
- One piece stainless steel body with no internal parts to fail or loosen
- Hexagonal body provides stable grip for wrench installation and removal
- Male thread allows direct connection to standard pipe fittings
- Engraved size marking on the body for quick identification
- Designed for high-pressure service with no deformation under rated conditions
- No internal filter or strainer, so flow is not restricted by debris
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial washing and rinsing duty
- 316 stainless steel where chlorides or aggressive chemicals are present
- 304 stainless steel for moderate chemical and temperature exposure
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's process conditions
- Machining of the hex body and threaded end
- Inspection of thread accuracy and body dimensions
- Packaging in protective containers
- Transportation with handling controls to prevent damage
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Plastic body nozzle | Plastic nozzles are lighter and cheaper but degrade under UV, high temperature, or chemical exposure; stainless steel is more durable in harsh industrial conditions |
|---|---|
| Brass body nozzle | Brass is less expensive but more prone to corrosion in chlorinated or alkaline environments; stainless steel offers better resistance in aggressive duty |
| Nozzle with internal filter | Filtered nozzles protect against clogging but require regular cleaning; this model has no internal filter, so it is less prone to blockage but requires upstream filtration |
| Nozzle with female thread | Female thread allows connection to male fittings, but this model uses male thread, which is better for direct mounting on pipe ends |
Use Guide
Fitting and Running It
- Confirm the thread standard and size against the existing piping before ordering
- Ensure the operating pressure does not exceed the nozzle's rated limit
- Inspect the orifice for wear or debris if spray pattern becomes uneven
- Use a wrench on the hex body to install or remove the nozzle securely
- Match the material to the fluid chemistry and temperature of the process
- Clean upstream filters regularly to prevent clogging in the nozzle
Questions Buyers Ask
Stainless Steel Hex Body Spray Nozzle 4 Questions
What materials are available for this stainless steel hex body spray nozzle?
The nozzle is available in 303 stainless steel, 304 stainless steel, and 316 stainless steel, selected based on the chemical and temperature conditions of your process.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard nozzles can be made to your drawing under an OEM order, including customer marking.
What is the lead time for samples and production orders?
Samples can be ready within 10 days. Production lead time depends on order volume and is confirmed upon enquiry.
What happens if a nozzle fails during the 3 month guarantee period?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the service conditions by email and we will assess the wear pattern.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email and we will confirm the terms for your order.
Is the thread size and spray pattern confirmed on the product?
The thread size is confirmed on the product via the engraved marking. The spray pattern is determined by the orifice design and is confirmed against your duty sheet or drawing.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Hex Body Spray Nozzle 4
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
